CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 3000K(Warm White)
CDAC-136-5028-347-3000K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 3000K(Warm White)
SKU: SKU:666561430672
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Paragon LED Module |
| Model No | CDAC-136-5028-347-3000K |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 136 |
| Wattage | 20W |
| Voltage | 347V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 2300 Lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

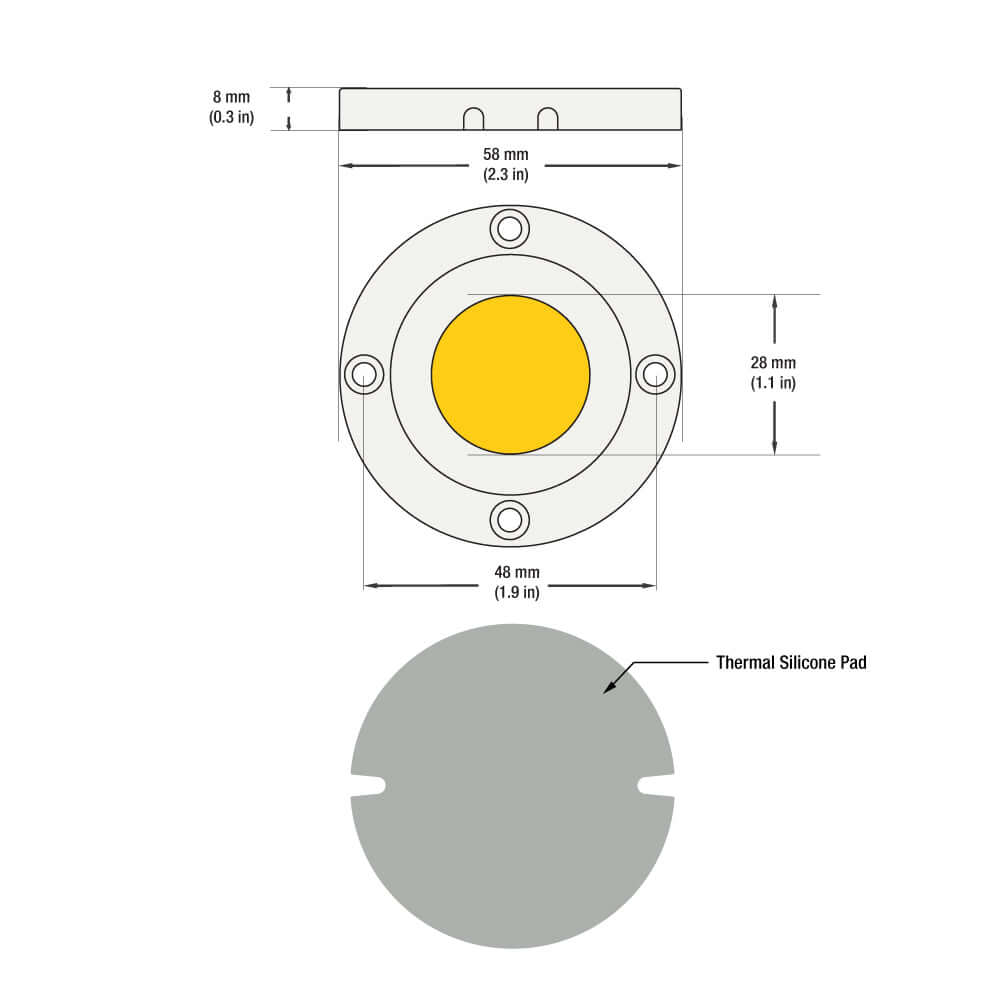

| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |

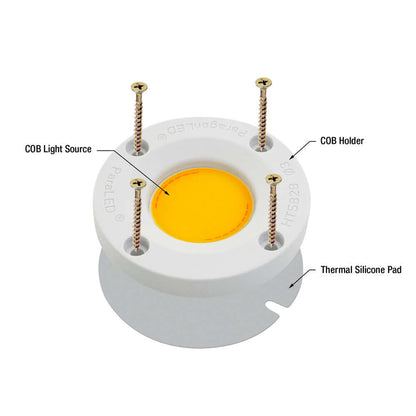

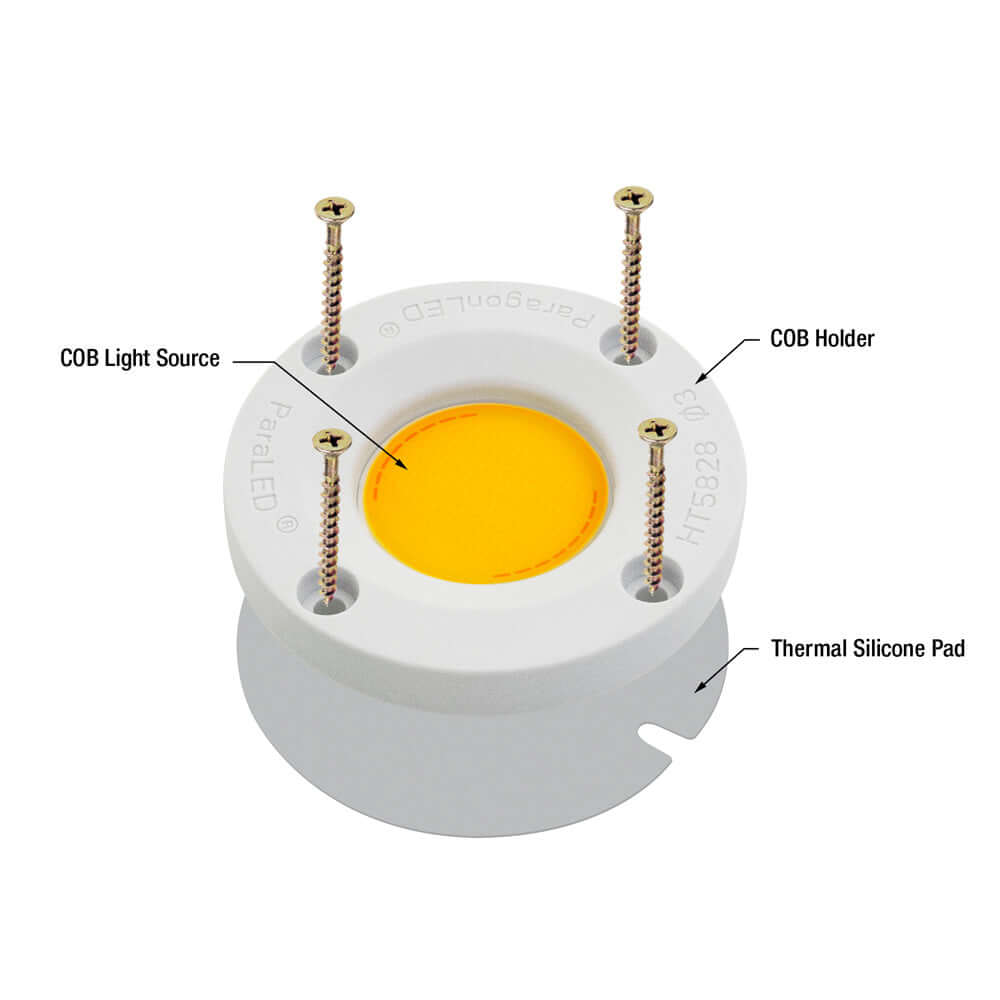

| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |
The CDAC-136-5028-347-3000K Paragon LED Module is a COB LED module designed for indoor lighting applications. It comes with an HT5828 LED holder and has a voltage of 347V AC with a wattage of 20W. The module has 136 LED chips and produces a warm white light with a color temperature of 3000K. It has a high power factor (PF>0.85) and a high luminous intensity of 2300 lumens.
This LED module is dimmable and has a high color rendering index (CRI>80). It has an IP20 rating, making it suitable for use in damp locations. To prevent overheating and ensure a longer lifespan, this module requires an aluminum heat sink, which can be easily attached using the included COB holder. The module also comes with a silicone grease thermal pad that provides better heat dissipation.
The CDAC-136-5028-347-3000K LED module is energy-efficient and has a low power consumption. It is designed to be used in various types of luminaires and is generally suitable for most lighting applications. It also includes a polycarbonate diffuser that helps reduce glare and refract light in a wider beam. When designing lamps using this module, it is important to ground the light fixtures to ensure safety. The product is UL certified.
Features:
- The CDAC-136-5028-347-3000K Paragon LED Module is designed for indoor lighting applications
- It features a COB LED module with an HT5828 LED holder and has a voltage of 347V AC with a wattage of 20W
- The module includes 136 LED chips that produce a warm white light with a color temperature of 3000K
- It has a high power factor (PF>0.85) and a high luminous intensity of 2300 lumens
- The module is dimmable and has a high color rendering index (CRI>80)
- It has an IP20 rating, making it suitable for use in damp locations
- An aluminum heat sink is required to prevent overheating and ensure a longer lifespan, which can be easily attached using the included COB holder
- The module also comes with a silicone grease thermal pad that provides better heat dissipation
- The module includes a polycarbonate diffuser that helps reduce glare and refract light in a wider beam
- It is important to ground the light fixtures to ensure safety when designing lamps using this module
- The product is UL certified.
