Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | PUP20T-1LMC-700 |
| Input Voltage | 120VAC |
| Input Current | 0.23Amax@120VAC |

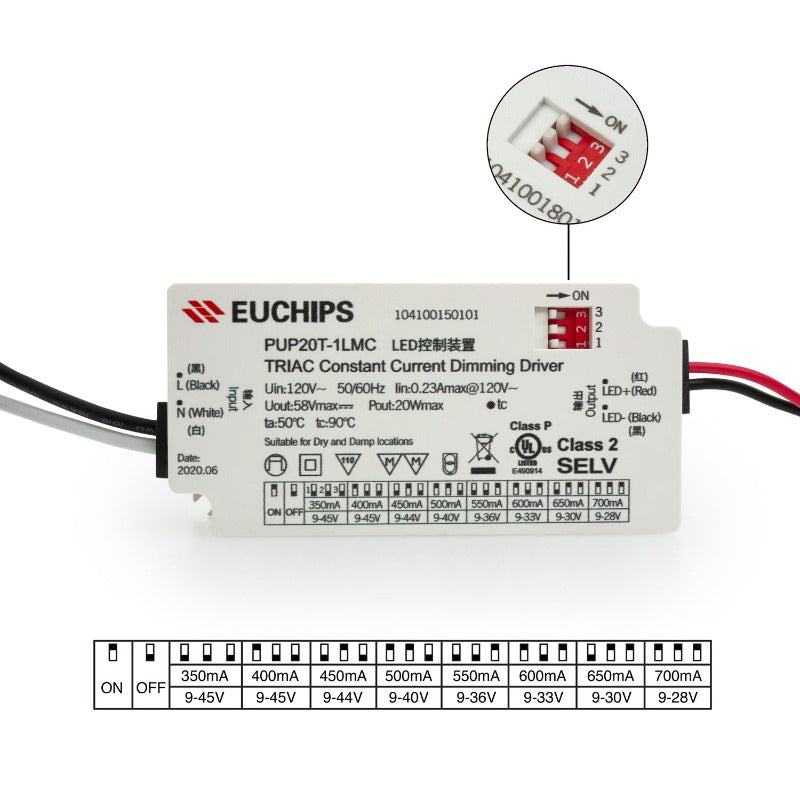

| Output Current/Voltage/Power | 350mA/9-45V/15.75W 400mA/9-45V/18W 450mA/9-44V/19.8W 500mA/9-40V/20W 550mA/9-36V/19.8W 600mA/9-33V/19.8W 650mA/9-30.7V/20W 700mA/9-28.5V/20W |
| No-load Output Voltage | 58V Max |
| Input Frequency | 50/60Hz |
| Dimming Type | Triac |
| Dimming Range | 3%-100% |
| IP Rating | IP20 (Dry and Damp Locations) |
| Efficiency | >81%@120VAC, Full load |
| Working Temperature | -20℃~50℃ |
| Lifetime | 50,000h @ Tc:85℃ |

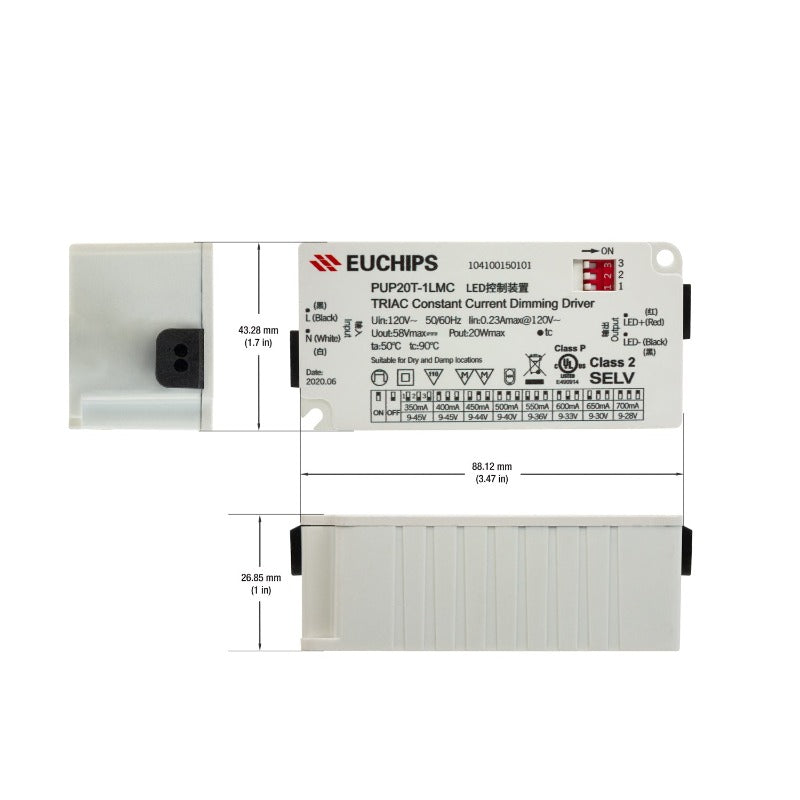

| Dimensions | 88 x 43 x 26.5mm (3.4 x 1.6 x 1in) |
| Certifications |   |

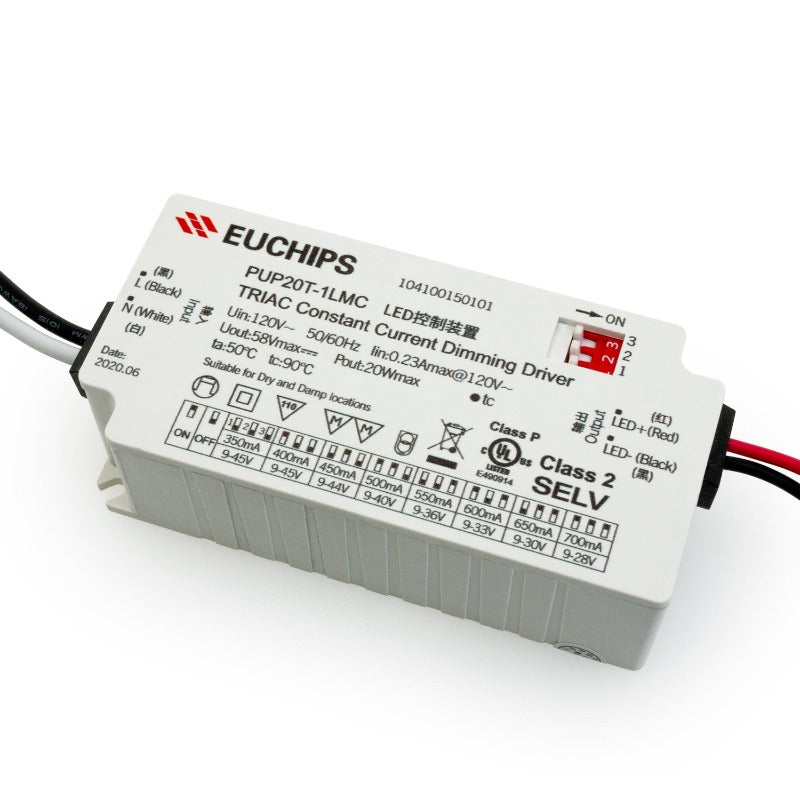

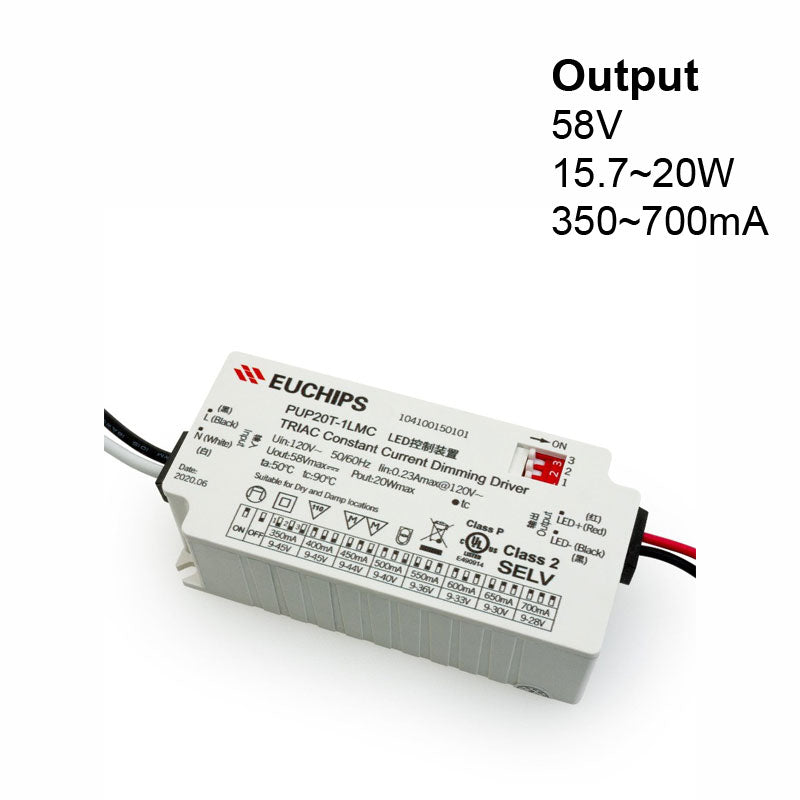

The PUP20T-1LMC-700 is a selectable constant current LED driver that operates on an input voltage of 120VAC, with an input current of 0.3A maximum. It is designed to provide a constant current output ranging from 350 to 700mA, with a corresponding output voltage range of 9-45VDC and a maximum power output of 20W.
This LED driver is designed with Triac dimming technology, which allows for smooth dimming from 3% to 100%. The driver is rated for use in both dry and damp locations with an IP20 rating. The efficiency of the driver is greater than 81% at full load.
The PUP20T-1LMC-700 LED driver has a maximum no-load output voltage of 58V and operates on a frequency of 50/60Hz. It has a working temperature range of -20℃ to 50℃, and a lifetime of up to 50,000 hours when operated at a maximum case temperature of 85℃. The dimensions of the driver are 88 x 43 x 26.5mm (3.4 x 1.6 x 1in).
Features:
- The PUP20T-1LMC-700 is a selectable constant current LED driver
- Operates on an input voltage of 120VAC
- Input current of 0.3A maximum
- Provides a constant current output ranging from 350 to 700mA
- Output voltage range of 9-45VDC
- Maximum power output of 20W
- Designed with Triac dimming technology
- Smooth dimming from 3% to 100%
- Rated for use in dry and damp locations with an IP20 rating
- Efficiency greater than 81% at full load
- Maximum no-load output voltage of 58V
