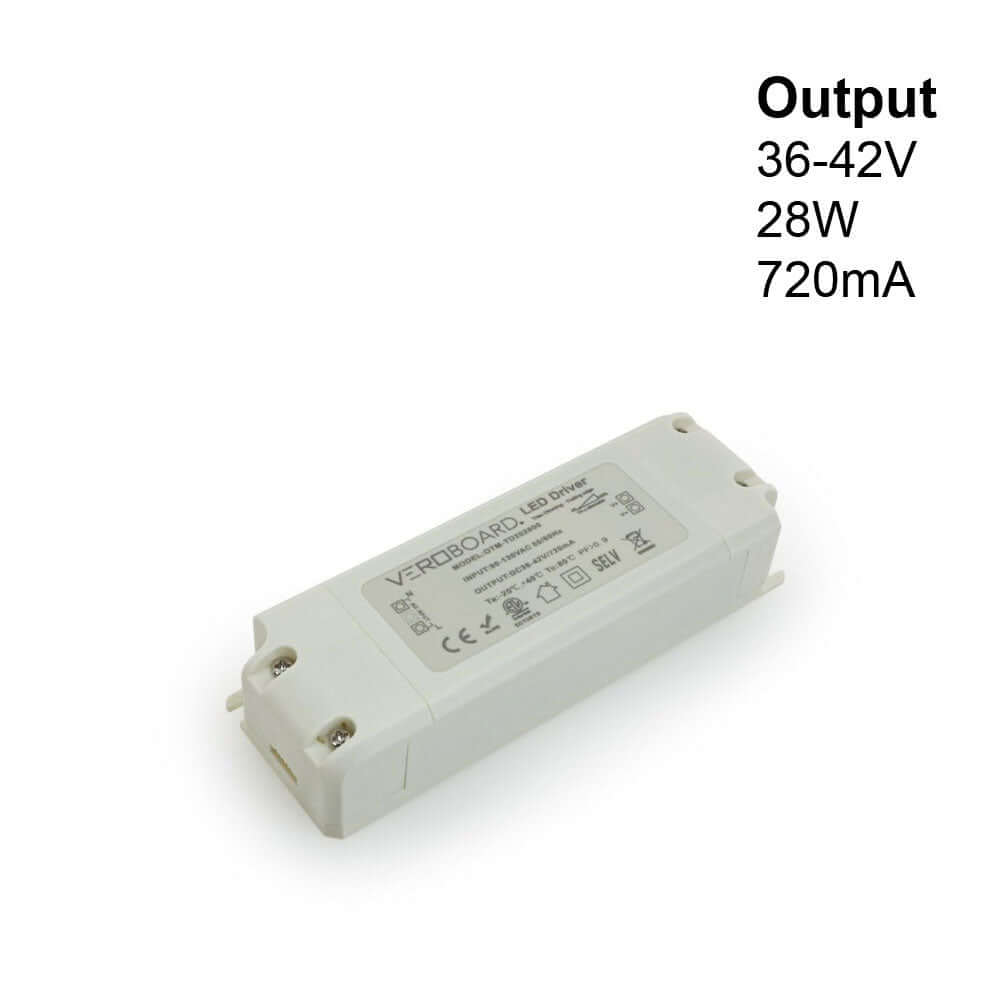

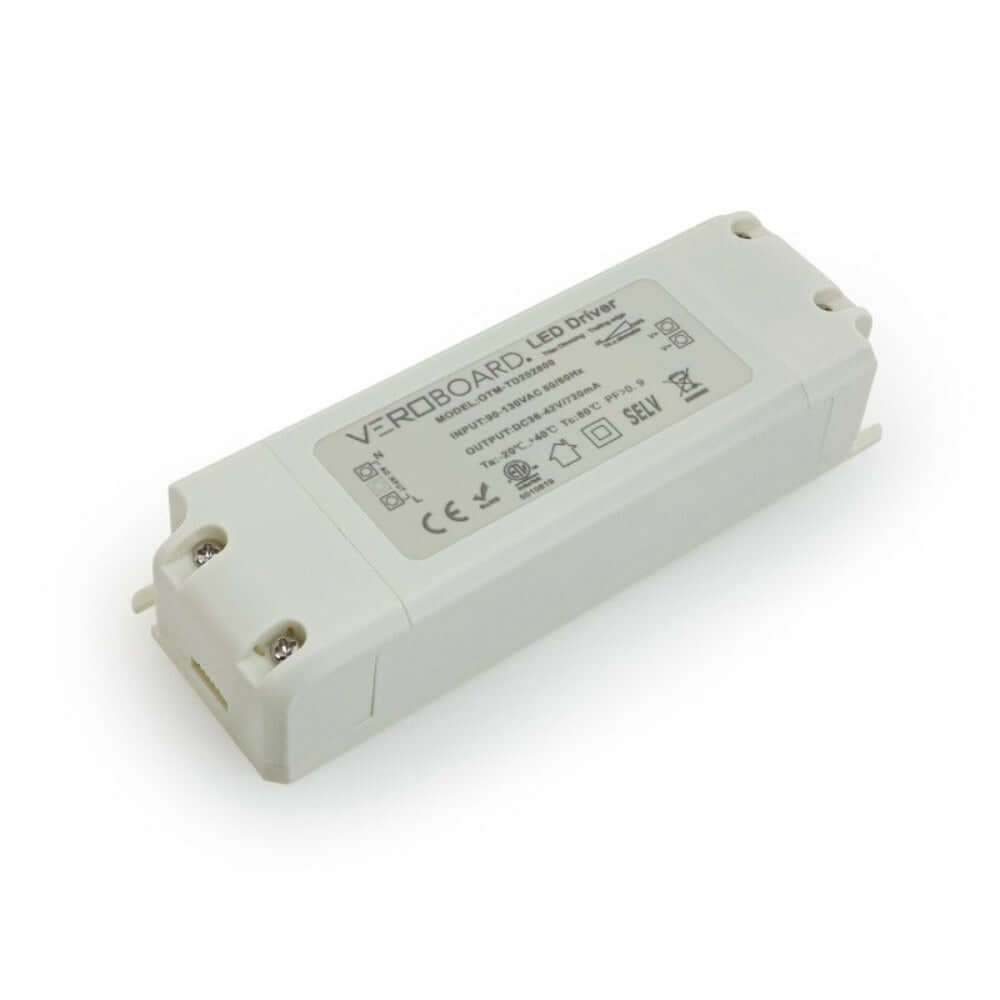

OTM-TD202800-720-28 Constant Current LED Driver, 720mA 36-42V 28W Dimmable
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD202800-720-28 |
Input Voltage | 90-130V AC |
Input Current | 0.9A |
Input Frequency | 50-60Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 720mA |
Output Power | 28W |
Output Voltage | 36-42V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Dry and Damp Locations) |

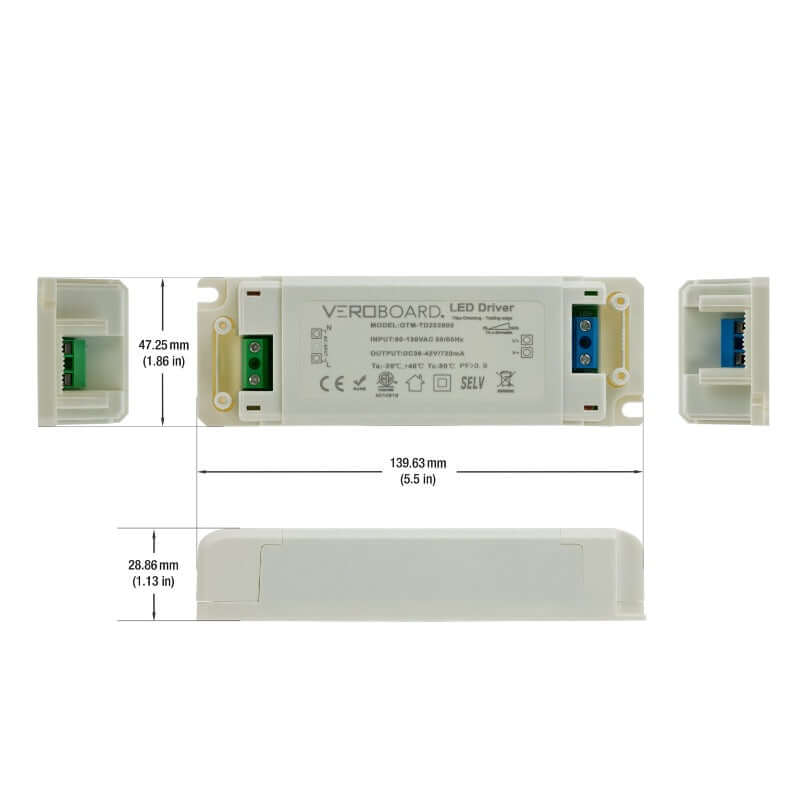

Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
Class Certification | Class 2 |
Certification |
![]() ![]() |
The OTM-TD202800-720-28 Constant Current LED Driver is a high-quality driver designed to provide a constant current of 720mA to an LED light source. This driver is suitable for driving LED light sources that have an operating voltage range of 36-42V DC, making it ideal for various LED lighting applications.
The driver has a model number of OTM-TD202800-720-28 and an input voltage range of 90-130V AC. It has an input current of 0.9A and an input frequency of 50-60Hz. The driver has a high power factor of PF>0.95, which means it can operate efficiently, reducing energy consumption and minimizing power losses. Additionally, it has an efficiency of >85%, which further contributes to its energy-saving capabilities.
The OTM-TD202800-720-28 is a dimmable driver that can be used with Triac dimming systems. The dimming feature makes it ideal for areas where variable light intensity is desired, such as in restaurants, retail stores, and other commercial settings.
The driver can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C, which helps to ensure reliable and stable operation. It has an IP20 rating, which means it is suitable for use in dry and damp locations.
The driver's dimensions are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in), and it has a Class 2 certification. This certification indicates that the driver has been designed to meet specific safety requirements for use in low voltage applications.
Overall, the OTM-TD202800-720-28 Constant Current LED Driver is a high-quality, efficient, and dimmable driver that is ideal for various LED lighting applications. It provides a constant current to LED light sources, reducing energy consumption and minimizing power losses. Additionally, it has a dimming feature, making it ideal for commercial settings where variable light intensity is desired.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The OTM-TD202800-720-28 is a Constant Current LED Driver designed to provide a constant current of 720mA to an LED light source.
- The driver has a model number of OTM-TD202800-720-28 and an input voltage range of 90-130V AC, with an input current of 0.9A and an input frequency of 50-60Hz.
- The driver has a high power factor of PF>0.95 and an efficiency of >85%, contributing to its energy-saving capabilities.
- The OTM-TD202800-720-28 is a dimmable driver that can be used with Triac dimming systems.
- The driver can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C, ensuring reliable and stable operation.
- The driver has an IP20 rating, making it suitable for use in dry and damp locations.
- The dimensions of the driver are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in).
- The driver has a Class 2 certification, indicating that it has been designed to meet specific safety requirements for use in low voltage applications.
- The OTM-TD202800-720-28 driver is ideal for various LED lighting applications, providing a constant current to LED light sources and minimizing power losses, while also being dimmable for settings where variable light intensity is desired.
How to Install OTM-TD202800-720-28 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

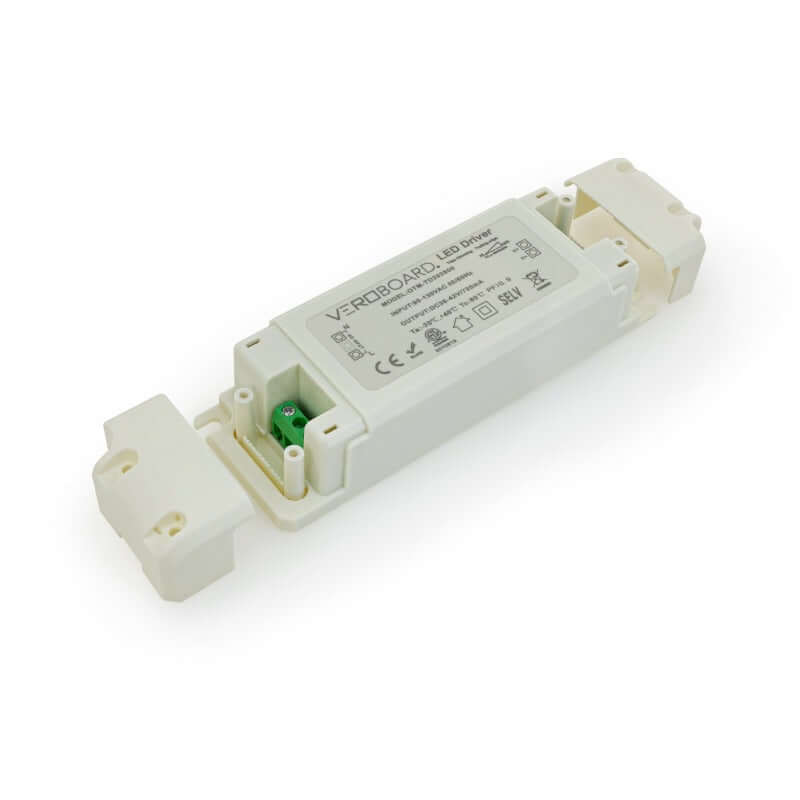

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
