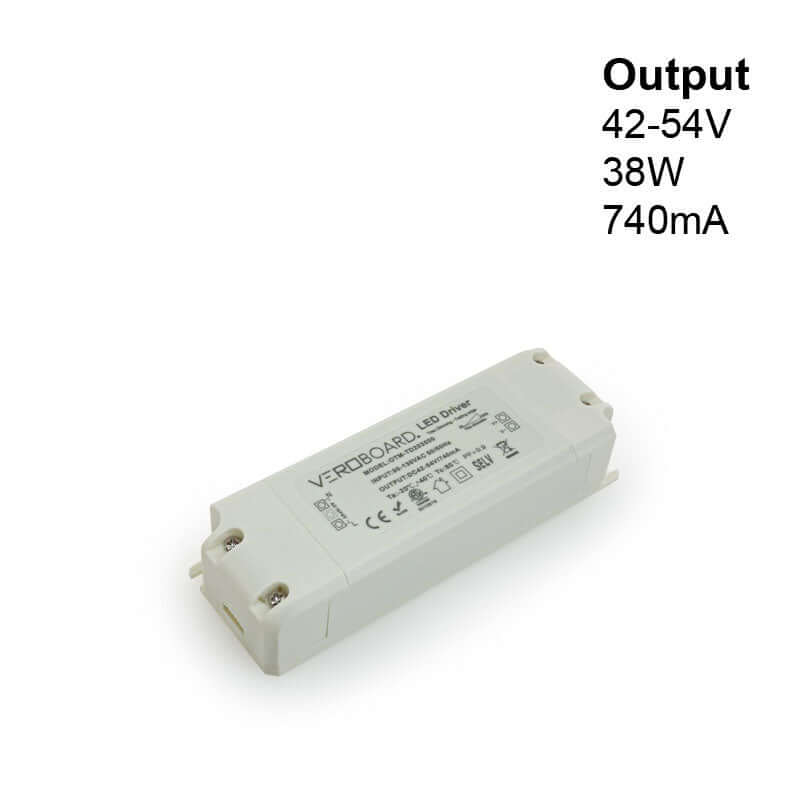

OTM-TD203500-740-38 Constant Current LED Driver, 740mA 42-54V 38W Dimmable

  • $59.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426484
Title:
We only have 19 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Product Constant Current LED Driver
Model OTM-TD203500-740-38
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 740mA
Output Power 38W
Output Voltage 42-54V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

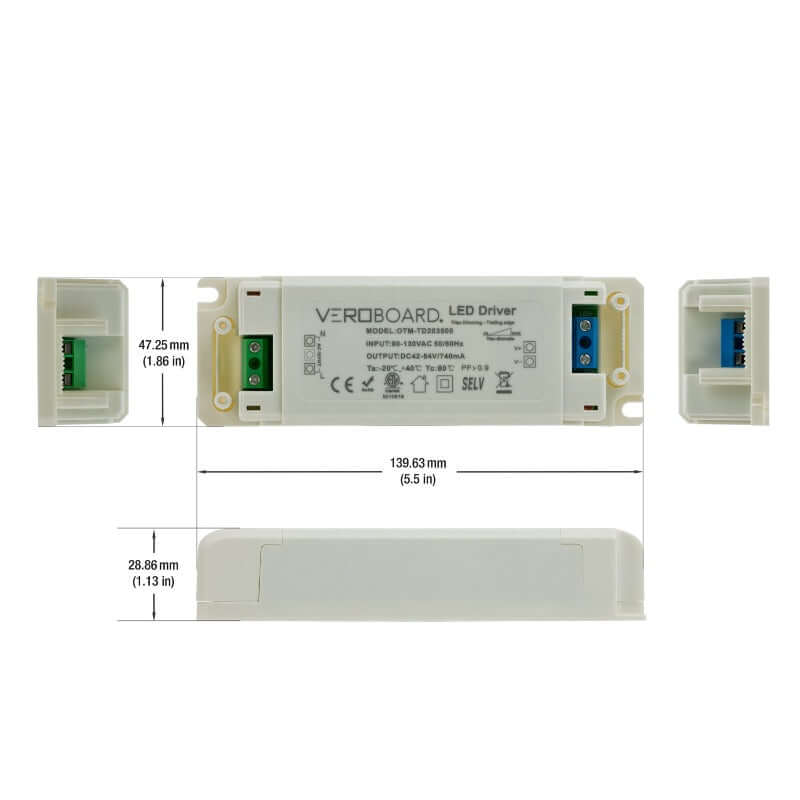

Dimensions 139.63mm x 47.25mm x 28.86mm
(5.5in x 1.86in x 1.13in)
Class Certification Class 2
Certification




The OTM-TD203500-740-38 is a constant current LED driver designed to power LED lighting fixtures. The model is equipped with a Triac dimming feature, allowing users to adjust the brightness of their lights. The driver has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60Hz.

The power factor of the driver is greater than 0.95, indicating that it is highly efficient in converting AC power to DC power. The efficiency of the driver is also greater than 85%, which helps to reduce energy consumption and operating costs.

The driver's output is a regulated current of 740mA, with an output power of 38W. The output voltage ranges from 42-54V DC, making it compatible with a wide range of LED lighting fixtures.

Features:

  • The OTM-TD203500-740-38 is a constant current LED driver for powering LED lighting fixtures, with Triac dimming feature for brightness adjustment.
  • Input voltage range of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
  • High efficiency with power factor >0.95 and efficiency >85% to reduce energy consumption and operating costs.
  • Regulated current output of 740mA and output power of 38W, with output voltage range of 42-54V DC, making it compatible with various LED fixtures.
  • Suitable for operation in ambient temperatures up to 40°C, with case temperature limit of 90°C, and IP20 rating for use in dry and damp locations.
  • Dimensions are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) and has Class 2 certification for safety standards in low voltage applications.

How to Install OTM-TD203500-740-38 Dimming Constant Current LED Driver?

  1. Ensure that the power is turned off.
  2. Verify the output current of both the light and the driver.

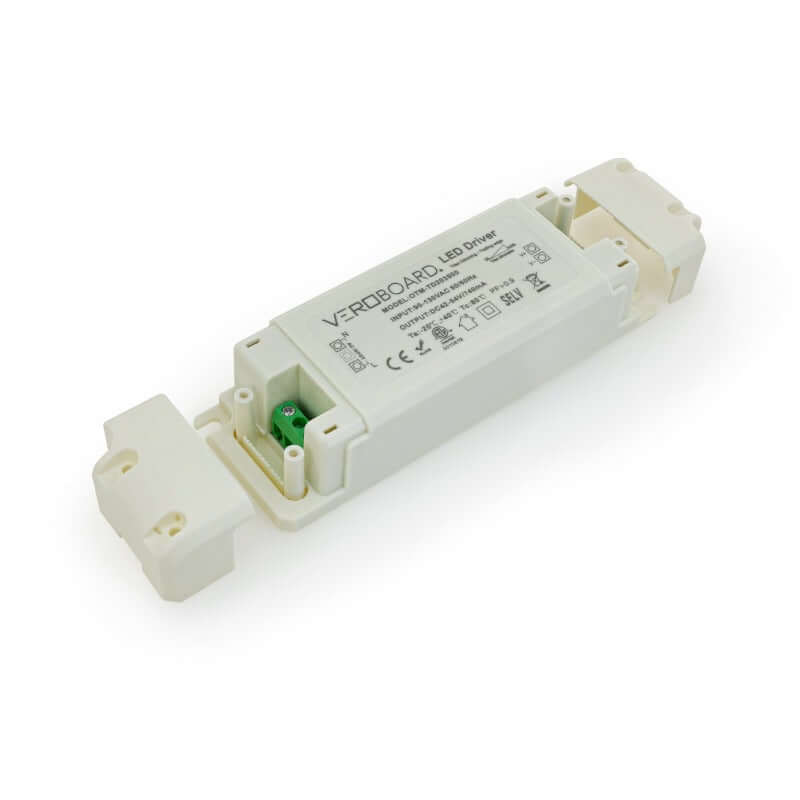

  3. Remove the caps on both sides and loosen the screws on the green terminals.
  4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
  5. Connect the positive wire of the light to V+ and the negative wire to V-.
