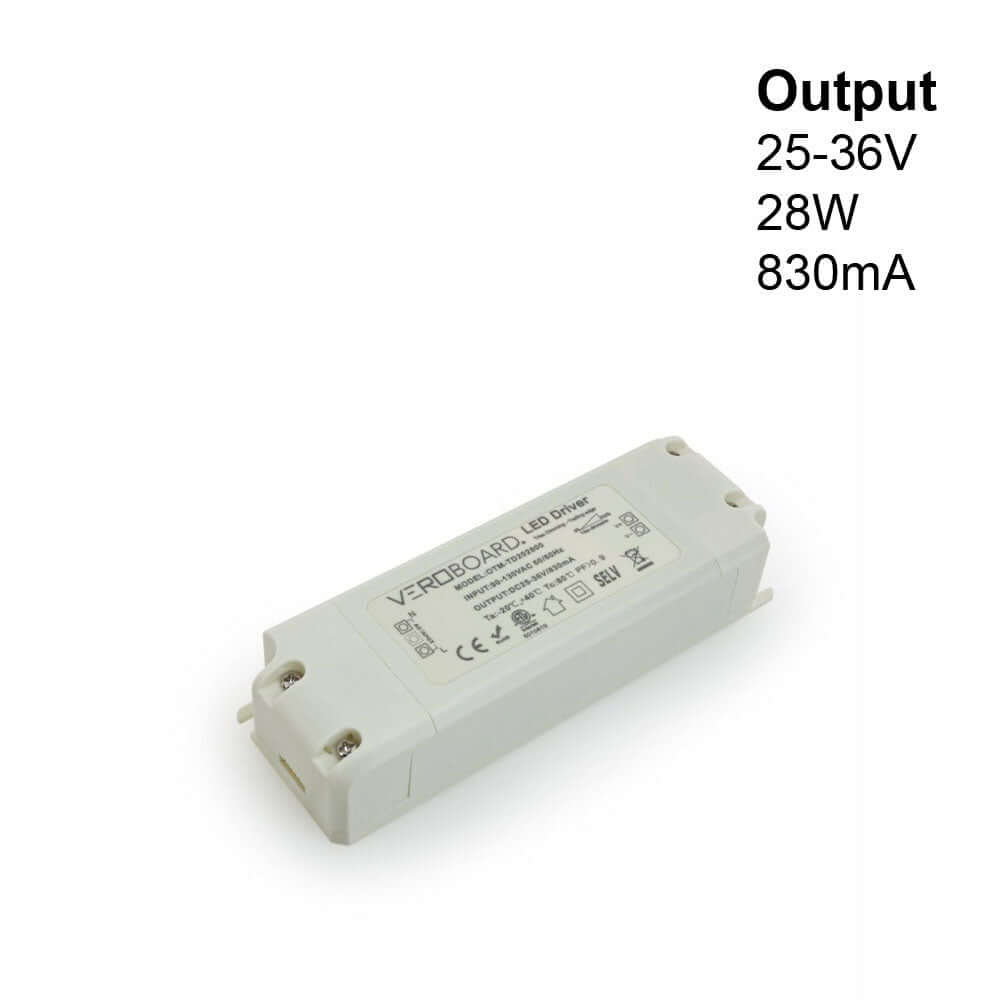

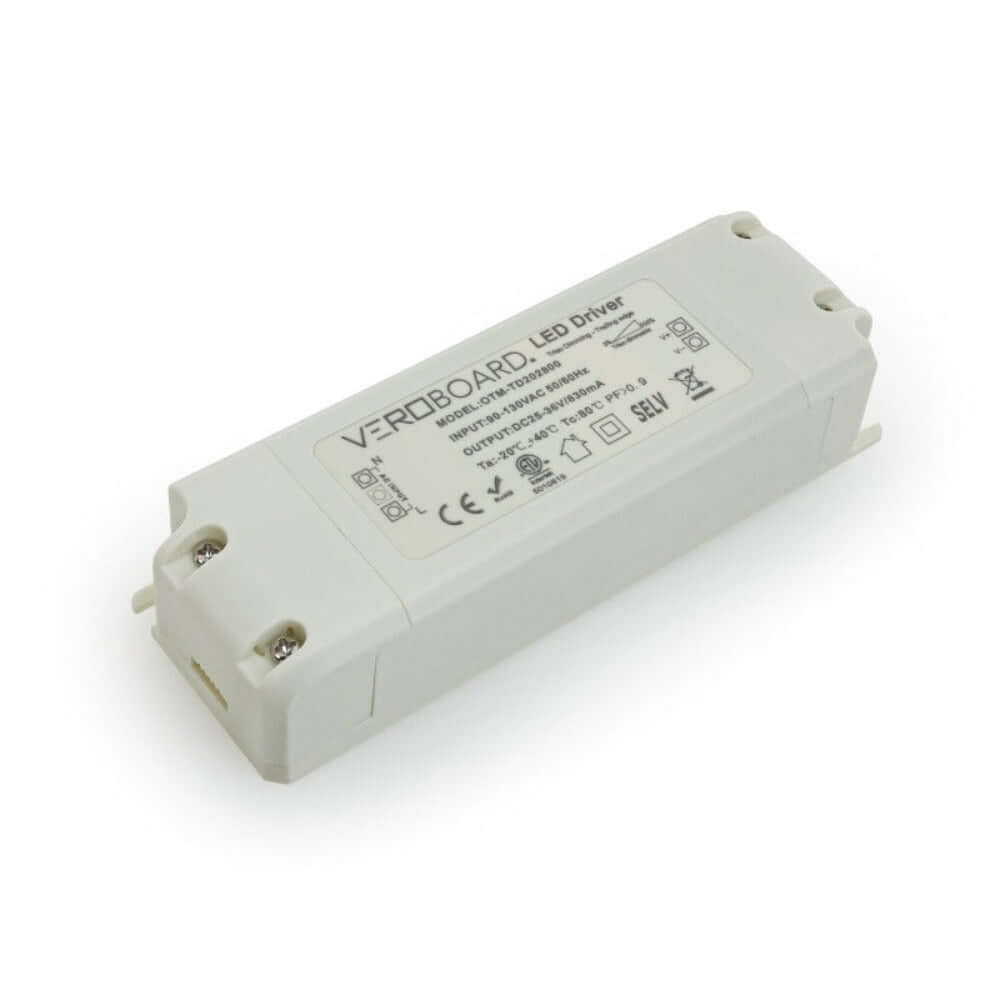

OTM-TD202800-830-28 Constant Current LED Driver, 830mA 25-36V 28W Dimmable
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD202800-830-28 |
Input Voltage | 90-130V AC |
Input Current | 0.9A |
Input Frequency | 50-60Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 830mA |
Output Power | 28W |
Output Voltage | 25-36V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Dry and Damp Locations) |

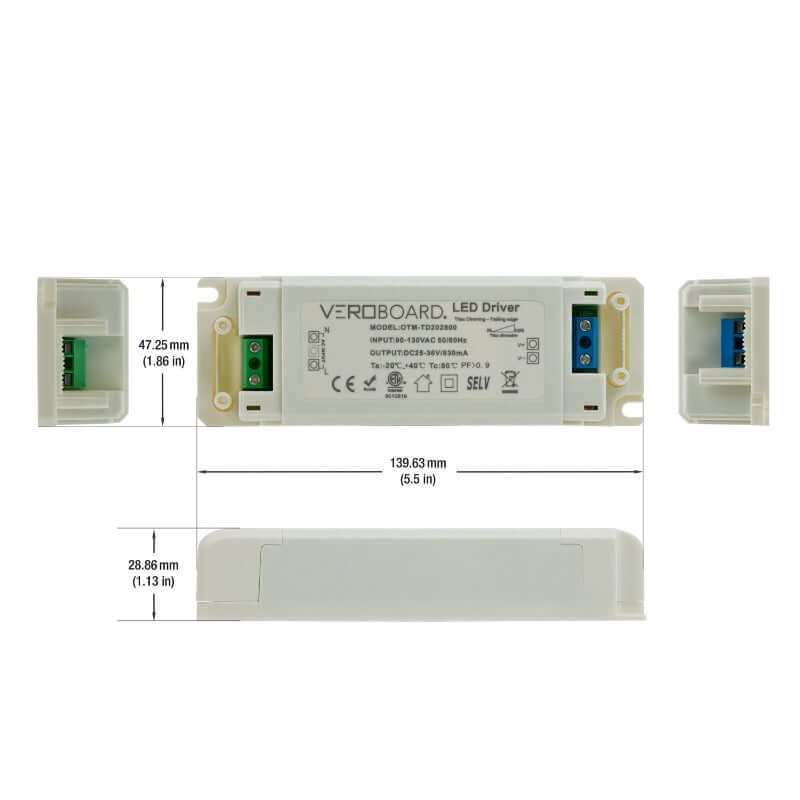

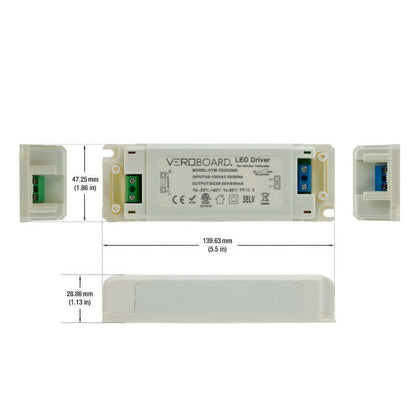

Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
Class Certification | Class 2 |
Certification |
![]() ![]() |
The OTM-TD202800-830-28 is a Constant Current LED Driver with a model number of OTM-TD202800-830-28. It is designed to regulate the current supplied to an LED light source and provide a constant current of 830mA with an output power of 28W. The driver is capable of driving LED light sources that have an operating voltage range of 25-36V DC.
The input voltage of the driver is 90-130V AC with an input current of 0.9A and an input frequency of 50-60Hz. The driver has a high power factor of PF>0.95 and an efficiency of >85%, which ensures that it can operate efficiently and effectively.
The OTM-TD202800-830-28 is a dimmable driver and can be used with Triac dimming systems. It can be operated in ambient temperatures of up to 40°C and has a case temperature of up to 90°C. The driver has an IP20 rating, which makes it suitable for dry and damp locations.
The dimensions of the driver are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in), and it has a Class 2 certification, which means that it has been designed to meet specific safety requirements for use in low voltage applications.
Overall, the OTM-TD202800-830-28 Constant Current LED Driver is a high-quality, efficient, and dimmable driver that is suitable for a wide range of LED lighting applications in dry and damp locations.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- It is designed to regulate the current supplied to an LED light source and provide a constant current of 830mA with an output power of 28W.
- The driver is capable of driving LED light sources that have an operating voltage range of 25-36V DC.
- The input voltage of the driver is 90-130V AC with an input current of 0.9A and an input frequency of 50-60Hz.
- The driver has a high power factor of PF>0.95 and an efficiency of >85%.
- The OTM-TD202800-830-28 is a dimmable driver and can be used with Triac dimming systems.
- It can be operated in ambient temperatures of up to 40°C and has a case temperature of up to 90°C.
- The driver has an IP20 rating, which makes it suitable for dry and damp locations.
- The dimensions of the driver are 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in).
- It has a Class 2 certification, which means that it has been designed to meet specific safety requirements for use in low voltage applications.
- Overall, the OTM-TD202800-830-28 Constant Current LED Driver is a high-quality, efficient, and dimmable driver that is suitable for a wide range of LED lighting applications in dry and damp locations.
How to Install OTM-TD202800-830-28 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

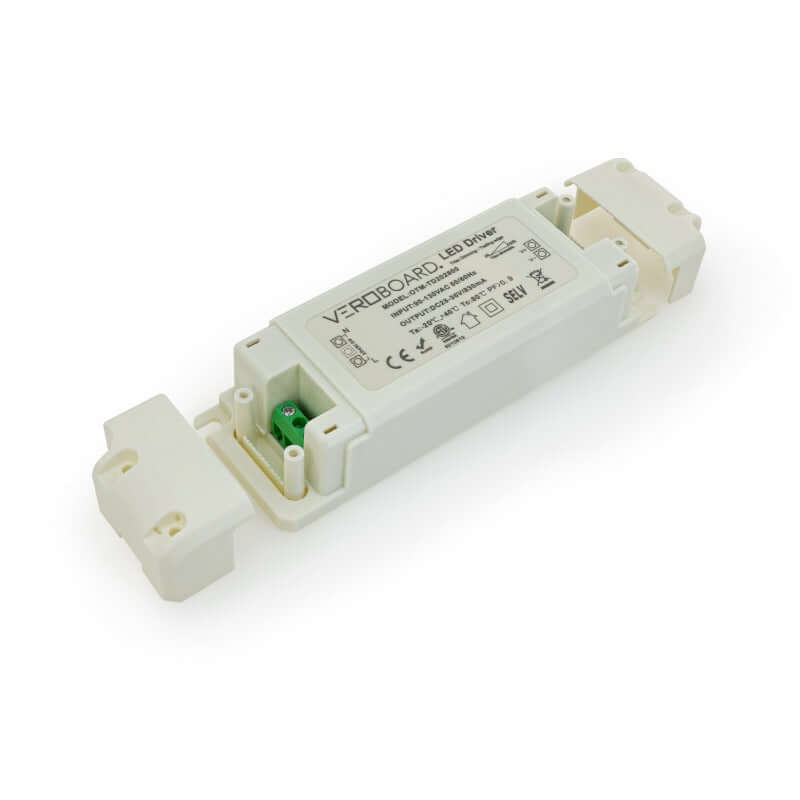

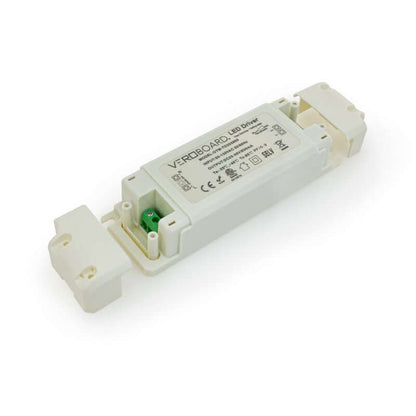

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
