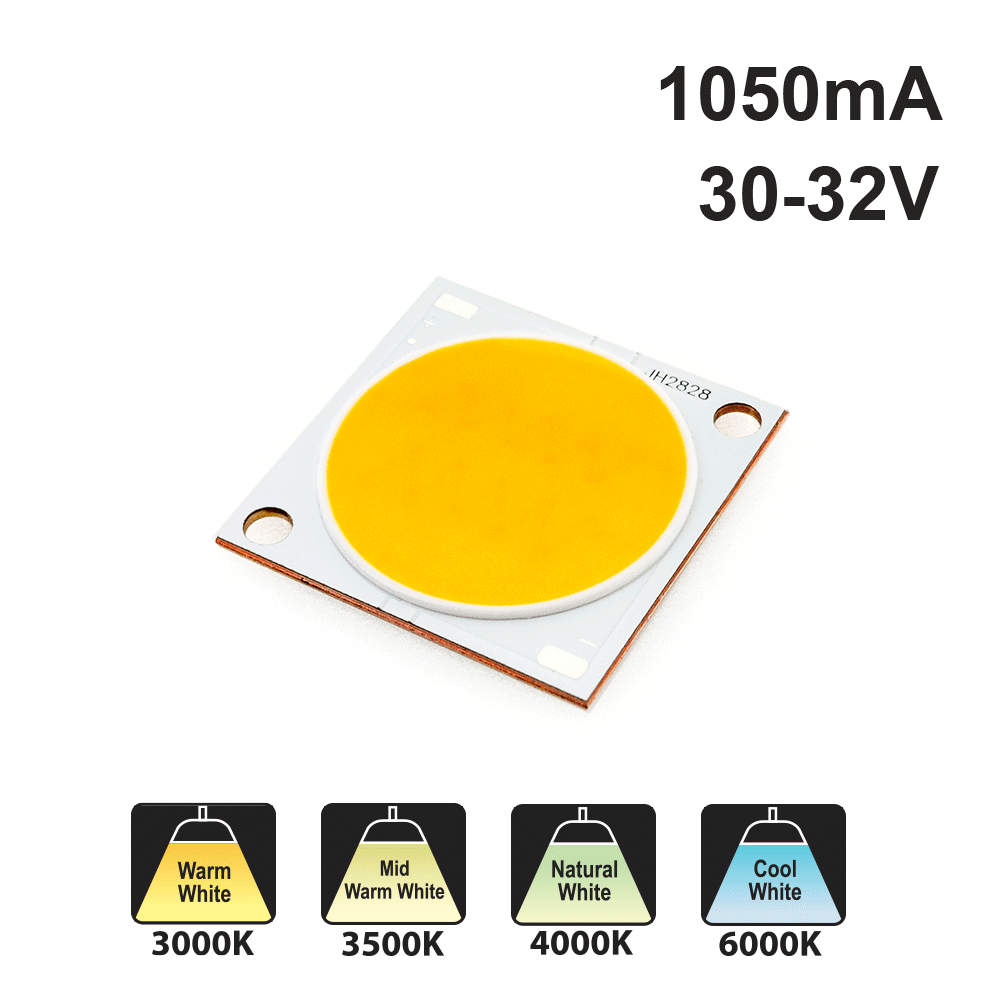

Constant Current COB LED Module, 1050mA 30-32V 30W CCT(3K, 3.5K, 4K, 6K)
Product Description
| Model |
30WW14E33-J4C (For 3000K, 3500K) |
| Voltage | 30-32V |
| Wattage | 30W |
| Current | 1050mA |
| Luminous Flux | 2000-2500lm (For 3000K) & 2500-3000lm (For 3500K, 4000K, 6000K) |
| Material | Metallic base |
| Dimensions | 28 x 28 x 1.5mm (1.1 x 1.1 x 0.05inch) |
| Package content |
LED Module Thermal Grease HY510 (5gr) |
The Constant Current COB LED Module, 1050mA 30-32V 30W CCT(3K, 3.5K, 4K, 6K) is a high-performance lighting solution that provides bright and efficient illumination. This LED module is available in two models: the 30WW14E33-J4C for 3000K and 3500K color temperatures, and the 30W14E33-J4C for 4000K and 6000K color temperatures.

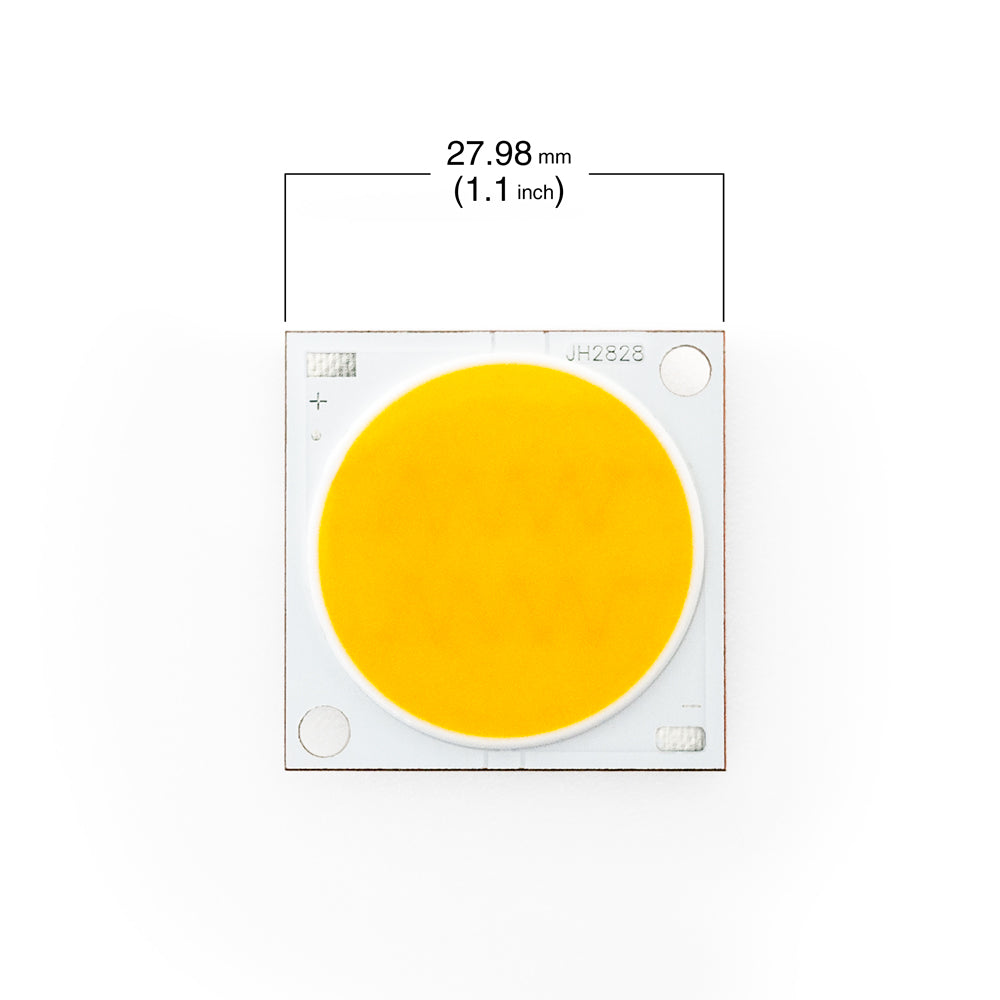

This LED module has a wattage of 30W, operates at a current of 1050mA, and has a voltage range of 30-32V DC. It has a luminous flux output of 2000-2500 lumens for the 3000K model and 2500-3000 lumens for the 3500K, 4000K, and 6000K models. This LED module has a metallic base and dimensions of 28 mm x 28 mm (1.1inch x 1.1inch).

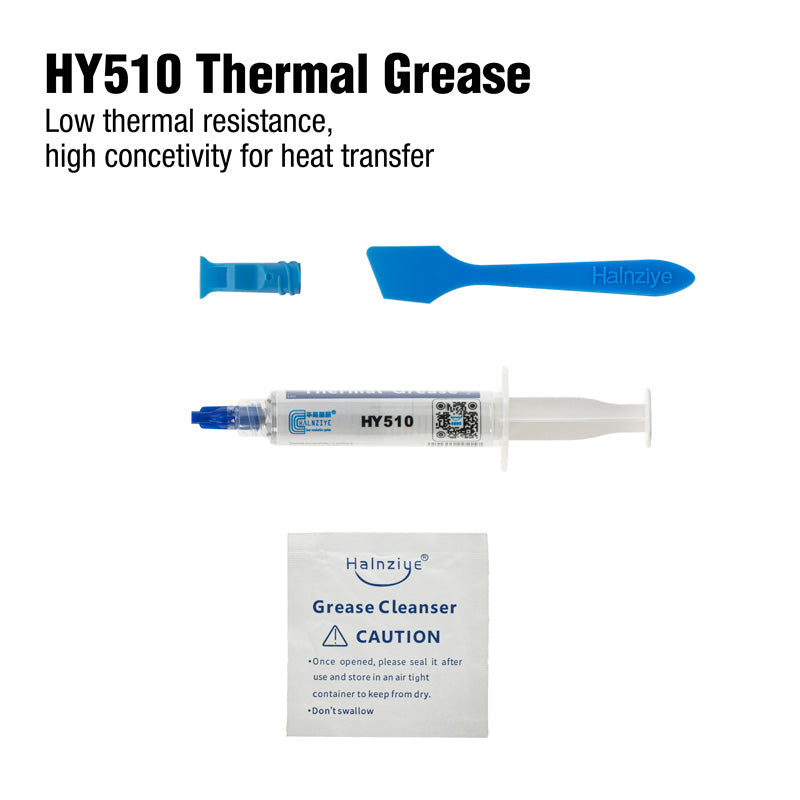

To ensure optimal performance and longevity. It is recommended to use Thermal Grease HY510 (5gr) during installation. The package content includes the LED module and Thermal Grease HY510 (5gr).
One of the advantages of this LED module is that it is available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design. Additionally, it has a low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution. Overall, the Constant Current COB LED Module, 1050mA 30-32V 30W CCT(3K, 3.5K, 4K, 6K) is an excellent lighting option for various indoor and outdoor applications, including home, office, commercial, and industrial use.
Features:
- 30W high-performance LED module with a metallic base
- Available in 3000K, 3500K, 4000K, and 6000K color temperatures
- Operates at a constant current of 1050mA and voltage range of 30-32V DC
- Luminous flux output of 2000-2500 lumens for the 3000K model and 2500-3000 lumens for the 3500K, 4000K, and 6000K models
- Package includes LED module and Thermal Grease HY510 (5gr)
- Low power consumption and high energy efficiency
- Eco-friendly and cost-effective lighting solution
- Suitable for various indoor and outdoor applications, including home, office, commercial, and industrial use
- Good DIY product for replacing damaged LEDs with the same voltage and wattage
- Use Thermal Grease or Thermal Pad for installation.
