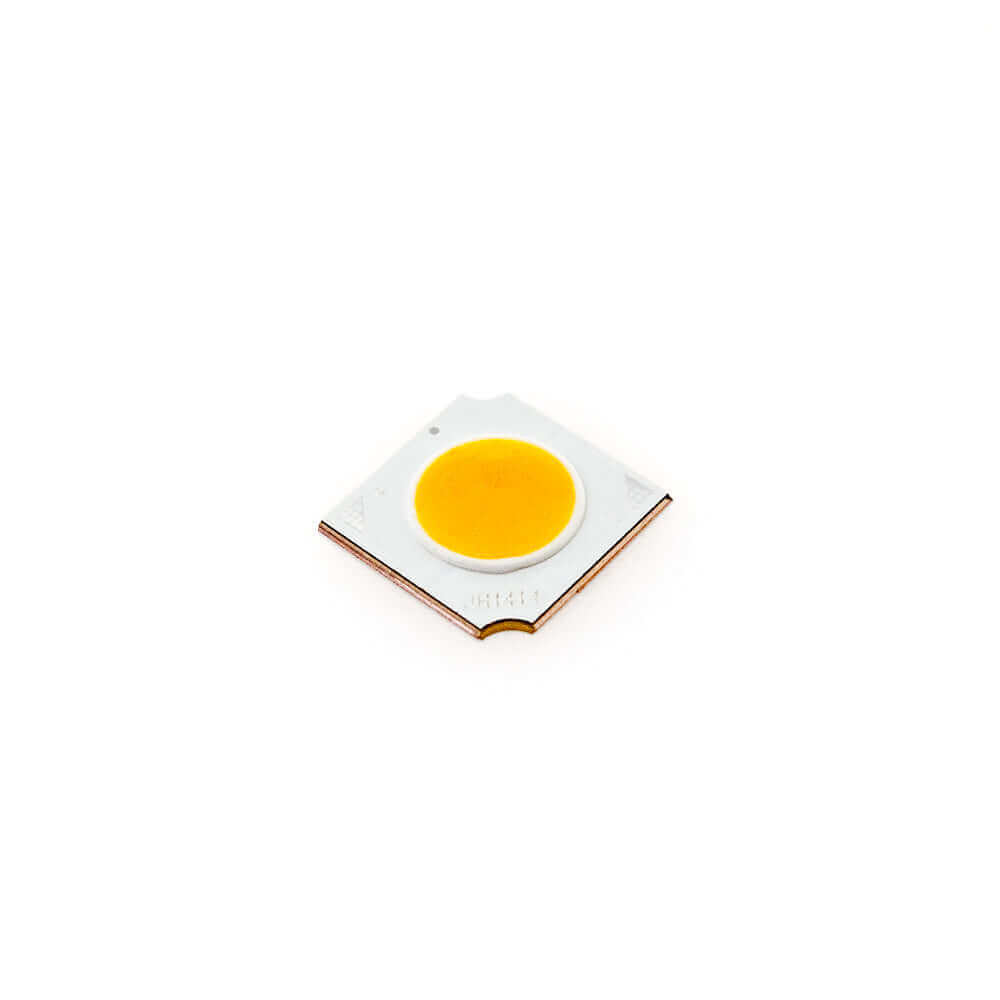

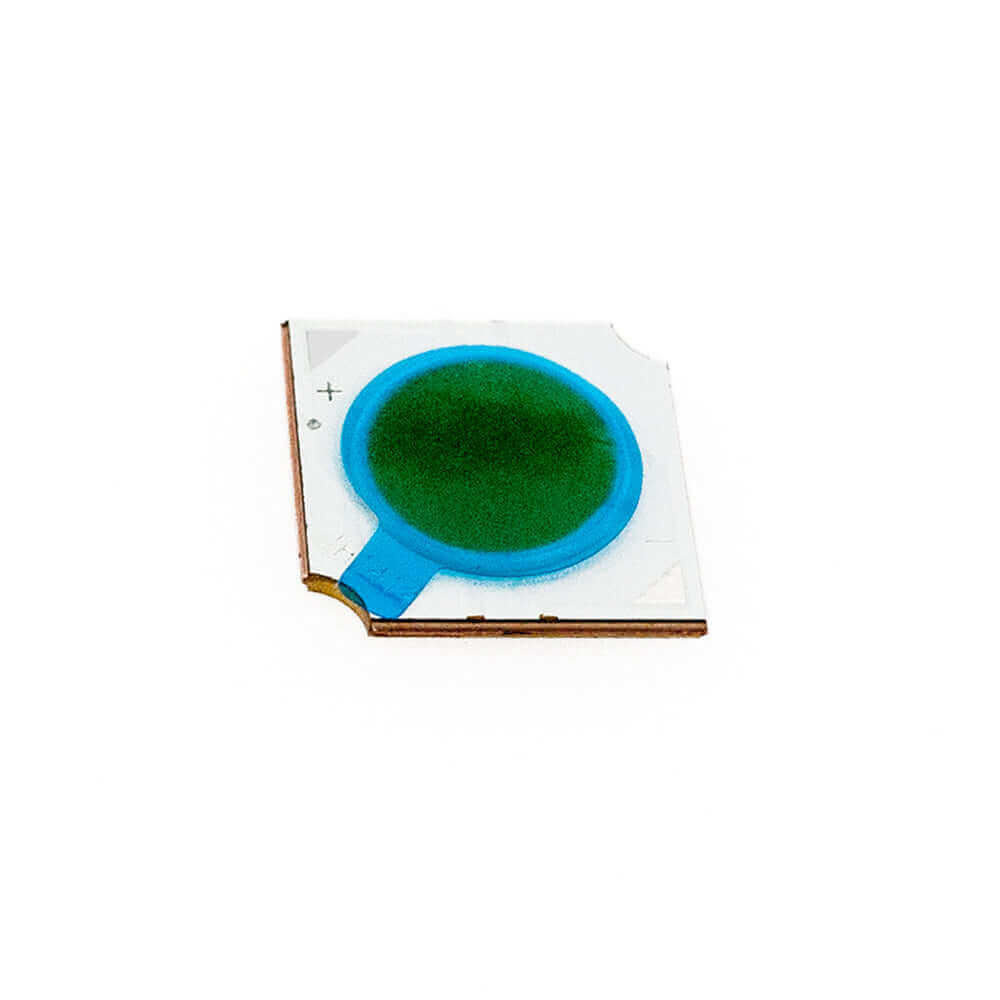

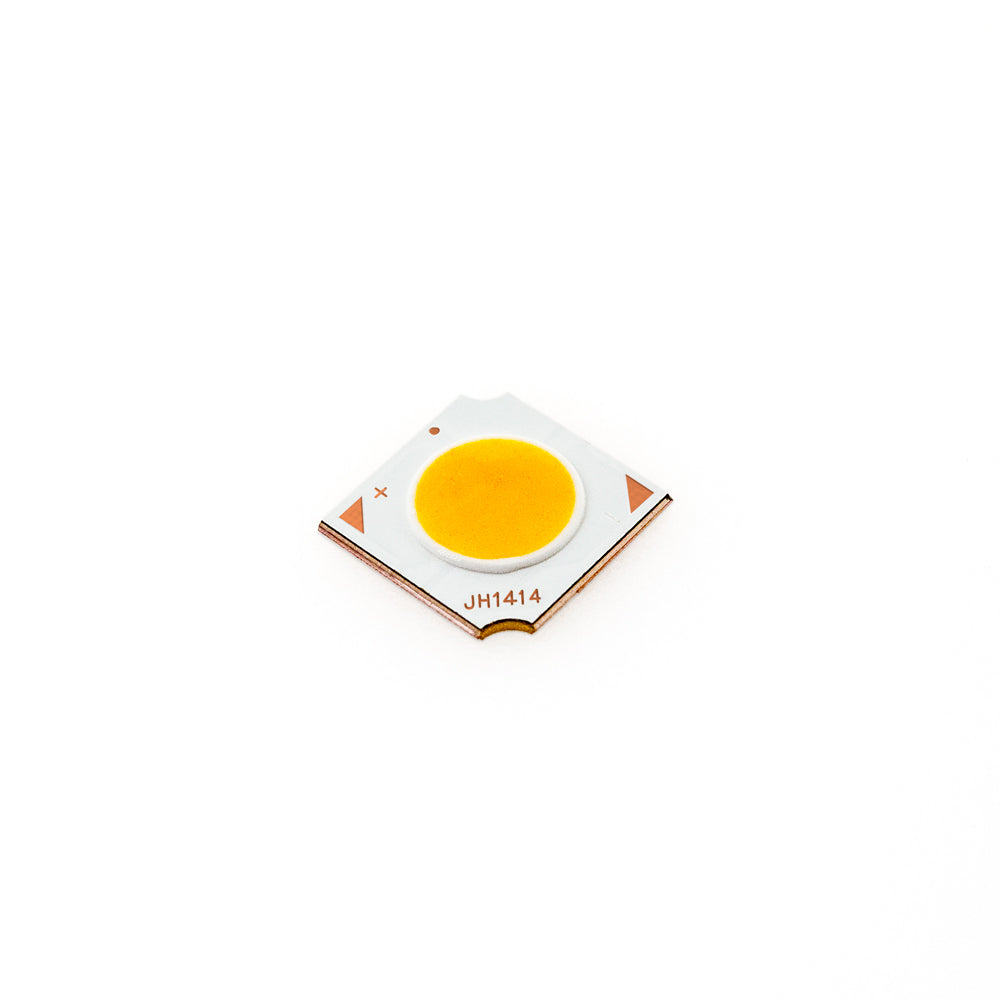

Constant Current COB LED Module, 350mA 10W CCT(3K, 3.5K, 4K, 6K)

  • $16.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417673
Color Temperature:
We only have 80 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Module
 Model No 10WW14E33-Y6C (For 3000K, 3500K)
10W14E33-Y6C (For 4000K, 6000K)
Voltage 29-31V (For 3000K)
30-32V (For 3500K, 4000K, 6000K)
Wattage 10W
Current 350mA

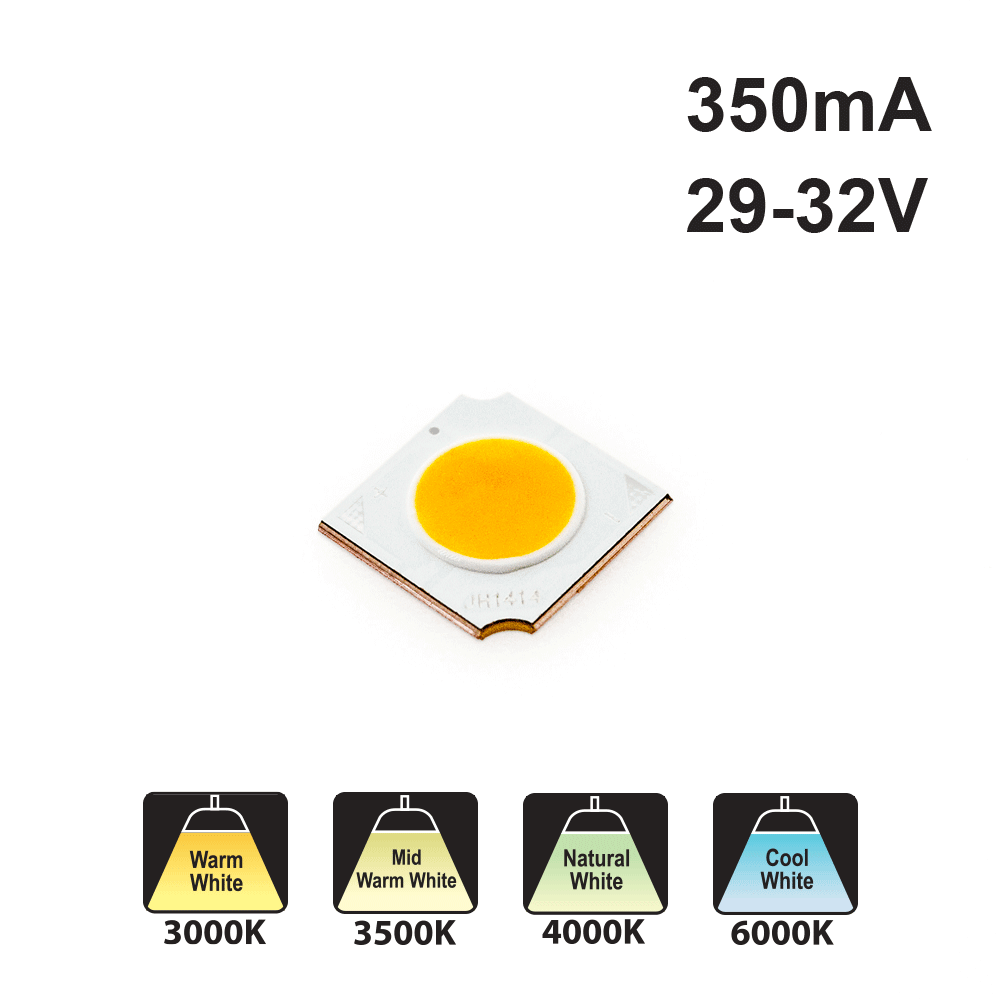

Available Color Temperature 3000K(Warm White)
3500K (Mid-Warm White)
4000K (Natural Light)
6000K (Cool White)
Luminous Flux 700-800lm (For 3500K, 4000K, 6000K) & 600-700lm (For 3000K)
Material Metallic base
Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

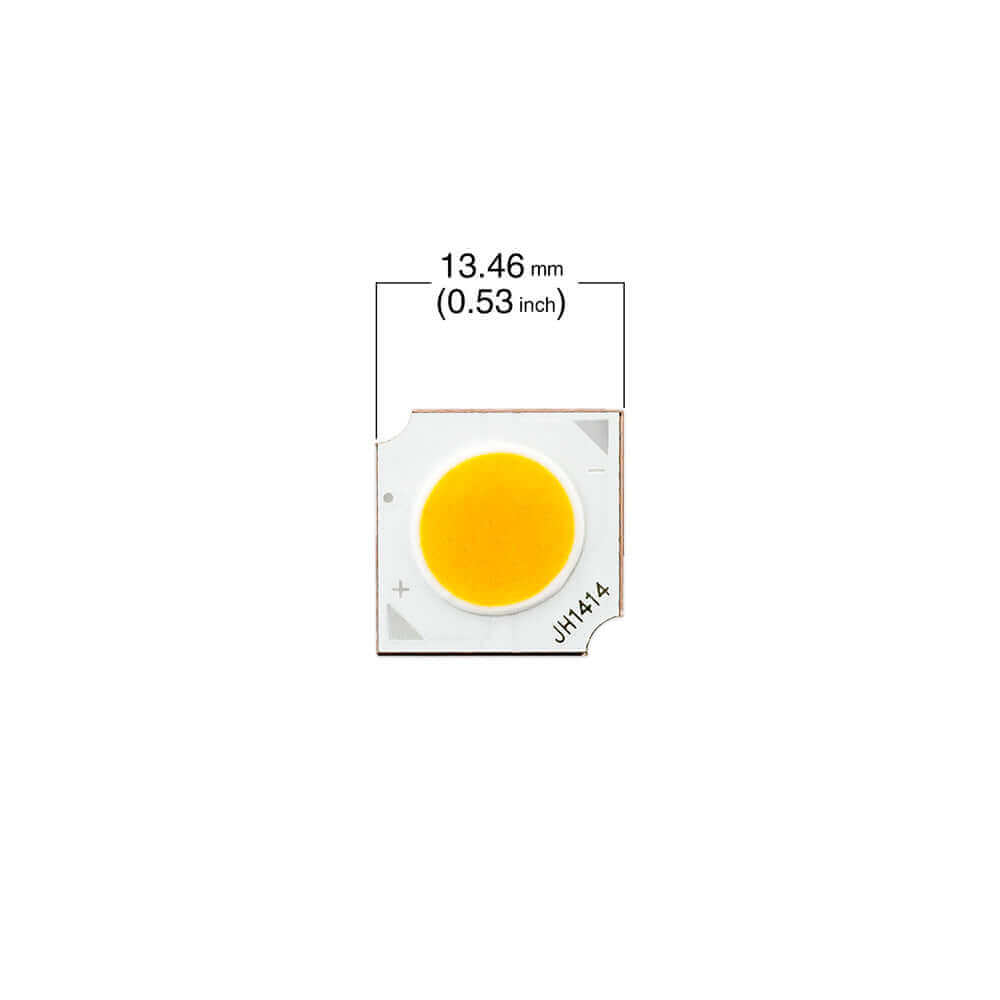

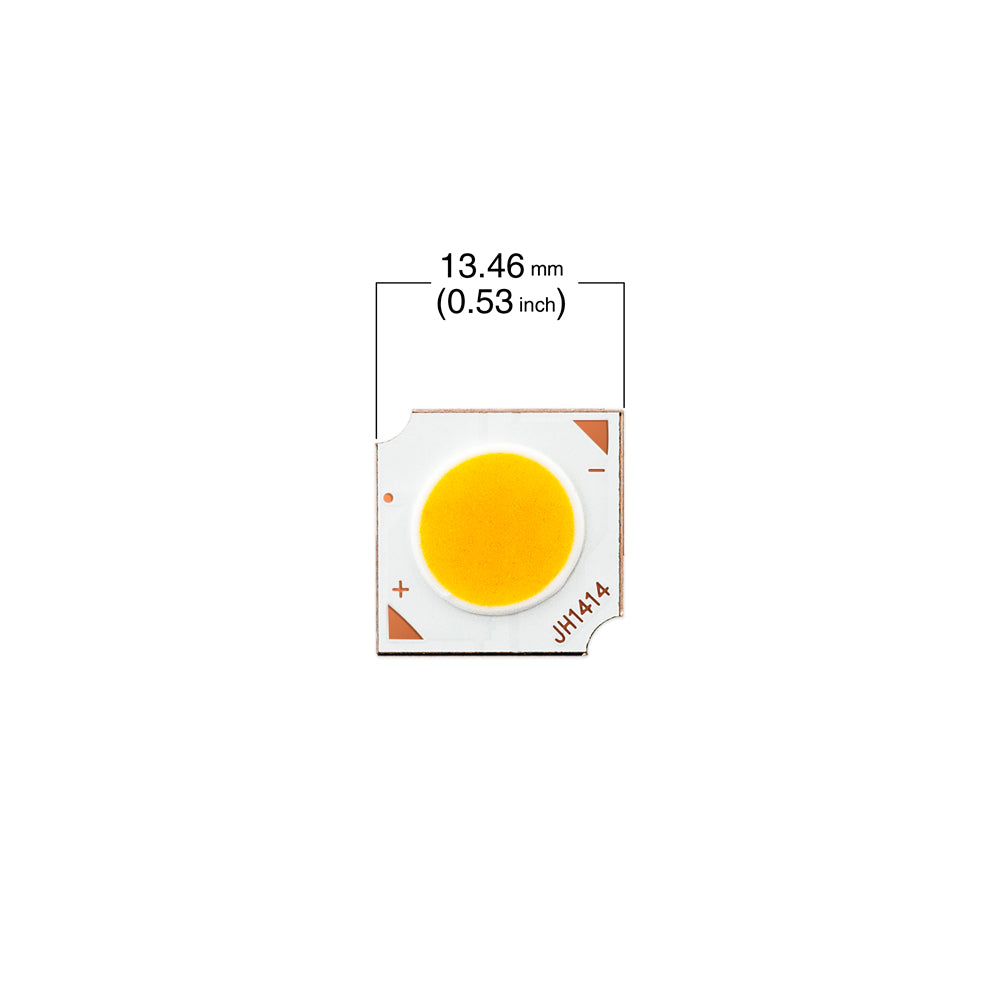

Dimensions 13.4  x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)


The Constant Current COB LED Module, 350mA 10W CCT(3K, 3.5K, 4K, 6K) is a high-quality lighting solution that delivers bright and efficient illumination. This LED module is available in two different models: the 10WW14E33-Y6C for 3000K and 3500K color temperatures, and the 10W14E33-Y6C for 4000K and 6000K color temperatures.

This LED module has a wattage of 10W, operates at a current of 350mA, and has a voltage range of 29-31V DC for the 3000K model and 30-32V DC for the 3500K, 4000K, and 6000K models. It has a luminous flux output of 600-700 lumens for the 3000K model and 700-800 lumens for the 3500K, 4000K, and 6000K models. This LED module is designed with a metallic base and has dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch).

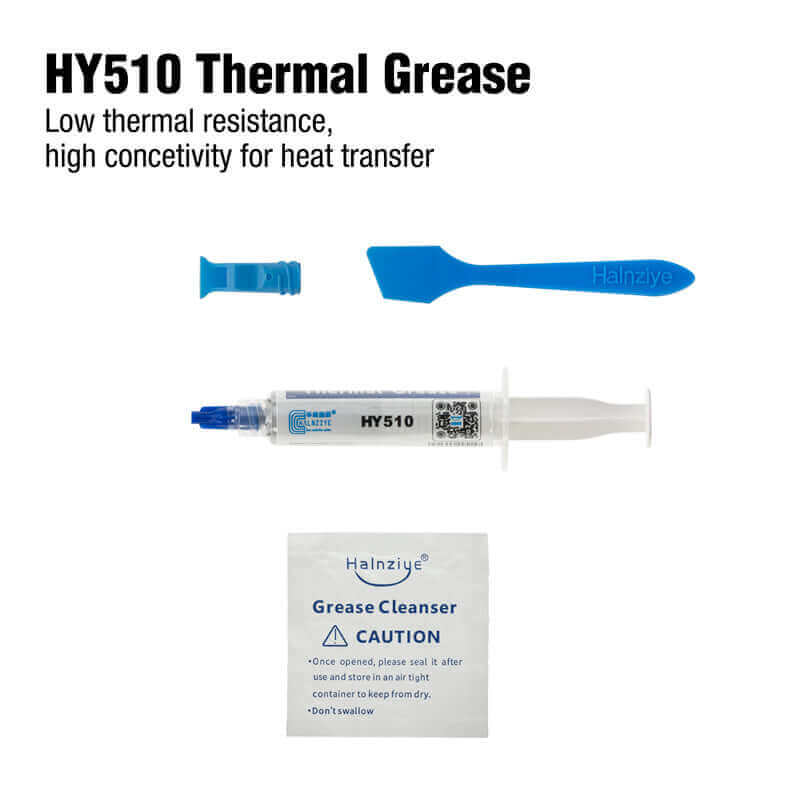

To ensure optimal performance and longevity. It is recommended to use Thermal Grease HY510 (5gr) during installation. The package content includes the LED module and Thermal Grease HY510 (5gr).

One of the advantages of this LED module is that it is available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design. Additionally, it has a low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution. Overall, the Constant Current COB LED Module, 350mA 10W CCT(3K, 3.5K, 4K, 6K) is an excellent lighting option for various indoor and outdoor applications, including home, office, commercial, and industrial use.


Features:

  • High-quality lighting solution delivering bright and efficient illumination
  • Available in two different models: 10WW14E33-Y6C for 3000K and 3500K color temperatures, and 10W14E33-Y6C for 4000K and 6000K color temperatures
  • Wattage of 10W, operates at a current of 350mA, and has a voltage range of 29-31V DC for the 3000K model and 30-32V DC for the 3500K, 4000K, and 6000K models
  • Luminous flux output of 600-700 lumens for the 3000K model and 700-800 lumens for the 3500K, 4000K, and 6000K models
  • Designed with a metallic base and has dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch)
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
  • Available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design
  • Low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution
  • Suitable for various indoor and outdoor applications, including home, office, commercial, and industrial use.
  • Use Thermal Grease or Thermal Pad for installation.
