Constant Current COB LED Module, 350mA 36-38V 12W CCT(3K, 3.5K, 4K, 6K)

  • $17.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417635
We only have 89 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

 Model No

12WW14E33-J6C (For 3000K, 3500K)
12W14E33-J6C (For 4000K, 6000K)

Wattage 12W
Voltage 36-38V
Current 350mA

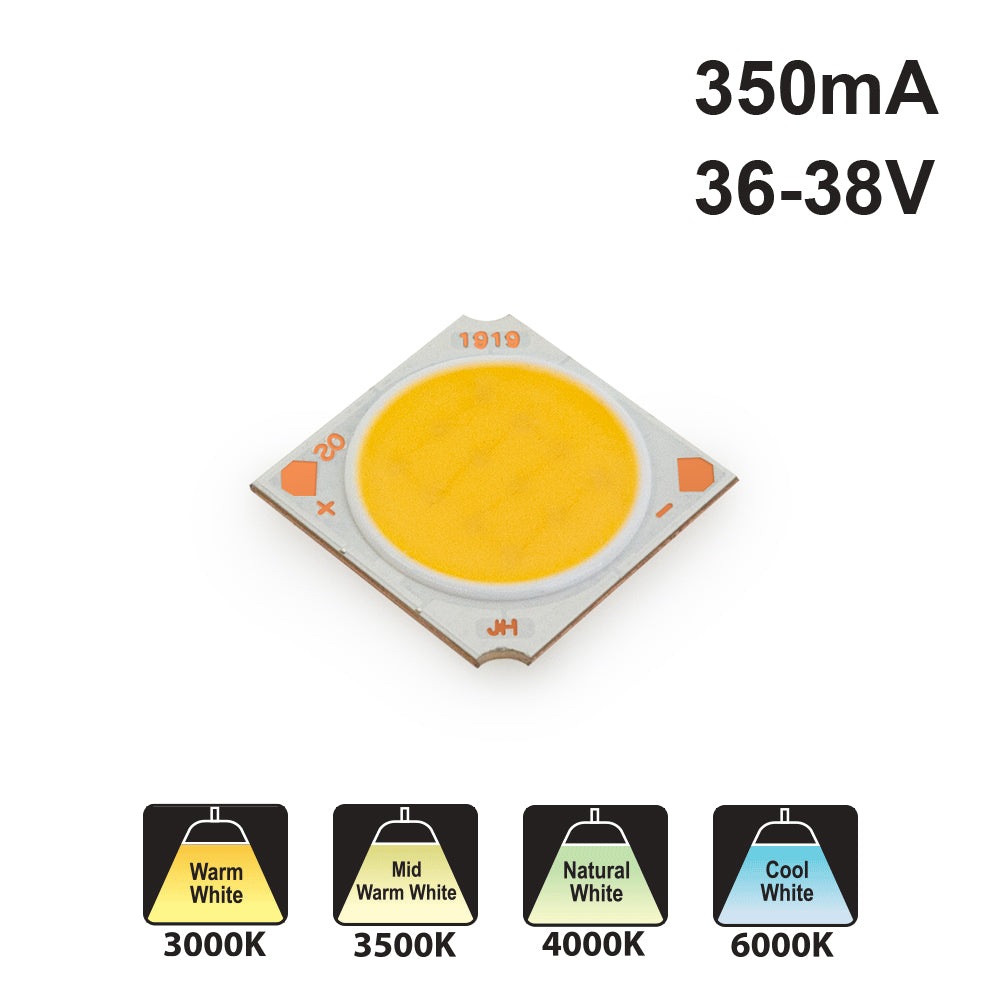

Available Color Temperature 3000K(Warm White)
3500K (Mid-Warm White)
4000K (Natural Light)
6000K (Cool White)
Luminous Flux 800-900lm (For 3000K) & 1000-1200lm (For 3500K, 4000K, 6000K)
Material Metallic base

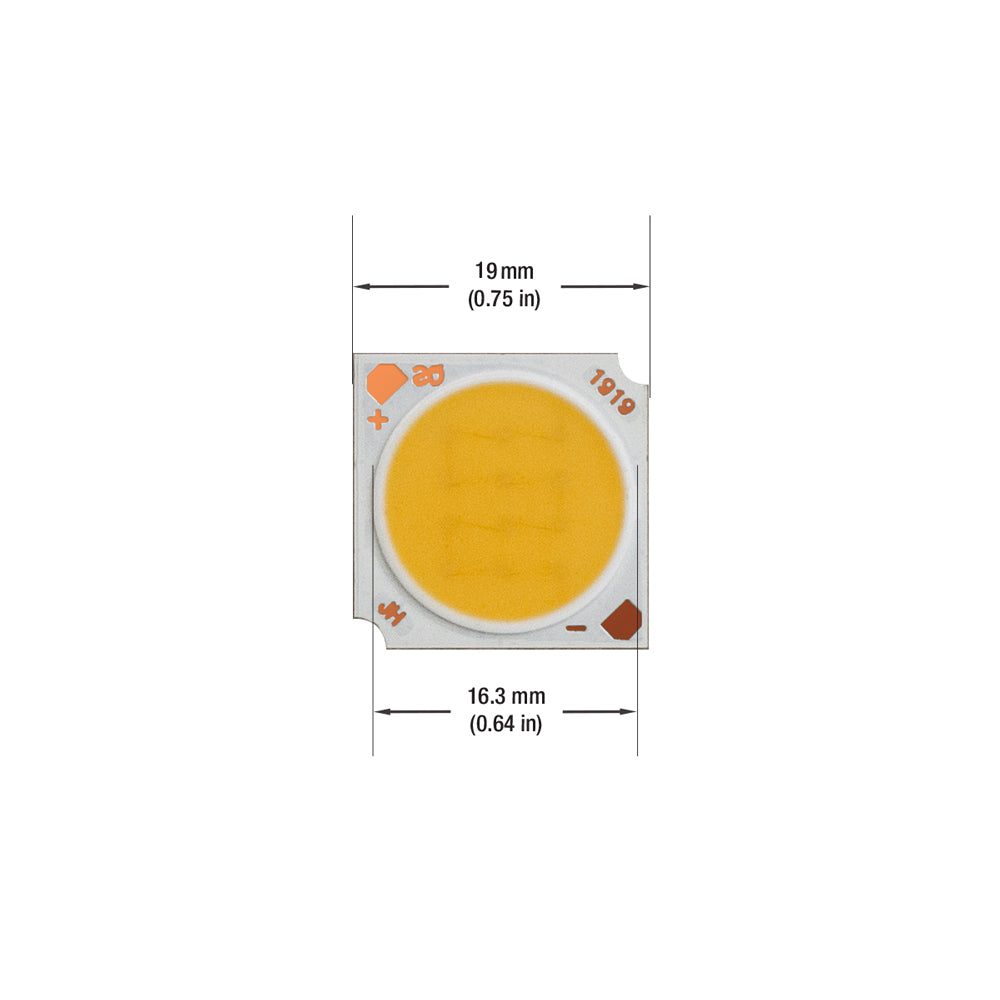

Dimensions 19 x 19 x 1.5mm (0.7 x 0.7 x 0.05 inch)
Package content LED Module

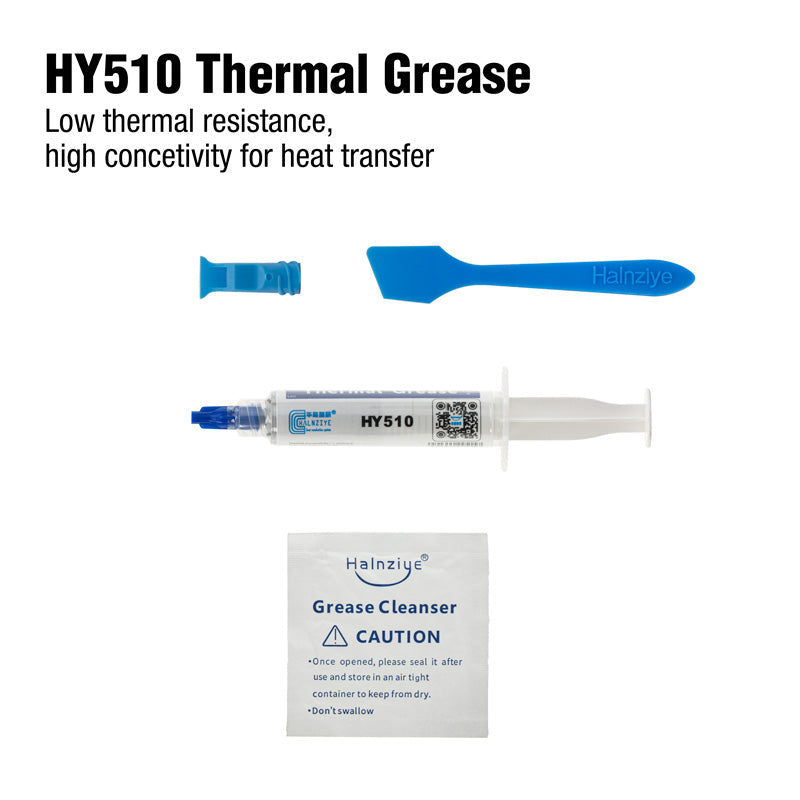

Thermal Grease HY510 (5gr)












The Constant Current COB LED Module, 350mA 36-38V 12W CCT(3K, 3.5K, 4K, 6K) is a high-quality lighting solution that delivers bright and efficient illumination. This LED module is available in two different models: the 12WW14E33-J6C for 3000K and 3500K color temperatures, and the 12W14E33-J6C for 4000K and 6000K color temperatures.

This LED module has a wattage of 12W, operates at a current of 350mA, and has a voltage range of 36-38V DC. It has a luminous flux output of 800-900 lumens for the 3000K model and 1000-1200 lumens for the 3500K, 4000K, and 6000K models. This LED module is designed with a metallic base and has dimensions of 19mm x 19mm (0.7 inch x 0.7 inch).

To ensure optimal performance and longevity. It is recommended to use Thermal Grease HY510 (5gr) during installation. The package content includes the LED module and Thermal Grease HY510 (5gr).

This LED module is ETL certified, ensuring that it meets high safety and performance standards. It is also a good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.

One of the advantages of this LED module is that it is available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design. Additionally, it has a low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution. Overall, the Constant Current COB LED Module, 350mA 36-38V 12W CCT(3K, 3.5K, 4K, 6K) is an excellent lighting option for various indoor and outdoor applications.

Features:

  • Wattage of 12W, current of 350mA, and voltage range of 36-38V DC
  • Luminous flux output of 800-900 lumens for the 3000K model and 1000-1200 lumens for the 3500K, 4000K, and 6000K models
  • Metallic base design with dimensions of 19mm x 19mm (0.7 inch x 0.7 inch)
  • Available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design
  • Low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution
  • Suitable for various indoor and outdoor applications
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
  • Use Thermal Grease or Thermal Pad for installation.
