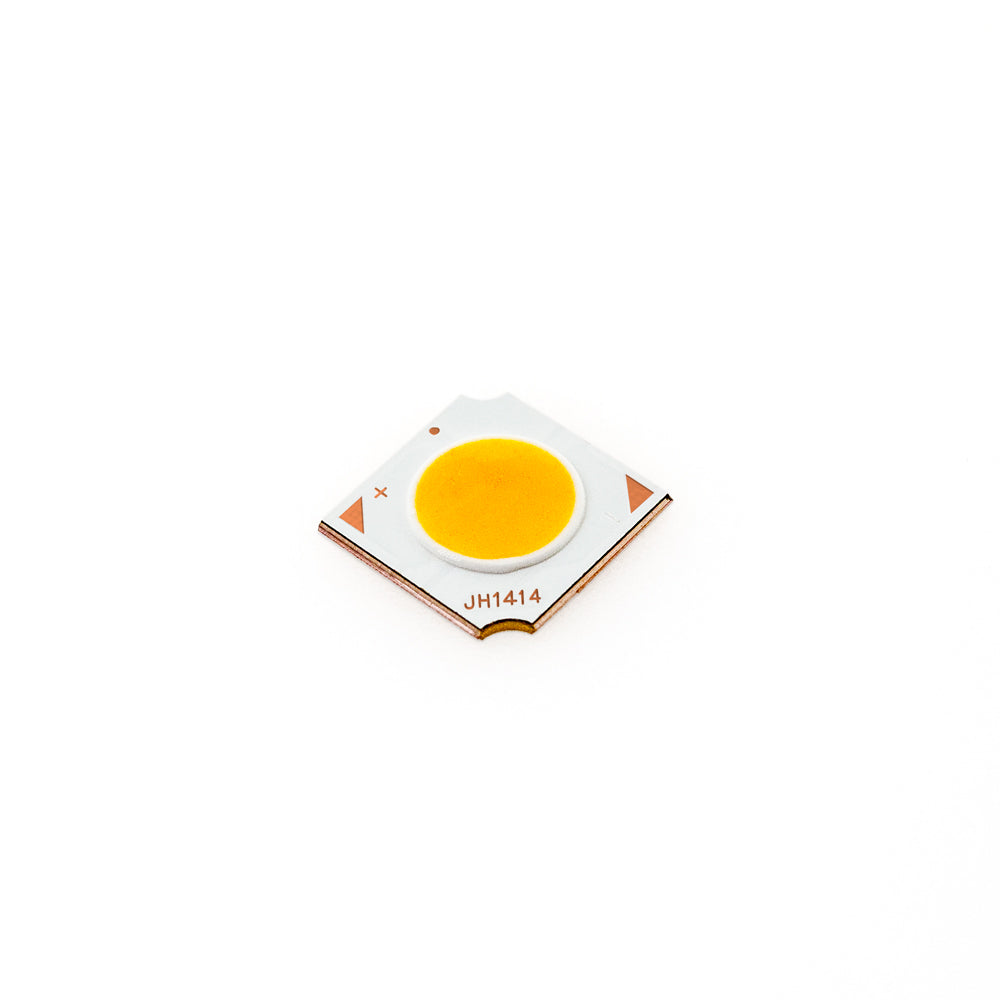

Constant Current COB LED Module, 350mA 5W CCT(3K, 3.5K, 4K, 6K)

  • $11.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561417758
Color Temperature:
We only have 84 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product

Constant Current LED Module

Model No

5WW14E33-Y6C (For 3000K, 3500K)
5W14E33-Y6C (For 4000K, 6000K)

Voltage

15-17V DC(For 3000K)
14-16V DC (For 3500K. 4000K, 6000K)

Wattage 5W
Current 350mA

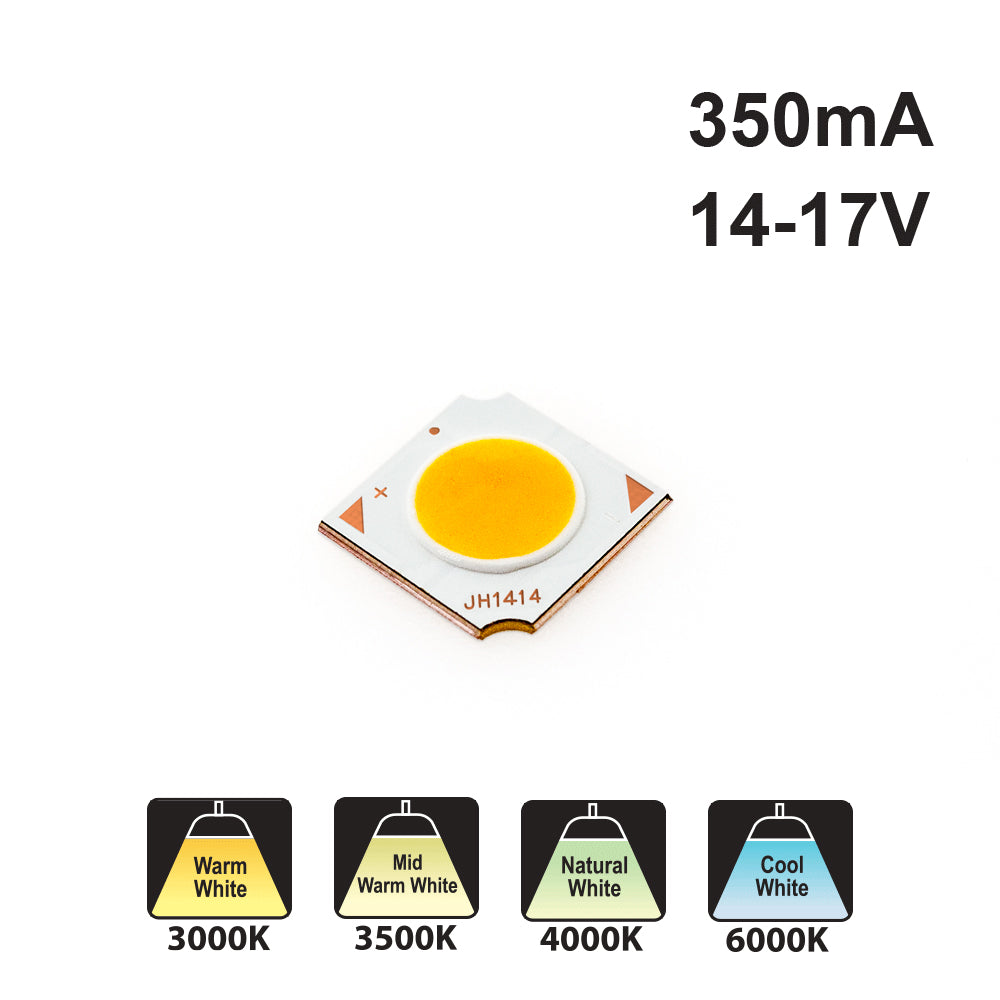

Available Color Temperature 3000K(Warm White)
3500K (Mid-Warm White)
4000K (Natural Light)
6000K (Cool White)
Luminous Flux 300-350lm (For 3000K) & 350-450lm (For 3500K, 4000K, 6000K)
Material Metallic base

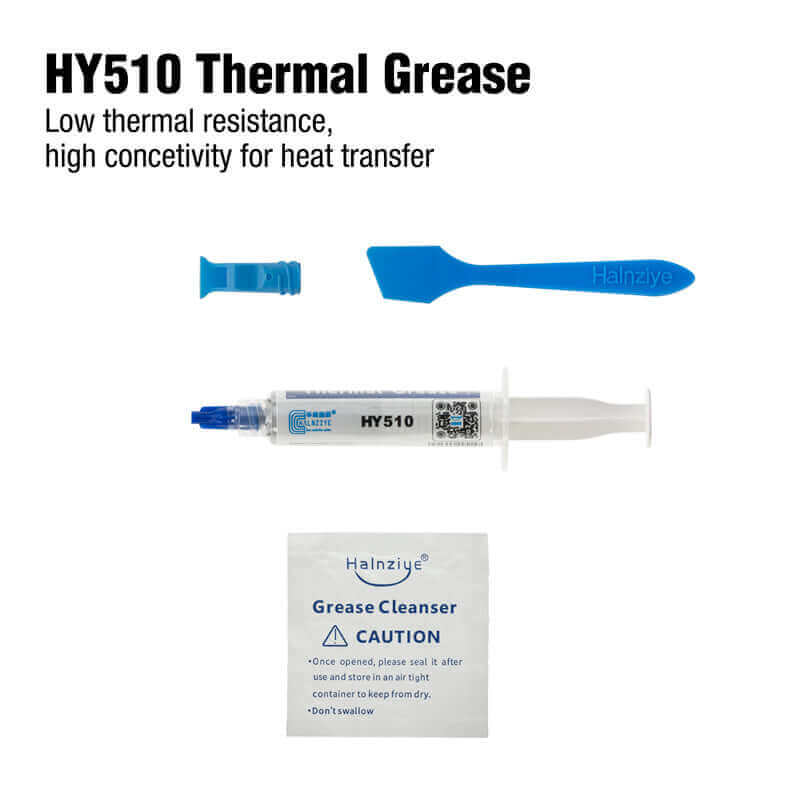

Thermal Grease We will include thermal grease to cover the quantity of LED modules ordered.

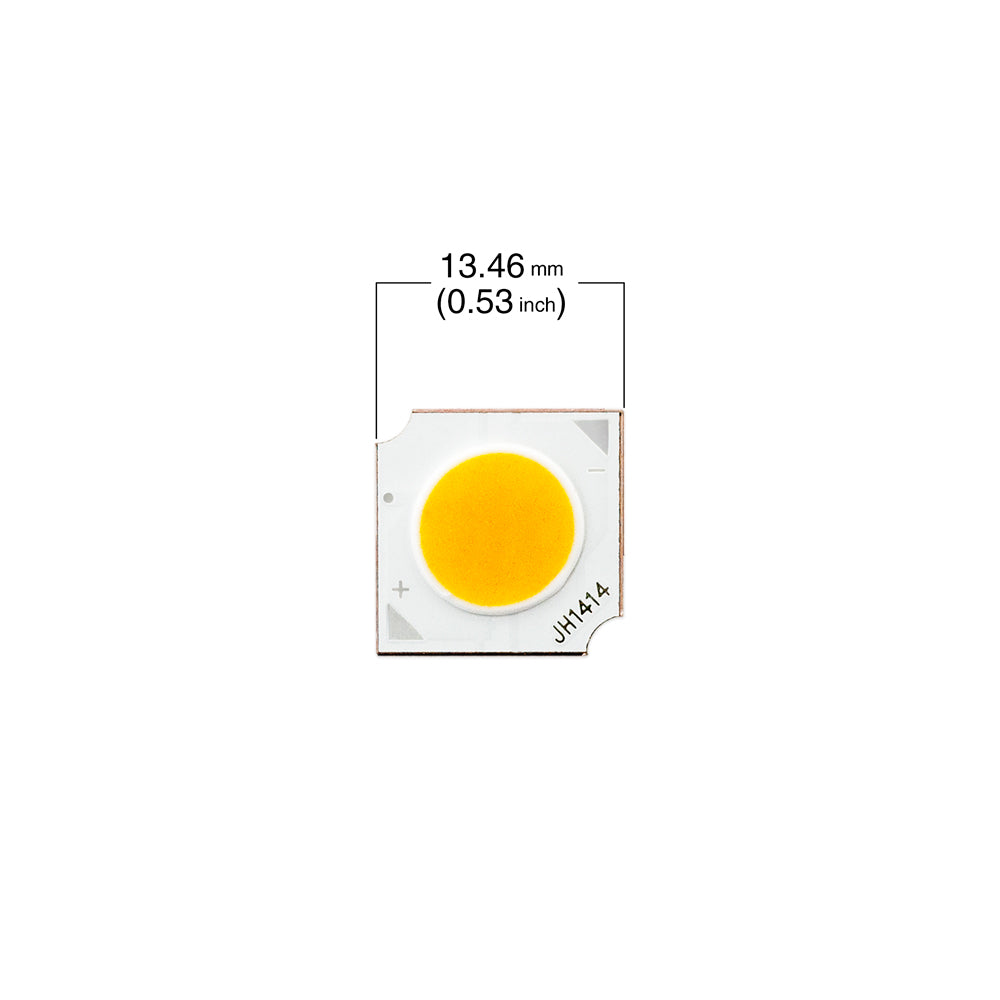

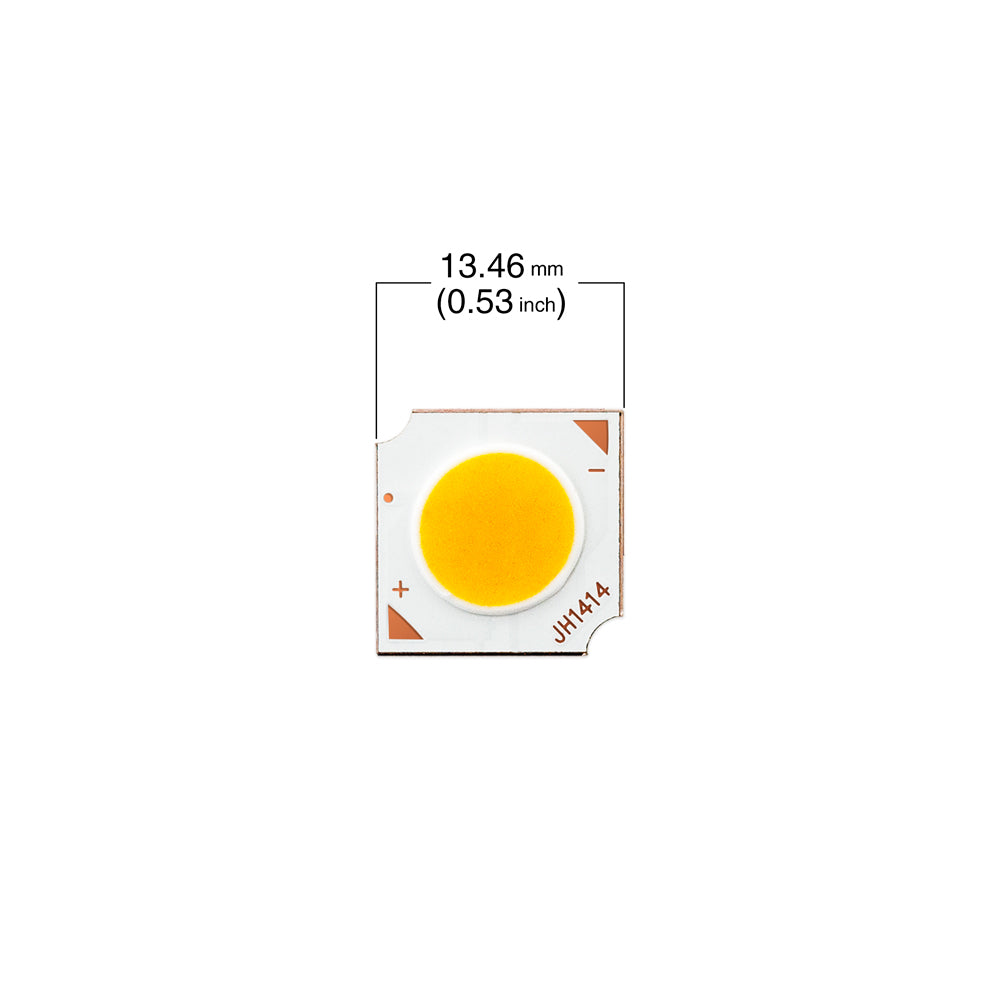

Dimensions 13.4 x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)



The Constant Current COB LED Module is a high-quality lighting component that provides low power consumption and high energy efficiency. The model number for this LED module is 5WW14E33-Y6C (for 3000K, 3500K) and 5W14E33-Y6C (for 4000K, 6000K).

This LED module operates on a voltage range of 15-17V DC (for 3000K) and 14-16V DC (for 3500K, 4000K, 6000K) with a wattage of 5W and a current of 350mA. It produces a luminous flux of 300-350lm (for 3000K) and 350-450lm (for 3500K, 4000K, 6000K), providing excellent illumination.

The dimensions of this LED module are 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch) with a metallic base material. It is recommended to use Thermal Grease or Thermal Pad for installation.

This LED module is available in different color temperatures, including Warm White, Natural White, and Cool White, providing versatility for various lighting applications. It is also a good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.

Features:

  • The Constant Current COB LED Module provides low power consumption and high energy efficiency.
  • Model number: 5WW14E33-Y6C (for 3000K, 3500K) and 5W14E33-Y6C (for 4000K, 6000K).
  • Voltage range: 15-17V DC (for 3000K) and 14-16V DC (for 3500K, 4000K, 6000K).
  • Wattage: 5W and current: 350mA. Luminous flux: 300-350lm (for 3000K) and 350-450lm (for 3500K, 4000K, 6000K).
  • Dimensions: 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch) with a metallic base material.
  • Available in different color temperatures: Warm White, Natural White, and Cool White.
  • Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
  • Provides high-quality illumination and is energy-efficient and versatile in its applications.
  • Use Thermal Grease or Thermal Pad for installation.
