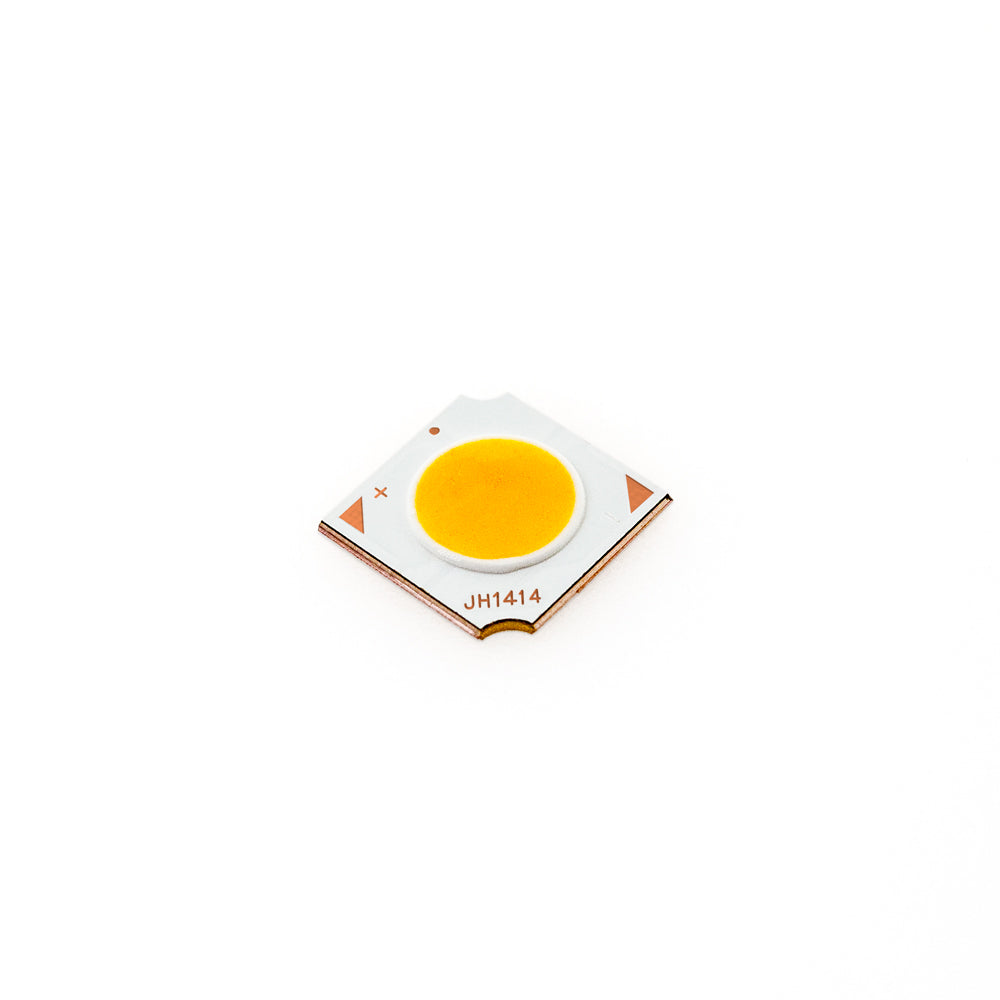

Constant Current COB LED, 350mA 7W CCT(3K, 3.5K, 4K, 6K)
Product Description
| Product | Constant Current LED Module |
| Model No | 7WW14E33-Y6C (For 3000K, 3500K) 7W14E33-Y6C(For 4000K, 6000K) |
| Voltage | 21-23V (For 3000K) 20-22V (For 3500K, 4000K, 6000K) |
| Wattage | 7W |
| Current | 350mA |

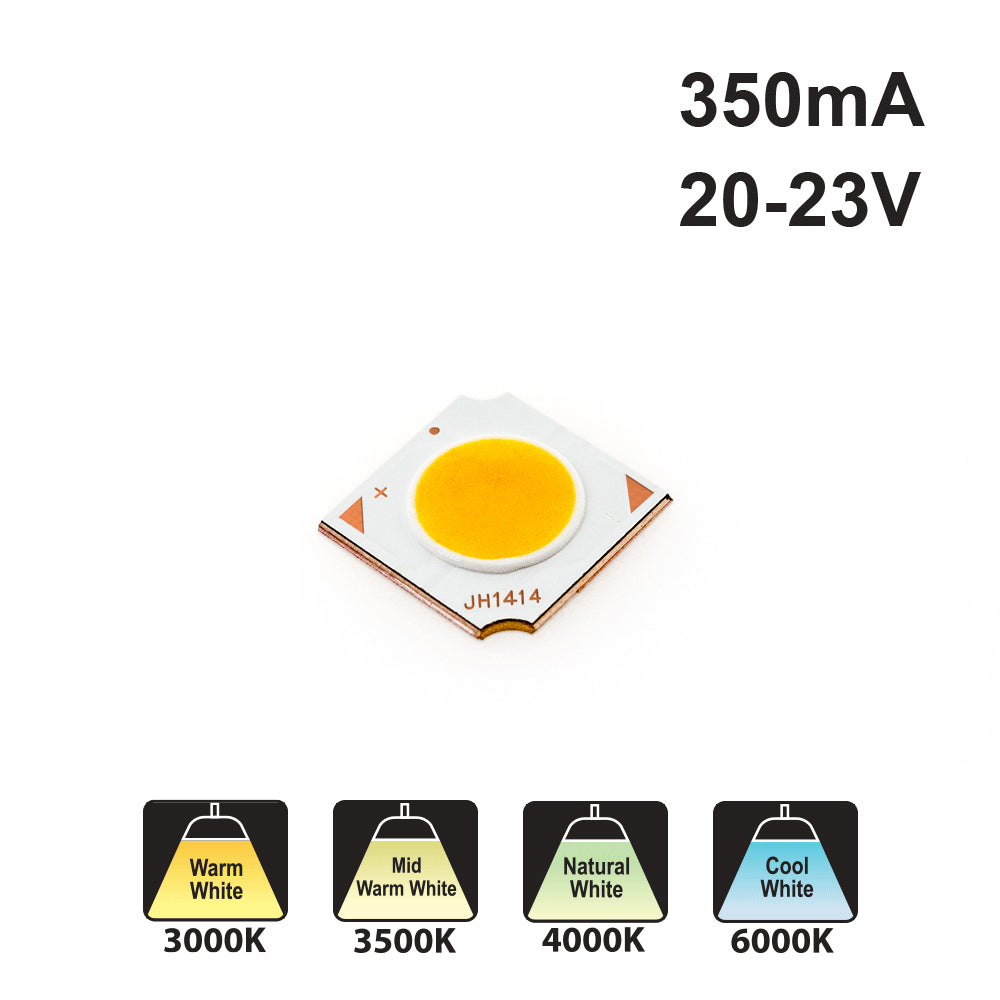

| Available Color Temperature | 3000K(Warm White) 3500K (Mid-Warm White) 4000K (Natural Light) 6000K (Cool White) |
| Material | Metallic base |
| Luminous Flux | 450-500lm (For 3000K) & 500-600lm (For 3500K, 4000K, 6000K) |
| Thermal Grease | We will include thermal grease to cover the quantity of LED modules ordered. |

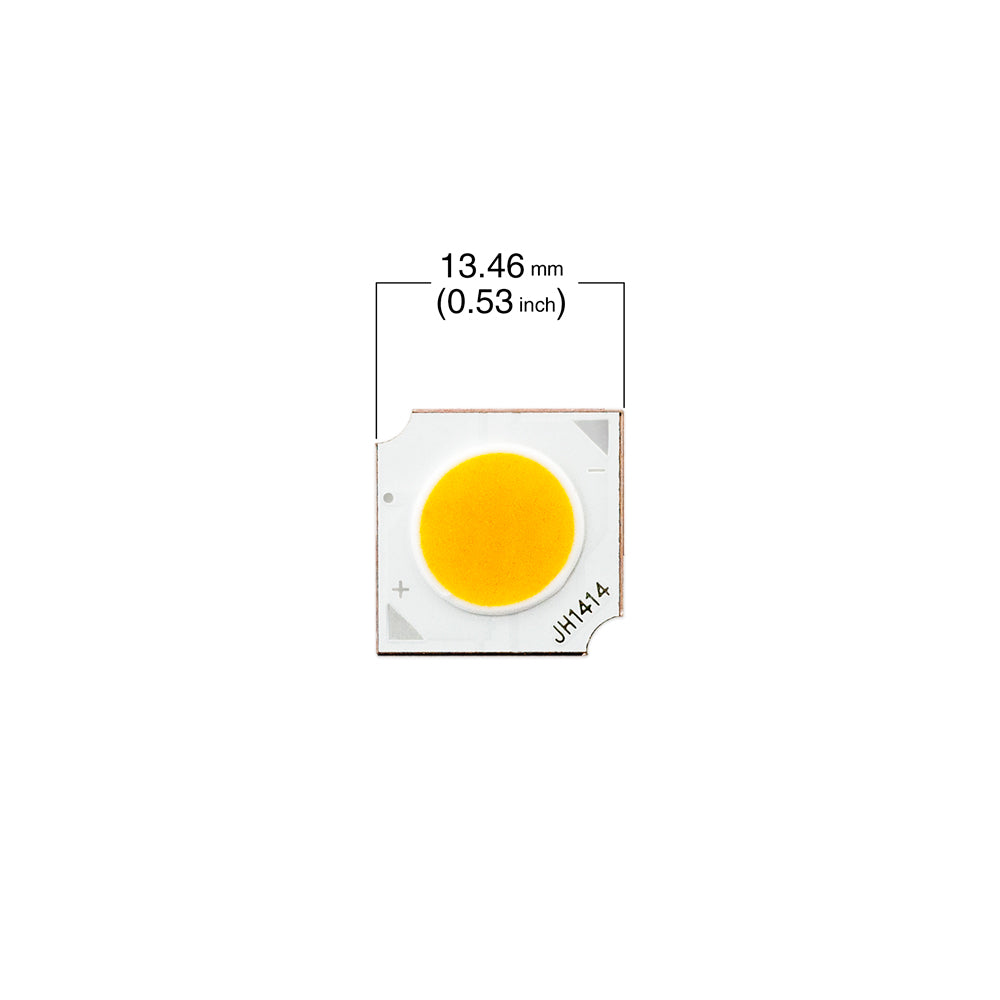

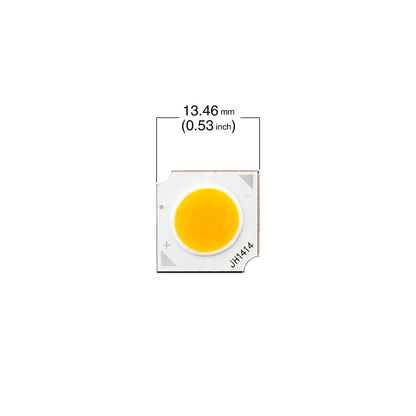

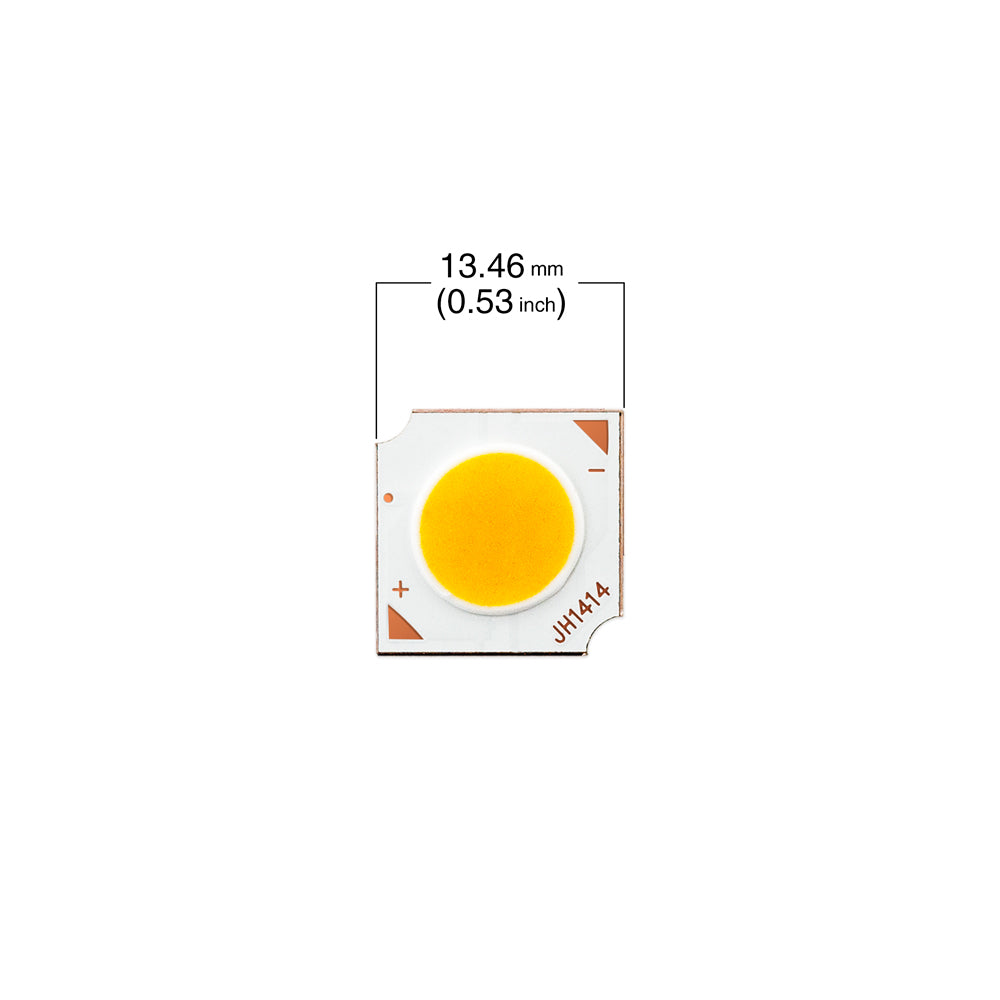

| Dimensions | 13.4 x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch) |
The Constant Current COB LED Module, 350mA 7W CCT(3K, 3.5K, 4K, 6K) is a high-quality lighting solution that offers efficient and bright illumination. This LED module is available in two different models: the 7WW14E33-Y6C for 3000K and 3500K color temperatures, and the 7W14E33-Y6C for 4000K and 6000K color temperatures.
This LED module has a wattage of 7W, operates at a current of 350mA, and has a voltage range of 21-23V DC for the 3000K model and 20-22V DC for the 3500K, 4000K, and 6000K models. It has a luminous flux output of 450-500 lumens for the 3000K model and 500-600 lumens for the 3500K, 4000K, and 6000K models. This LED module has a metallic base and dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch).

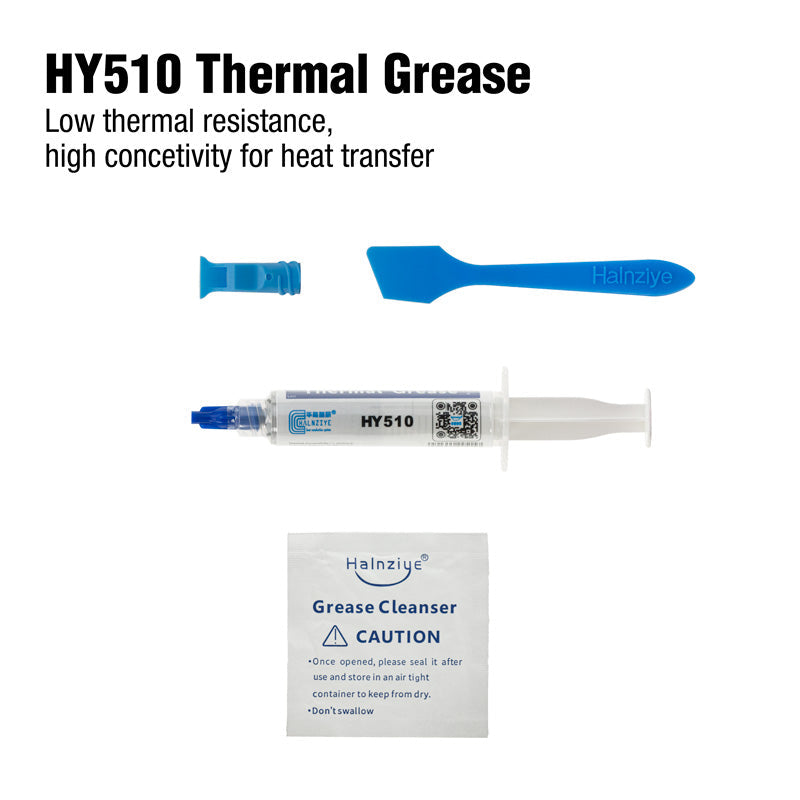

To ensure optimal performance and longevity. It is recommended to use Thermal Grease HY510 (5gr) during installation. The package content includes the LED module and Thermal Grease HY510 (5gr).
One of the advantages of this LED module is that it is available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design. Additionally, it has a low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution. Overall, the Constant Current COB LED Module, 350mA 7W CCT(3K, 3.5K, 4K, 6K) is an excellent lighting option for various indoor and outdoor applications, including home, office, commercial, and industrial use.
Features:
- High-quality lighting solution with efficient and bright illumination
- Available in two different models for different color temperatures
- Wattage of 7W and operates at a current of 350mA
- Voltage range of 21-23V DC for 3000K model and 20-22V DC for 3500K, 4000K, and 6000K models
- Luminous flux output of 450-500 lumens for 3000K model and 500-600 lumens for 3500K, 4000K, and 6000K models
- Metallic base and dimensions of 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch)
- Package content includes LED module and Thermal Grease HY510 (5gr)
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
- Available in different color temperatures providing flexibility in lighting design
- Low power consumption and high energy efficiency for eco-friendliness and cost-effectiveness
- Suitable for various indoor and outdoor applications including home, office, commercial, and industrial use.
- Use Thermal Grease or Thermal Pad for installation.
