Constant Current COB LED Module, 700mA 30-32V 20W CCT(3K, 3.5K, 4K, 6K)
Product Description
| Product |
Constant Current LED Module |
| Model No |
20WW14E33-J4C (For 3000K, 3500K) |
| Wattage | 20W |
| Voltage | 30-32V DC |
| Current | 700mA |

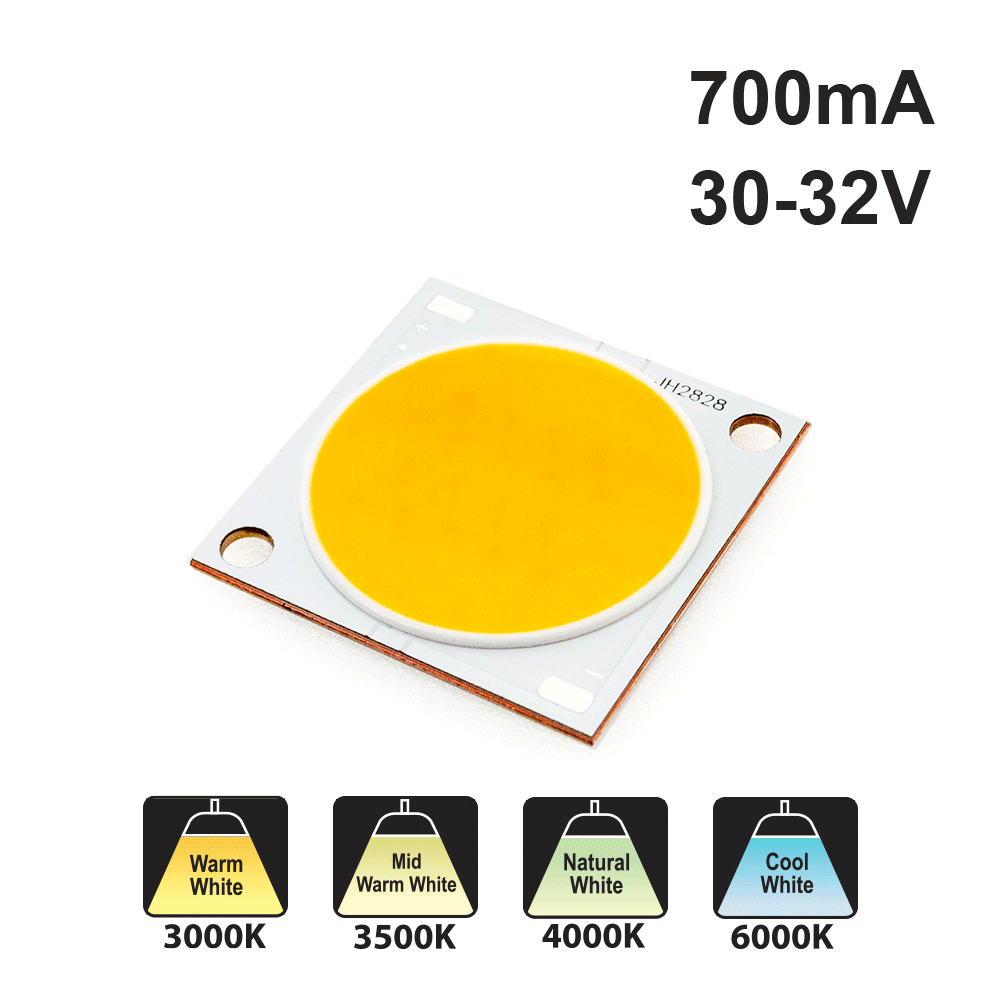

| Available Color Temperatures | 3000K(Warm White) 3500K (Mid-Warm White) 4000K (Natural Light) 6000K (Cool White) |
| Luminous Flux | 1500-1800lm (For 3000K) &1500-2000lm (For 3500K, 4000K, 6000K) |
| Material | Metallic base |
| Thermal Grease |
We will include thermal grease to cover the quantity of LED modules ordered. |

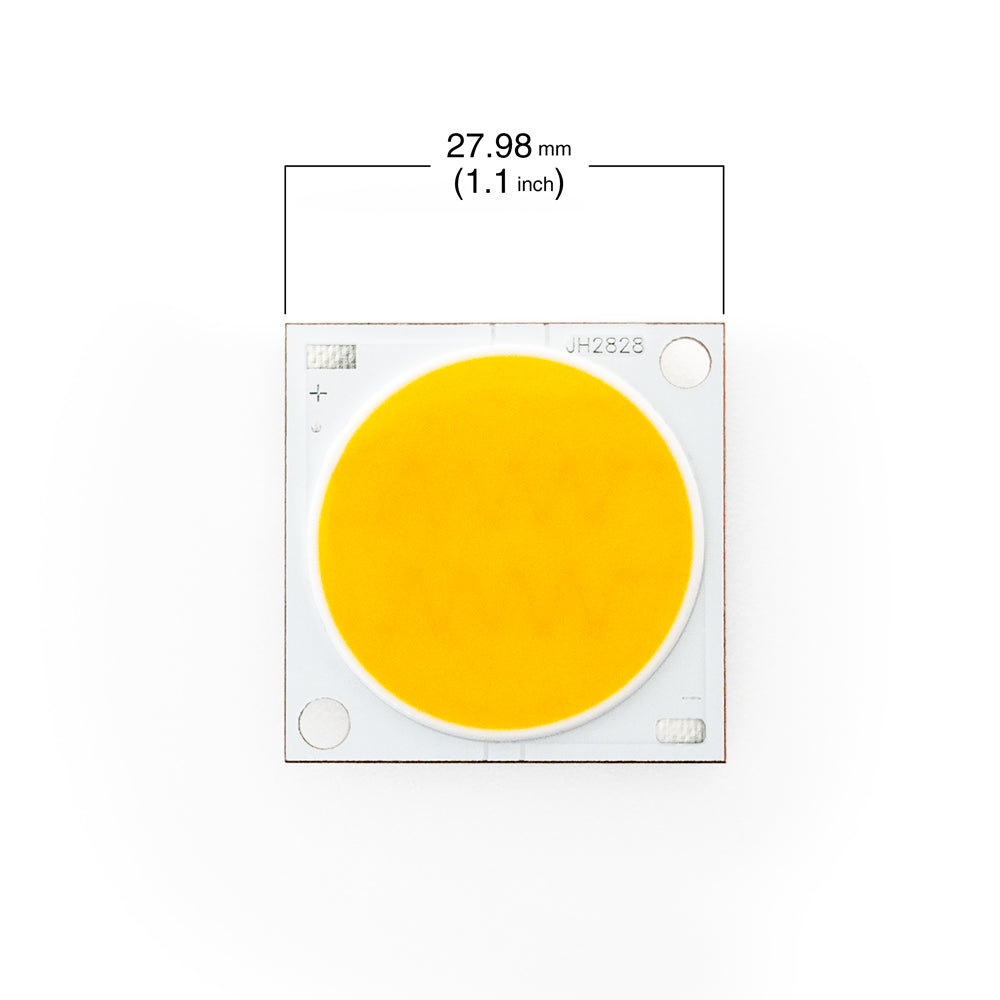

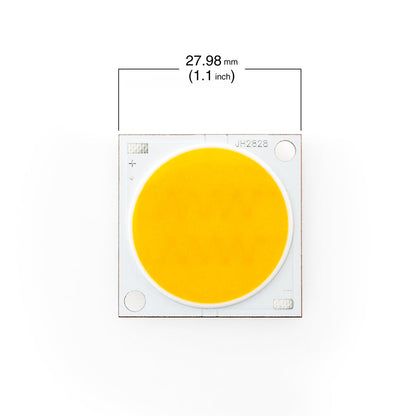

| Dimensions | 28 x 28 x 1.5mm (1.1 x 1.1 x 0.05inch) |
The Constant Current COB LED Module, 700mA 30-32V 20W CCT(3K, 3.5K, 4K) is a high-quality lighting solution that delivers bright and efficient illumination. This LED module is available in two different models: the 20WW14E33-J4C for 3000K and 3500K color temperatures and the 20W14E33-J4C for 4000K and 6000K color temperatures.

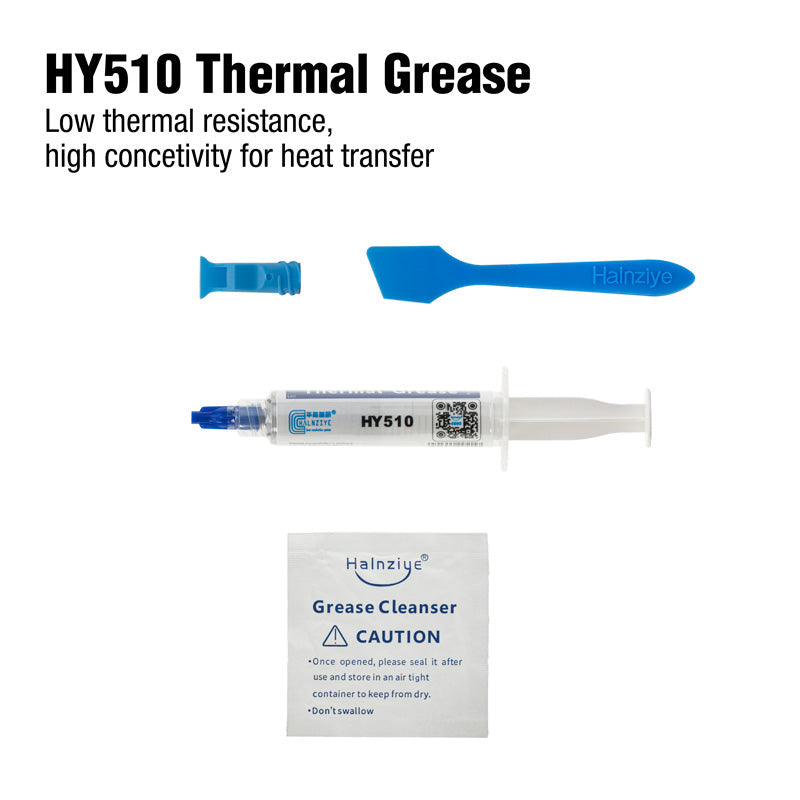

To ensure optimal performance and longevity. It is recommended to use Thermal Grease HY510 (5gr) during installation. The package content includes the LED module and Thermal Grease HY510 (5gr).
This LED module is ETL certified, ensuring that it meets high safety and performance standards. It is also a good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
One of the advantages of this LED module is that it is available in different color temperatures (3000K, 3500K, 4000K, 6000K), providing flexibility in lighting design. Additionally, it has a low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution. Overall, the Constant Current COB LED Module, 700mA 30-32V 20W CCT(3K, 3.5K, 4K) is an excellent lighting option for various indoor and outdoor applications.
Features:
- High-quality lighting solution with bright and efficient illumination
- Available in two different models: 20WW14E33-J4C for 3000K and 3500K color temperatures, and 20W14E33-J4C for 4000K and 6000K color temperatures
- Wattage of 20W, operates at a current of 700mA, and has a voltage range of 30-32V DC
- Luminous flux output of 1500-1800 lumens for the 3000K model and 1500-2000 lumens for the 3500K, 4000K, and 6000K models
- Metallic base with dimensions of 28mm x 28mm (1.1 inch x 1.1 inch)
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage
- Available in different color temperatures, providing flexibility in lighting design
- Low power consumption and high energy efficiency, making it an eco-friendly and cost-effective lighting solution
- Suitable for various indoor and outdoor applications.
- Use Thermal Grease or Thermal Pad for installation.
