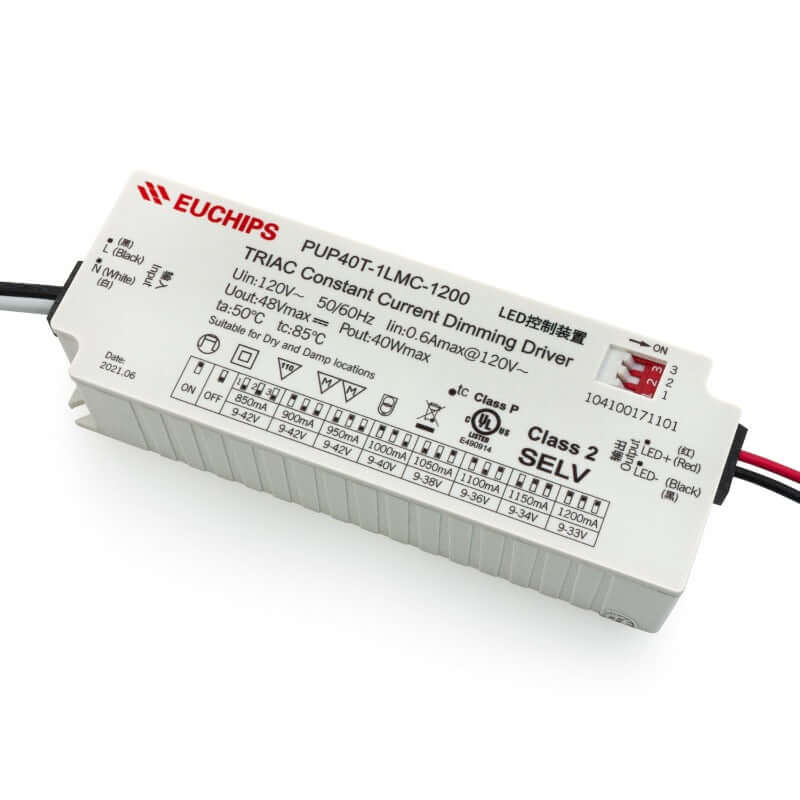

Selectable Constant Current 40W LED Driver Triac Dim PUP40T-1LMC-1200 , 120VAC 850 to 1200mA

  • $107.20 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561424800
Title:
We only have 84 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Constant Current LED Driver with Selectable Current
Model PUP40T-1LMC-1200
Input Voltage 120VAC(108-132VAC)
Input Current 0.6Amax@120VAC

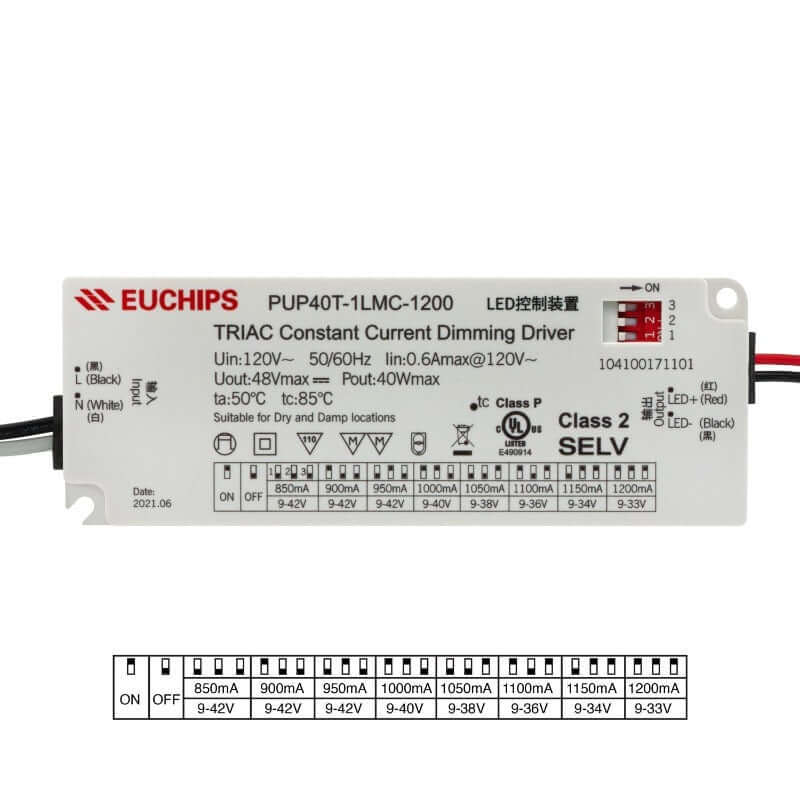

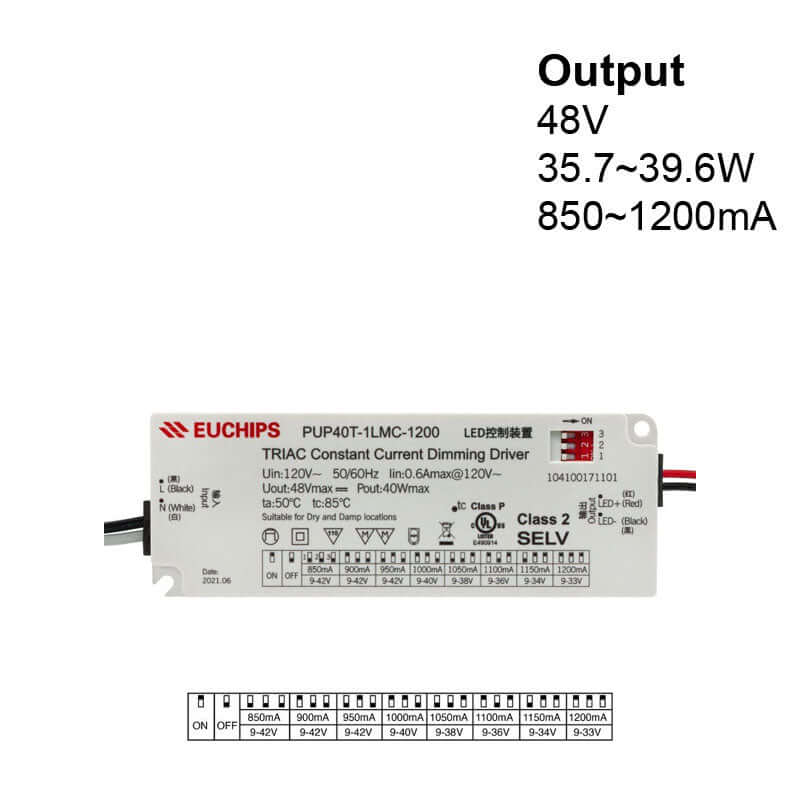

Output Current/Voltage/Power

850mA/9-42VDC/35.7W
900mA/9-42VDC/37.8W
950mA/9-42VDC/39.99W
1000mA/9-40VDC/40W
1050mA/9-38VDC/39.9W
1100mA/9-36VDC/39.6W
1150mA/9-34VDC/39.1W
1200mA/9-33VDC/39.6W

No-load Output Voltage 48V Max
Input Frequency 50/60Hz
Dimming Type Triac
Dimming Range 5%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency >84%@120VAC,850mA ,Full load >83%@120VAC,1200mA ,Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

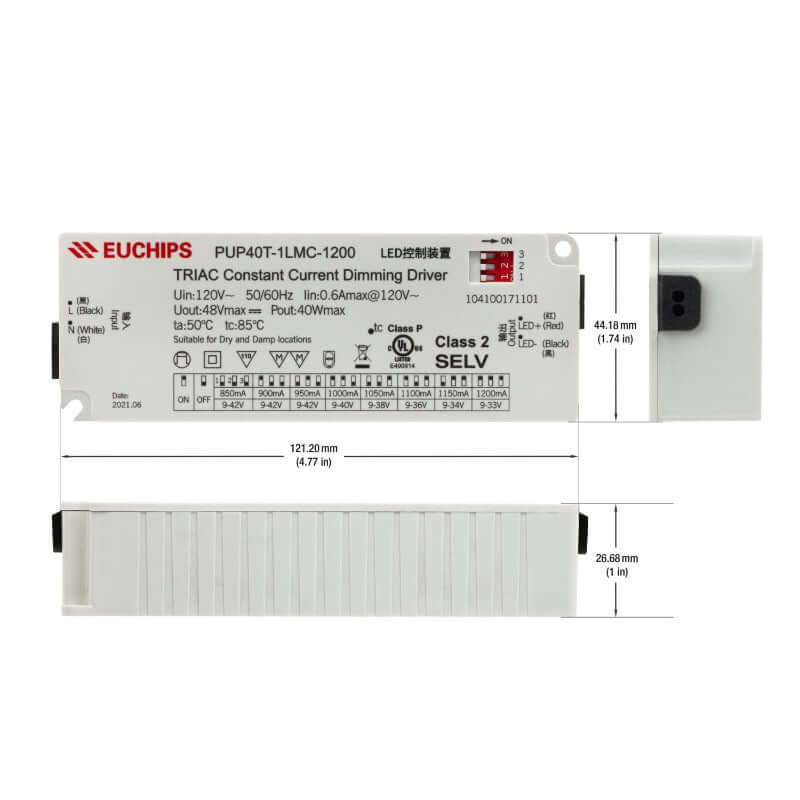

Dimensions 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications


The PUP40T-1LMC-1200 is a selectable constant current LED driver designed for powering LED lighting systems. It accepts an input voltage of 120VAC (108-132VAC) and can deliver a constant current output of 850mA to 1200mA, with output voltages ranging from 9V to 42V and output power ranging from 35.7W to 39.9W depending on the selected current.

The driver supports triac dimming, allowing it to be used with standard triac dimmer switches that are commonly found in homes and offices. It provides a dimming range of 5%-100%, enabling precise control over the brightness of connected LEDs and dimming them to off. The driver is rated IP20, making it suitable for use in dry and damp indoor locations.

The PUP40T-1LMC-1200 offers high efficiency (>84% at 120VAC, 850mA full load and >83% at 120VAC, 1200mA full load) and has a working temperature range of -20℃ to 50℃, ensuring stable and reliable operation in various environments. It has a long lifetime of up to 50,000 hours at a maximum case temperature of 85℃, ensuring durability and longevity.

Features:

  • The PUP40T-1LMC-1200 is a selectable constant current LED driver designed for LED lighting systems
  • Input voltage range of 120VAC (108-132VAC) and delivers a constant current output of 850mA to 1200mA
  • Output voltages ranging from 9V to 42V and output power ranging from 35.7W to 39.9W depending on selected current
  • Supports triac dimming with dimming range of 5%-100%, enabling precise control over brightness and dimming to off
  • Rated IP20, suitable for use in dry and damp indoor locations
  • High efficiency (>84% at 120VAC, 850mA full load and >83% at 120VAC, 1200mA full load)
  • Working temperature range of -20℃ to 50℃ and long lifetime of up to 50,000 hours at a maximum case temperature of 85℃
  • Compact dimensions of 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in) for easy installation in various applications
  • Maximum no-load output voltage of 58V for 850mA and 48V for 1200mA, and input frequency of 50/60Hz.
