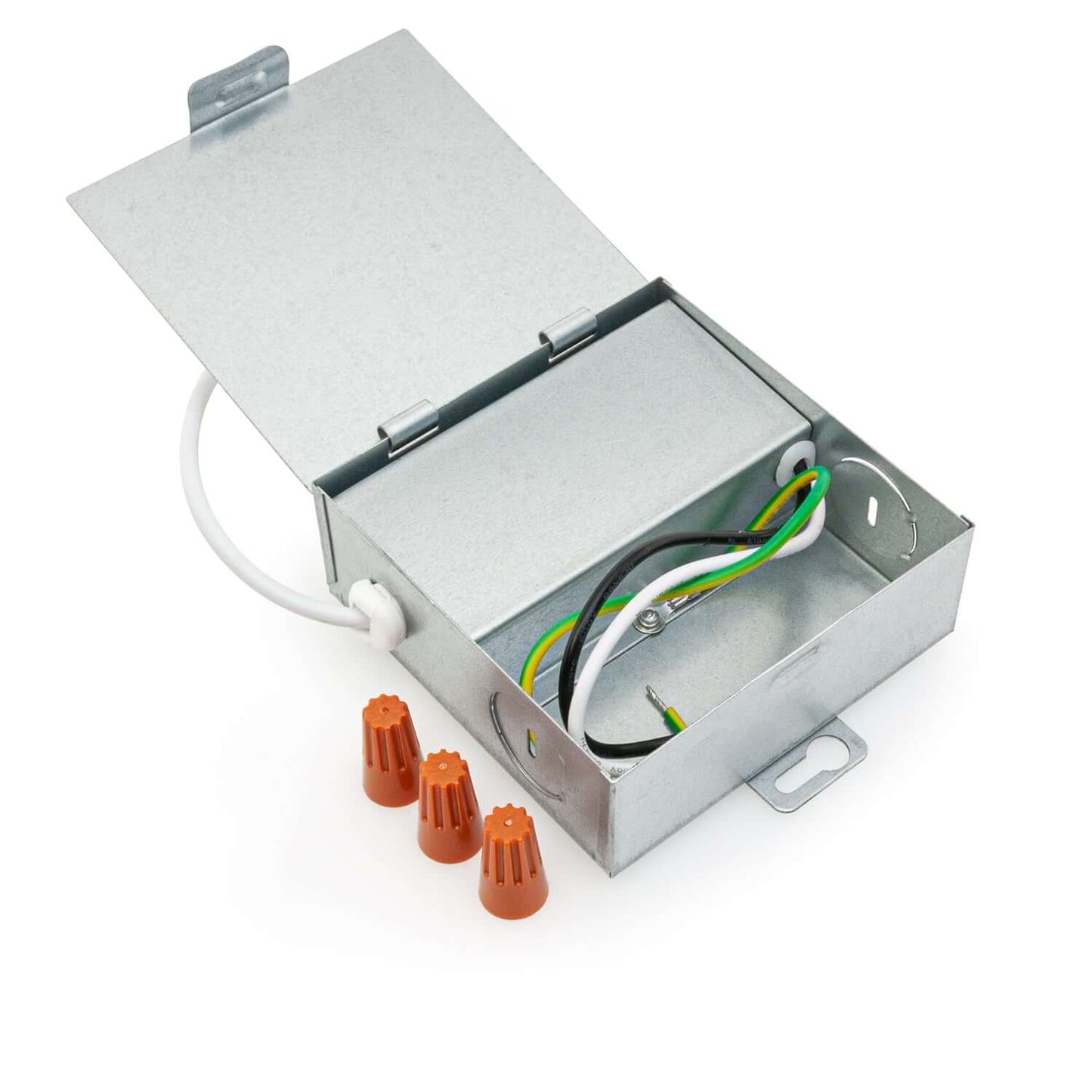

LP-ULTD-09003 Constant Current LED Junction Box Driver, 120mA 25V 3W

LED Lights and Parts

  • $14.99 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425739
We only have 510 left! Get it now before it's completely gone.

FREE Shipping over $49 USD


Product Description

Product Constant Current LED Driver
Model LP-ULTD-09003
Input Voltage 120V AC
Input Current 0.025A
Frequency 60Hz
Output Regulated Current 120mA
Output Power 3W
Output Voltage 25V DC
Material Aluminum
IP Rating IP20
Working Temperature -40°C to 80°C
Dimmable Yes
Dimensions 88 x 88 x 33.30 mm (3.46 x 3.46 x 1.3 in)
Class Certification: Class 2 Power Supply
Certification



Features:

Constant current dimmable LED drivers are used for LED lights that require a fixed output current as well as a variety of output voltages. LP-ULTD-09003 Dimming LED Constant Current Driver (Constant Current Power Supply) Suitable for lighting with 120mA output regulated current. This class 2 constant current driver has Input Voltage of 120V AC, can produce 25V DC output voltage and 3W of output power. It is suitable for operation with main supply dimmer and also suitable for dry and damp locations. This junction box is airtight and damp rated, that helps in preventing any vapor, dust, or insects from passing.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
