ES LD-CU3503AF Non-Dimmable Constant Current LED Driver 350mA 3–12V DC

  • $15.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561400576
We only have 476 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Non-dimmable Constant Current LED Driver
Model LD-CU3503AF
Input Voltage 100-240V AC
Input Current 0.085A

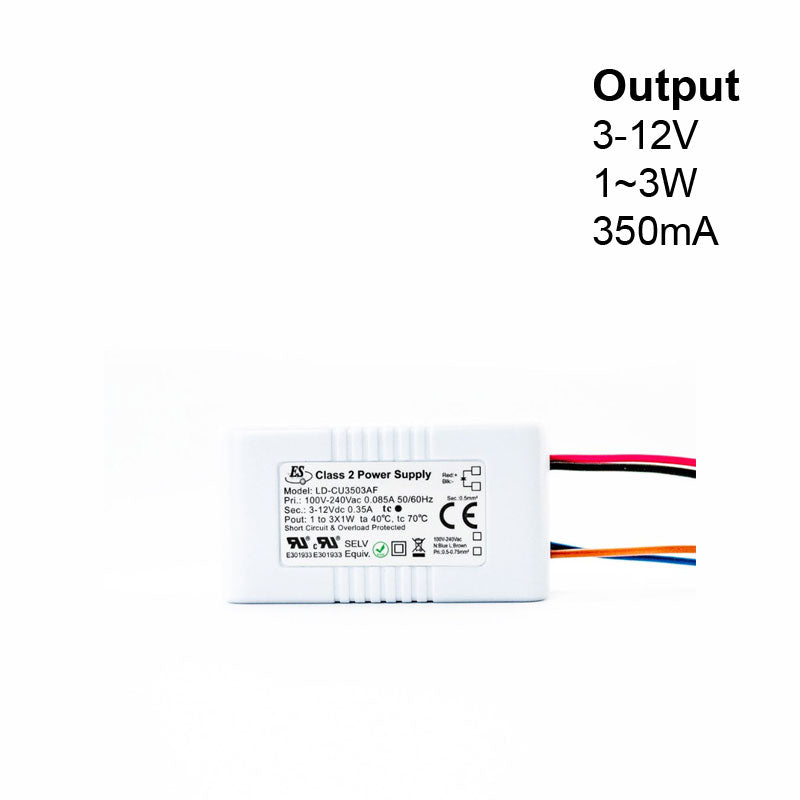

Output Voltage 3-12V DC
Output Regulated Current 350mA
Output Power 1-3W max
Dimmable No

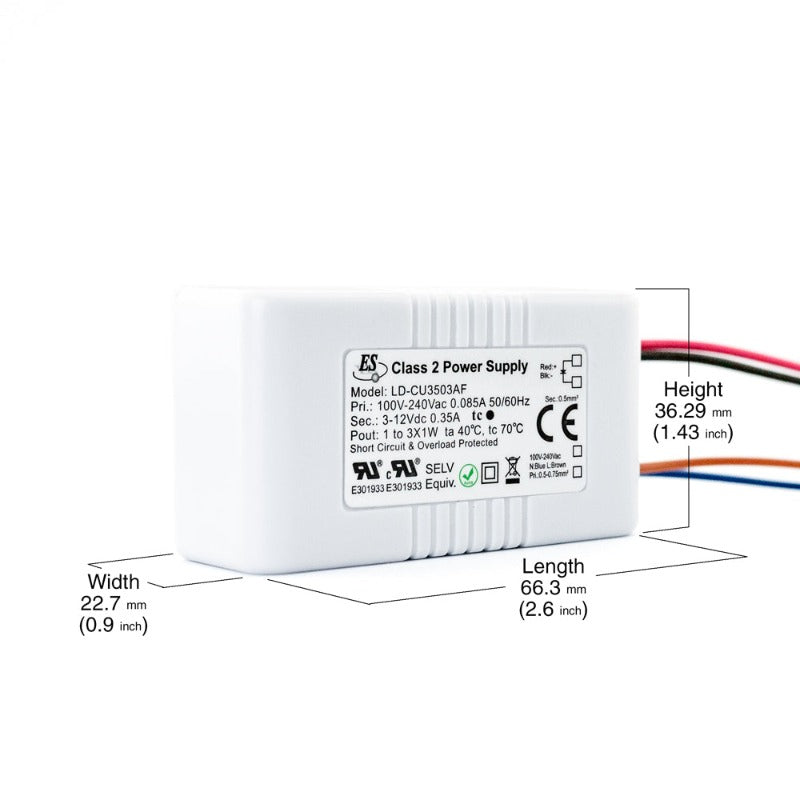

Dimensions 66.3 x 22.7 x 36.29 mm
(2.6 x 0.9 x 1.43 in)
Class Certification Class 2/ Class II
Certification

Short Circuit and Overload Protected
Applicable for dry and damp locations



The ES LD-CU3503AF is a non-dimmable constant current LED driver designed to regulate and power LED lighting systems. It has an input voltage range of 100-240V AC and an input current of 0.085A.

This LED driver has an output voltage range of 3-12V DC and an output regulated current of 350mA. The maximum output power of this driver is 1-3W. The LD-CU3503AF is not dimmable and has a Class 2/Class II certification, indicating that it meets the safety requirements of the National Electrical Code (NEC) for low voltage lighting systems.

The LD-CU3503AF LED driver comes with short circuit and overload protection, making it a reliable and safe choice for powering LED lighting systems. It is applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.

Features:

  • Non-dimmable constant current LED driver for regulating and powering LED lighting systems
  • Input voltage range of 100-240V AC and input current of 0.085A
  • Output voltage range of 3-12V DC and regulated output current of 350mA
  • Maximum output power of 1-3W
  • Class 2/Class II certification, meeting safety requirements of the National Electrical Code (NEC) for low voltage lighting systems
  • Compact dimensions of 66.3 x 22.7 x 36.29 mm (2.6 x 0.9 x 1.43 in)
  • Suitable for use in dry and damp locations
  • Short circuit and overload protection for reliable and safe operation
  • Applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.
