Product Description
| Product | Constant Current LED Driver |
| Model | L1AL-060024D-B |
| Input Voltage | 100-277 AC |
| Input Current | 0.6A |
| Frequency | 50/60Hz |
| Output Voltage | 25-40V DC |
| Output Regulated Current | 600mA |
| Output Power | 25W Max. |
| Weight | 0.25 kg |
| Dimmable | Yes |

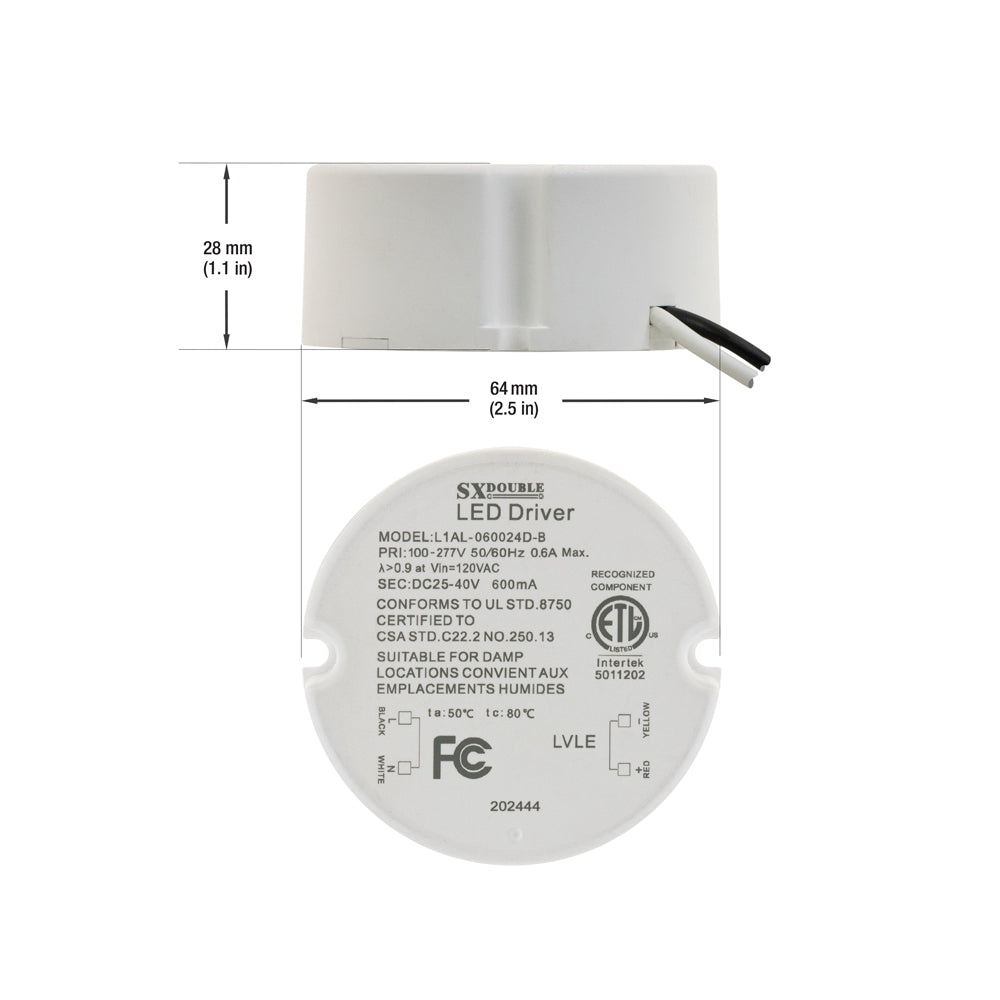

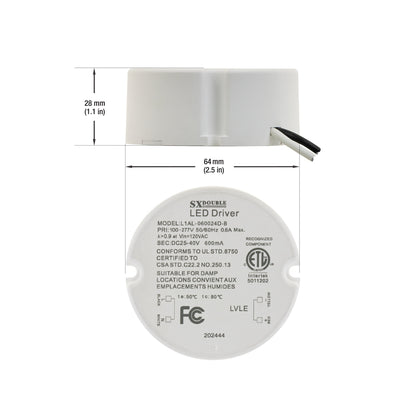

| Dimensions | Ø 64 x 28mm (Ø2.5 x 1.1in) |
| Certification |  |
Feature:
- Universal Input Voltage: 100-277 VAC, 50/60 Hz — accommodates most commercial and residential mains.
- Output Specification: 25-40 V DC at 600 mA — ideal for LED modules rated around 25W.
- High Efficiency: >0.9 at Vin = 120 VAC — minimal energy loss, cooler operation.
- Suitable for Damp Locations: Marked Suitable for Damp Locations / Emplacements Humid.
- Compact Round Design: Efficient form factor for junction box or fixture integration.
- High Temperature Rating: ta = 50 °C, tc = 80 °C — capable under elevated ambient conditions.
- Low THD and High PF: Power factor ≥0.9 ensures cleaner mains current draw and compliance with utility standards.
- Safety Markings: FCC logo, CE/ETL certifications — assures regulatory compliance and system credibility.
- Color-coded Output Leads: Red/Yellow leads for ease of connection and installation clarity.

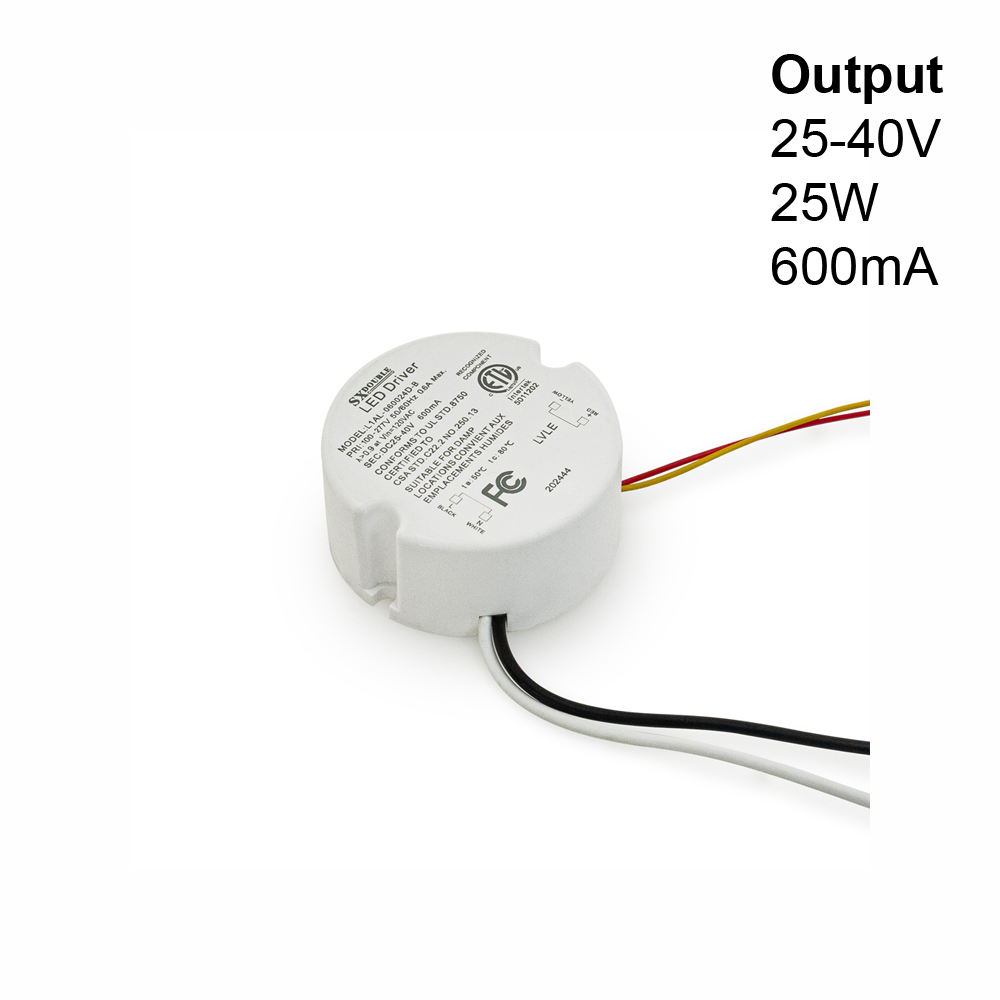

- Constant Current Dimmable LED Driver 600mA 25-40V 25W max, ideal for versatile dimming and reliable power.
