OTM-TD100-48 Constant Voltage LED Driver, 0-10V Dimmable 48V 100W
Product Description
Model | OTM-TD100-48 |
Input Voltage | 90-130V AC |
Input Current | 0.95A |
Frequency | 48-62Hz |
Efficiency | 85% |
Power Factor | PF>0.95 |
Output Voltage | 48V DC |
Output regulated Current | 2080mA |
Output max Power: | 100W max |
Dimmable: | Yes (0-10V dimming) |
IP Rating | IP20 |
Class Certification | Class II |

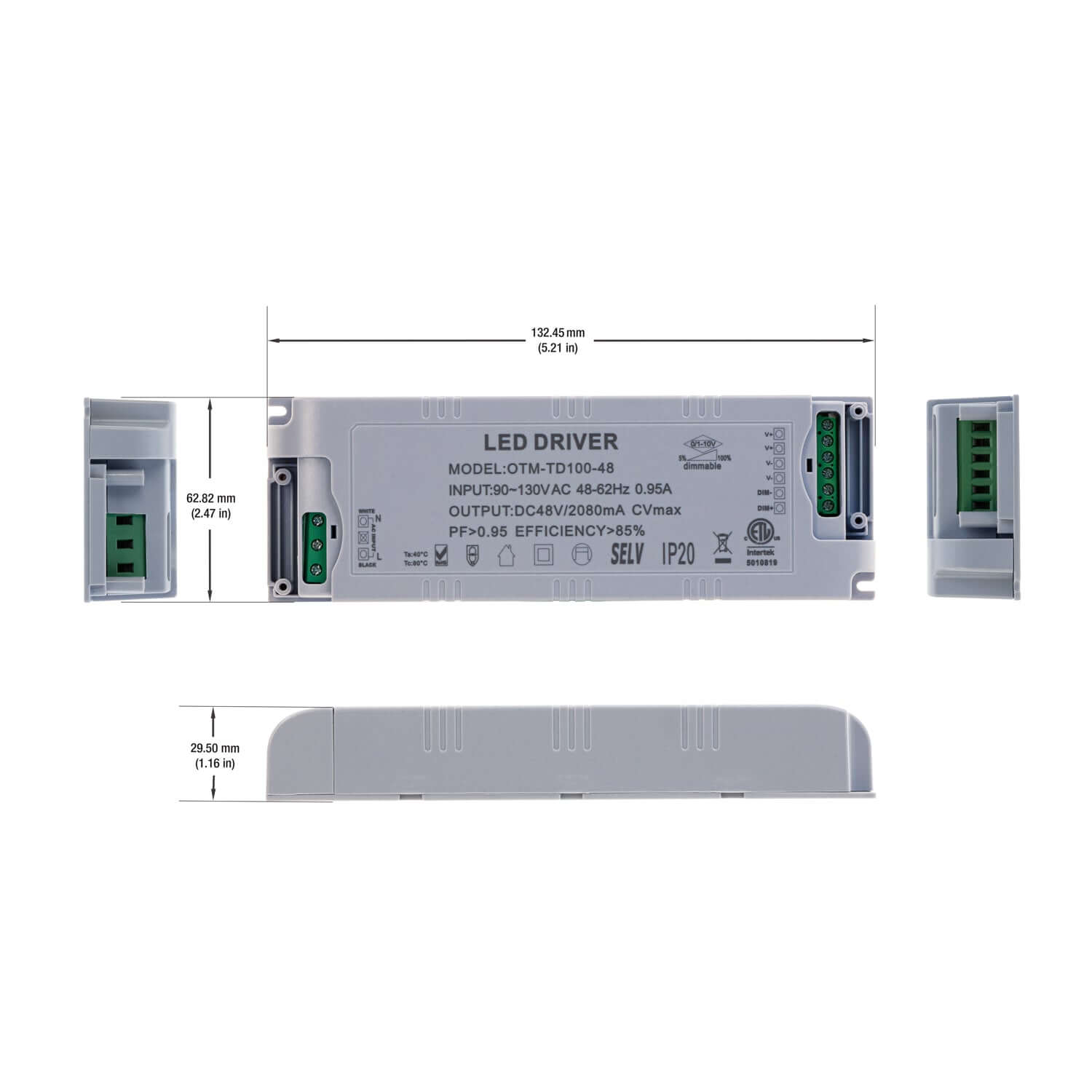

Dimensions | 132.45 x 62.82 x 29.5mm (5.2 x 2.4 x 1.1 in) |
Certifications | ![]() ![]() ![]() |
Short Circuit and Overload Protection |
Suitable for dry and damp locations |
The OTM-TD100-48 Constant Voltage LED Driver is a high-quality LED driver designed to provide a constant voltage output of 48V DC for LED lighting systems. The model number for this driver is OTM-TD100-48.
The input voltage range for this driver is 90-130V AC, with an input current of 0.95A and a frequency range of 48-62Hz. The efficiency of the driver is 85%, which means it is highly efficient in converting power to the load, and the power factor is greater than 0.95, which indicates good power factor correction.
The output voltage is 48V DC with a regulated current output of 2080mA, and a maximum output power of 100W. The OTM-TD100-48 LED driver is dimmable, meaning it can be controlled using 0-10V dimming techniques, which allows for easy control of the brightness of the LED lighting system.
The driver is rated for indoor use with an IP20 rating and Class II certification, which means it has been designed with double insulation and doesn't require a ground connection.
The dimensions of the driver without the box are L190.50mm x W63.63mm (7.5 x 2.5 in), and with the box, the dimensions are 328.60x 75.36 x 56.26mm (12.93 x 2.96 x 2.21 in). The driver is ETL certified, which means it has been tested and meets the safety standards set by the Electrical Testing Laboratories.
Overall, the OTM-TD100-48 LED driver is a reliable and efficient driver that provides constant voltage output for LED lighting systems and is suitable for indoor use with 0-10V dimming capabilities.
Features:
- The model number for this LED driver is OTM-TD100-48.
- It provides a constant voltage output of 48V DC for LED lighting systems.
- The input voltage range is 90-130V AC, with an input current of 0.95A and a frequency range of 48-62Hz.
- The efficiency of the driver is 85%, and the power factor is greater than 0.95, indicating good power factor correction.
- The driver has a regulated current output of 2080mA, and a maximum output power of 100W.
- It is dimmable using 0-10V dimming techniques, allowing for easy control of the brightness of the LED lighting system.
- The driver is rated for indoor use with an IP20 rating and Class II certification, which means it has been designed with double insulation and doesn't require a ground connection.
- The dimensions of the driver without the box are L190.50mm x W63.63mm (7.5 x 2.5 in), and with the box, the dimensions are 328.60x 75.36 x 56.26mm (12.93 x 2.96 x 2.21 in).
- The driver is ETL certified, ensuring it meets safety standards set by the Electrical Testing Laboratories.
