OTM-TD100-48 LED Constant Voltage LED Driver, 0-10V Dimming 48V 100W

OTM-TD100-48 LED Constant Voltage LED Driver, 0-10V Dimming 48V 100W

SKU: SKU:666561419998

Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Return Policy

  • 30 Days Return Policy

 How do we ship our product?

GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.

Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.

How do we calculate the shipping cost?

Our prices are based on US dollars and are as follows:

Free Shipping

For orders totalling $99 USD or above (Canada and US only).
Free shipping is Not available for specific products; please check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?

Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?

All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?

We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?

Returns and exchanges are accepted within 30 days of the original purchase date.
Important information below:
  • All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Two week processing time.
  • To Return any product, make sure to use USPS for the United States and Canada Post for Canada. Other shipping companies are NOT acceptable.
  • To submit a request for a return or exchange, please email sales@gekpower.com

Note:

  • If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.

Duty Charge:

  • Customers will be responsible for any duty charges incurred on a returned product by the carrier.

Note: import tax may apply to the products

Statutory Holidays in British Columbia, Canada 2024

January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



Product Description

Model OTM-TD100-48
Input Voltage 100-265V AC
Input Current 0.5A @230V AC
Frequency 50/60Hz
Efficiency 88%
Power Factor  PF>0.95

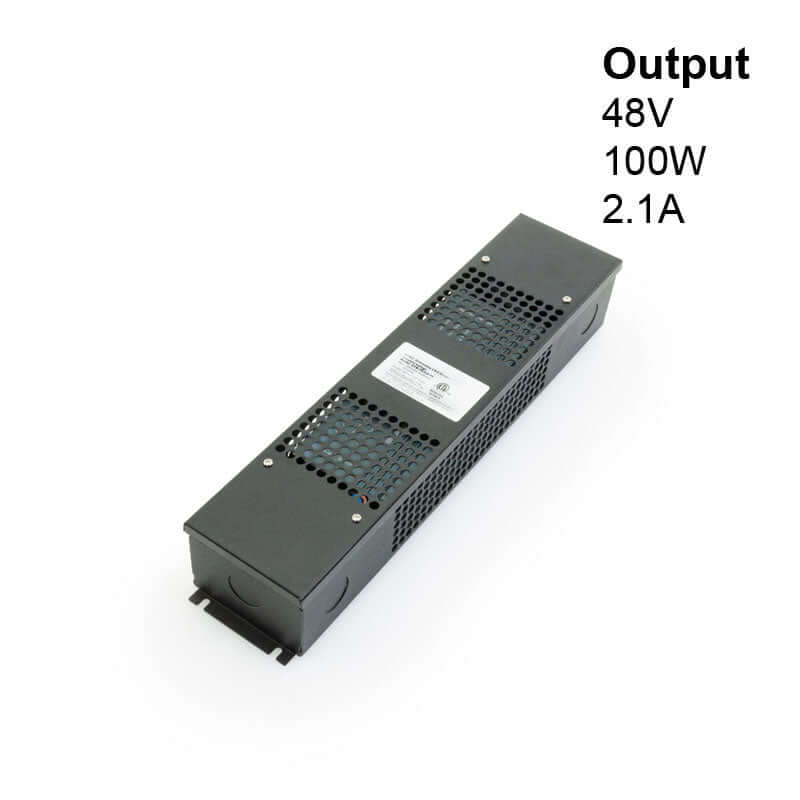

Output Voltage 48V DC
Output regulated Current 2.1A
Output Power 100W max
Dimmable Yes (0-10V dimming)
IP Rating IP67

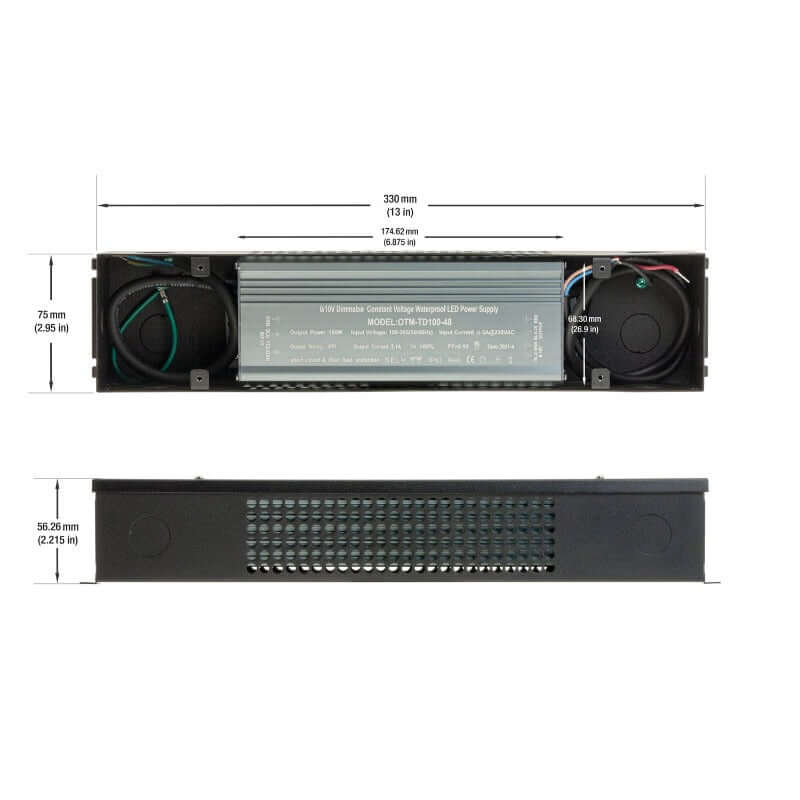

Dimensions (Without Box) L174.62mm x W68.30mm
(6.87 x 2.69 in)
Dimensions (Box) 330 x 75 x 56.26mm
(12 x 2.95 x 2.21 in)
Certifications
Short Circuit and Overload Protection
Suitable for dry, damp, and wet locations



The OTM-TD100-48 is a constant voltage LED driver designed for use with LED lighting systems. It operates with an input voltage of 100-265V AC and a frequency of 50/60Hz, with an input current of 0.5A at 230V AC and an efficiency of 88%. The driver has a high power factor of PF>0.95, indicating that it operates efficiently and minimizes waste.

The LED driver is capable of delivering an output voltage of 48V DC and a regulated output current of 2.1A, providing a maximum output power of 100W. It also features 0-10V dimming capability, allowing for smooth and precise dimming of LED lights.

Features:

  • The OTM-TD100-48 is a constant voltage LED driver designed for use with LED lighting systems.
  • It operates with an input voltage of 100-265V AC and a frequency of 50/60Hz, with an input current of 0.5A at 230V AC and an efficiency of 88%.
  • The driver has a high power factor of PF>0.95, indicating that it operates efficiently and minimizes waste.
  • The LED driver is capable of delivering an output voltage of 48V DC and a regulated output current of 2.1A, providing a maximum output power of 100W.
  • It features 0-10V dimming capability, allowing for smooth and precise dimming of LED lights.

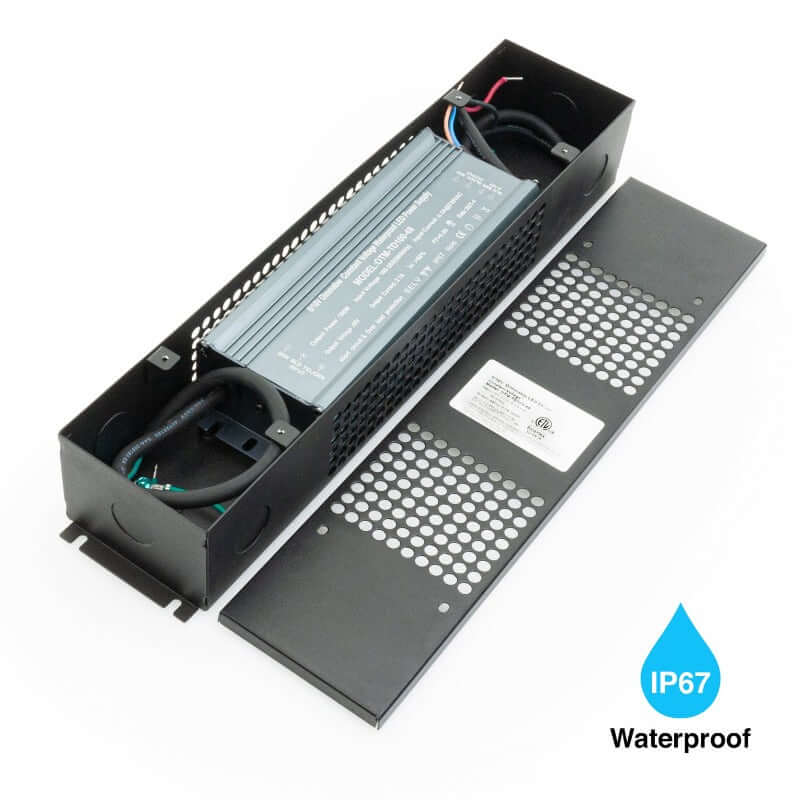

  • The OTM-TD100-48 has an IP67 rating, indicating that it is suitable for use in outdoor environments where it is exposed to moisture and dust.
  • Its dimensions are L174.62mm x W68.30mm (6.87 x 2.69 in) without the box and 330 x 75 x 56.26mm (12 x 2.95 x 2.21 in) with the box.
  • It is ETL certified, ensuring that it meets safety and performance standards for electrical products
