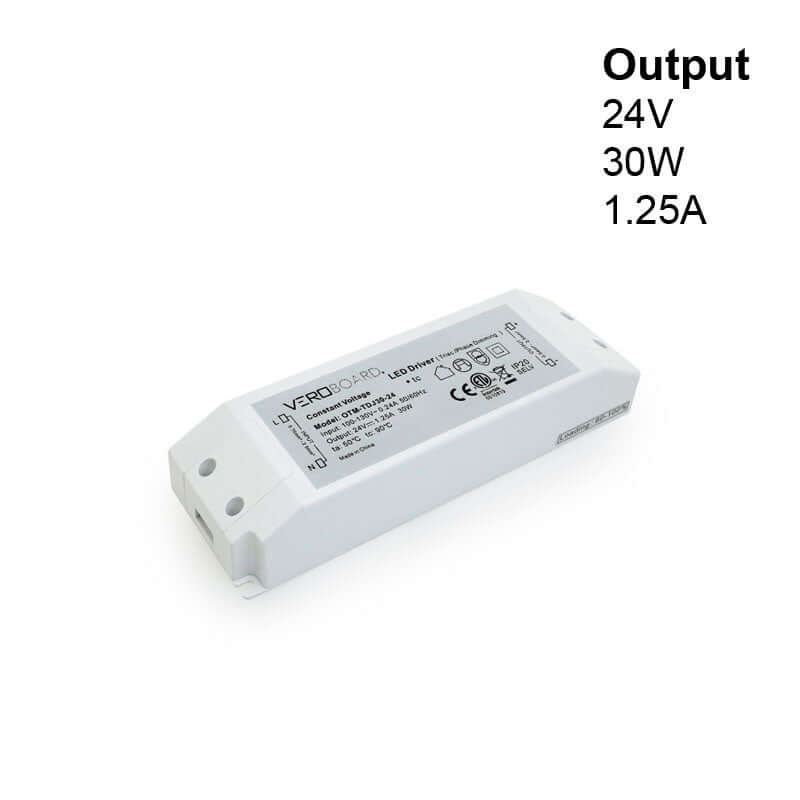

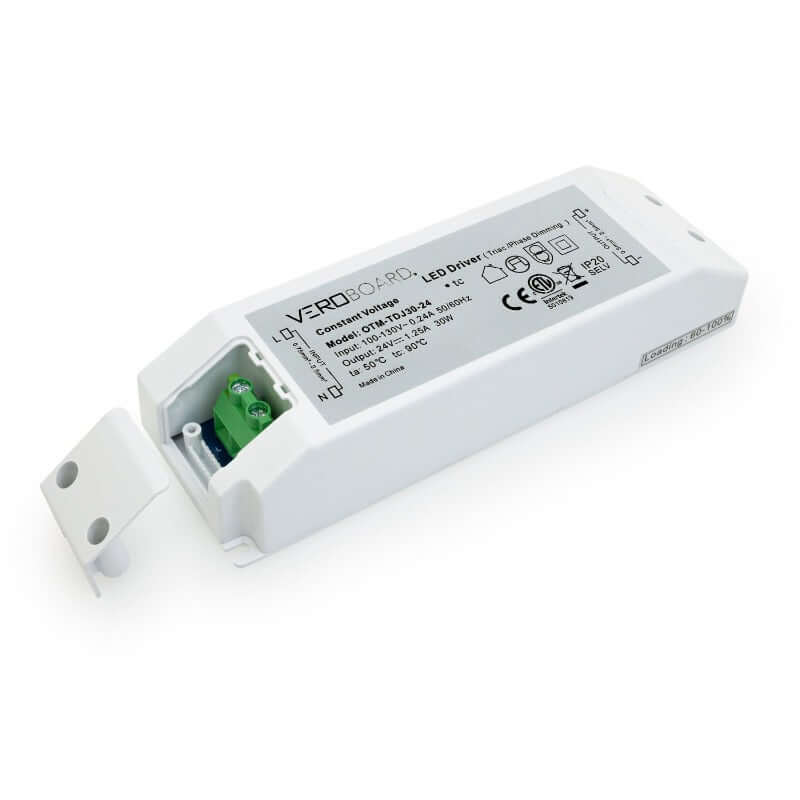

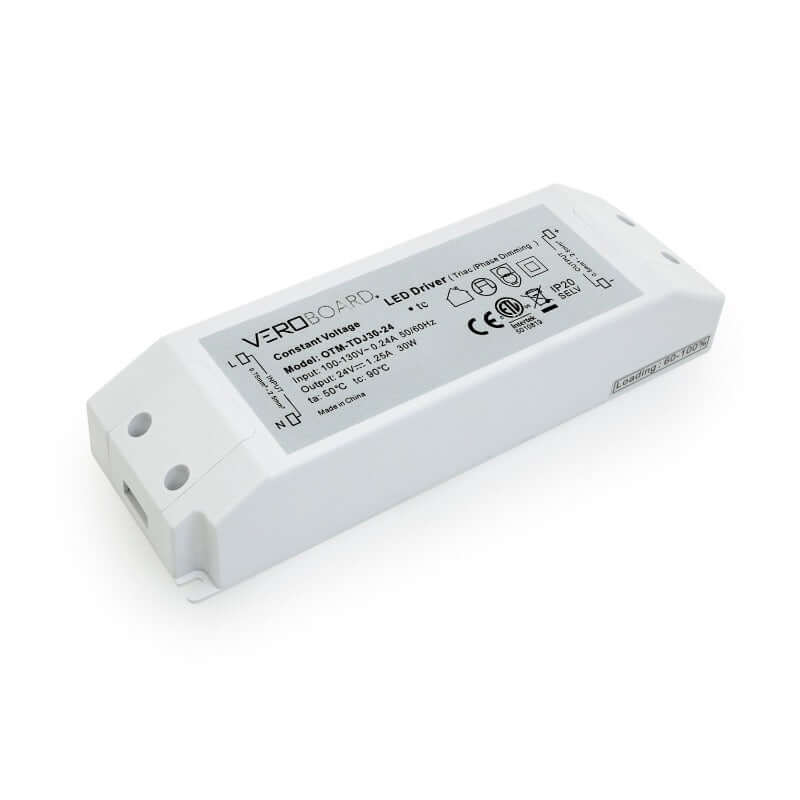

OTM-TDJ30-24 Triac Dimmable Constant Voltage LED Driver, 24V 1.25A 30W

  • $45.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425487
We only have 116 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Model OTM-TDJ30-24
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50/60Hz
Output Voltage 24V DC
Output regulated Current 1.25A
Output Power 30W
Dimmable Yes (Triac/Phase dimming)
IP Rating IP20 (Indoor Rated)
Ambient Temperature (Ta) 50°C
Case Temperature (Tc) 90°C
Class Certification Class II/ SELV

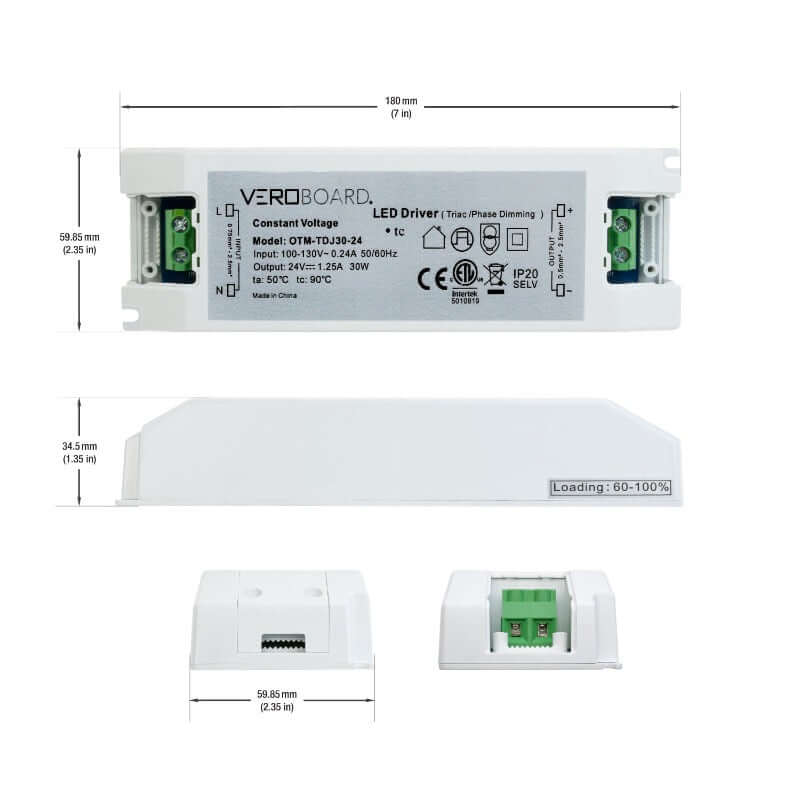

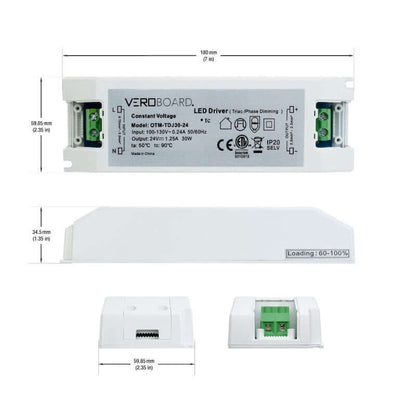

Dimensions 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
Certification

Compatible with Forward-Phase & Triac dimmers
Applicable for Dry and Damp locations
Short circuit and overload protected
Class II certified, Double-layer insulation


The OTM-TDJ30-24 is a Triac Dimmable Constant Voltage LED Driver that can convert an input voltage range of 100-130V AC with an input current of 0.24A and a frequency of 50/60Hz into an output voltage of 24V DC with an output regulated current of 1.25A and an output power of 30W.

This LED driver is also dimmable using Triac/Phase dimming and has an IP20 rating, which makes it suitable for indoor use only. The Ambient Temperature (Ta) range for this model is 50°C and the Case Temperature (Tc) range is up to 90°C. It has a Class II/ SELV certification and its dimensions are 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in). It is certified by ETL.

Features:

  • LED driver type: Triac Dimmable Constant Voltage
  • Input voltage range: 100-130V AC
  • Input current: 0.24A
  • Frequency: 50/60Hz
  • Output voltage: 24V DC
  • Output regulated current: 1.25A
  • Output power: 30W
  • Dimming capability: Triac/Phase dimming
  • IP rating: IP20 (suitable for indoor use only)
  • Ambient Temperature (Ta) range: 50°C
  • Case Temperature (Tc) range: up to 90°C
  • Certification: Class II/ SELV
  • Dimensions: 180 x 59.85 x 34.5mm (7 x 2.35 x 1.35in)
  • Certification authority: ETL
