Mean Well GST60A12-P1J Constant Voltage LED Driver, 12V 5A 60W
|Input Voltage||100-240V AC|
|Output Voltage||12V DC|
|Output Regulated Current||5.0A|
|Output Power||60W max|
|Dimensions||124 x 50 x 32mm (4.88 x 1.97 x 1.26 in)|
|Inlet Port||3 Pole (3 prongs AC inlet cord)|
|Product Content||Power Supply|
|Short Circuit and Overload Protected|
|Applicable for dry and damp locations|
|For AC connection it needs a cord (Sold separately)|
|For DC connections, you can either hardwire it by cutting the connector or use the easy connector power jack (Sold separately)|

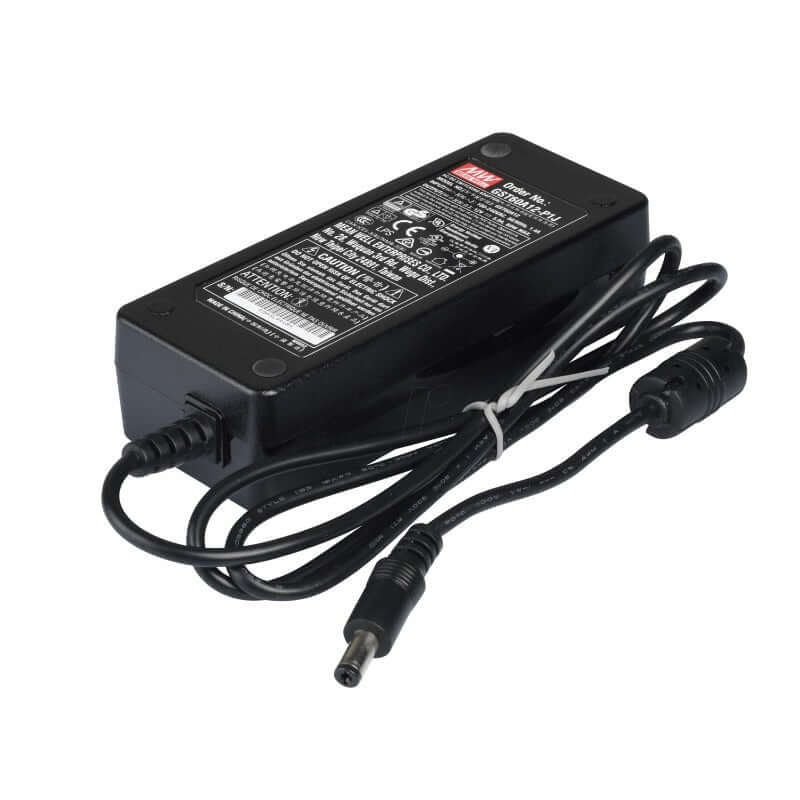

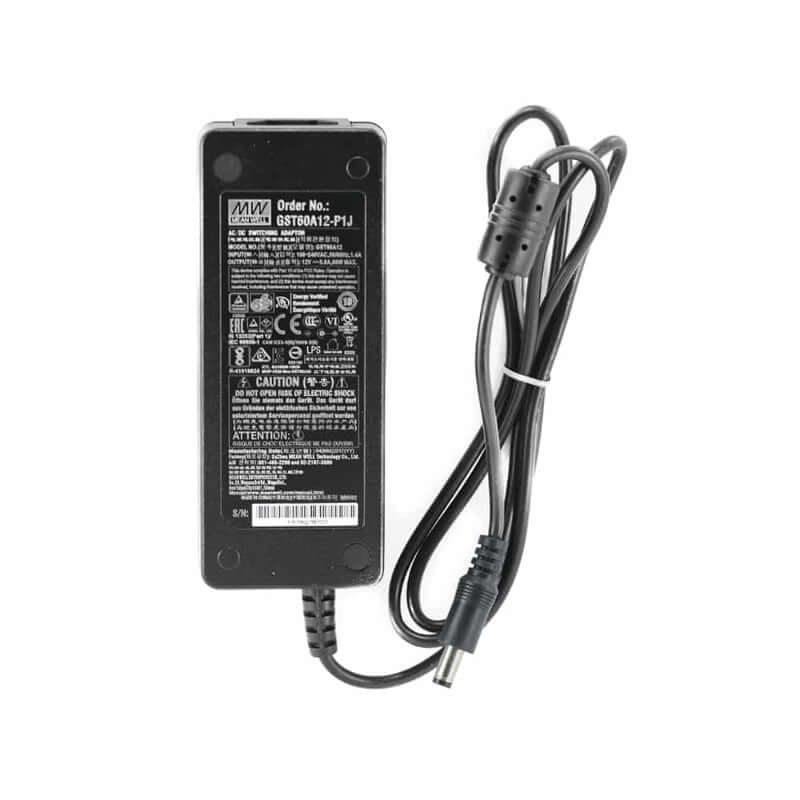

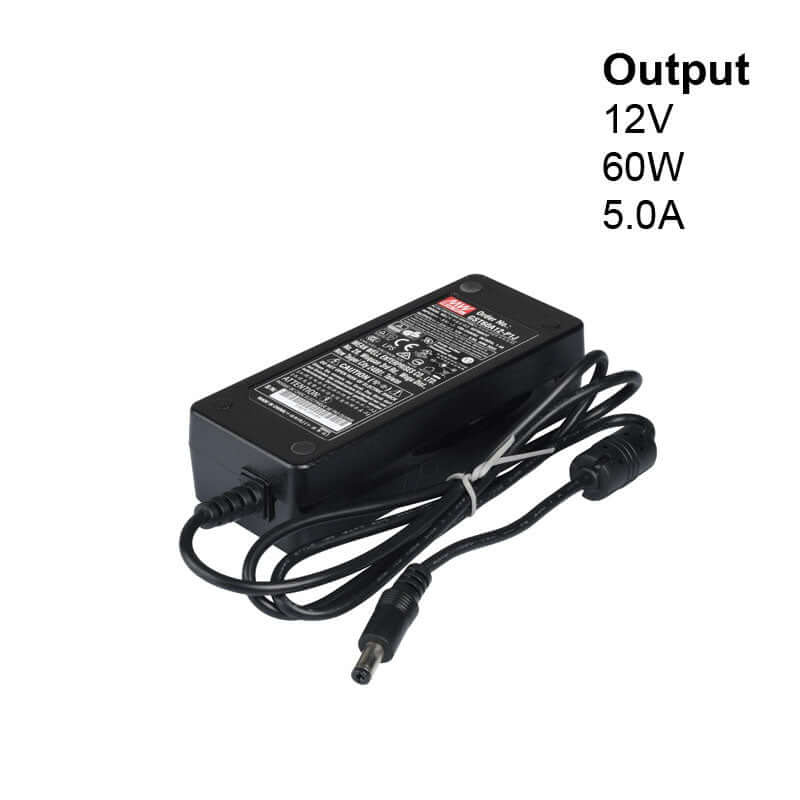

The Mean Well GST60A12-P1J is a high-quality, constant voltage LED driver that provides a reliable and efficient power source for LED lighting fixtures. With an input voltage range of 100-240V AC, this driver can operate on a variety of power sources. The input current is 1.4A, while the output voltage is 12V DC, making it suitable for LED lighting applications that require a 12V DC power source.
This LED driver has an output regulated current of 5.0A and an output power of 60W max, meaning that it can power LED lights that require up to 60 watts of power. It is non-dimmable, but it provides a stable and constant voltage that ensures the optimal performance of LED lighting fixtures.
The Mean Well GST60A12-P1J is designed with short circuit and overload protection to prevent damage to the LED lighting fixture in case of electrical faults. It is also applicable for use in dry and damp locations, making it versatile for various environments.
The driver has a compact size of 124 x 50 x 32mm (4.88 x 1.97 x 1.26 in) and an IP20 rating, indicating that it is suitable for indoor use and offers some protection against dust.
The Mean Well GST60A12-P1J is IC rated, indicating that it is safe to use in insulated ceilings. It features a 3-pole AC inlet cord and requires an AC connection cord, which is sold separately. For DC connections, you can either hardwire it by cutting the connector or use the easy connector power jack, which is also sold separately.
In summary, the Mean Well GST60A12-P1J is a high-quality, non-dimmable LED driver that provides a stable and reliable power source for LED lighting applications requiring a 12V DC input. It is designed with short circuit and overload protection and is applicable for use in dry and damp locations. Its compact size and IC rating make it a convenient option for use in different settings. However, the AC connection cord and the DC connector power jack are sold separately.
- High-quality constant voltage LED driver
- Input voltage range of 100-240V AC
- Output voltage of 12V DC and output regulated current of 5.0A
- Maximum output power of 60W
- Non-dimmable but provides stable and constant voltage
- Short circuit and overload protection
- Applicable for use in dry and damp locations
- Compact size of 124 x 50 x 32mm (4.88 x 1.97 x 1.26 in)
- IP20 rating for indoor use with some protection against dust
- IC rated for use in insulated ceilings
- Requires AC connection cord (sold separately)
- DC connector power jack available (sold separately) for DC connections
