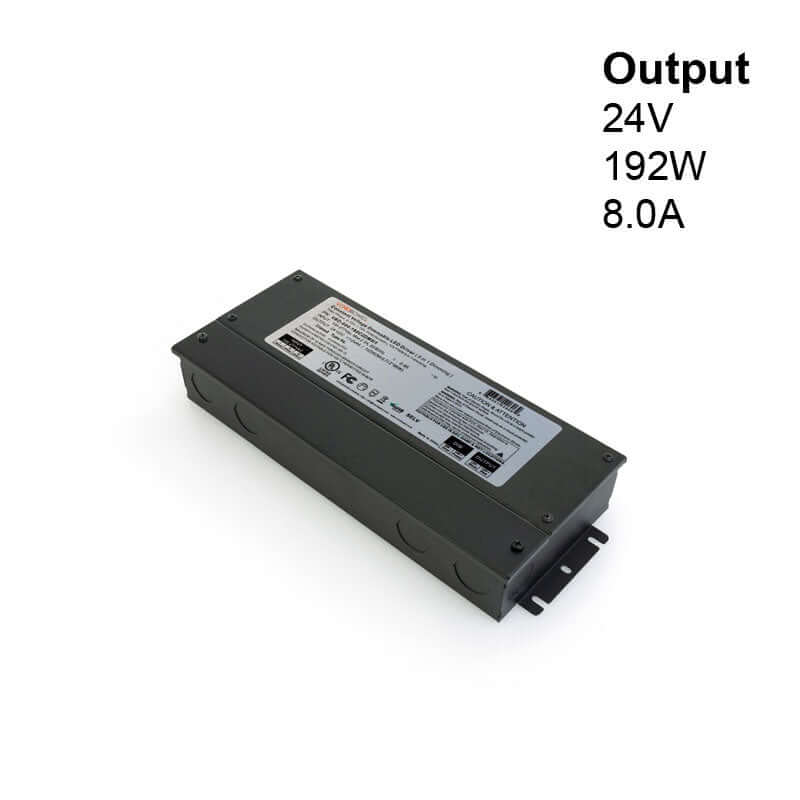

VBD-024-192C2DM5i1(Class2 2x96w) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 192W

  • $254.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426064
Title:
We only have 97 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model VBD-024-192C2DM5i1
Input Voltage 100-277V AC
Input Current 2.3A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 24V DC
Output regulated Current 2 x 4A
Output Power 192W max (2 x 96W)
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)

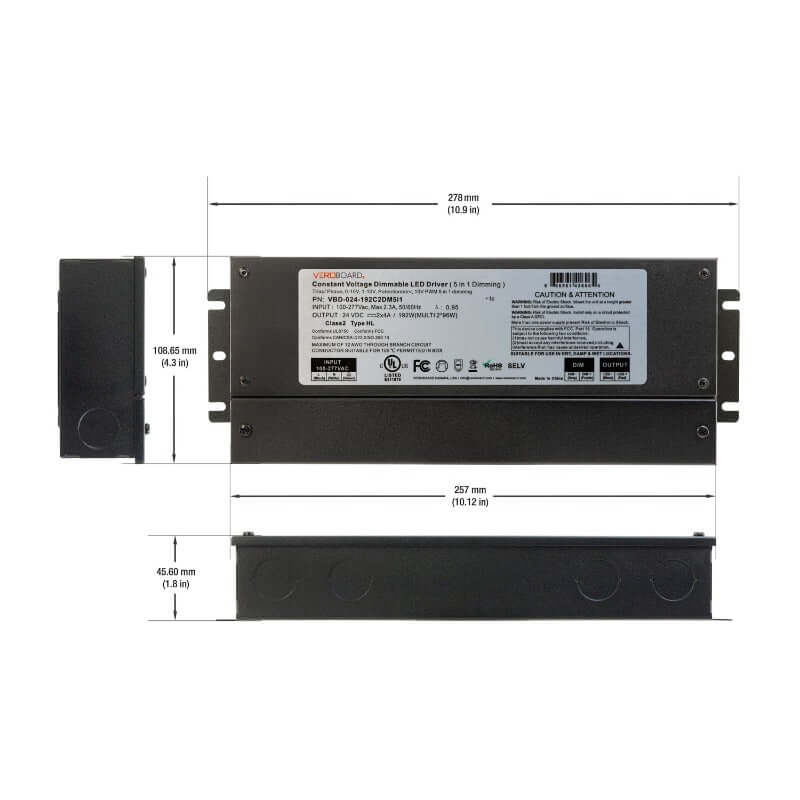

Dimensions  278mm x 108.65mm x 45.60mm (10.9in x 4.3in x 1.8in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



The VBD-024-192C2DM5i1 LED Driver is a 5 in 1 dimming driver designed to power and control LED lighting systems. It is capable of accepting input voltages between 100-277V AC and has a power factor of >0.95. The output voltage is regulated at 24V DC and can supply a maximum output power of 192W, which is split between 2 regulated current outputs of 4A each. The maximum power per output is 96W.

This LED driver is dimmable using multiple methods, including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM, making it compatible with most dimming systems. It also has an IP67 rating, making it suitable for use in dry, damp, and wet locations.

The dimensions of the driver are 278mm x 108.65mm x 45.60mm (10.9in x 4.3in x 1.8in), and it is Class 2 certified, which means it meets certain safety standards for low voltage applications. Additionally, it has UL and FCC certifications, indicating that it has been tested and meets the safety and performance requirements of those organizations.

Features:

  • VBD-024-192C2DM5i1 LED Driver
  • 5 in 1 dimming driver for LED lighting systems
  • Input voltage: 100-277V AC, power factor >0.95
  • Output voltage: 24V DC, maximum output power of 192W
  • 2 regulated current outputs of 4A each, maximum power per output is 96W
  • Dimming compatibility: Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM
  • IP67 rating for use in dry, damp, and wet locations
  • Dimensions: 278mm x 108.65mm x 45.60mm (10.9in x 4.3in x 1.8in)
  • Class 2 certified for low voltage applications
  • UL and FCC certified for safety and performance standards.
