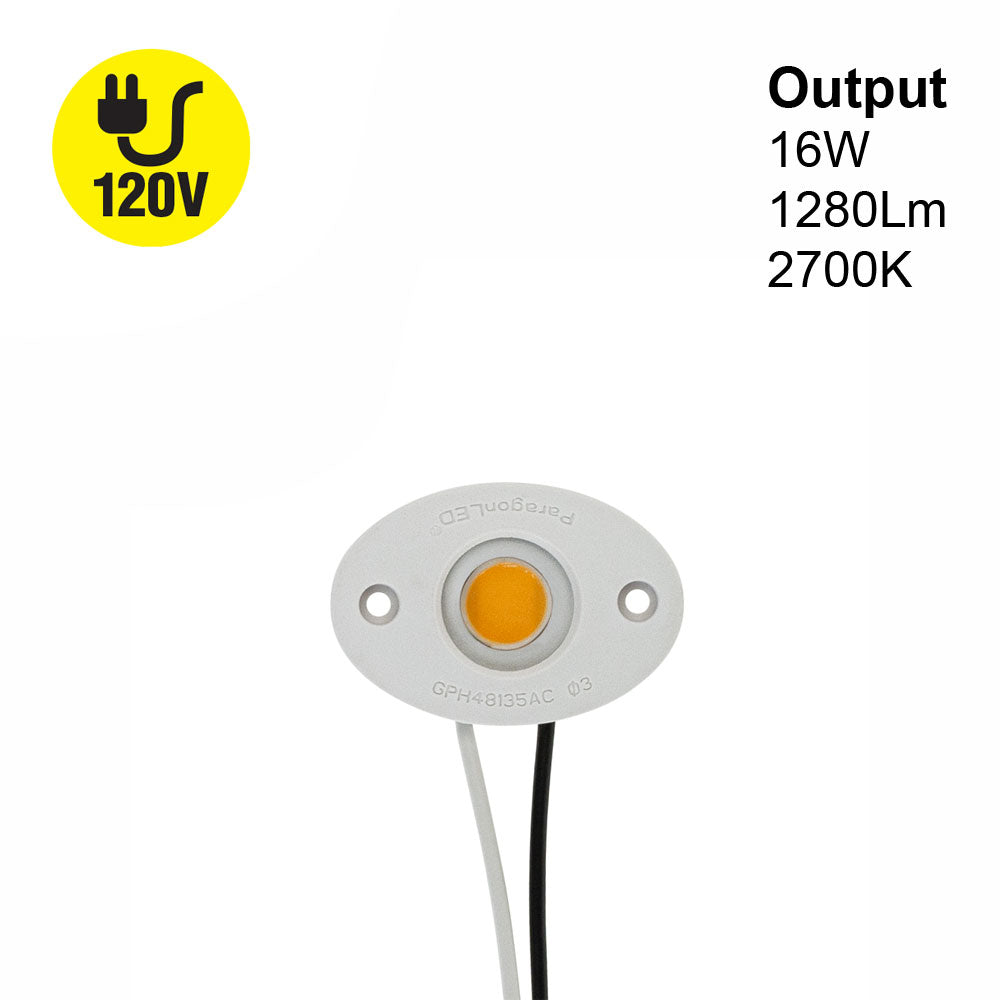

CBAC-084-30135-120-2700-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 2700K (Soft White)
Product Description
| Product | Paragon LED Module |
| Model No | CBAC-084-30135-120-2700-G12 |
| COB Holder Model No | GPH48135AC |
|
LED Type |
COB LED |
| Wattage | 16W |
| Voltage | 120V AC |
| Brightness | 1280 Lumens |
| Color Temperature | 2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

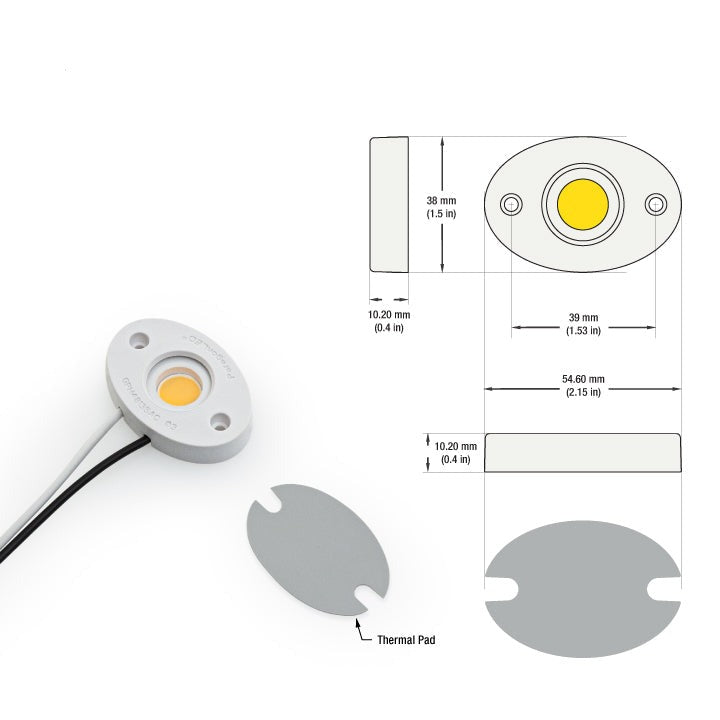

| COB Holder Dimensions | ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) |
| COB Module Outer Diameter | ∅27mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder with Thermal Pad |
| Certifications |  |
The 8CBAC-084-30135-120-2700-G12 COB Paragon LED Module is a high-quality lighting solution that offers low power consumption and high energy efficiency. The module features a COB LED that provides a brightness of 1280 lumens at a wattage of 16W, with a voltage of 120V AC. The color temperature of the light is 2700K, which is soft white and creates a warm and cozy atmosphere.

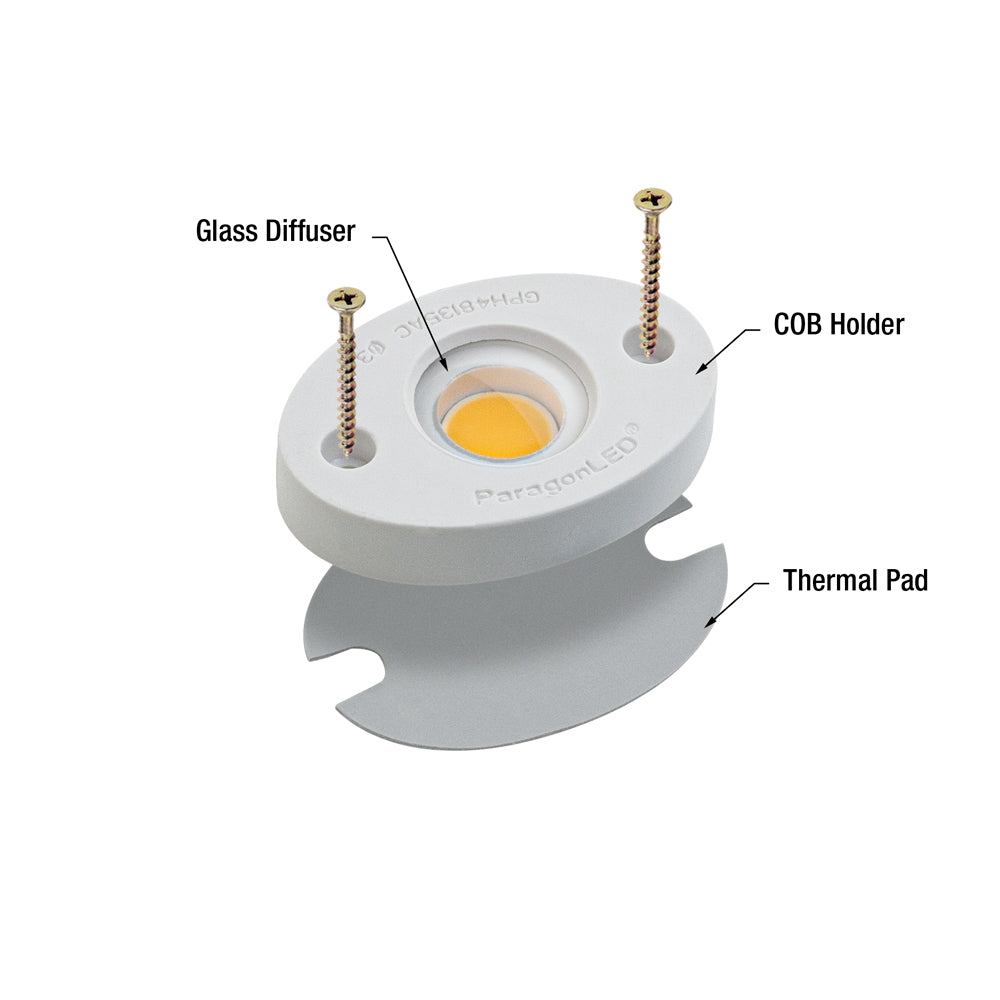

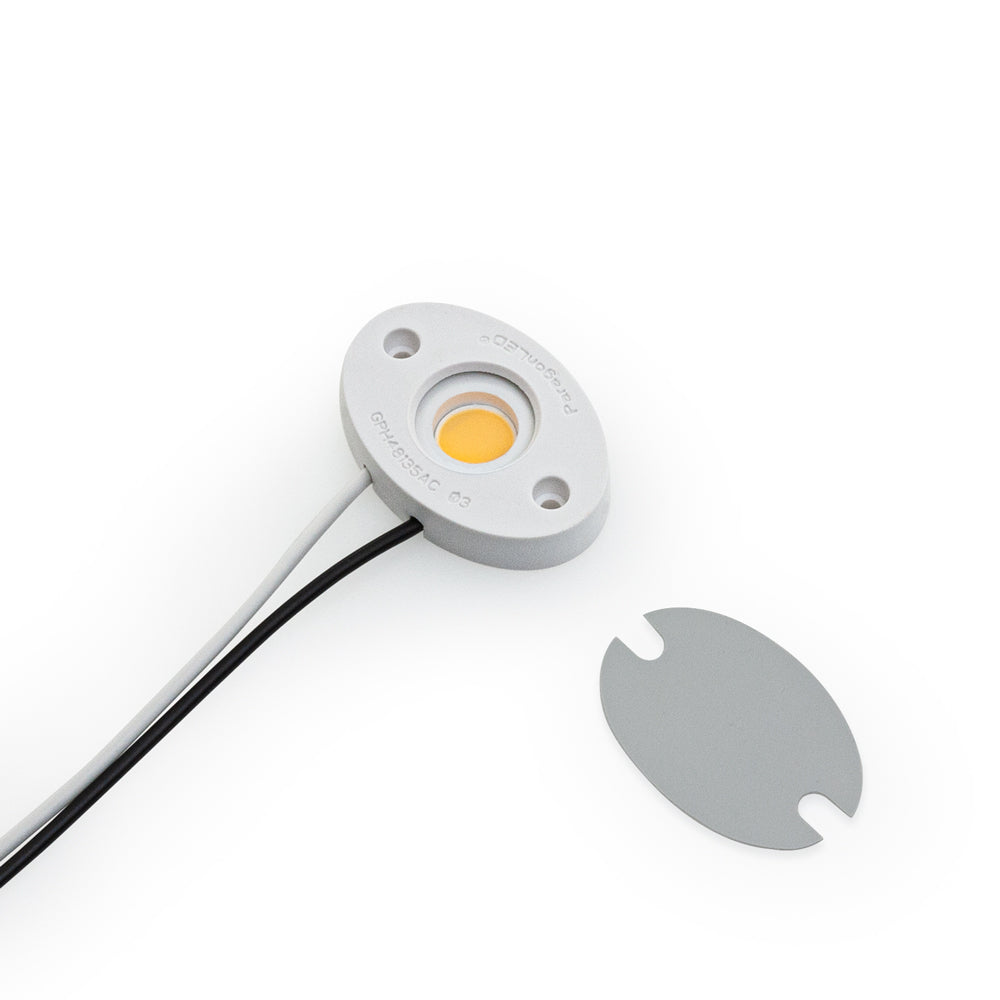

The module comes with a GPH48135AC LED holder which allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), and the COB module's outer diameter is ∅27mm (1.06 in). The module also comes with a silicone grease thermal pad that provides a heat sink and helps in better heat dissipation, thereby increasing the module's lifespan.
The module is dimmable and has a rendering index of CRI>80. It has an IP20 rating, which makes it suitable for indoor use in damp locations. The operating temperature range is -60 ~ +105℃, and the module can be stored in temperatures between -60 ~ +105℃. The assembly process temperature should be kept below 300℃, and the solder joint point temperature should be kept below 105℃.
The module has a dielectric breakdown voltage of thermal pad of >4KV and comes with certifications from UL. The module needs an aluminum heat sink to prevent overheating, which can cause serious luminous decay. COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies. It is important to ground light fixtures while designing lamps. COB LEDs are generally used in almost every kind of luminaire.
Features:
- High-quality lighting solution with low power consumption and high energy efficiency
- COB LED with a brightness of 1280 lumens, 16W power consumption, and 120V AC voltage
- Soft white light with a color temperature of 2700K, creating a warm and cozy atmosphere
- Holder dimensions of ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), COB module's outer diameter of ∅27mm (1.06 in)
- Silicone grease thermal pad for better heat dissipation and longer lifespan
- Dimmable with a rendering index of CRI>80
- IP20 rating for indoor use in damp locations
- Operating temperature range of -60 ~ +105℃, with a dielectric breakdown voltage of thermal pad of >4KV
- Certifications from UL for safety standards
- Requires an aluminum heat sink to prevent overheating and luminous decay
- COB LEDs have a higher quality beam output and are generally used in almost every kind of luminaire
- Grounding of light fixtures is important while designing lamps
