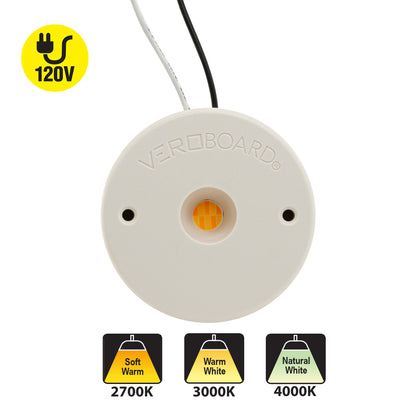

CBHT-042-36185-120V-4000K COB Paragon LED Module with GPDH66185AC LED Holder, 120V 12W 4000K(Natural White)
CBHT-042-36185-120V-4000K COB Paragon LED Module with GPDH66185AC LED Holder, 120V 12W 4000K(Natural White)
SKU: SKU:666561430528
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description

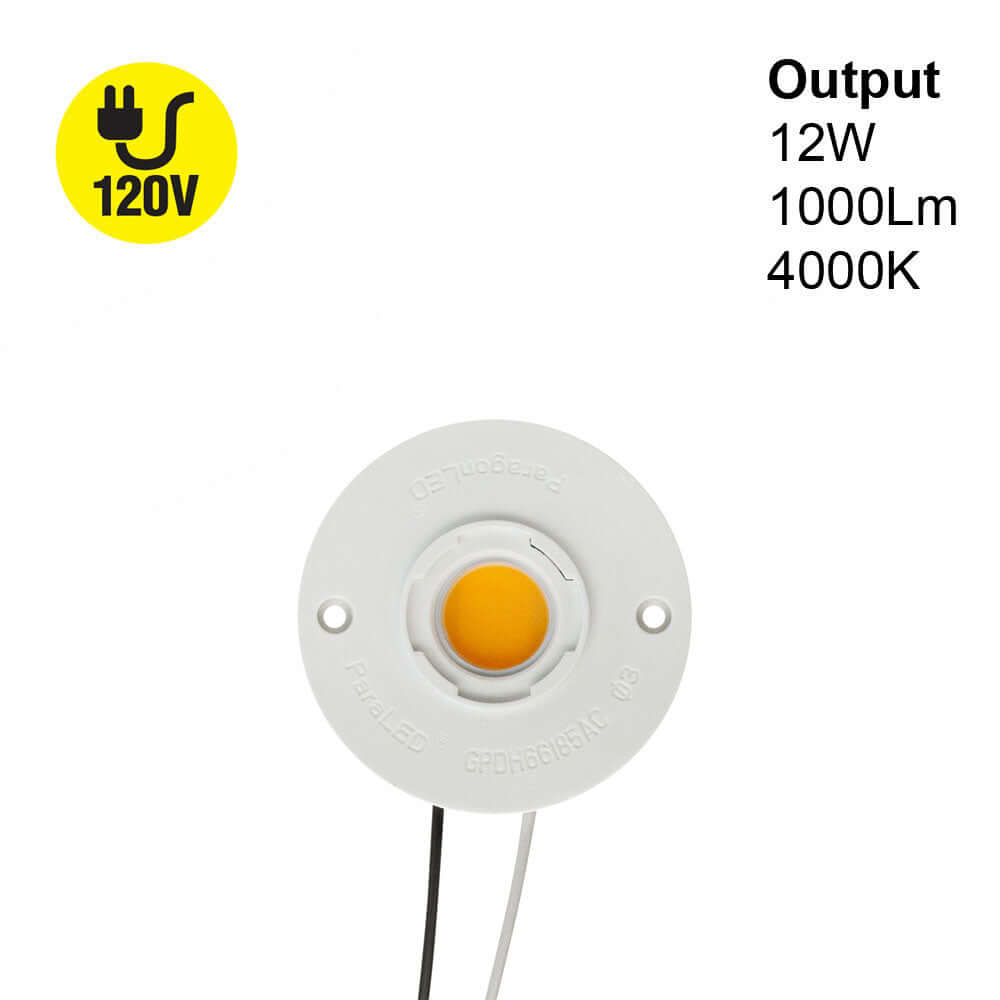

| Product | Paragon LED Module |
| Model No | CBHT-042-36185-120V-4000K |
| COB Holder Model No | GPDH66185AC |
|
LED Type |
COB LED |
| Wattage | 12W |
| Voltage | 120V AC |
| Power Factor | PF>0.98 |
| Luminous Intensity | 1000 lumens |
| Color Temperature | 4000K (Natural White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

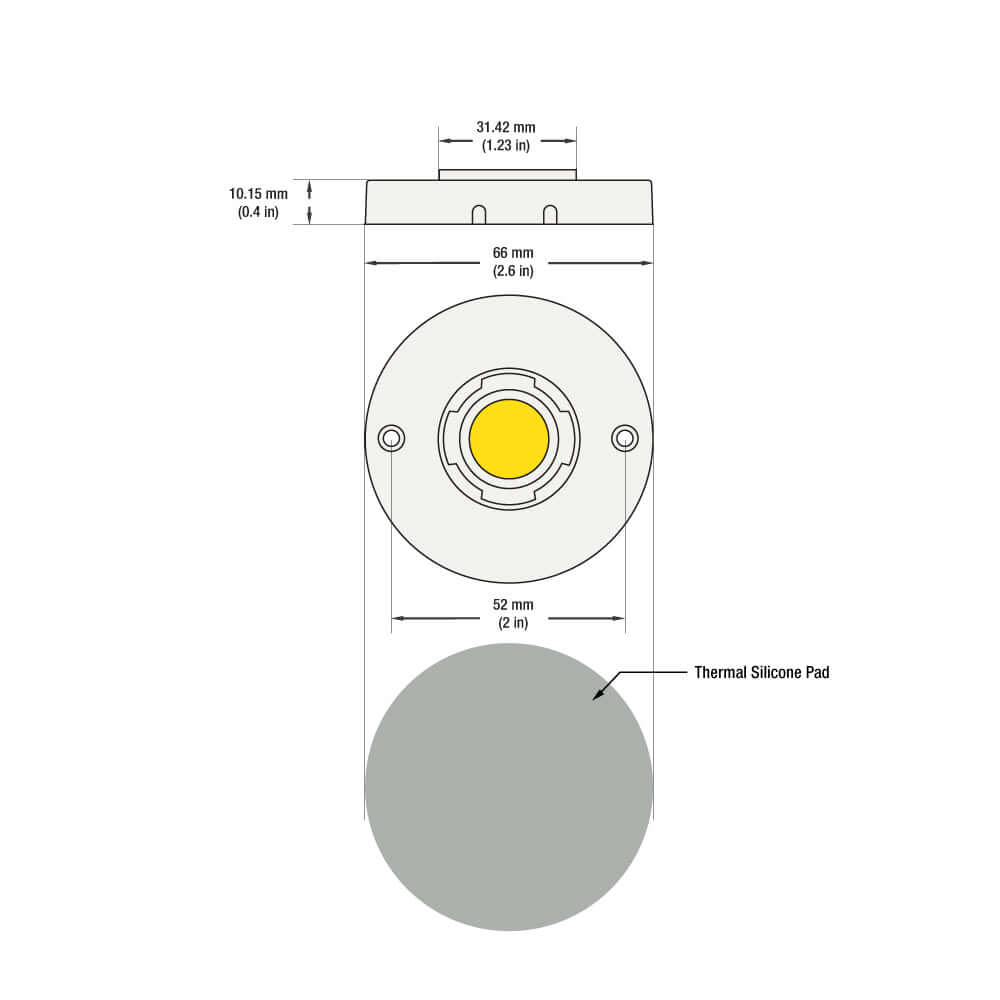

| COB Holder Dimensions | ∅66mm (2.6 in) x H10.15mm (0.4 in) |
| COB Module Outer Diameter | ∅31.4 mm (1.2 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |

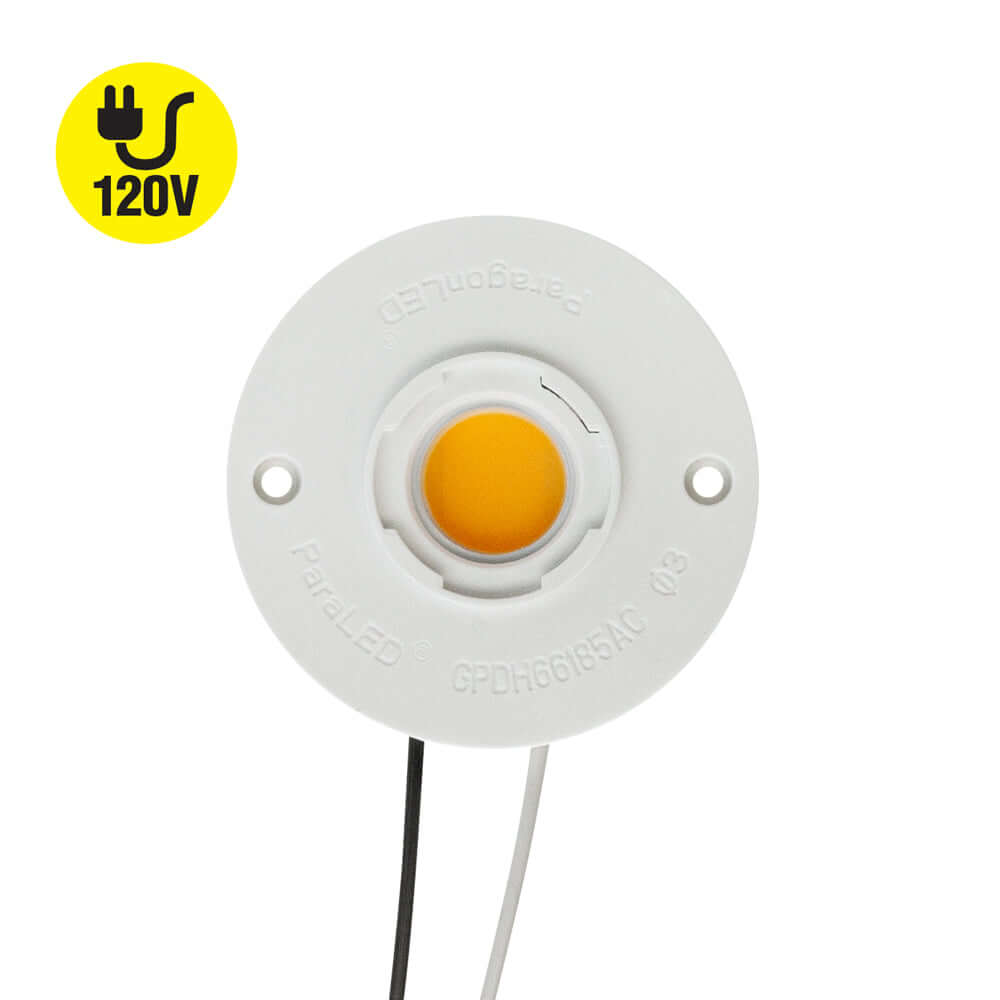

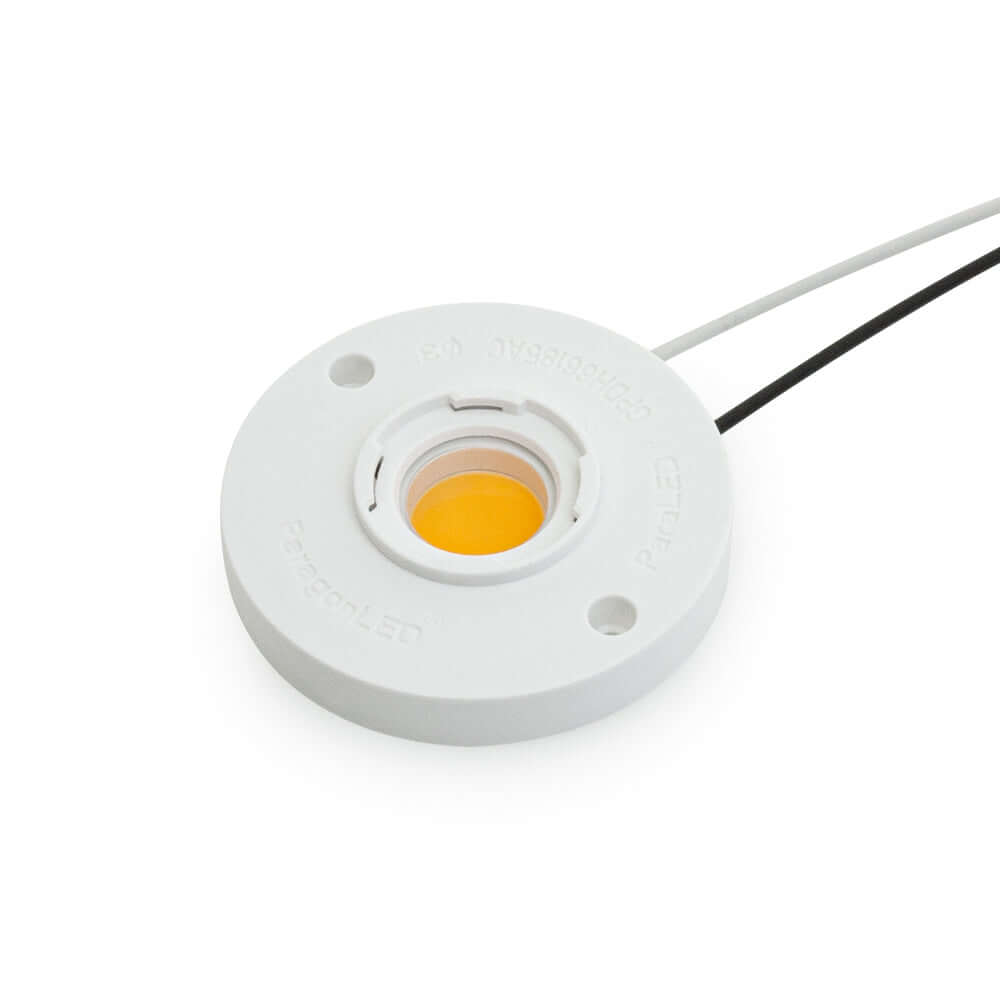

The CBHT-042-36185-120V-40 Paragon LED Module is a COB LED module designed for indoor use with a power consumption of 12W and a voltage rating of 120V AC. It has a color temperature of 4000K, which produces a Natural white light. The module is dimmable and has a high color rendering index of over 90, ensuring that colors are displayed accurately.

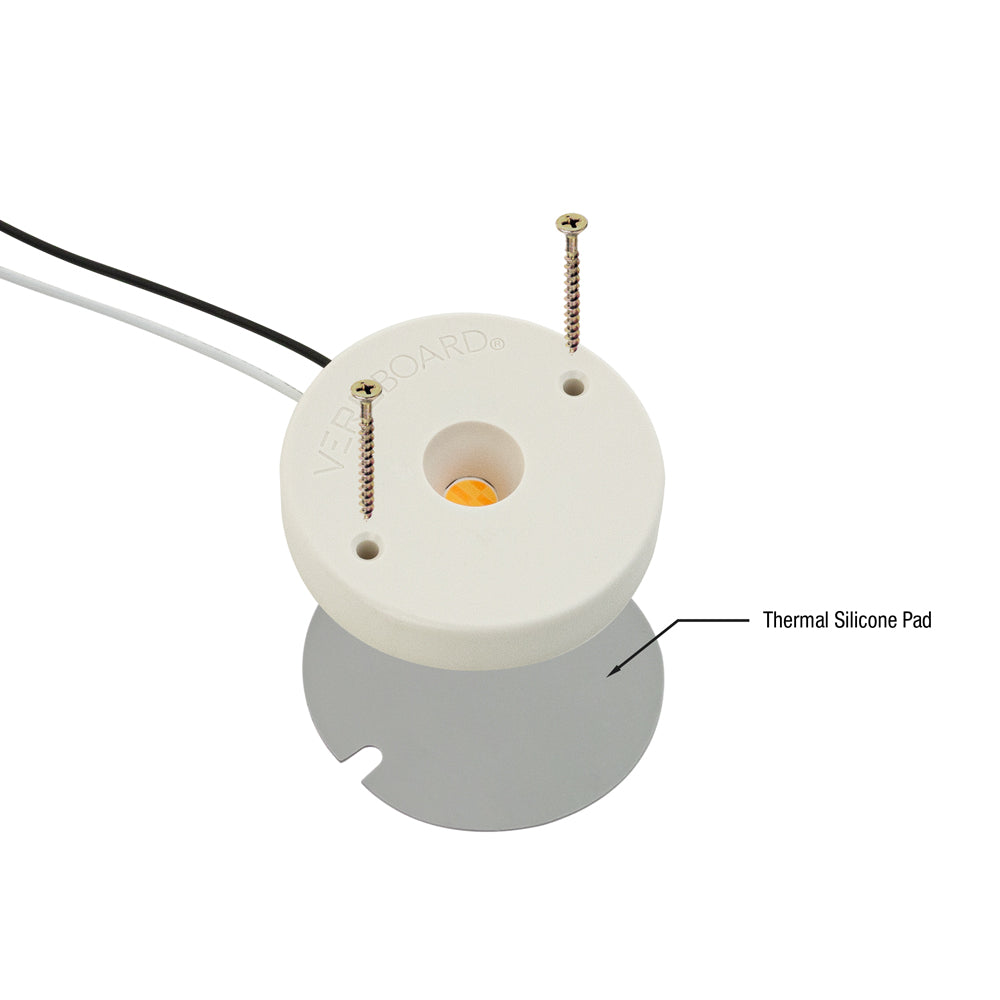

To prevent overheating and ensure the longevity of the module, it is recommended to use an aluminum heat sink when designing lamps with this module. The silicone grease thermal pad that comes with the module provides additional heat dissipation.
It is important to ground the light fixtures when designing lamps to ensure safe operation. COB LEDs are known for their high energy efficiency and brightness, making them a popular choice for various luminaires. The operating temperature range for this module is -40 ~ +105℃, and the storage temperature range is also -40 ~ +105℃. The assembly process temperature should not exceed 300℃, and the solder joint point temperature should not exceed 105℃. Finally, the dielectric breakdown voltage of the thermal pad is greater than 4KV.
Features:
- COB LED module designed for indoor use with a power consumption of 12W and a voltage rating of 120V AC
- Color temperature of 4000K, producing a soft white light
- Dimmable module with a high color rendering index of over 90, ensuring accurate color display

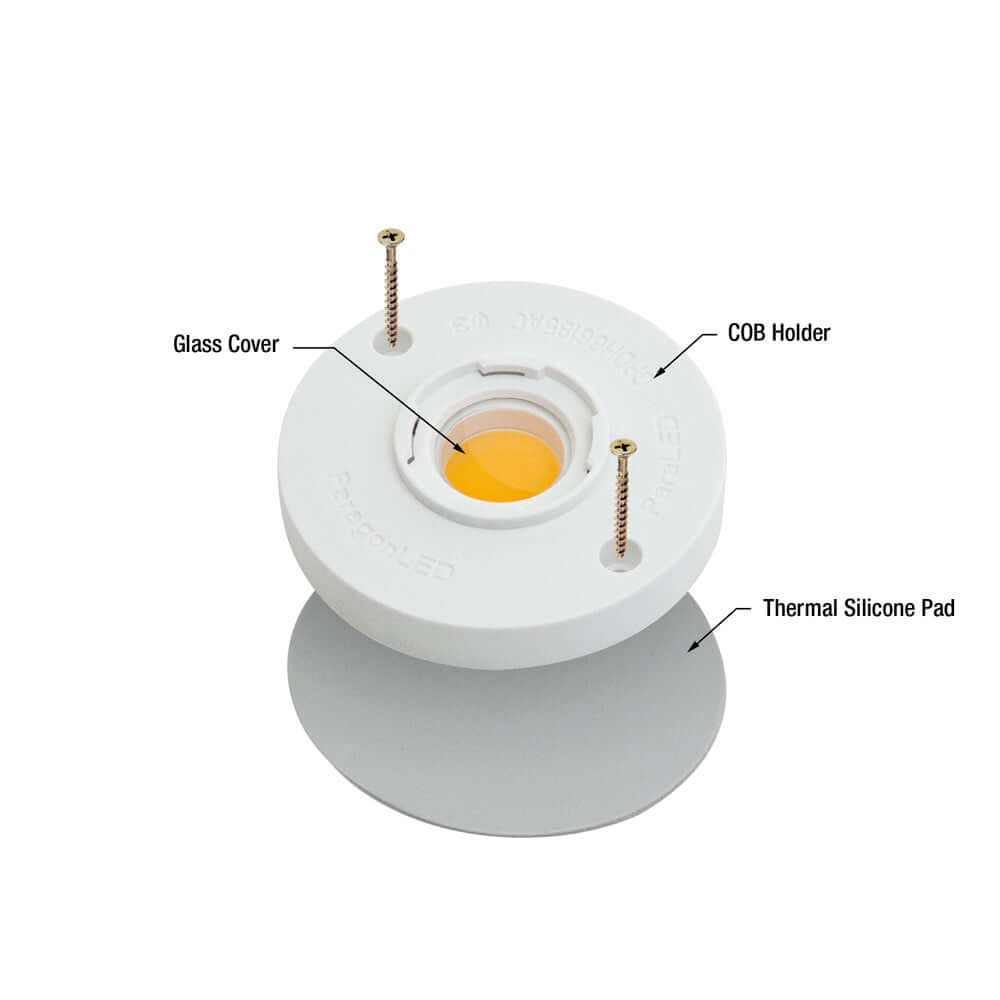

- Comes with a GPDH66185AC COB LED holder that allows for easy mechanical and electrical connections and secure attachment to a heat sink
- COB holder dimensions: ∅66mm (2.6 in) x H10.15mm (0.4 in), outer diameter of the COB module is ∅31.4 mm (1.2 in)
- Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity of the module
- Certified by UL and suitable for use in damp locations
- Important to ground light fixtures when designing lamps to ensure safe operation
- Operating temperature range: -40 ~ +105℃, storage temperature range: -40 ~ +105℃
- Assembly process temperature should not exceed 300℃ and the solder joint point temperature should not exceed 105℃
- Dielectric breakdown voltage of the thermal pad is greater than 4KV
