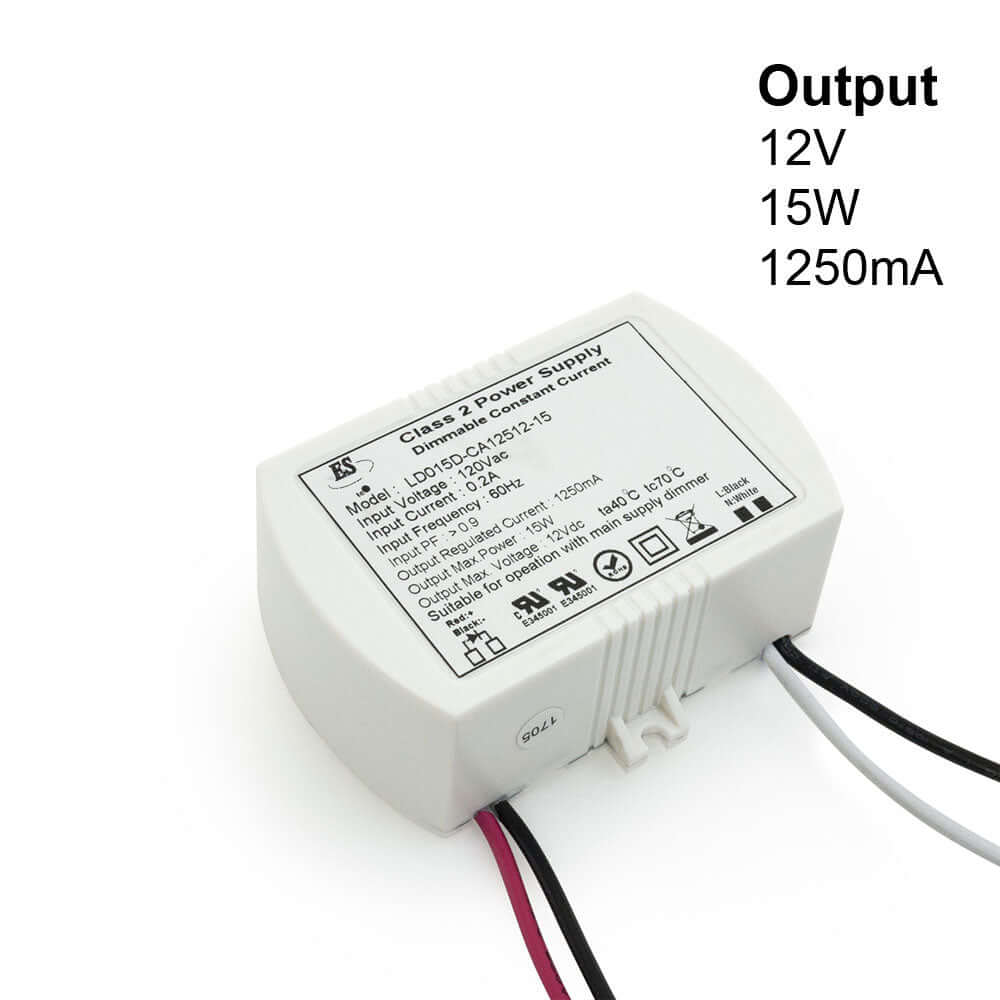

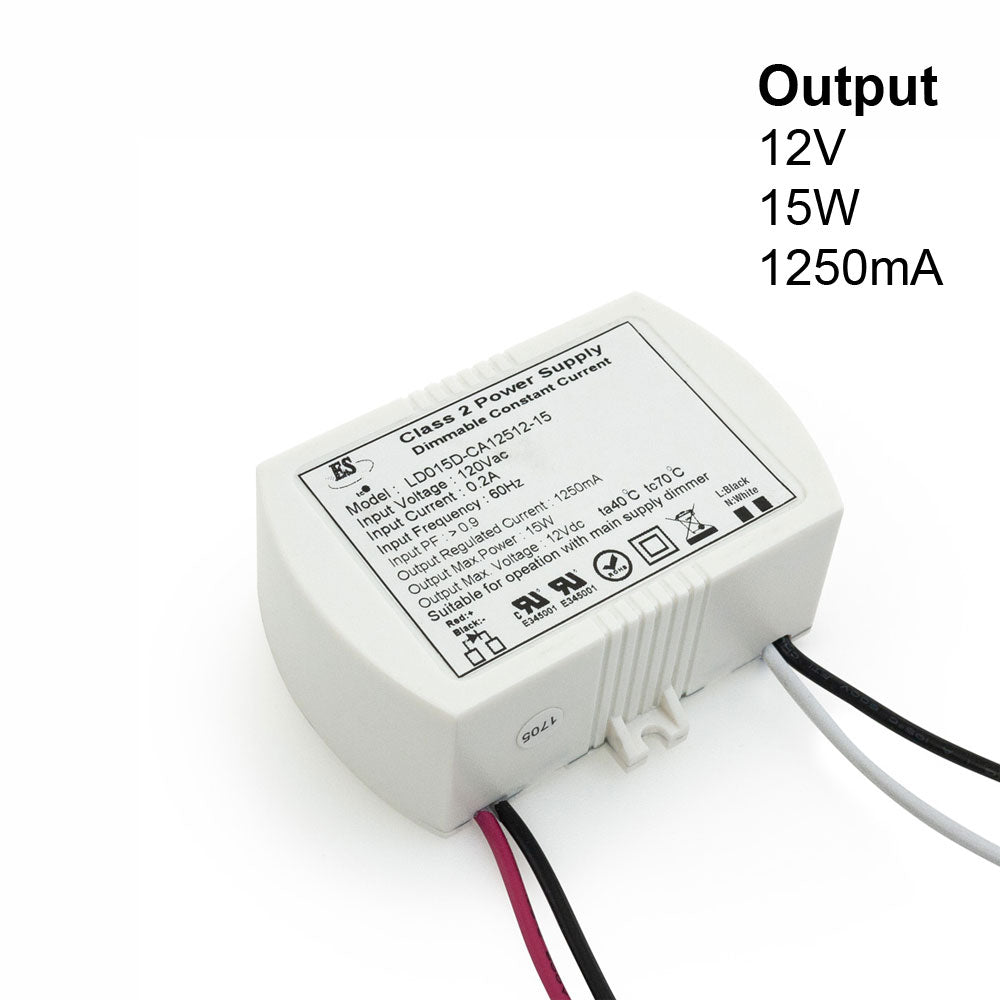

ES LD015D-CA12512-15 Constant Current LED Driver 1250mA 12V 15W max

  • $48.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561412180
Title:
We only have 72 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Driver
Model LD015D-CA12512-15
Input Voltage
120V AC
Input Current 0.2A
Frequency 60Hz
Power Factor P.F>0.9
Output Regulated Current 1250mA
Output Power 15W
Output Voltage 12V DC
Dimmable Yes

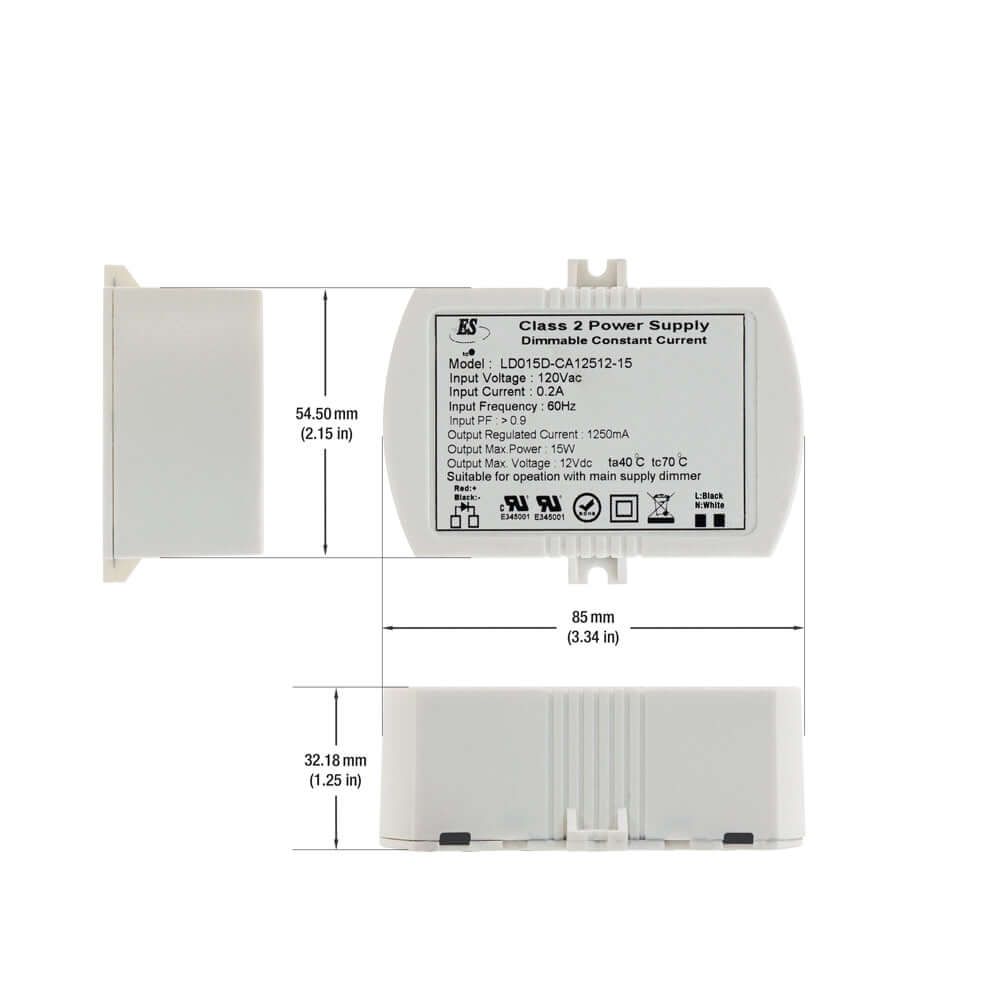

Dimensions 85 x 54.5 x 32mm (3.3 x 2.1 x 1.2 in)
Class Certification Class 2/ Class II
Certifications


The ES LD015D-CA12512-15 is a constant current LED driver designed to provide a regulated current of 1250mA to power LED lights. The driver is intended for use with an input voltage of 120V AC and an input frequency of 60Hz.

With a power factor greater than 0.9, the driver is highly efficient and capable of converting most of the input power into output power, minimizing energy waste and costs.

The driver has a maximum output power of 15W, making it suitable for powering LED lights that require up to 15 watts of power. The output voltage ranges from 0 to 12V DC, which is compatible with a variety of LED lights that operate within that voltage range.

The driver is dimmable, which means that you can adjust the brightness of the LED lights by connecting a compatible dimmer switch. This feature allows you to control the level of illumination in your space, providing greater flexibility and control.

The ES LD015D-CA12512-15 is Class 2/Class II certified, which means that it has been tested and certified to meet safety standards for use in lighting applications. This certification indicates that the driver is designed with protective measures to prevent electrical shock and reduce the risk of fire hazards.

Features:

  • The ES LD015D-CA12512-15 is a constant current LED driver that provides a regulated current of 1250mA to power LED lights, designed for use with an input voltage of 120V AC and an input frequency of 60Hz.
  • The driver has a power factor greater than 0.9, making it highly efficient and capable of converting most of the input power into output power, reducing energy waste and costs.
  • It has a maximum output power of 15W, suitable for powering LED lights that require up to 15 watts of power. The output voltage ranges from 0 to 12V DC, compatible with a variety of LED lights that operate within that voltage range.
  • The driver is dimmable, allowing you to adjust the brightness of the LED lights by connecting a compatible dimmer switch, providing greater flexibility and control over the level of illumination in your space.
  • The driver is compact, with dimensions of 85 x 54.5 x 32mm (3.3 x 2.1 x 1.2 in), making it easy to install in various locations and ideal for use in applications where space is limited.
  • The ES LD015D-CA12512-15 is Class 2/Class II certified, ensuring it meets safety standards for use in lighting applications. This certification indicates that the driver is designed with protective measures to prevent electrical shock and reduce the risk of fire hazards. Overall, it is a reliable and efficient solution for powering LED lights.

How to Install ES LD015D-CA12512-15 Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
