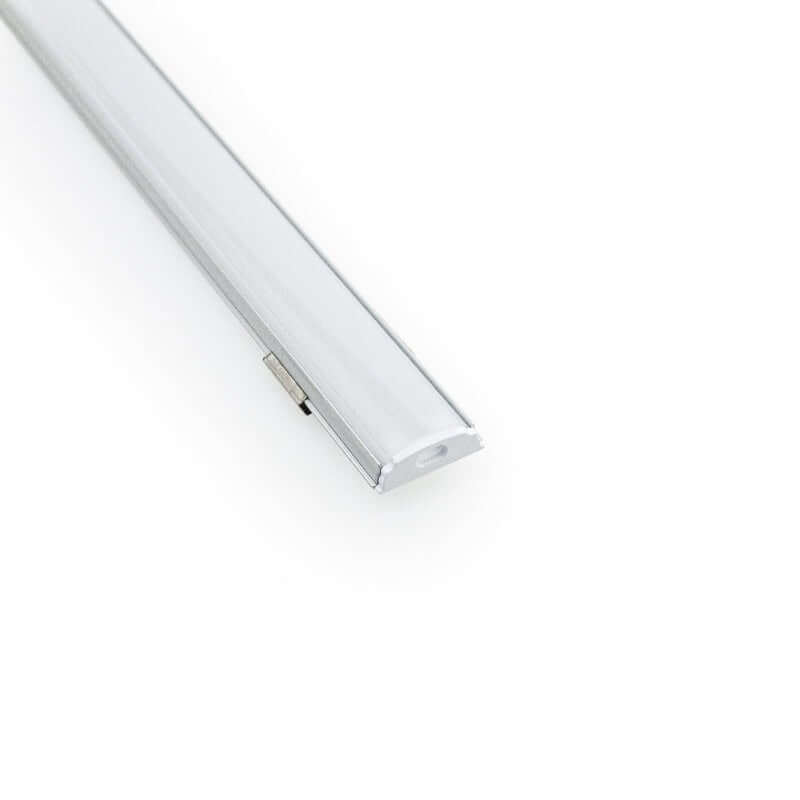

Bendable Thin Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-B1

Veroboard

  • $21.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561429492

Longer than 1 meter long(3.2ft) Ask for a Quote

We only have 50 left! Get it now before it's completely gone.

FREE Shipping over $49 USD



Product Description

Product LED Channel / LED Extrusion
Model VBD-CH-B1
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey

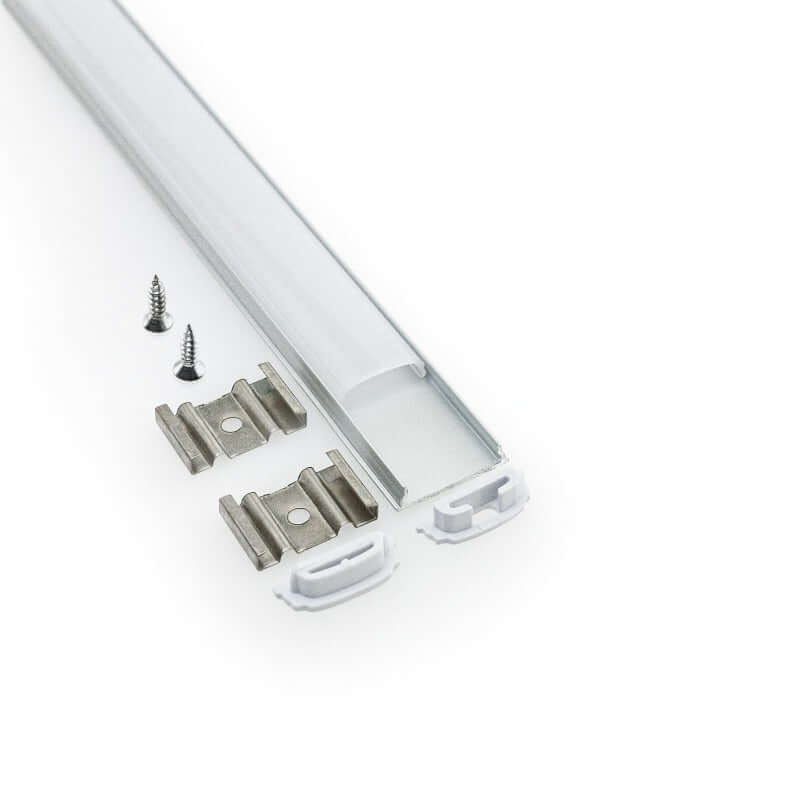

Package content

1-meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws.

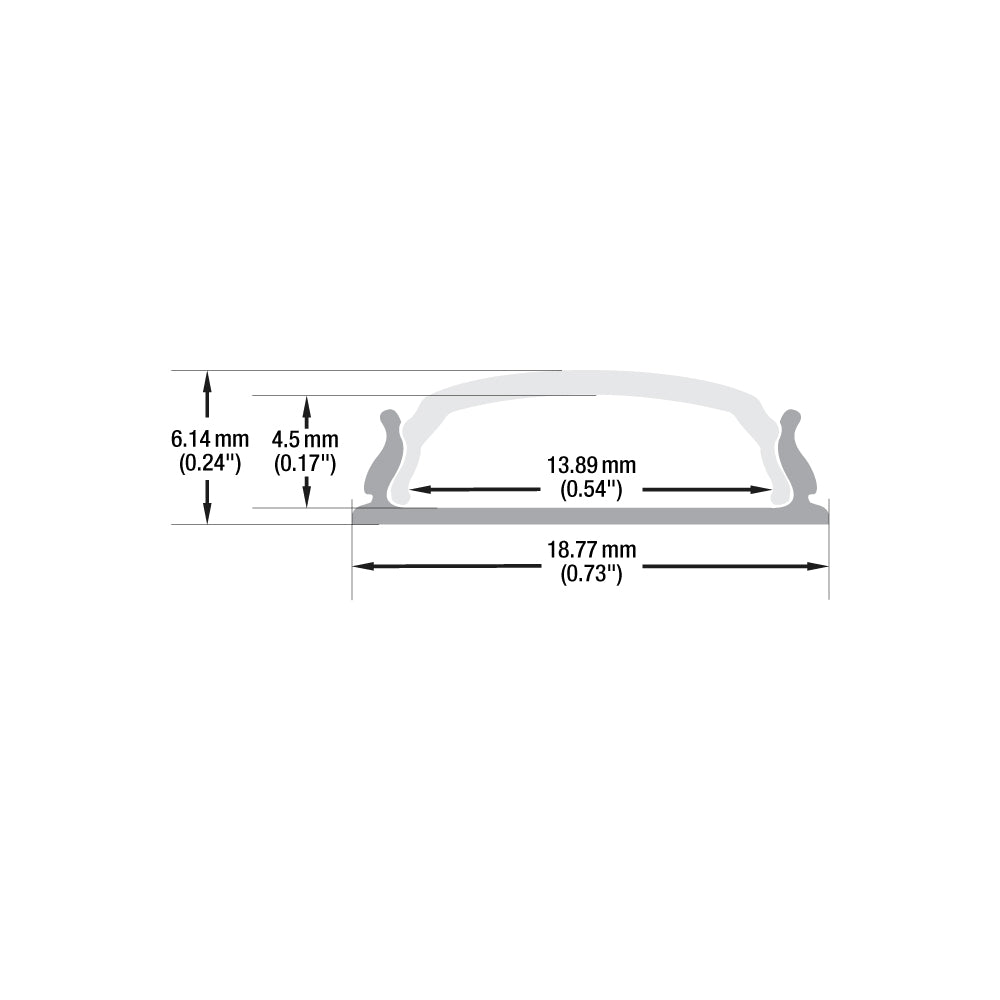

Dimensions 1000mm x 18.77mm x 6.14mm
(39.3in x 0.78in x 0.24in)
Mounting

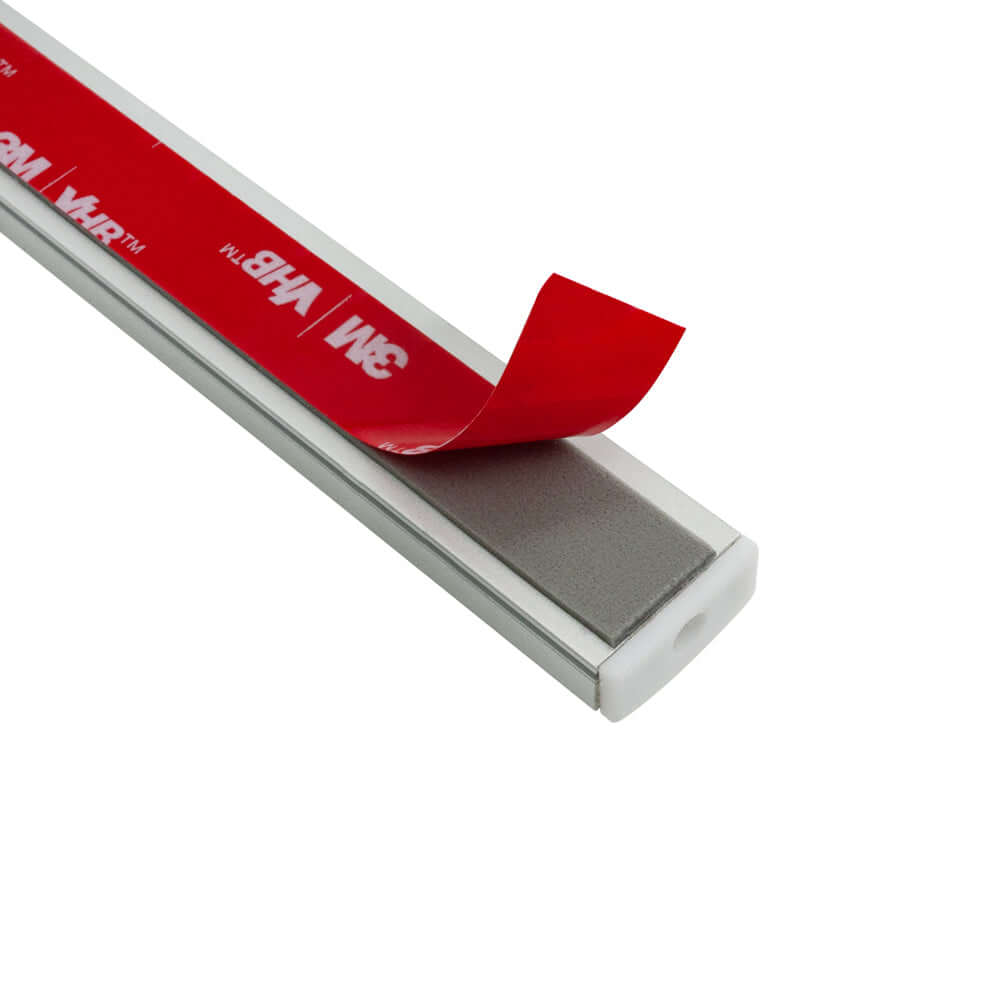

  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface.

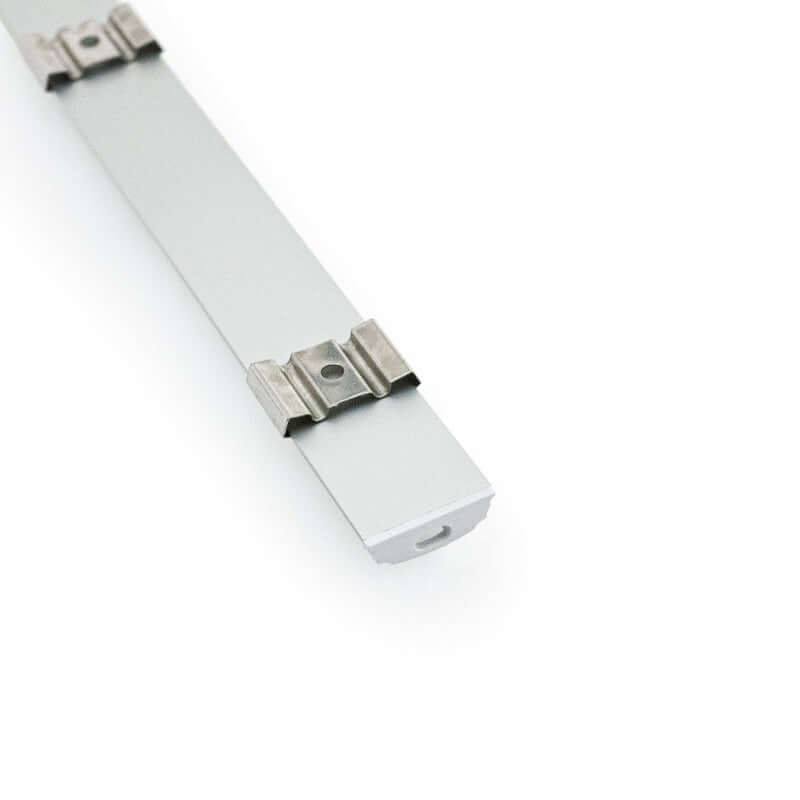

  • Mount using mounting clips

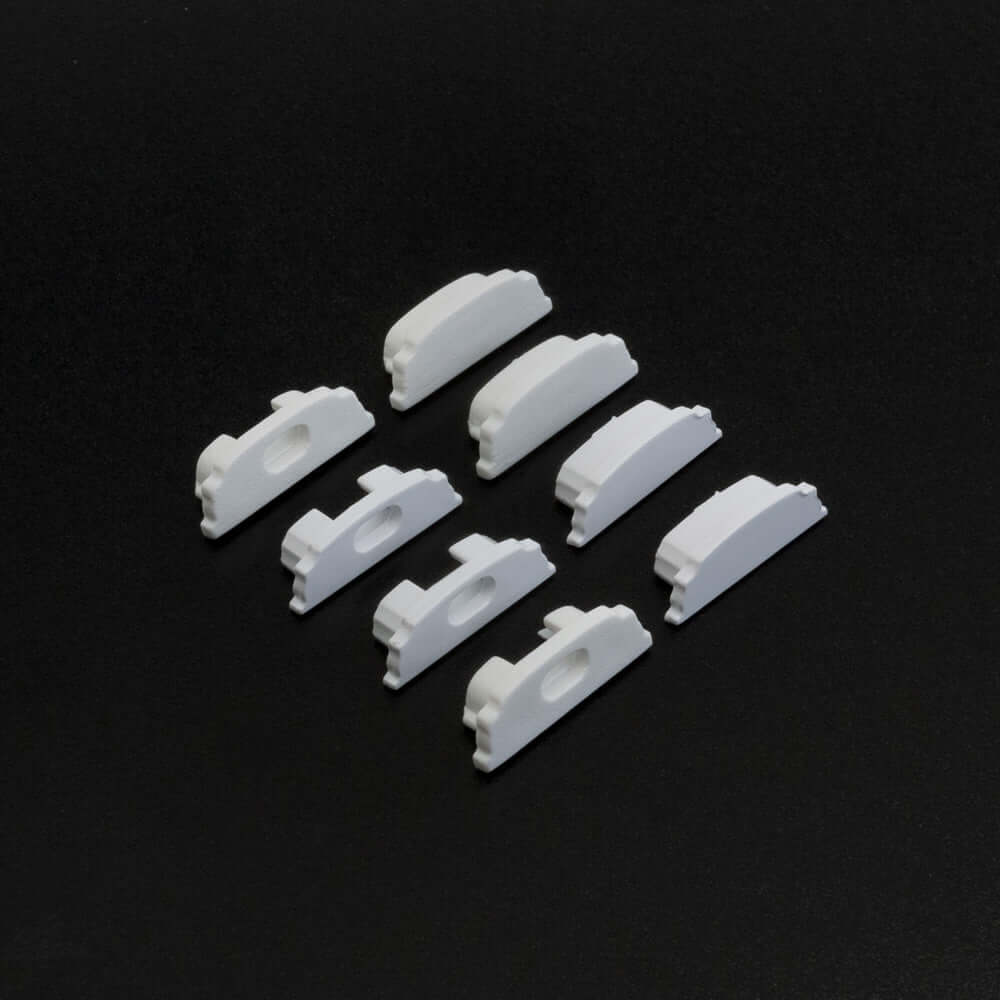

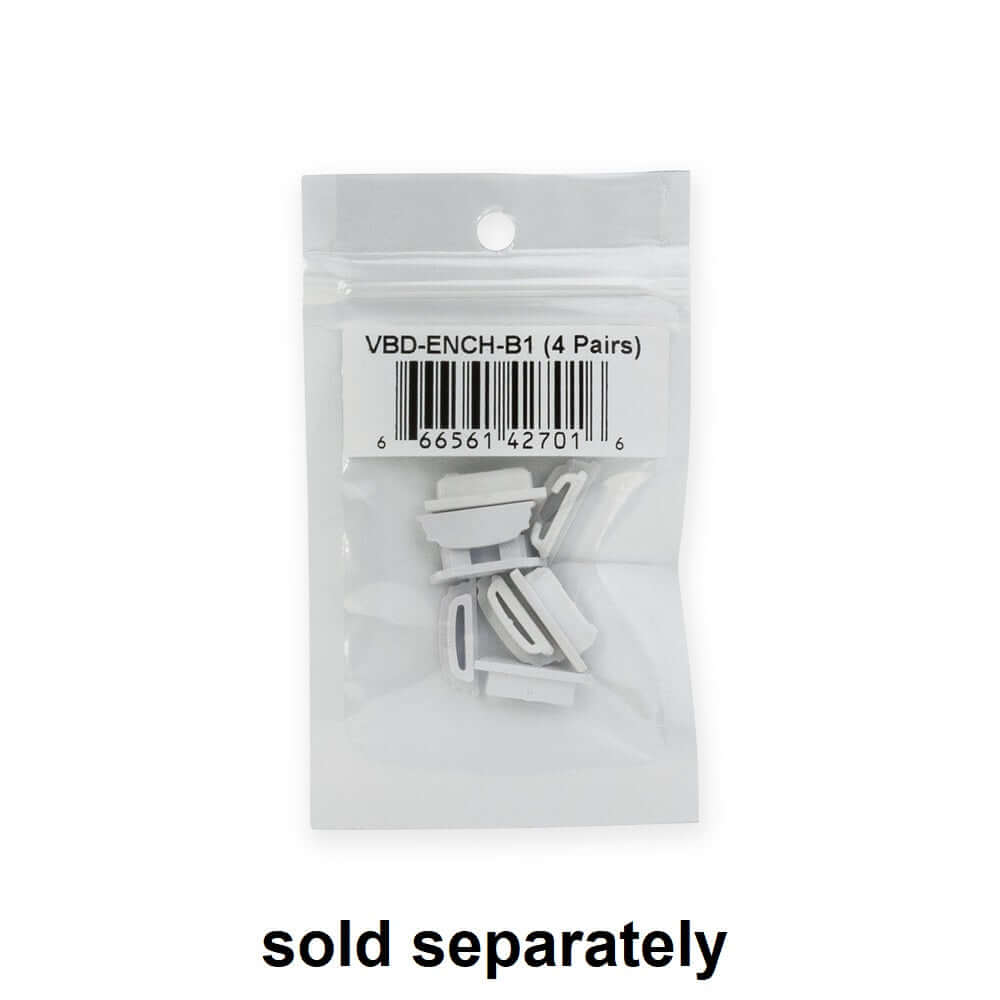

Accessories (Sold Separately) 4 pairs Endcaps VBD-ENCH-B1 SKU:666561427016

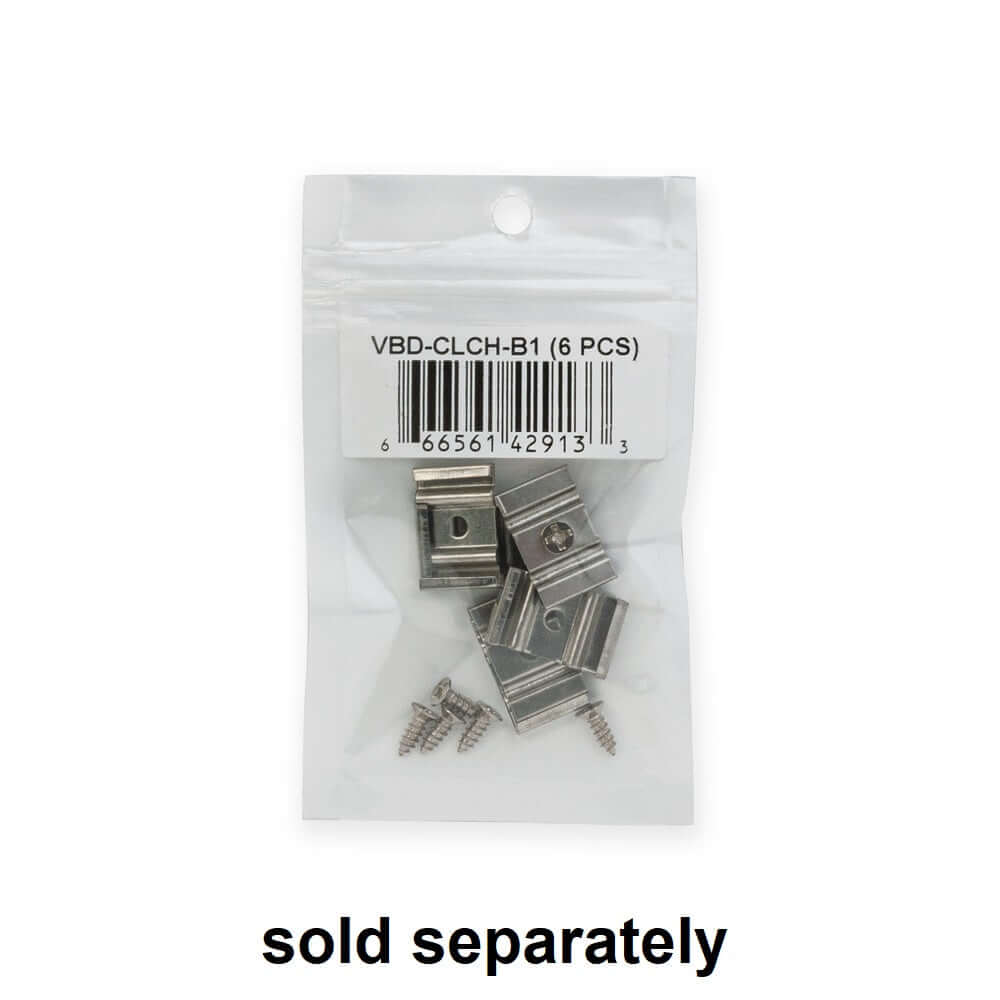

6 pcs Mounting Clips VBD-CLCH-B1 SKU:666561429133




VEROBOARD VBD-CH-B1 Lightweight Ultra-Thin Flexible Aluminum Channel is an excellent option for a continuous glow for both straight runs and curved surfaces applications. Moreover, with your desired color temperature LED strips, this linear LED profile provides versatile interior lighting options and makes it elegant and modern in any application.

The Bendable Thin Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-B1 is a linear LED profile that is made of lightweight, ultra-thin, and flexible aluminum material. It comes with a frosted diffuser (lens) made of polycarbonate (PC) material, which helps in reducing light glaring and provides protection from dust and damage to the LEDs. The channel acts as a heat sink for the LED strip installed in it.

This LED channel is applicable for both linear and non-linear installations, including curved shapes. It can be used with any strip light of width 12mm and less, and several lengths can be positioned together. The product comes with end caps and mounting brackets, and it can be mounted using a 3M double-sided tape, directly screw or groove into the mounting surface, or mounting clips.

The LED channel is versatile and can be used for various applications, such as cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, golf court trim, counter lighting, arched doorways, or entryways. It has a bending radius of 9 inches and is suitable for both straight runs and curved surfaces. The aluminum material used in this product is corrosion-free, making it suitable for outdoor use with waterproof strip lights (IP 66 and higher rating), and the endcaps should be sealed with silicon to avoid water.

Features:

  • Lightweight, ultra-thin, and flexible aluminum material
  • Frosted diffuser (lens) made of polycarbonate (PC) material reduces light glaring and protects from dust and damage
  • Acts as a heat sink for the LED strip installed in it
  • Applicable for both linear and non-linear installations, including curved shapes
  • Can be used with any strip light of width 12mm and less, and several lengths can be positioned together
  • Comes with end caps and mounting brackets, and can be mounted using 3M double-sided tape, directly screw or groove into the mounting surface, or mounting clips
  • Versatile and suitable for various applications, such as cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, golf court trim, counter lighting, arched doorways, or entryways

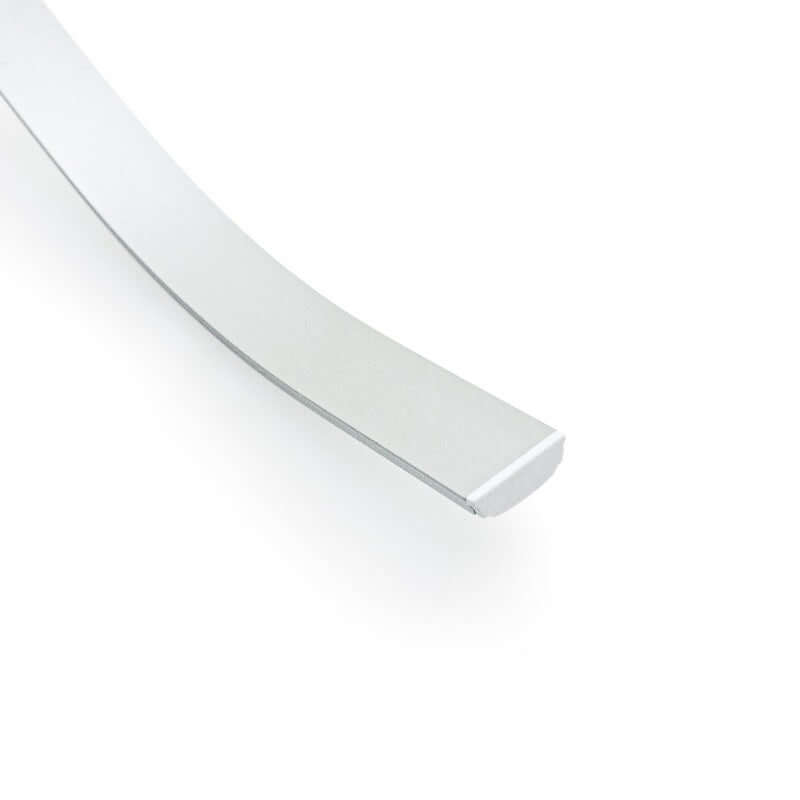

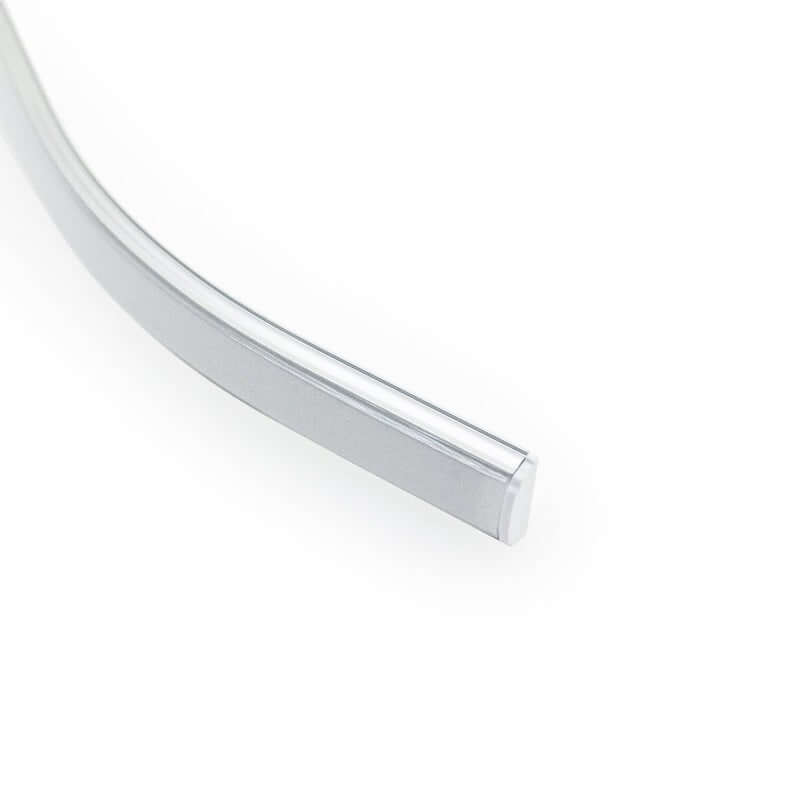

  • Bending radius of 9 inches, suitable for both straight runs and curved surfaces
  • Corrosion-free aluminum material suitable for outdoor use with waterproof strip lights (IP 66 and higher rating)
  • Endcaps should be sealed with silicon to avoid water.

Contact us for more details.
