5M(16.4ft) Side Emitting Addressable Indoor LED Strip Light V6842 4020, 90(LEDs/m) Digital RGB

  • $26.00 USD
    Unit price per
  • Save $-26 USD
Shipping calculated at checkout.
SKU: 666561425418
We only have 47 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)


Product Description

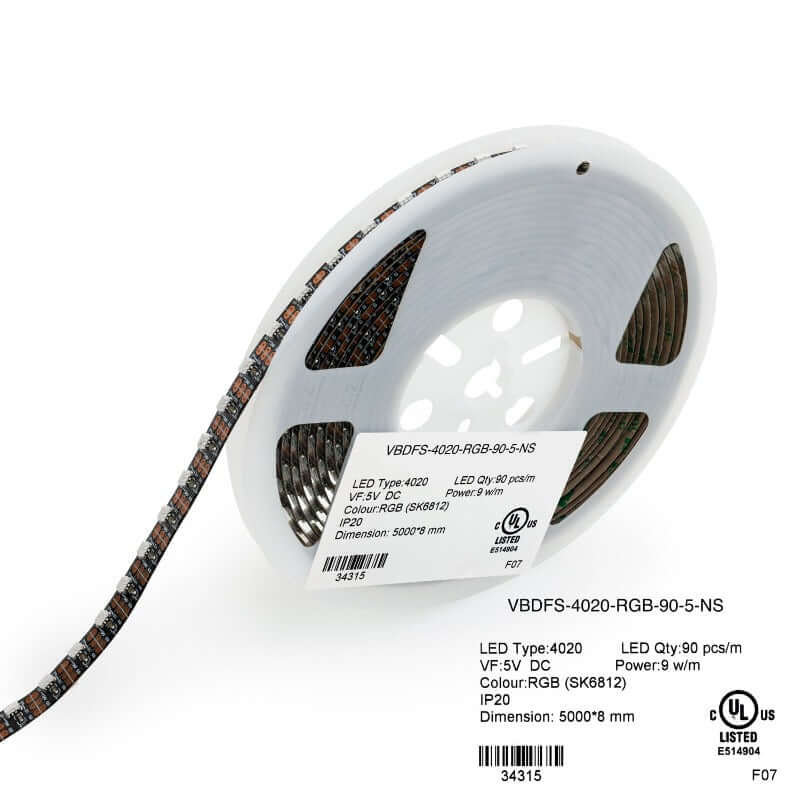

Model VBDFS-4020-RGB-90-5-NS
Wattage 9W per meter ( 3W/ft)
Input Voltage 5V DC
LED Qty 90 LEDs per meter
IC Driver V6842 (Built-in)
Dimmable Yes

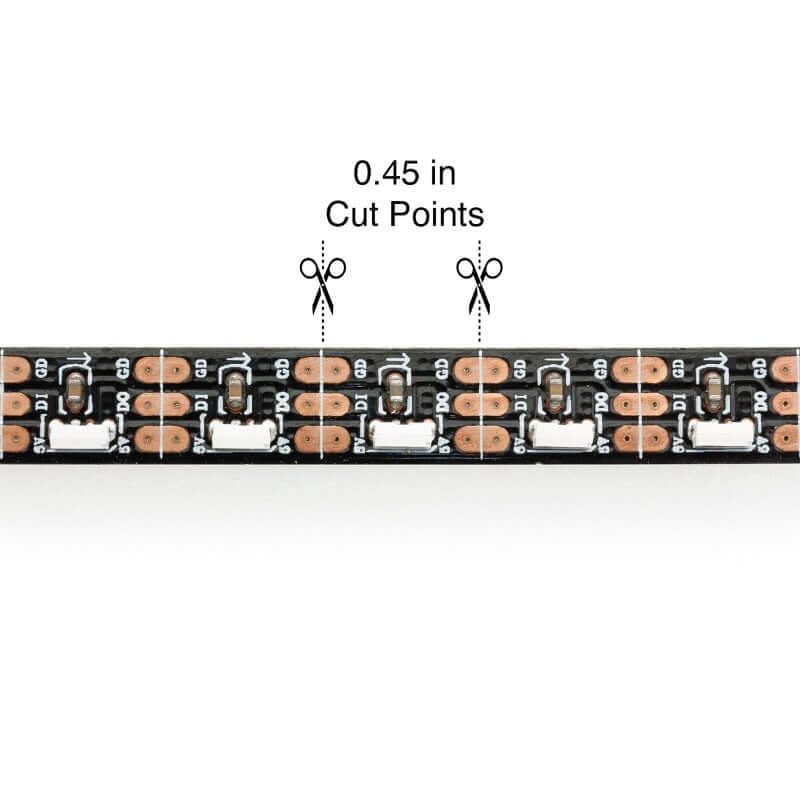

Cut Size Every LED (Addressable RGB LED) (0.45 inch)
LED Type 4020 SMD (Side Emitting LED)
Color  RGB (SK6812)
IP Rating IP20
Dimensions 5000mm x 8mm x 2.7mm (196.8in x 0.31in x 0.1in)
Certificates

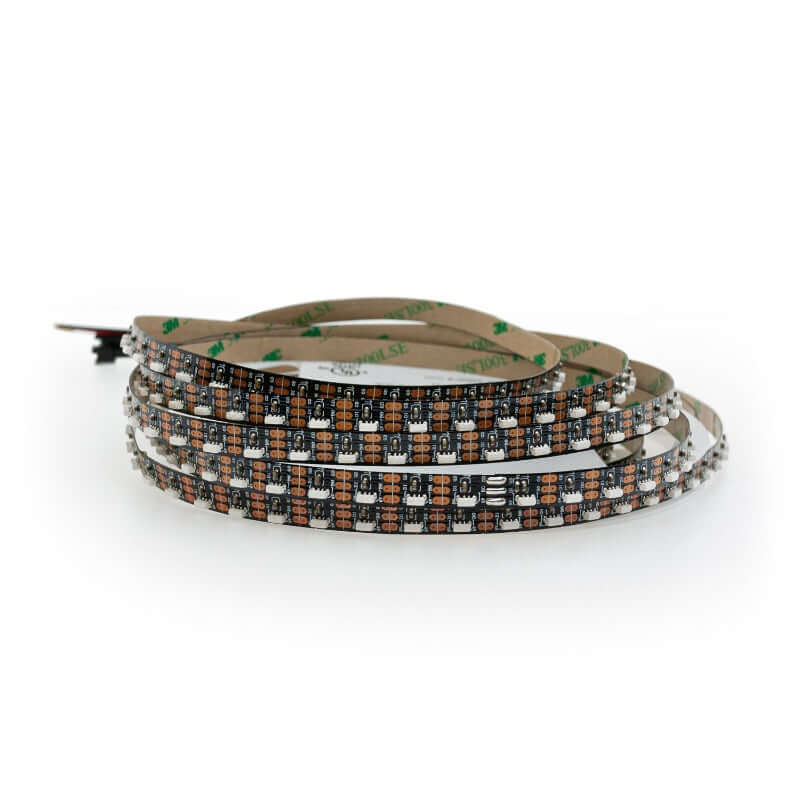

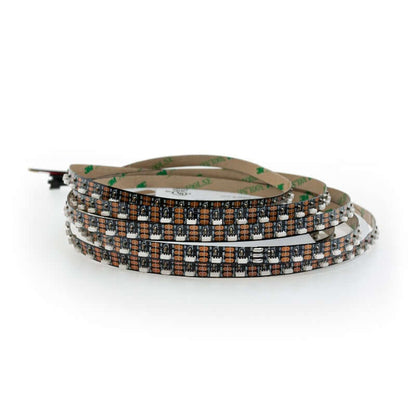

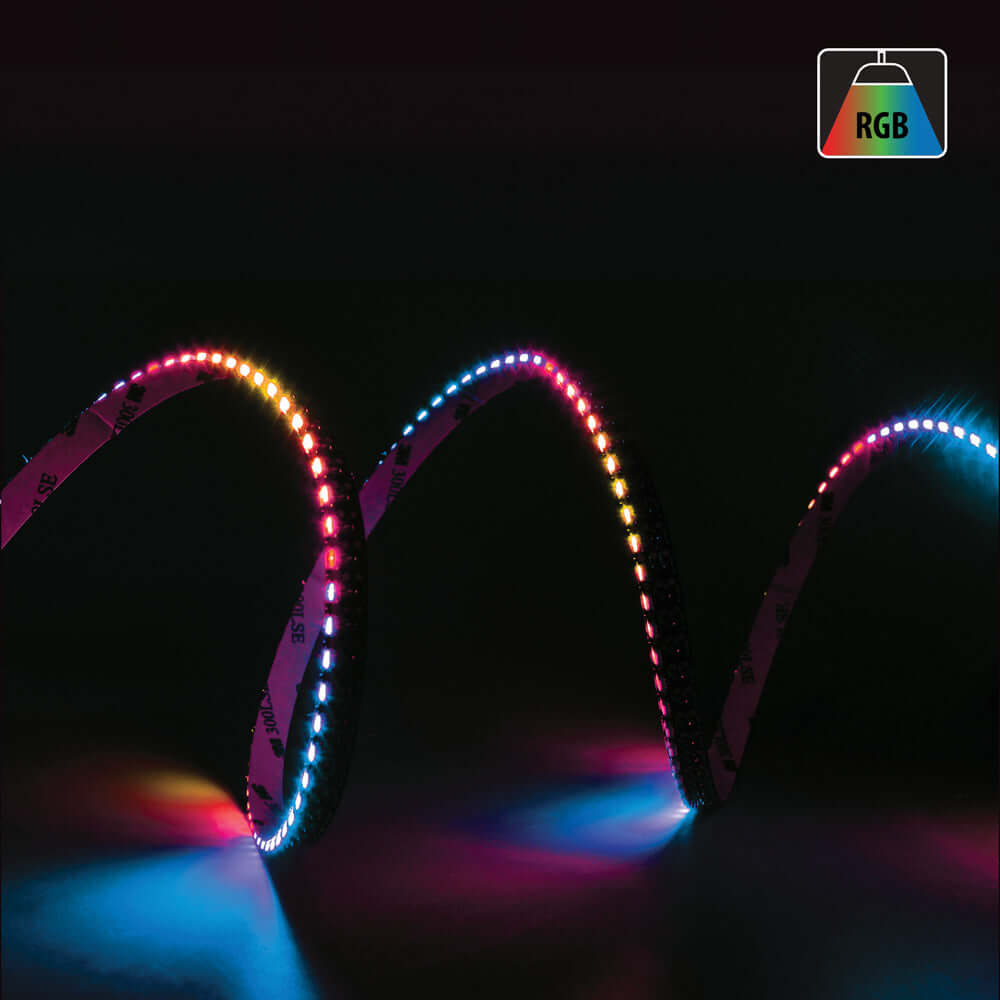

The VBDFS-4020-RGB-90-5-NS is a high-quality, indoor LED strip light that is perfect for a variety of lighting applications. Measuring 5 meters (16.4ft) in length and 8mm in width, this LED strip light features 90 LEDs per meter and has a wattage of 9W per meter (3W/ft). With an input voltage of 5V DC and a built-in V6842 IC driver, this LED strip light is easy to control and dimmable, allowing you to adjust the brightness according to your needs.

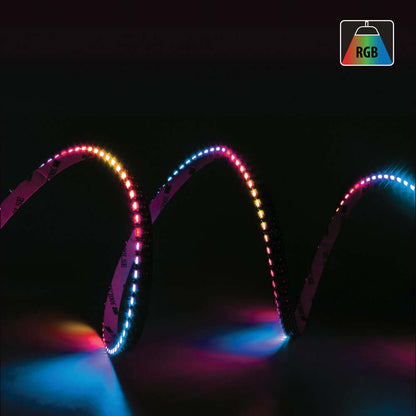

The VBDFS-4020-RGB-90-5-NS LED strip light features a 4020 SMD LED type that emits light from the side. With an RGB color range and SK6812, this LED strip light provides high color consistency across all pixels. Each lighting element is a pixel and the output is driven by patented PWM technology, ensuring that the color is consistent across all pixels.

This LED strip light can be cut every LED (0.45 inch), making it easy to customize the length to fit your project requirements. It comes with an IP20 waterproof rating, making it suitable for indoor use only. The VBDFS-4020-RGB-90-5-NS has dimensions of 5000mm x 8mm (196.8in x 0.31in), and it comes with UL certification, ensuring that it has been tested and meets the safety standards for electronic products in the United States.

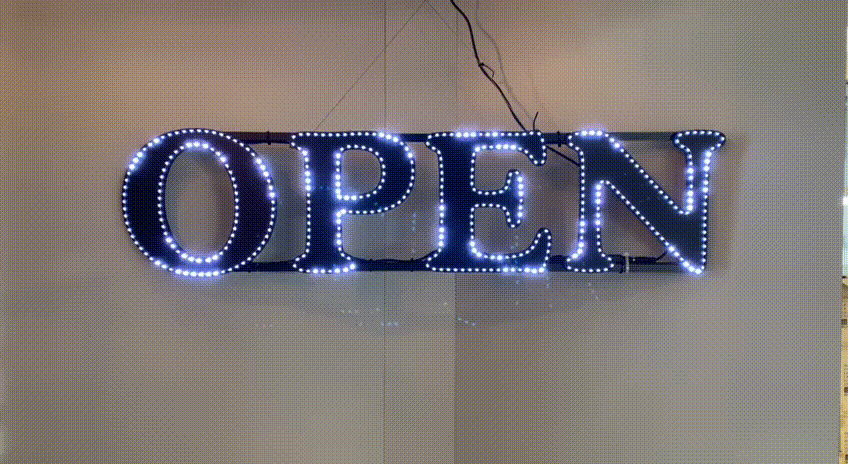

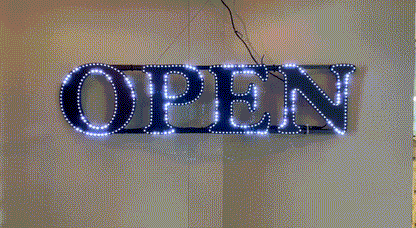

The VBDFS-4020-RGB-90-5-NS LED strip light is suitable for various lighting effects, including signage, LED guardrail tube, scene lighting, LED point source, LED pixel screen, custom LED screen, and other variety of electronic products, electrical types of equipment. These digital LED strips can be controlled with computers and other DMX or Digital Controllers. It also has a robust SMD internal integrated high-quality external control line serial cascade constant current IC, which ensures high-quality performance.

Each SMD has a built-in SK6812 Smart Control Circuit, which helps in making the RGB chip in the outer SMD into a fully controlled pixel. This side-emitting LED strip is also available in 144 LED/m, in a 2 Meter roll, giving you flexibility in choosing the right LED strip for your lighting project.

Features:

  • 5 meters (16.4ft) in length and 8mm in width
  • 90 LEDs per meter with 9W per meter (3W/ft) wattage
  • Input voltage of 5V DC and built-in V6842 IC driver
  • Side-emitting 4020 SMD LED type with an RGB color range and SK6812 for high color consistency
  • Can be cut every LED (0.45 inch) for customization
  • IP20 waterproof rating for indoor use
  • UL certified for safety standards in the United States
  • Suitable for various lighting effects, including signage, LED guardrail tube, scene lighting, LED point source, LED pixel screen, custom LED screen, and other electronic products and equipment
  • Controlled with computers and other DMX or Digital Controllers
  • Robust SMD internal integrated high-quality external control line serial cascade constant current IC for high-quality performance
  • Each SMD has a built-in SK6812 Smart Control Circuit for fully controlled pixels
  • Also available in 144 LED/m, in a 2 Meter roll for more flexibility in choosing the right LED strip for your project.
