Corner Mount Curve Linear Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-C3

Veroboard

  • $23.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425364

Longer than 1 meter long(3.2ft) Ask for a Quote

We only have 0 left! Get it now before it's completely gone.
Will be in stock after

FREE Shipping over $49 USD



Product Description

Product
LED Channel / LED Extrusion
Model VBD-CH-C3
Material Anodized Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

1 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)
2 pieces of Mounting Brackets with mounting screws.

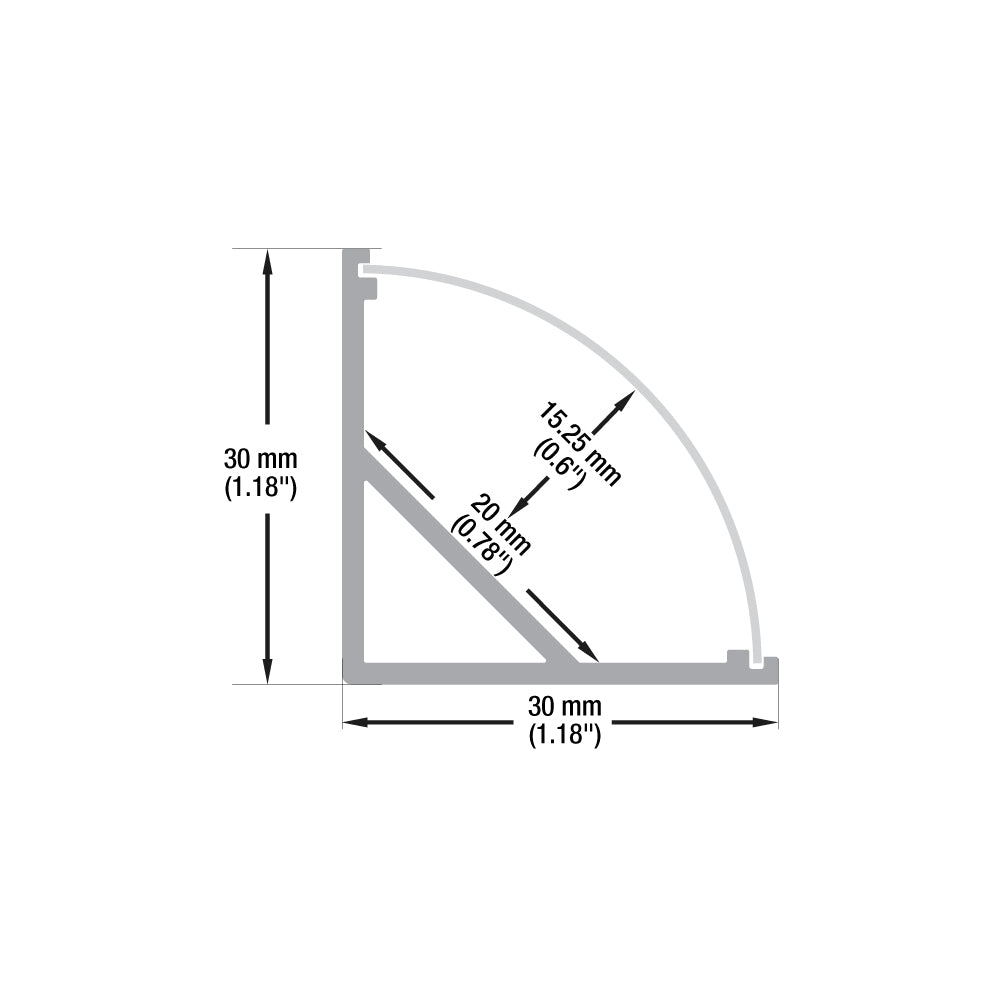

Dimensions 1000mm x 30mm x 30mm
(39.3in x 1.18in x 1.18in)
Mounting
  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface.
  • Mount using mounting clips.
Accessories (Sold Separately) 2 pairs Endcaps VBD-ENCH-C3 SKU:666561426989
6 pcs Mounting Clips VBD-CLCH-C3 SKU:666561429119



VEROBOARD Corner Mount (Curve) Linear Aluminum Channel Black are popular for cabinets, shelves, closets, staircase, decorative and, vanity lighting applications. These are popular channels for projecting lights at a 45-degree angle of the LED strip useful for illuminating light at the adjacent sides. They are also available in Black in the same size.

The VEROBOARD Corner Mount Curve Linear Aluminum Channel in Silver Grey is an excellent choice for achieving a sleek and professional installation of LED strips in any corner mount application. Measuring 1000mm x 30mm x 30mm (39.3in x 1.18in x 1.18in), this channel is made of high-quality anodized aluminum material that provides durability and can be easily cut to the desired length using a regular hack saw or miter saw.

One of the most notable features of this channel is its curved diffuser design, which widens the beam angle and provides better light distribution. This makes it ideal for illuminating any corner with a wide angle of light. The channel comes with a frosted polycarbonate diffuser (Opal), end caps with and without wiring holes, and mounting brackets with screws for easy installation.

The VBD-CH-C3 acts as a heat sink for the LED strip installed in it, which increases the lifetime of the LEDs. It can be mounted using double-sided tape, mounting clips, or by directly screwing or grooving it into the mounting surface. Optional accessories, including end caps and mounting clips, are available for purchase separately.

This lightweight and environment-friendly channel is an excellent choice for achieving a linear light without any visibility of the aluminum channel when recessed. It has wide applications for any corner mount applications, including cabinets, shelves, closets, staircase, decorative, and vanity lighting applications.

Features:

  • High-quality anodized aluminum material provides durability and can be easily cut to the desired length using a regular hack saw or miter saw
  • Curved diffuser design widens the beam angle and provides better light distribution, making it ideal for illuminating any corner with a wide angle of light
  • Comes with a frosted polycarbonate diffuser (Opal), end caps with and without wiring holes, and mounting brackets with screws for easy installation
  • Acts as a heat sink for the LED strip installed in it, which increases the lifetime of the LEDs
  • Can be mounted using double-sided tape, mounting clips, or by directly screwing or grooving it into the mounting surface
  • Optional accessories, including end caps and mounting clips, are available for purchase separately
  • Lightweight and environment-friendly channel is an excellent choice for achieving a linear light without any visibility of the aluminum channel when recessed
  • Wide applications for any corner mount applications, including cabinets, shelves, closets, staircase, decorative, and vanity lighting applications
