Corner Mount Square Linear Aluminum LED Channel for LED Strips 1Meter(3.2ft) VBD-CH-C4B

Product Description
Product | LED Channel / LED Extrusion |
Model | VBD-CH-C4B |
Material | Aluminum |
Diffuser Material | Polycarbonate (PC) |
Fixture color Finish | Black |
Package content |
1 meter Aluminum channel with frosted Diffuser (lens) |

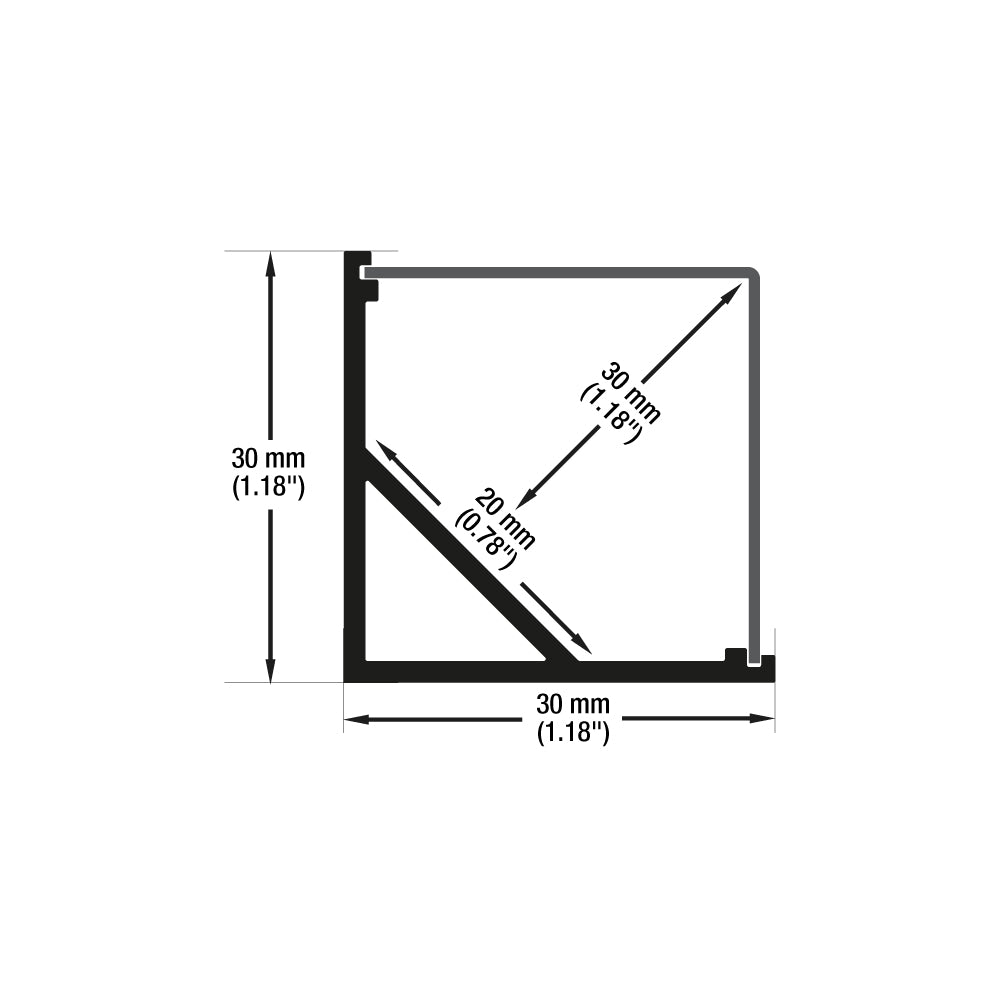

Dimensions | 1000mm x 30mm x 30mm (39.3in x 1.18in x 1.18in) |
Mounting |
|
Accessories (Sold Separately) |

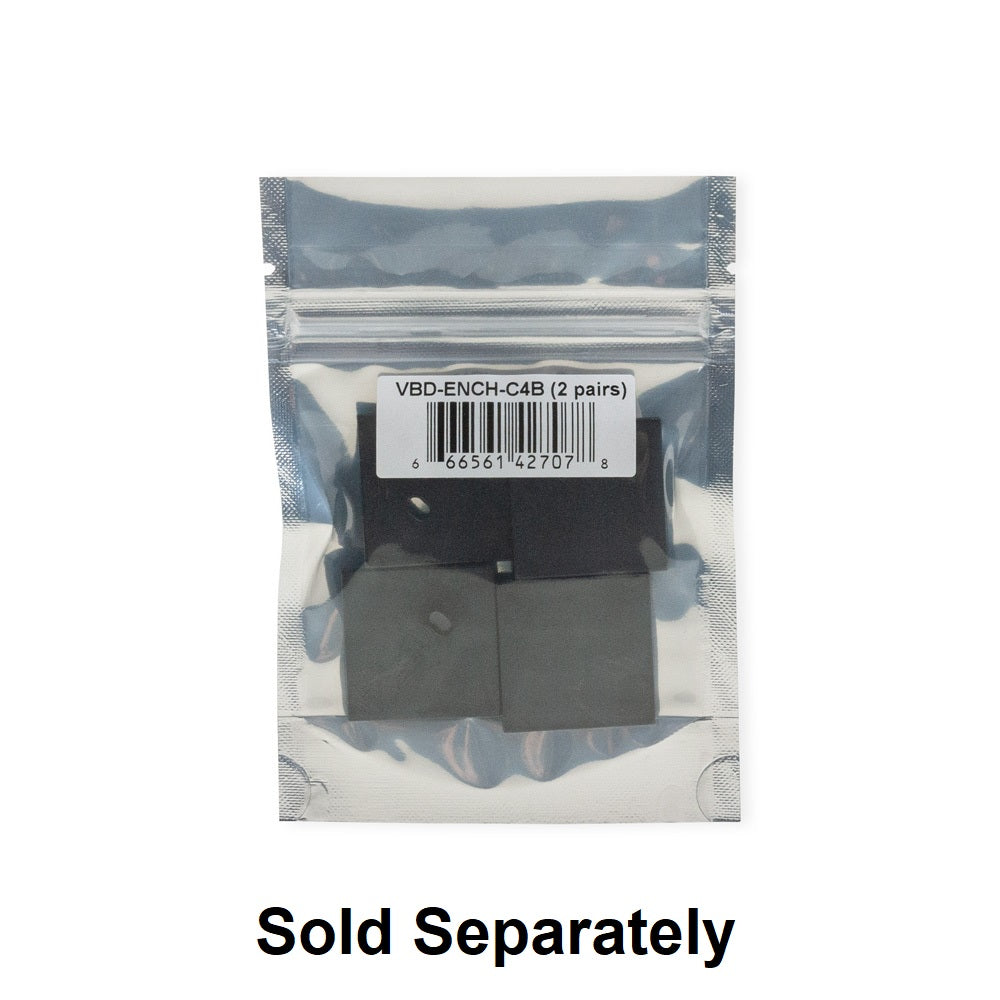

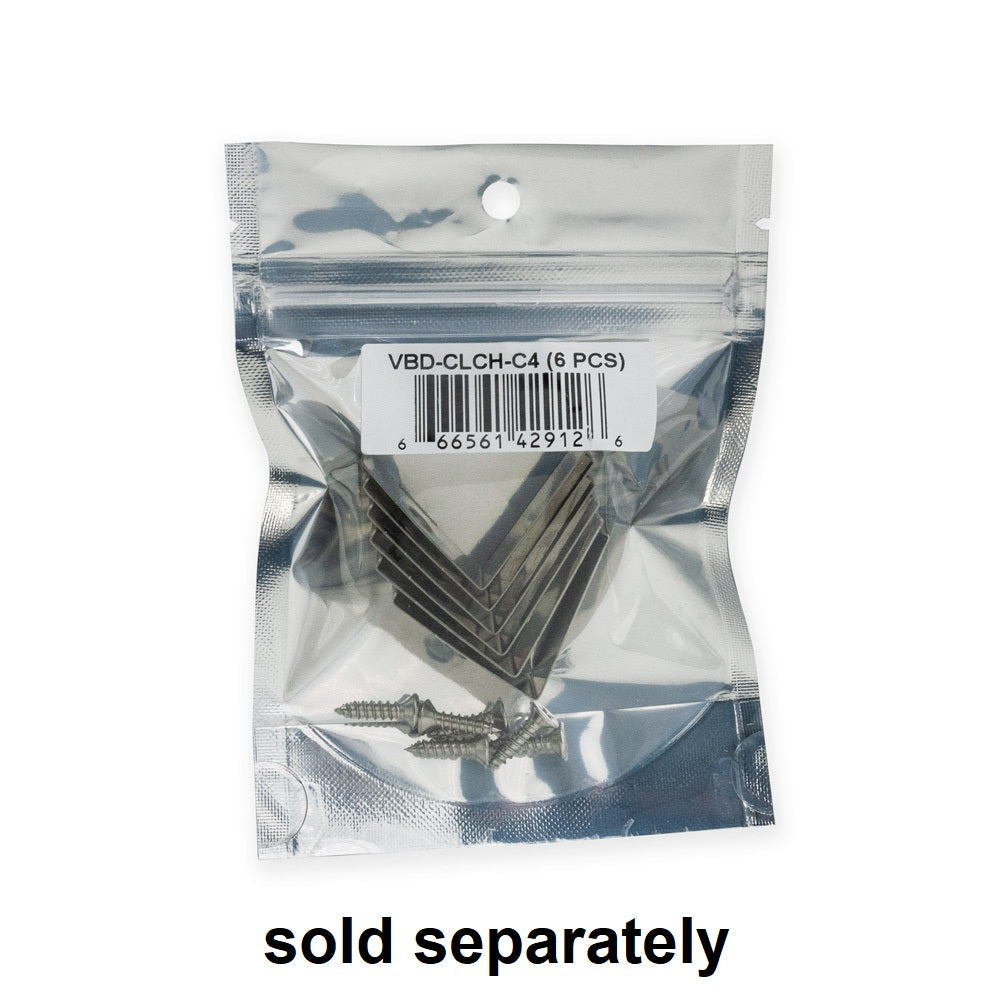

6 pcs Mounting Clips VBD-CLCH-C4 SKU:666561429126 2 pairs Endcaps VBD-ENCH-C4B SKU:666561427078 |

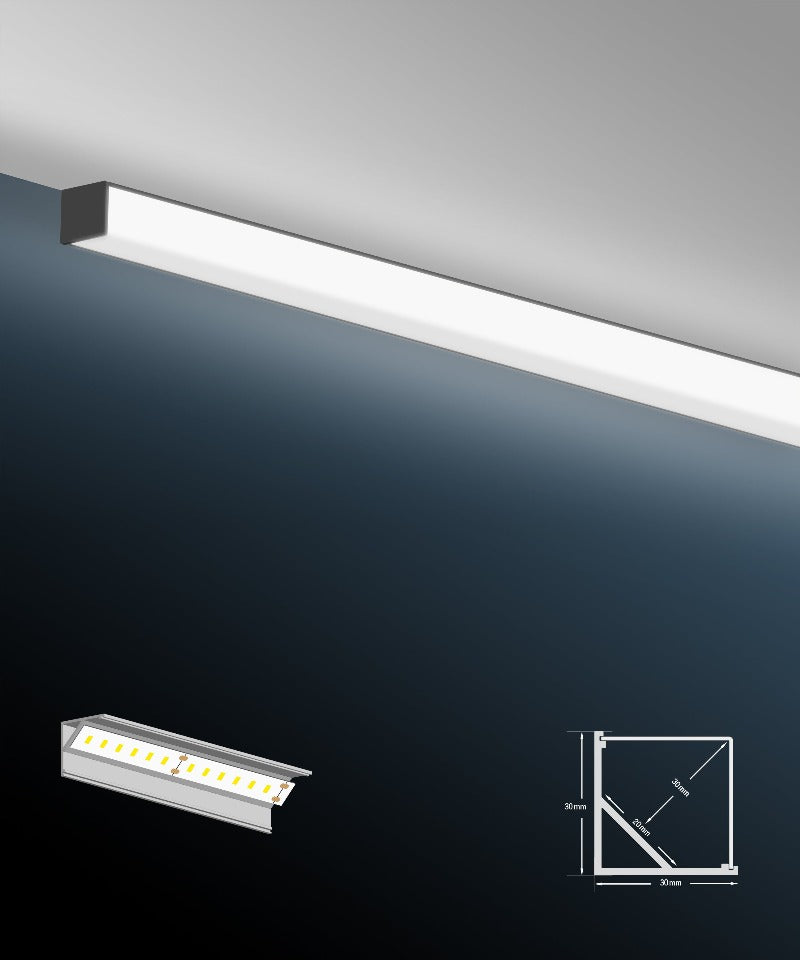

VEROBOARD Corner Mount Square Linear Aluminum Channel Black are popular for cabinets, shelves, closets, staircase, decorative and, vanity lighting applications. These are popular channels for projecting lights at a 45-degree angle of the LED strip useful for illuminating light at the adjacent sides. They are also available in Silver Grey Color in the same size.
The VEROBOARD VBD-CH-C4B Corner Mount Square Linear Aluminum Channel in Black is a highly functional and stylish LED extrusion that is perfect for achieving a professional and sleek installation of LED strips in various lighting applications. Measuring 1000mm x 30mm x 30mm (39.3in x 1.18in x 1.18in), this channel is made of high-quality anodized aluminum material that provides durability and can be spray painted to any desired color.
One of the most notable features of this channel is its 45-degree angle projection of light from the LED strip, making it ideal for illuminating light at adjacent sides. This feature makes it a popular choice for use in cabinets, shelves, closets, staircases, decorative, and vanity lighting applications. The VBD-CH-C4B also acts as a heat sink for the LED strip installed in it, which increases the lifetime of the LEDs.

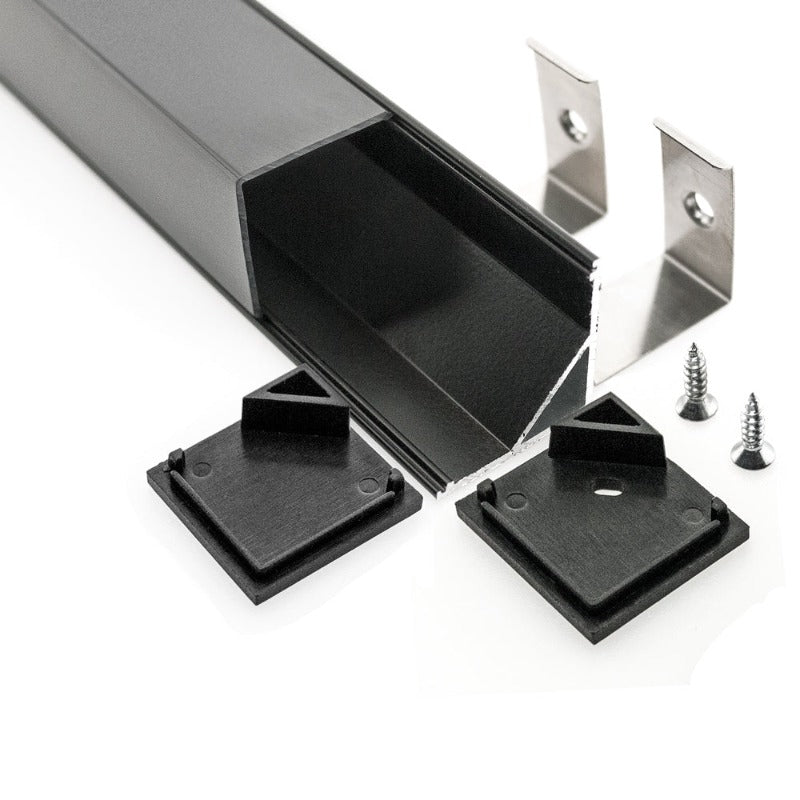

The channel comes with a frosted polycarbonate diffuser, end caps with wiring holes, and mounting brackets with screws for easy installation. You can mount the extrusion using double-sided tape, mounting clips, or by directly screwing or grooving it into the mounting surface. Endcaps can be easily mounted at the end of the project, and the diffuser helps reduce light glare and provides protection from dust, avoiding any kind of damage to the LEDs.
This lightweight and environment-friendly channel is an excellent choice for achieving a linear light without any visibility of the aluminum channel when recessed. With its inside width of 20mm, two layers of LED strips can be installed for increased brightness depending on the job. Optional accessories, including end caps and mounting clips, are available for purchase separately. The VBD-CH-C4B is suitable for use in various lighting applications, including closets, ceilings, shower doors, windows, accent lighting, and showcases in stores.
Features:
- Highly functional and stylish LED extrusion for achieving a professional and sleek installation of LED strips
- Made of high-quality anodized aluminum material that provides durability and can be spray painted to any desired color
- 45-degree angle projection of light from the LED strip makes it ideal for illuminating light at adjacent sides
- Acts as a heat sink for the LED strip installed in it, increasing the lifetime of the LEDs
- Comes with a frosted polycarbonate diffuser, end caps with wiring holes, and mounting brackets with screws for easy installation
- Can be mounted using double-sided tape, mounting clips, or by directly screwing or grooving it into the mounting surface
- Endcaps can be easily mounted at the end of the project, and the diffuser helps reduce light glare and provides protection from dust, avoiding any kind of damage to the LEDs
- Lightweight and environment-friendly channel is an excellent choice for achieving a linear light without any visibility of the aluminum channel when recessed
- Inside width of 20mm allows for the installation of two layers of LED strips for increased brightness
- Suitable for use in various lighting applications, including closets, ceilings, shower doors, windows, accent lighting, and showcases in stores
- Optional accessories, including end caps and mounting clips, are available for purchase separately
Contact us for more details.
