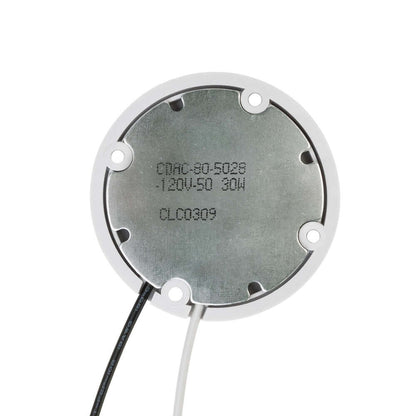

CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 30W 5000K(Daylight)
CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 30W 5000K(Daylight)
SKU: SKU:666561430627
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Paragon LED Module |
| Model No | CDAC-080-05028-120-5000K |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 30W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 3150 lumens |
| Color Temperature | 5000K (Daylight) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

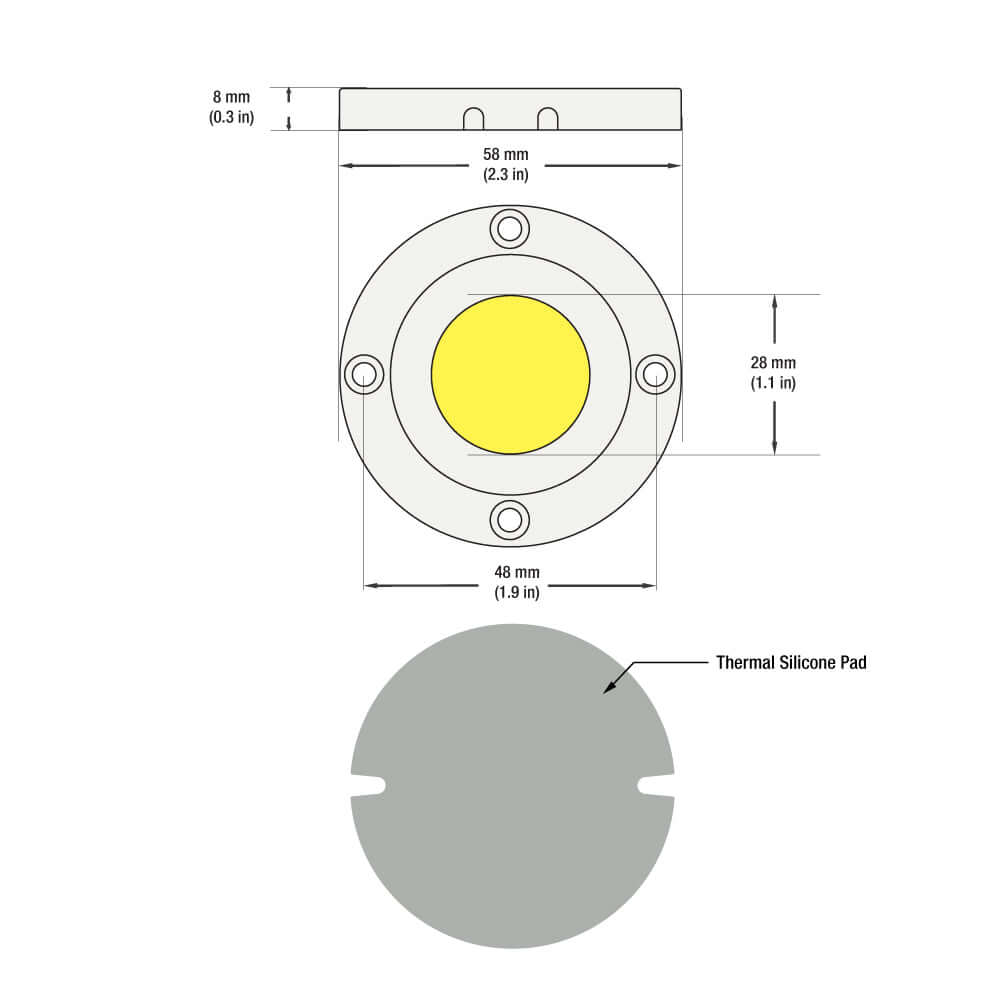

| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |

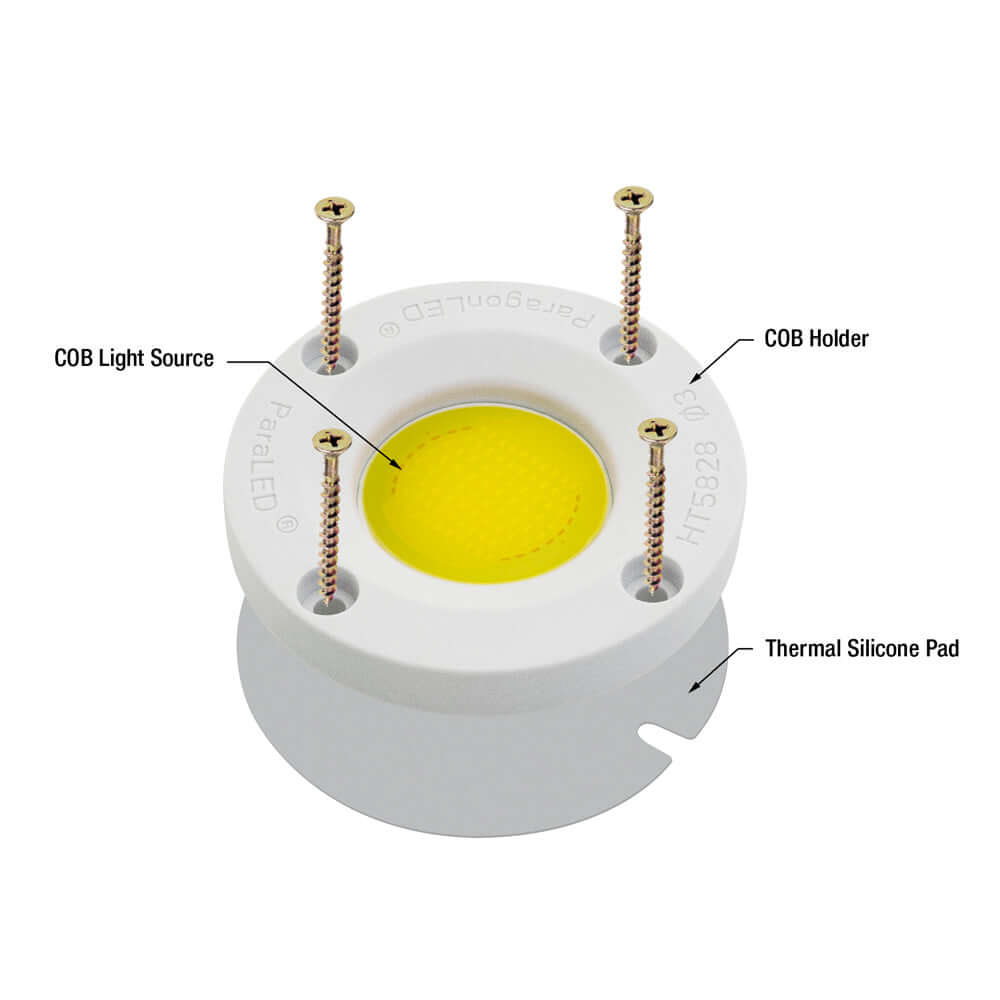

| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |

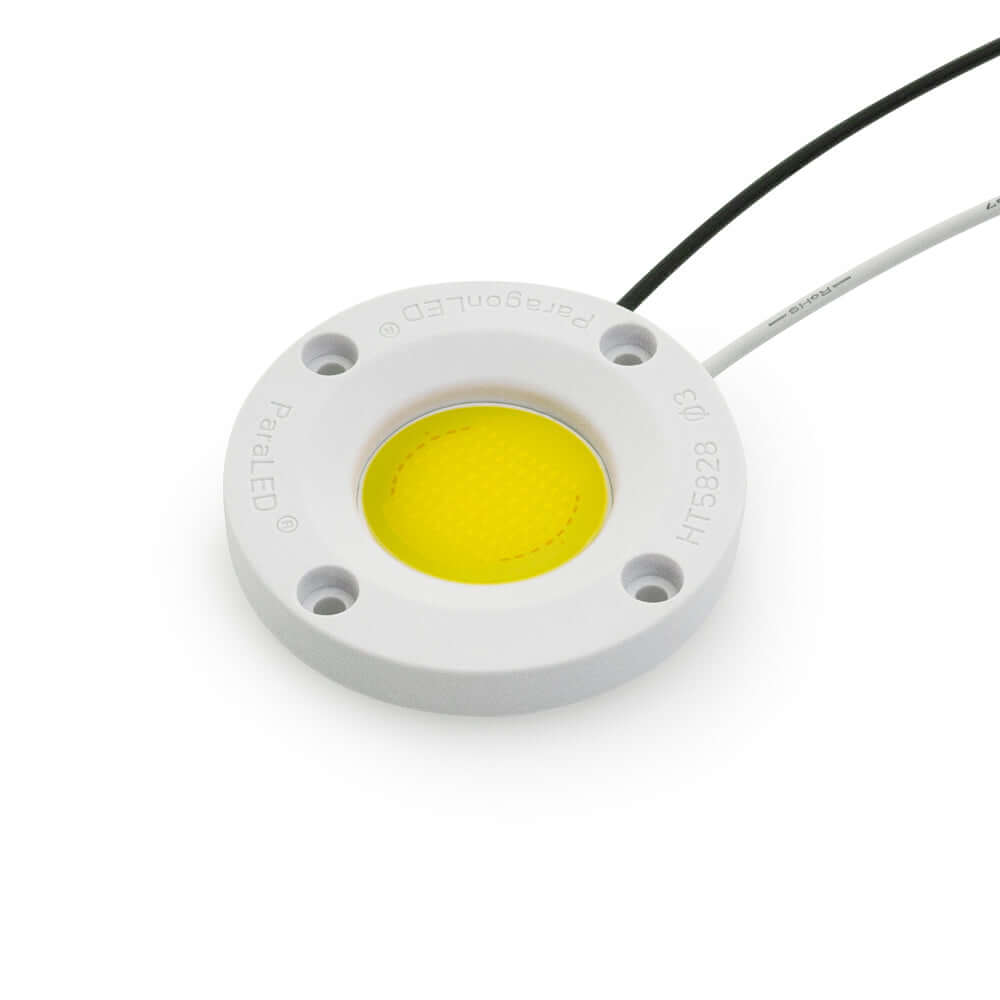

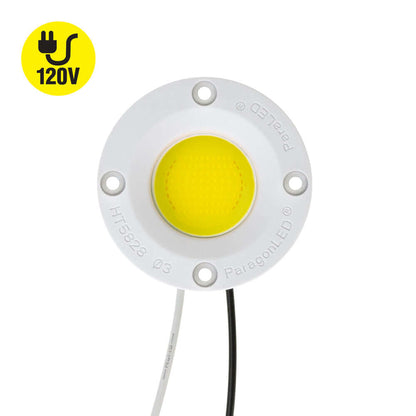

The CDAC-080-05028-120-5000K COB Paragon LED Module is a high-quality LED lighting module that uses Chip-on-Board (COB) LED technology to deliver high brightness and energy efficiency. The module is designed to be used in indoor lighting applications and comes with a COB LED array holder (HT5828), a thermal pad, and a COB module.

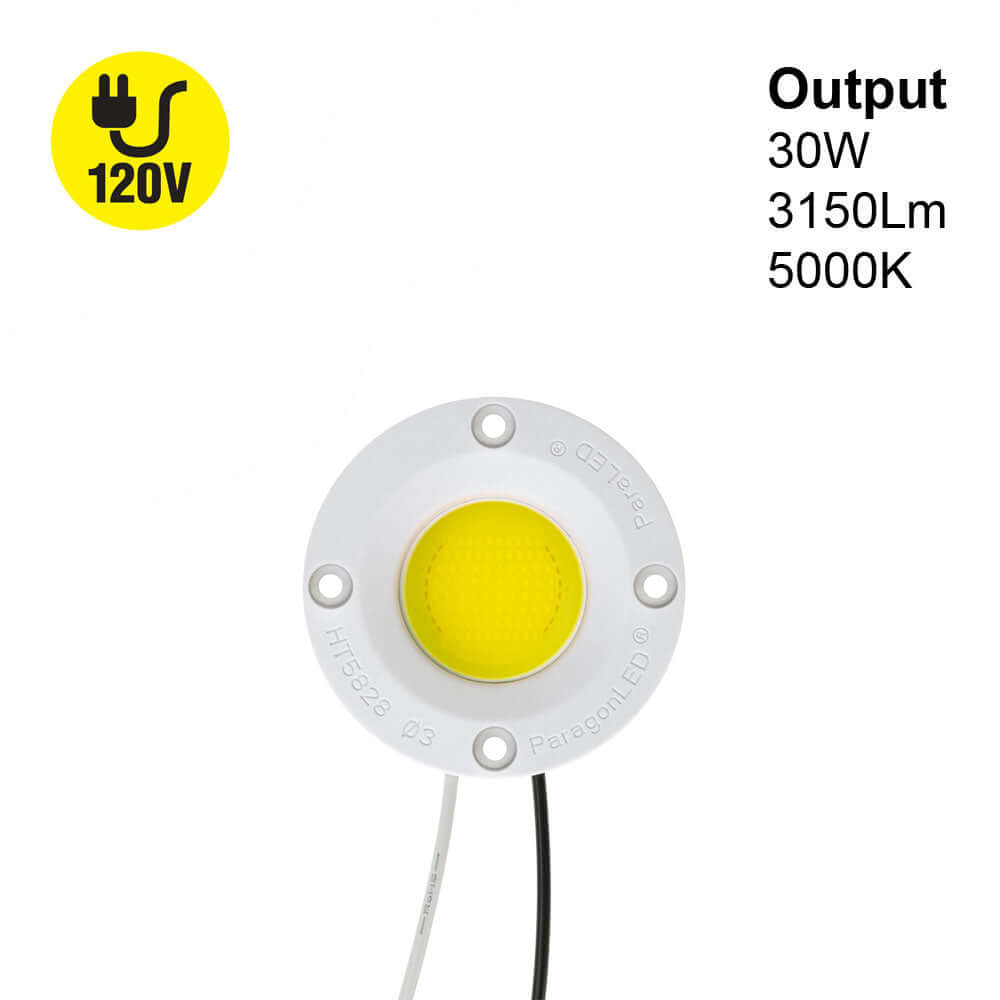

With 80 LED chips and a wattage of 30W, this LED module can deliver a luminous intensity of 3150 lumens and has a color temperature of 5000K (Daylight) with a high color rendering index (CRI>80). The module is also dimmable and has a power factor of PF>0.85.
To ensure optimal performance and to prevent overheating, it is recommended to use an aluminum heat sink with the module. The module operates in a wide temperature range (-40 ~ +105℃) and is designed to be mechanically secured and electrically connected using the COB holder.
Features:
- High-quality LED lighting module using COB LED technology
- Suitable for indoor lighting applications
- Comes with COB LED array holder (HT5828), thermal pad, and COB module
- 80 LED chips, 30W wattage, 3150 lumens, and 5000K color temperature (Daylight) with high CRI (>80)
- Dimmable with a power factor of PF>0.85
- Recommended to use with an aluminum heat sink to prevent overheating
- Operates in a wide temperature range (-40 ~ +105℃)
- Designed to be mechanically secured and electrically connected using the COB holder
- Comes with a polycarbonate diffuser that can be easily attached or detached
- Suitable for damp locations and is rated as IP20 (Indoor rated)
