Product Description
| Product | Paragon LED Module |
| Model No | CDAC-136-5028-347-5000K |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 136 |
| Wattage | 20W |
| Voltage | 347V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 2400 Lumens |
| Color Temperature | 5000K (Daylight) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

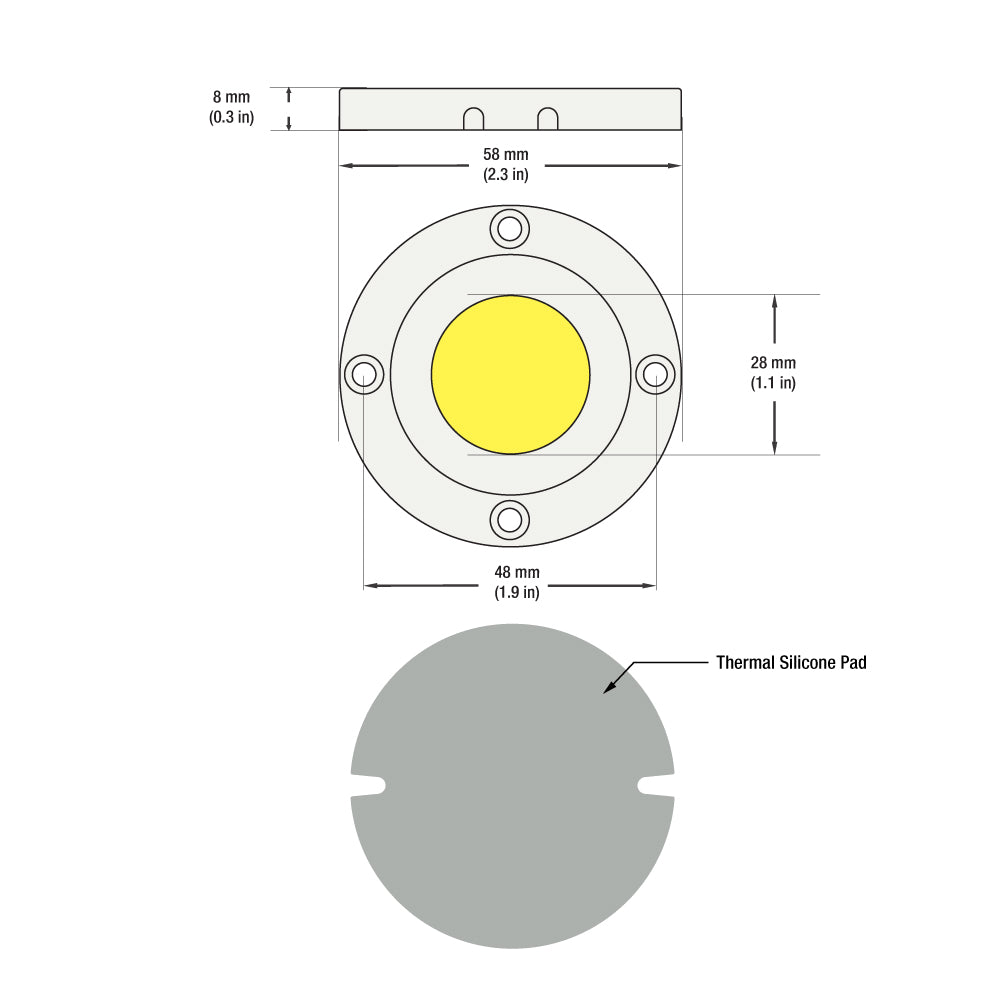

| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |

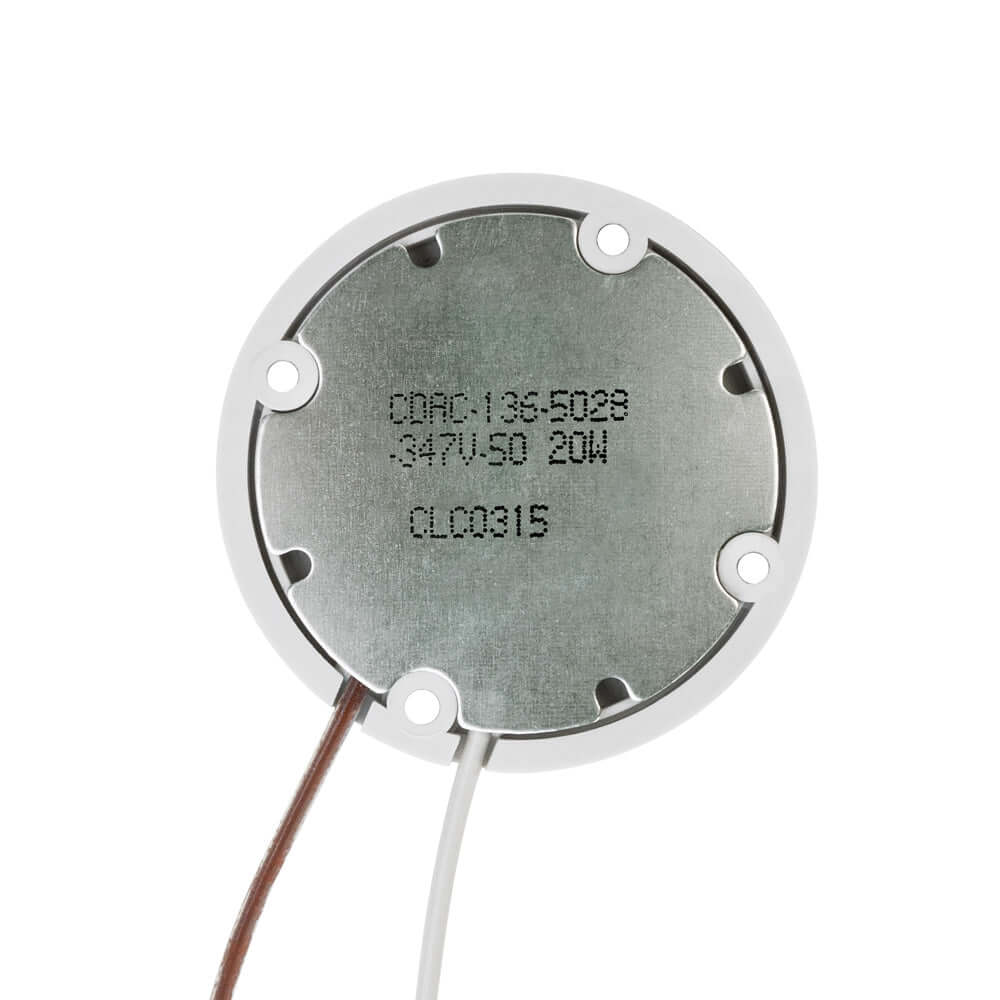

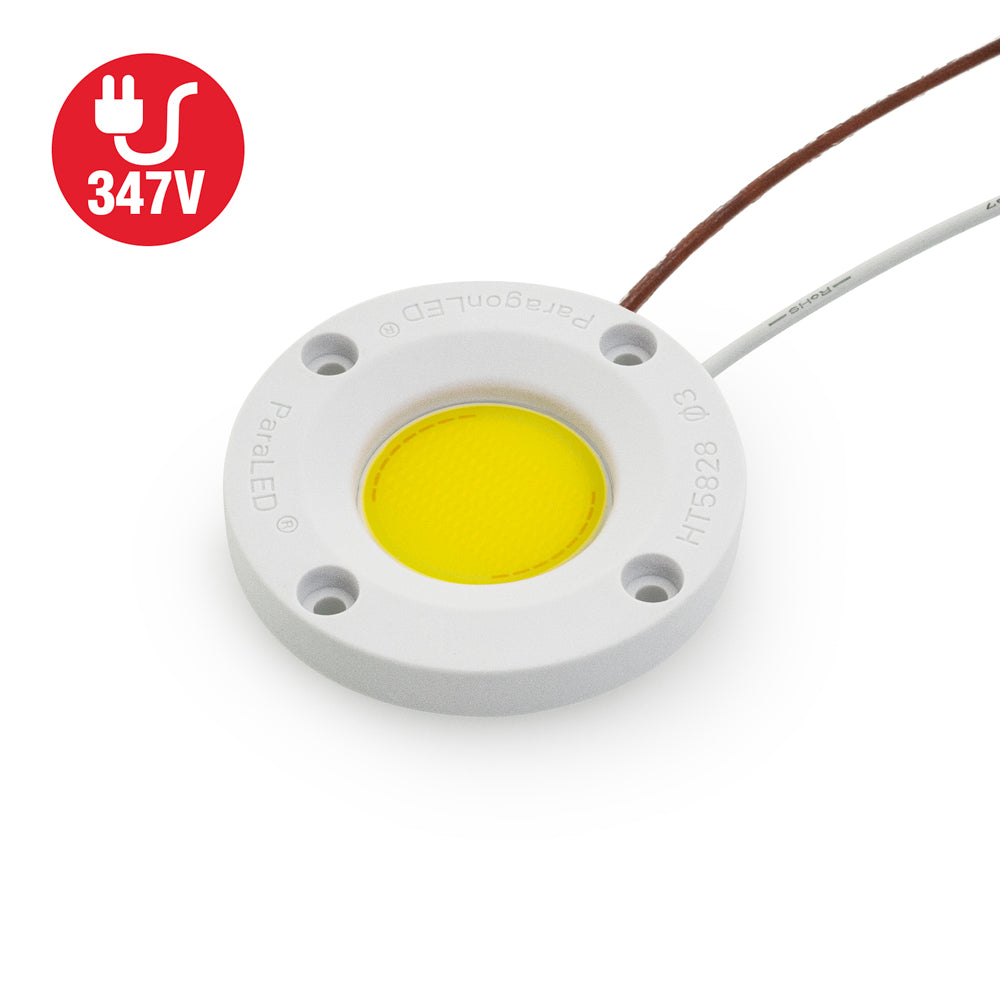

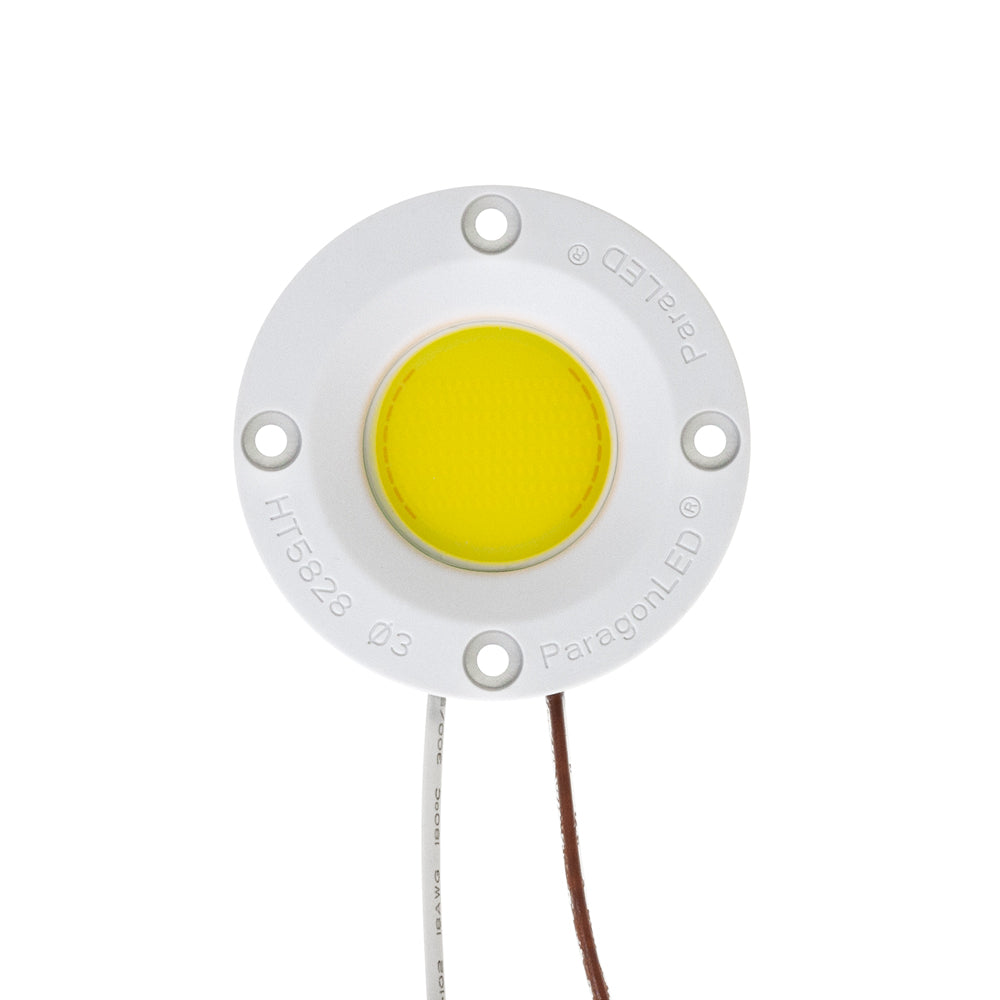

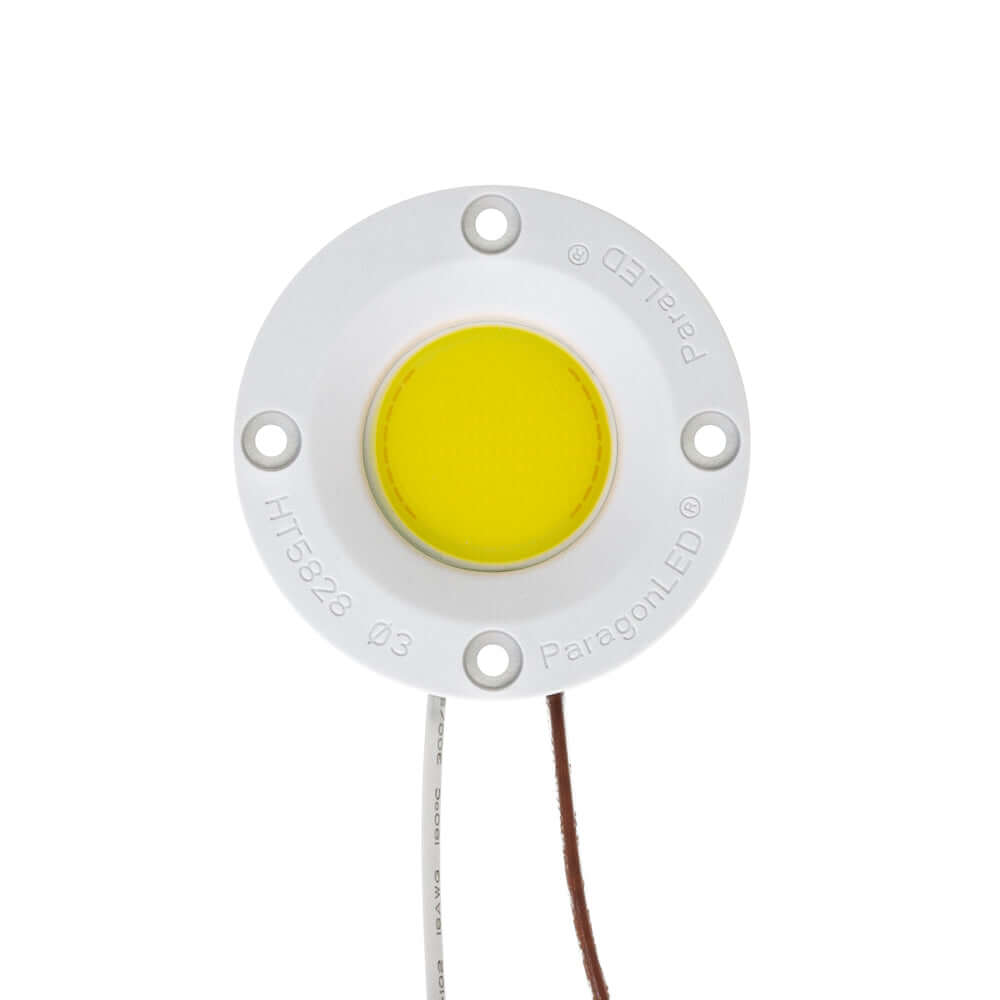

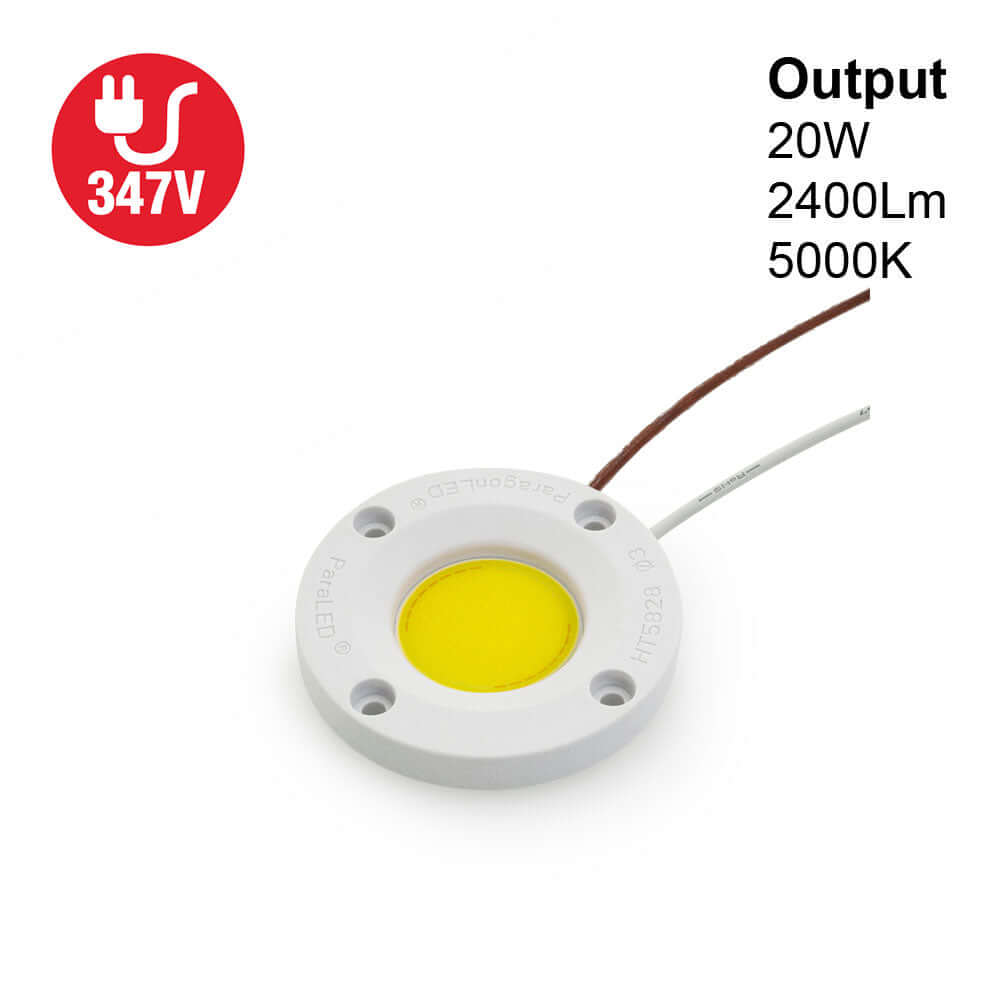

The CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder is a high-quality LED module designed for indoor lighting applications. It features a COB LED type with 136 LED chips, a wattage of 20W, and a voltage of 347V AC. The module has a power factor of PF>0.85 and a luminous intensity of 2400 Lumens. The color temperature of the module is 5000K, which is considered as daylight. The module is dimmable, has a rendering index of CRI>80, and has an IP rating of IP20, making it suitable for damp locations.

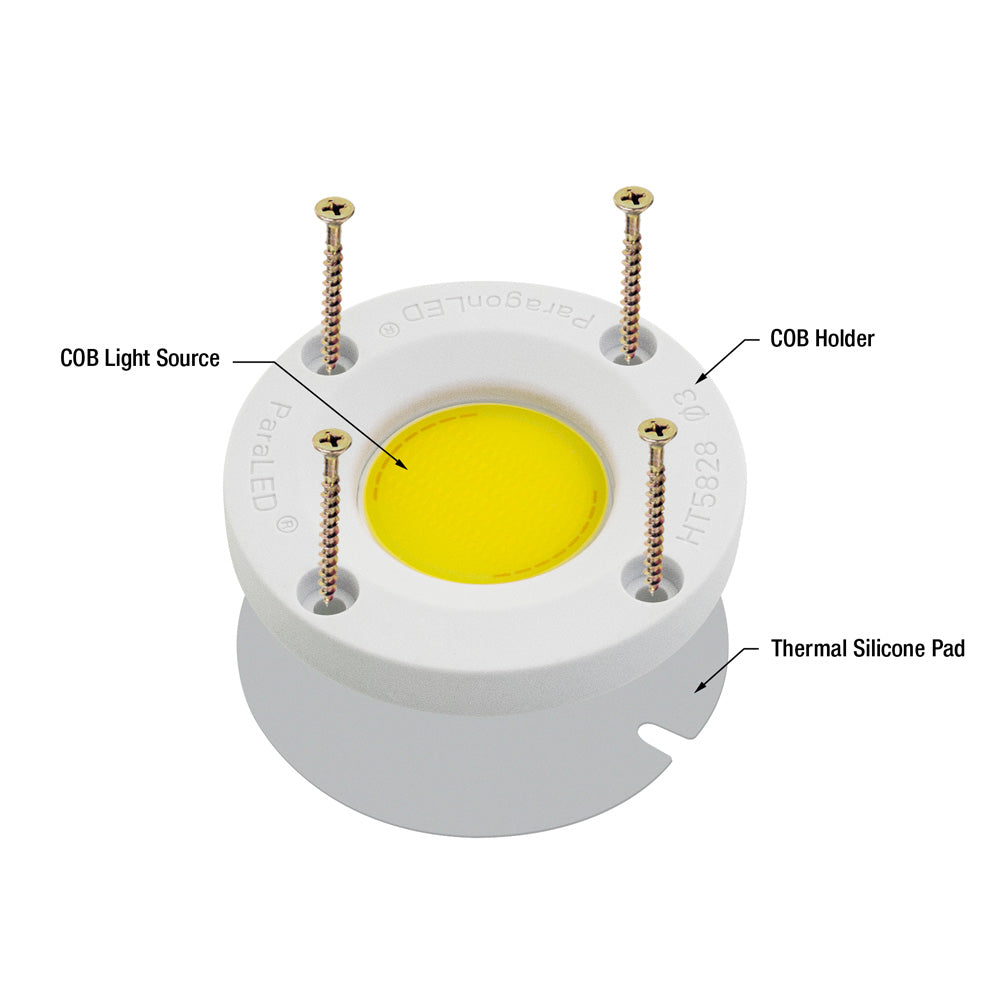

Like all COB LED modules, this module requires an aluminum heat sink to prevent overheating, which may cause serious luminous decay. The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The silicone grease thermal pad provides a heat sink and helps in better heat dissipation, thereby increasing the lifespan of the module.
Additionally, the product comes with a polycarbonate diffuser that can easily be attached or detached. The diffuser not only protects the module but also helps in reducing glare and refracting the light in a wider beam. COB LEDs are generally used in almost every kind of luminaire, and this LED module is suitable for use in various indoor lighting applications.
Features:
- COB LED type with 136 LED chips
- Wattage of 20W and voltage of 347V AC
- Power factor of PF>0.85
- Luminous intensity of 2400 Lumens
- Color temperature of 5000K (daylight)
- Dimmable
- Rendering index of CRI>80
- IP rating of IP20 for damp locations
- Operating temperature range of -40 ~ +105℃
- COB holder model no. HT5828 with dimensions of ∅58mm x H8mm
- Package includes COB module, COB LED array holder, and thermal pad
- Requires an aluminum heat sink for heat dissipation
- Silicone grease thermal pad included
- Polycarbonate diffuser included for reduced glare and wider beam
- Suitable for use in various indoor lighting applications
