2 inch Round Disc ZEGA LED Module DIS 02-005W-930-120-S1-Z1A (DIS 01-400-930-120-S1), 120V 5W 3000K(Warm White)
|Model No||DIS 02-005W-930-120-S1-Z1A|
|No of LEDs||20|
|Luminous Flux||400 lumens|
|Color Temperature||3000K (Warm White)|
|Base Material||Aluminum (Metallic Base)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

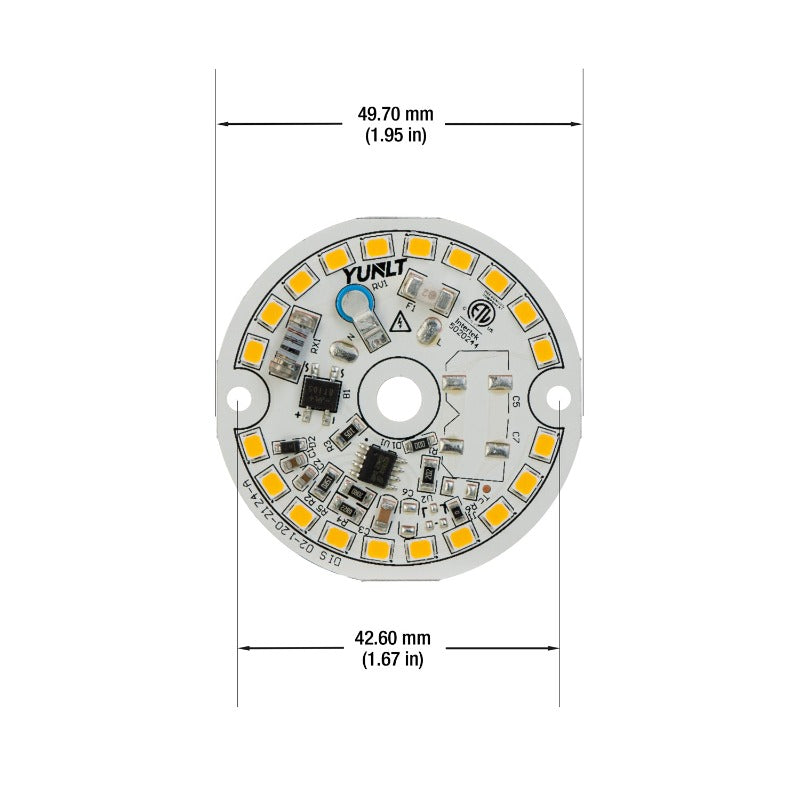

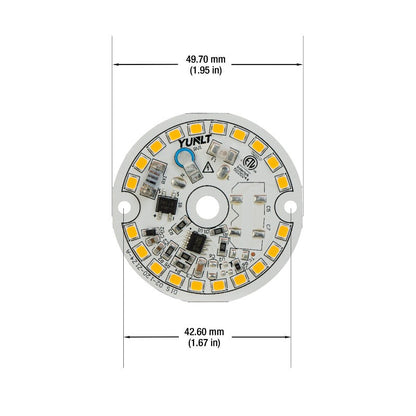

||∅49.7mm (2 in)|
|Inner Diameter (Hole)||∅6 mm (0.23 in)|
|Height||4.5mm (0.17 in)|
|Diameter of the screw hole||∅3 mm (0.12 in)|
|Distance between holes||42.6mm (1.67 in)|

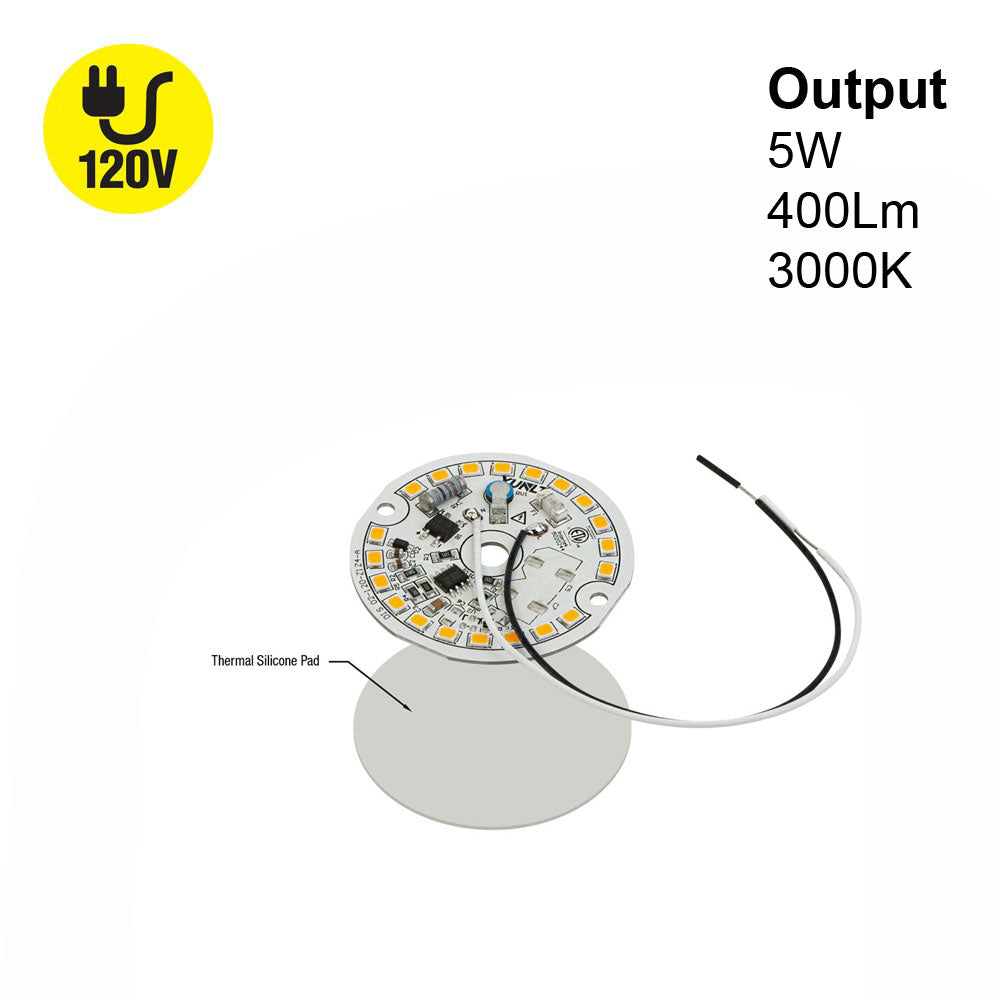

The YUNLT DIS 02-005W-930-120-S1-Z1A (DIS 01-400-930-120-S1) LED Module is a high-quality lighting solution that offers exceptional energy efficiency and performance. This module features 20 high-quality LEDs, producing 400 lumens of warm white light with a color temperature of 3000K, making it perfect for a wide range of general lighting applications.
With a low power consumption of 5W and high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.

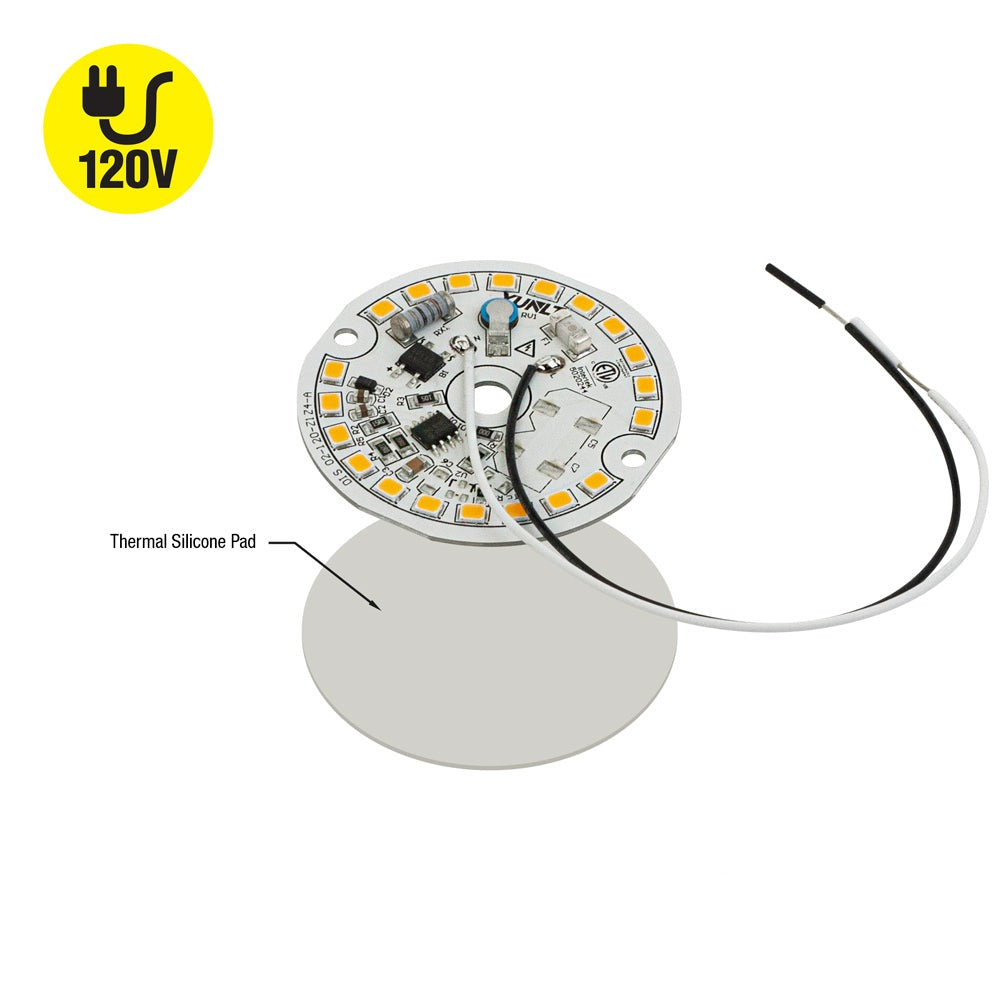

Constructed with an aluminum (metallic base) material, this LED module features an outer diameter of ∅49.7mm (2 in), making it compact and easy to install. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
The YUNLT DIS 02-005W-930-120-S1-Z1A LED Module is etl certified, ensuring that it meets high safety and quality standards. It also features a high rendering index of CRI>90, making colors appear more vibrant and true-to-life.
Overall, the YUNLT DIS 02-005W-930-120-S1-Z1A LED Module is an excellent lighting solution that offers superior quality, energy efficiency, and flexibility. It is an ideal choice for a wide range of general lighting applications, and its compact design makes it easy to install.
- High-quality lighting solution with 20 high-quality LEDs
- Produces 400 lumens of warm white light with a color temperature of 3000K
- Low power consumption of 5W for excellent energy efficiency and cost savings
- Dimmable, providing greater flexibility in lighting control
- Operates on a voltage of 120V AC
- Constructed with an aluminum (metallic base) material for durability and longevity
- Compact design with an outer diameter of ∅49.7mm (2 in), making it easy to install
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified for high safety and quality standards
- Features a high rendering index of CRI>90, making colors appear more vibrant and true-to-life.
- A premier quality light engine. It produces up to 400 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
