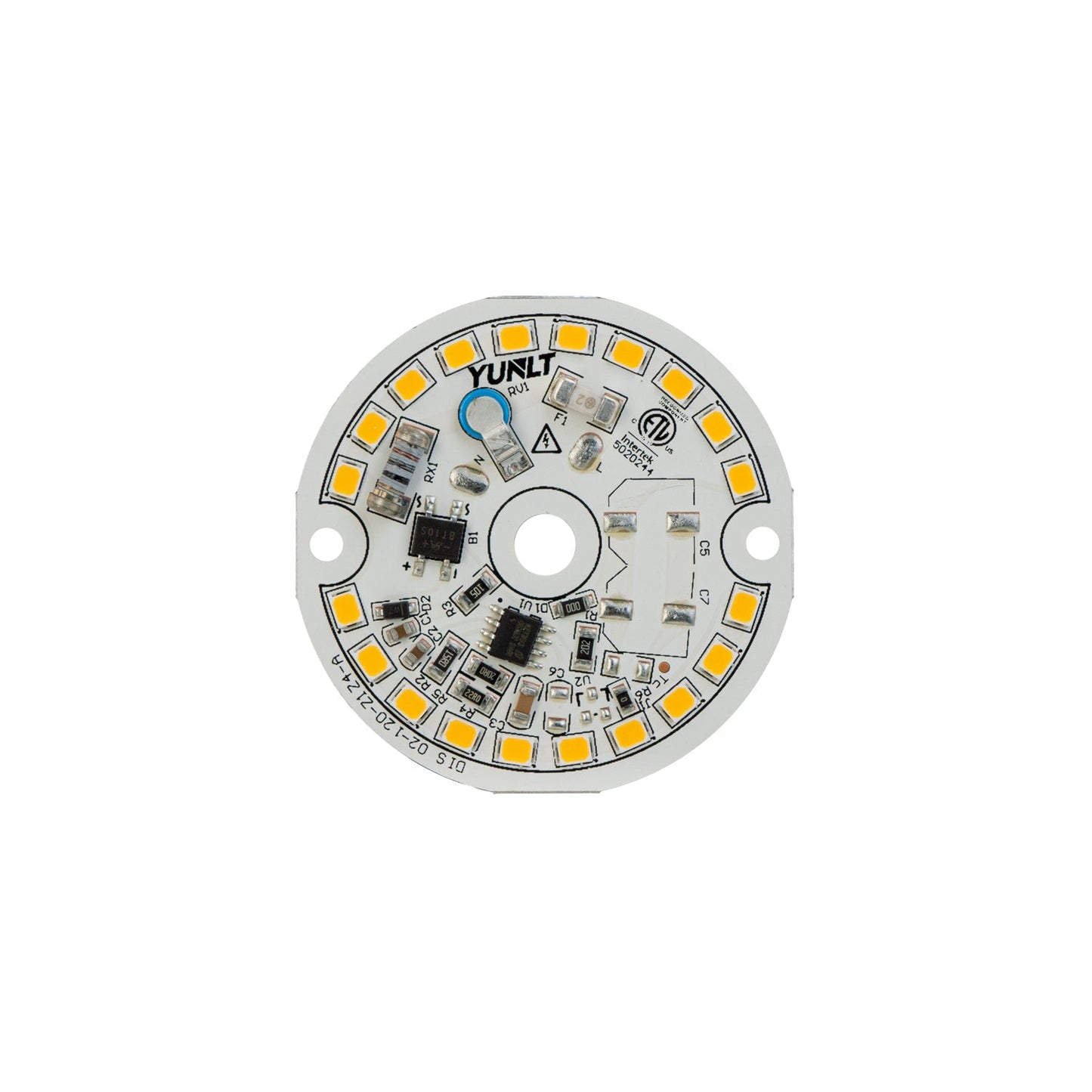

2 inch Round Disc ZEGA LED Module DIS 02-007W-930-120-S1-Z1A , 120V 7W 3000K(Warm White)

  • $19.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425753
Title:
We only have 373 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model No DIS 02-007W-930-120-S1-Z1A
Brand YUNLT
No of LEDs 20
Wattage 7W
Voltage 120V AC
Luminous Flux 600 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum (Metallic Base)
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

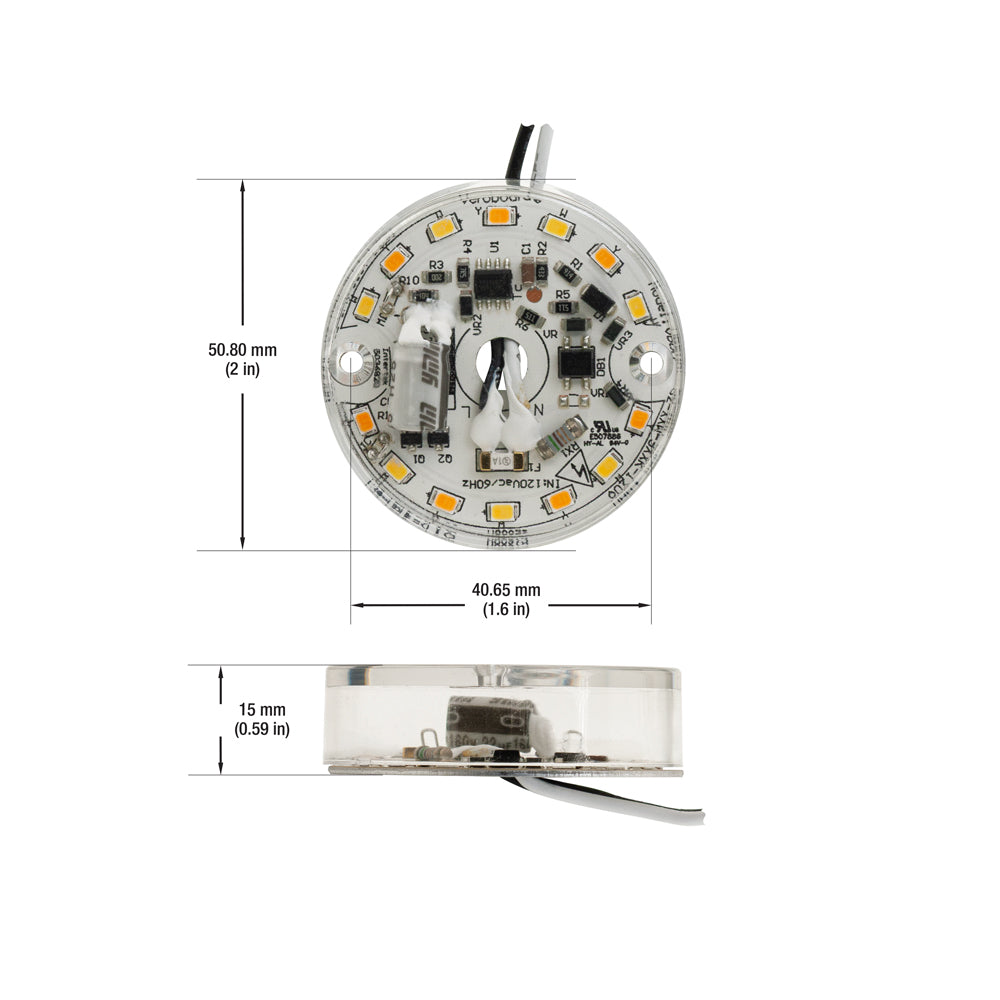

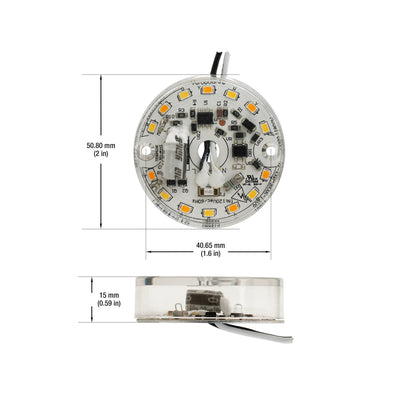

Outer Diameter
∅49.82mm (2 in)
Inner Diameter (Hole) ∅6 mm (0.23 in)
Height 4.5mm (1.7 in)
Diameter of the screw hole ∅3 mm (0.12 in)
Distance between holes 43mm (1.7 in)
Certification

The YUNLT DIS 02-007W-930-120-S1-Z1A LED Module is a high-quality lighting solution that offers superior energy efficiency and performance. This module features 20 high-quality LEDs, producing 600 lumens of warm white light with a color temperature of 3000K, making it ideal for a wide range of general lighting applications.

With a low power consumption of 7W and high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.

The YUNLT DIS 02-007W-930-120-S1-Z1A LED Module is ETL certified, ensuring that it meets high safety and quality standards. It also features a high rendering index of CRI>90, making colors appear more vibrant and true-to-life.

Features:

  • 20 high-quality LEDs with a warm white light of 3000K and 600 lumens output
  • Low power consumption of 7W for energy efficiency and cost-saving
  • Operates on 120V AC voltage and is dimmable for flexible lighting control
  • Constructed with aluminum (metallic base) material and has an outer diameter of ∅49.82mm (2 in) for easy installation

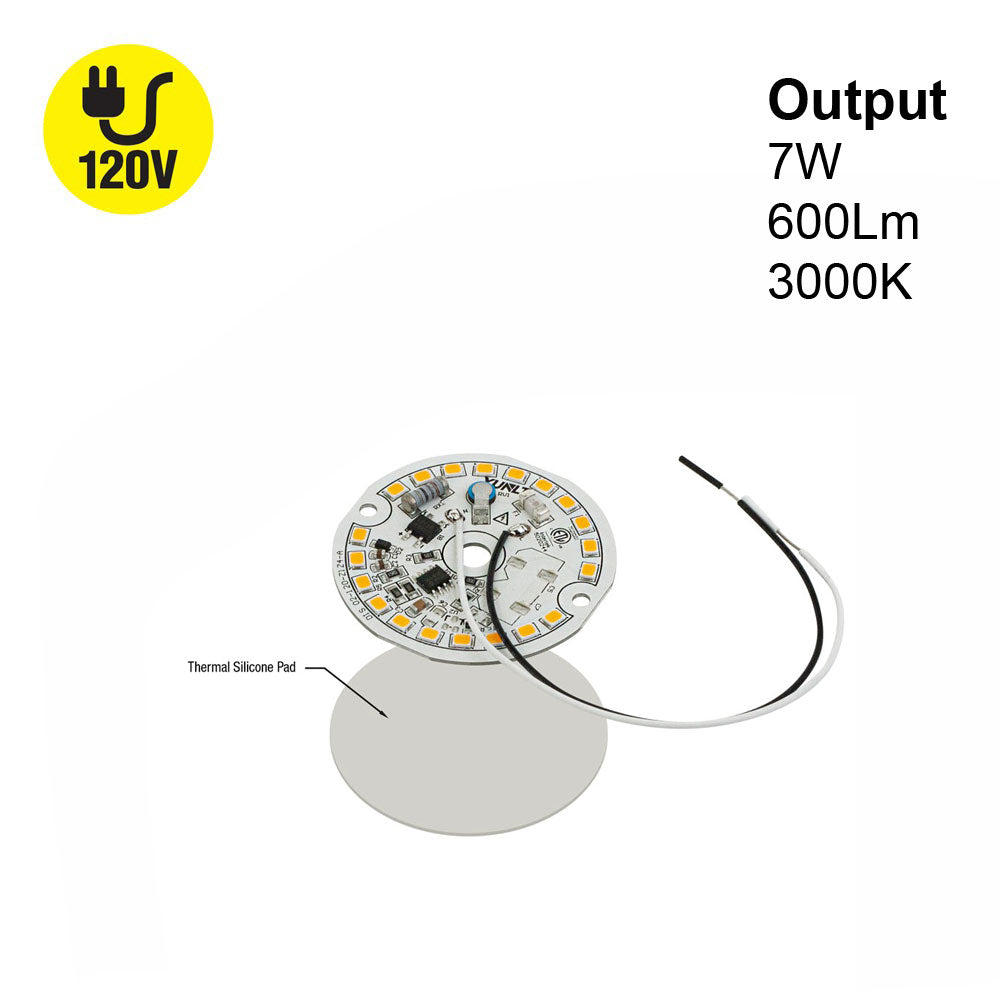

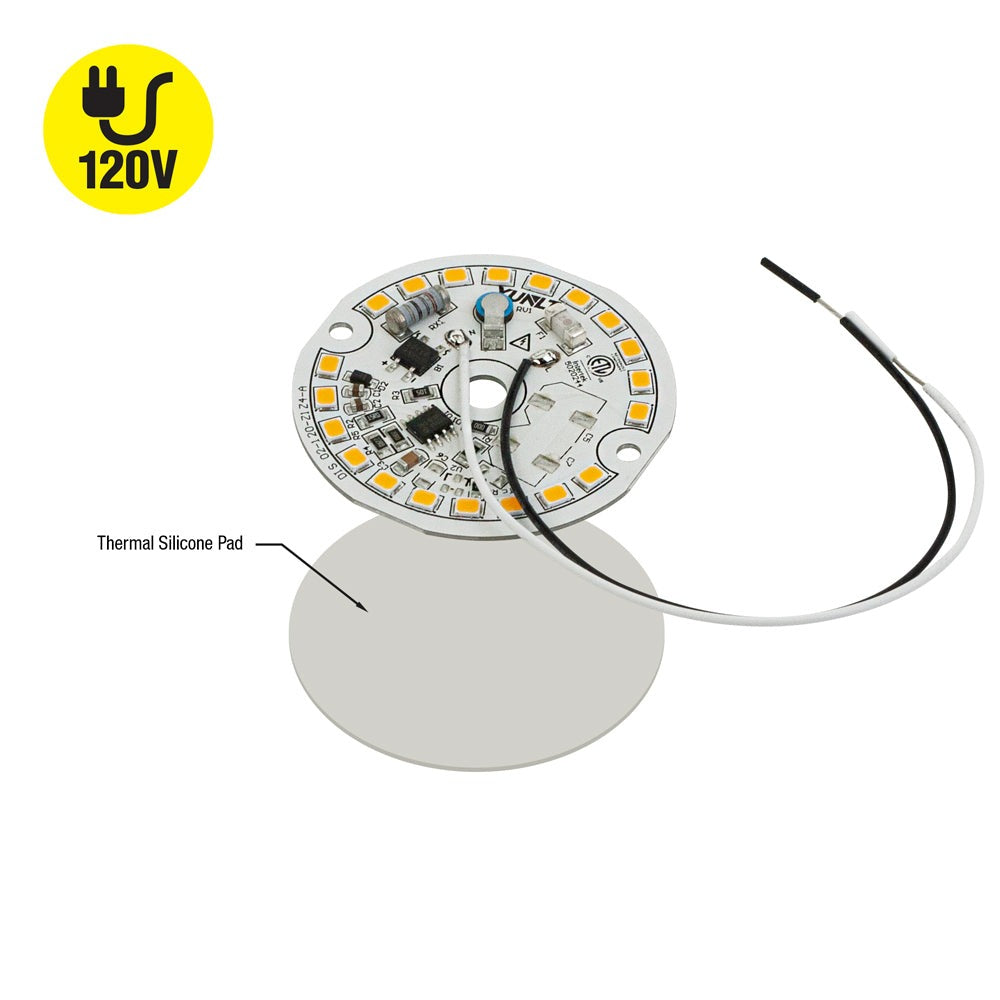

  • Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
  • ETL certified for high safety and quality standards
  • High rendering index of CRI>90 for true-to-life color appearance
  • Suitable for a wide range of general lighting applications
  • A premier quality light engine. It produces up to 600 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.

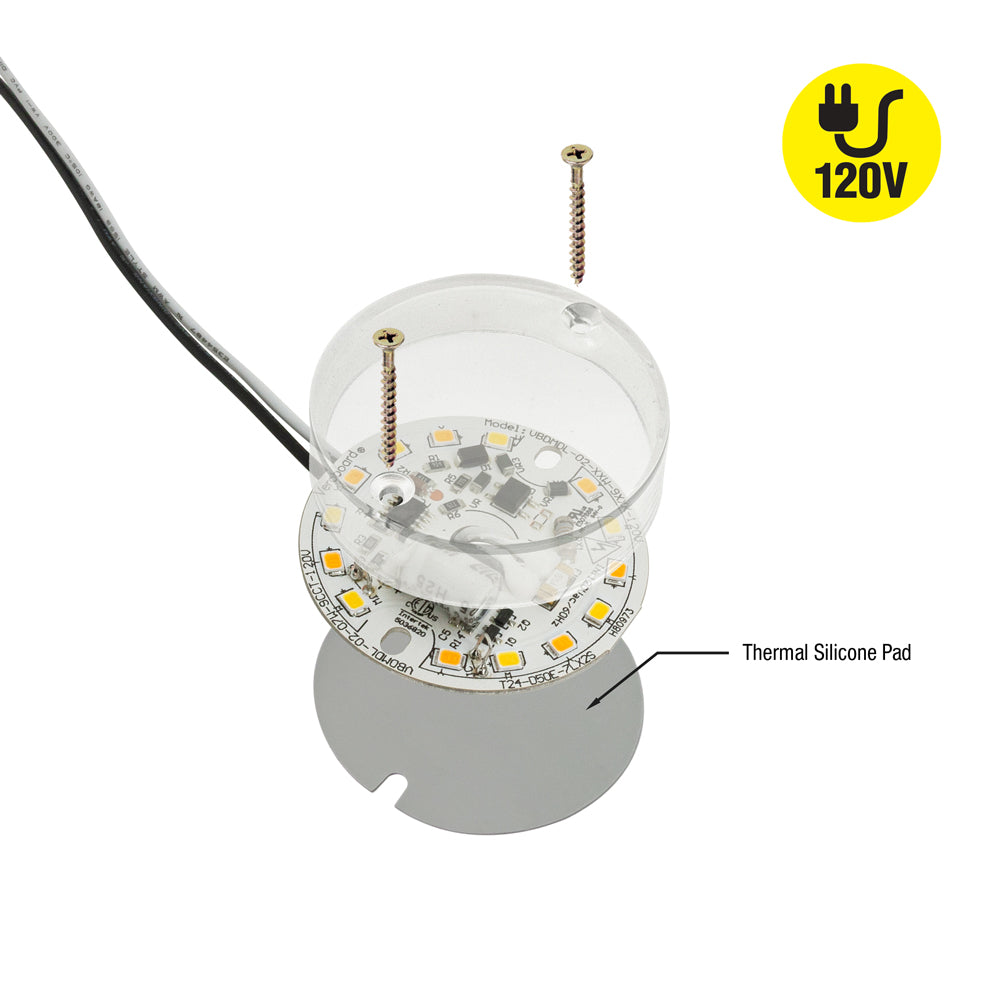

  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
