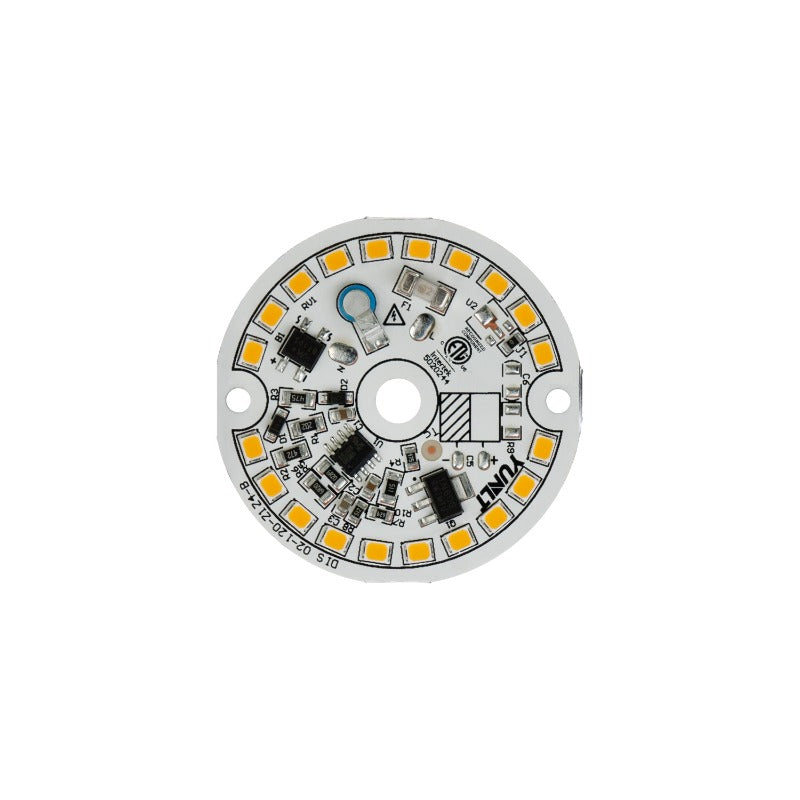

2 inch Round Disc ZEGA LED Module DIS 02-015W-930-120-S1-Z1B, 120V 15W 3000K(Warm White)
|No of LEDs
|3000K (Warm White)
|Aluminum (Metallic Base)
Thermal Silicon Pad
6inch Black and White power feed

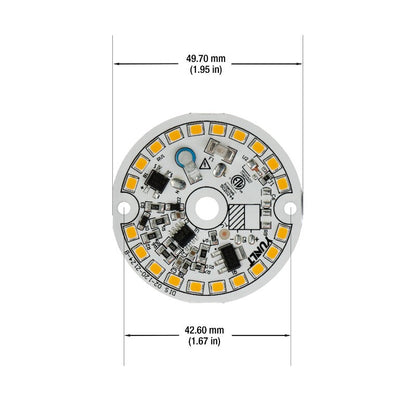

|∅49.7mm (2 in)
|Inner Diameter (Hole)
|∅6 mm (0.23 in)
|4.2mm (0.16 in)
|Diameter of the screw hole
|∅3 mm (0.12 in)
|Distance between holes
|42.6mm (1.67 in)

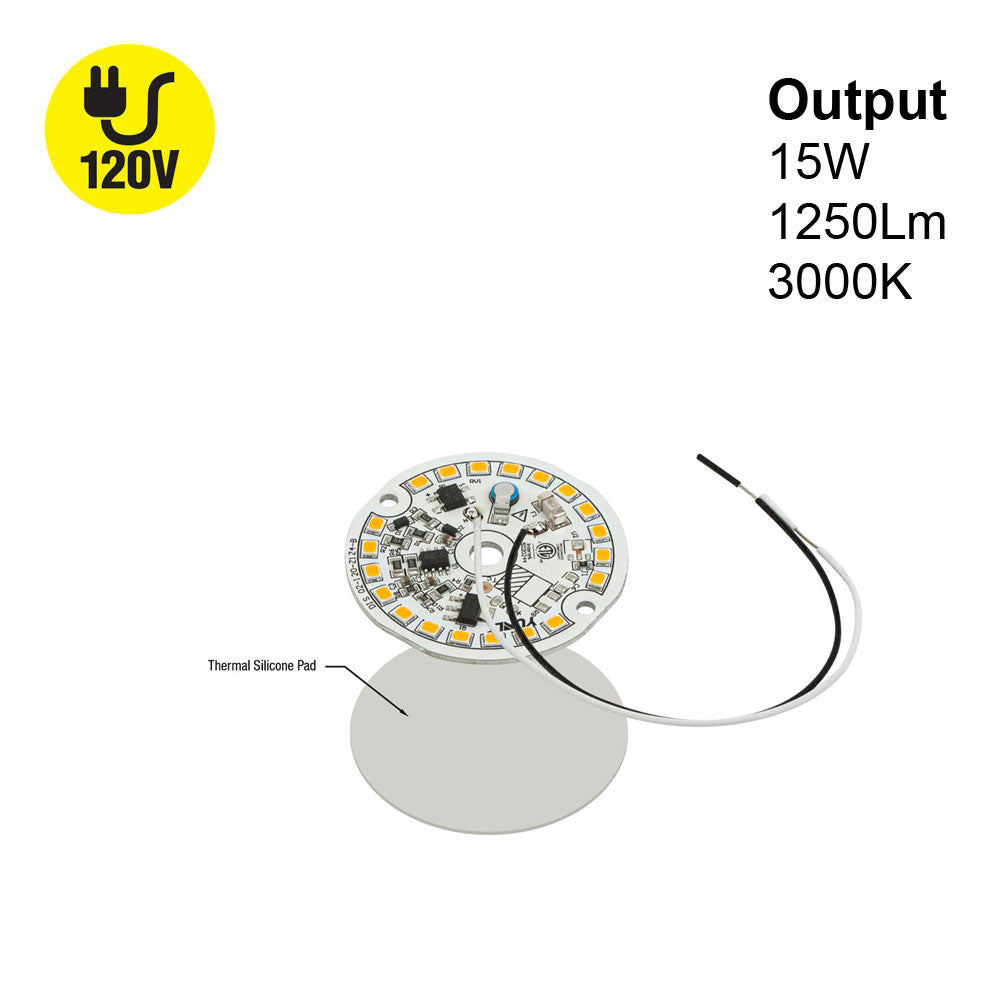

The YUNLT DIS 02-015W-930-120-S1-Z1B LED Module is a high-performance lighting solution that offers exceptional quality and energy efficiency. This module features 20 high-quality LEDs, producing a powerful 1250 lumens of warm white light with a color temperature of 3000K, making it perfect for a wide range of general lighting applications.
With a low power consumption of 15W and high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.
The YUNLT DIS 02-015W-930-120-S1-Z1B LED Module is etl certified, ensuring that it meets high safety and quality standards. It also features a high rendering index of CRI>90, making colors appear more vibrant and true-to-life.
- High-quality lighting with 20 LEDs producing 1250 lumens of warm white light with a color temperature of 3000K
- Low power consumption of 15W and high energy efficiency, saving on energy costs while providing excellent illumination
- Operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control
- Constructed with an aluminum (metallic base) material, featuring an outer diameter of ∅49.7mm (2 in) for easy installation

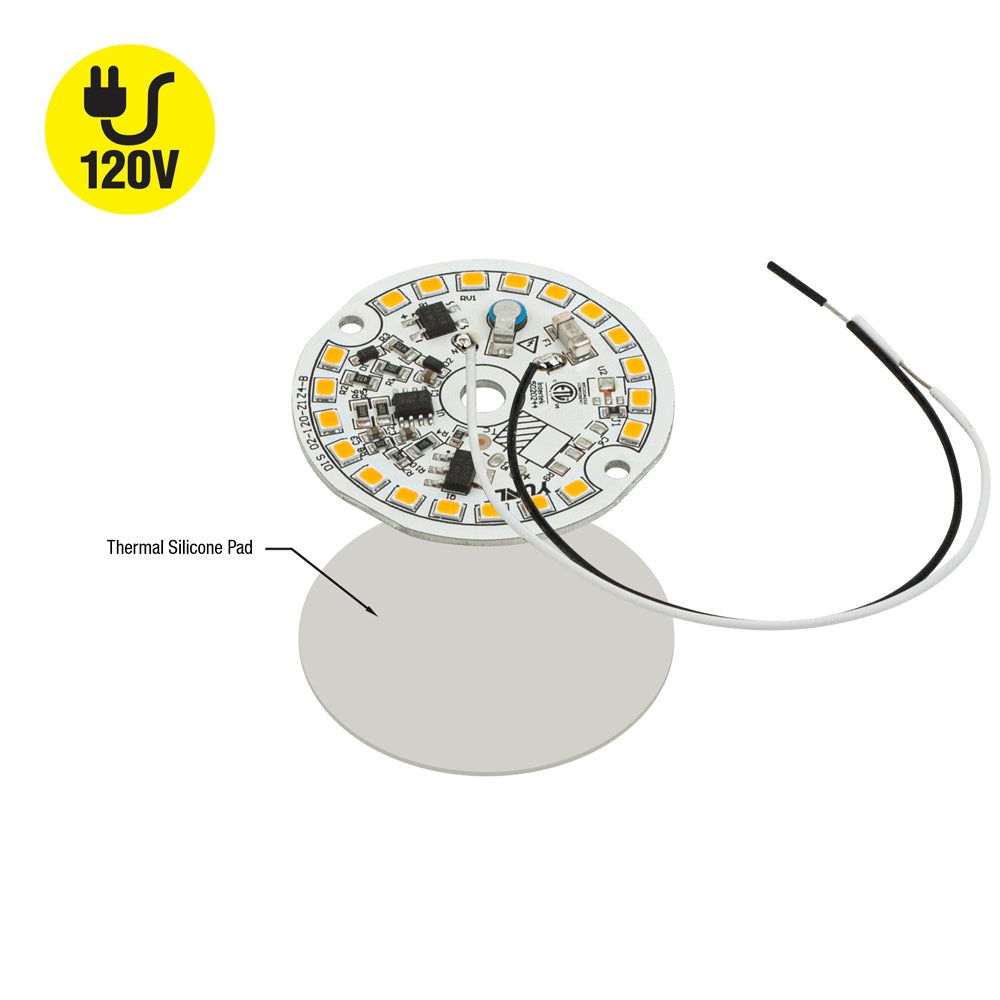

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified, ensuring high safety and quality standards
- High rendering index of CRI>90, making colors appear more vibrant and true-to-life
- Ideal for a wide range of general lighting applications with its superior quality, energy efficiency, and flexibility
- A premier quality light engine. It produces up to 1250 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
