3 inch Round Disc ZEGA LED Module DIS 03-010W-930-120-S3-Z1A , 120V 10W 3000K(Warm White)

  • $25.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561425760
Title:
We only have 114 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model DIS 03-010W-930-120-S3-Z1A
Brand YUNLT
No of LEDs 20
Wattage 10W
Voltage 120V AC
Luminous Flux 800 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum (Metallic Base)
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

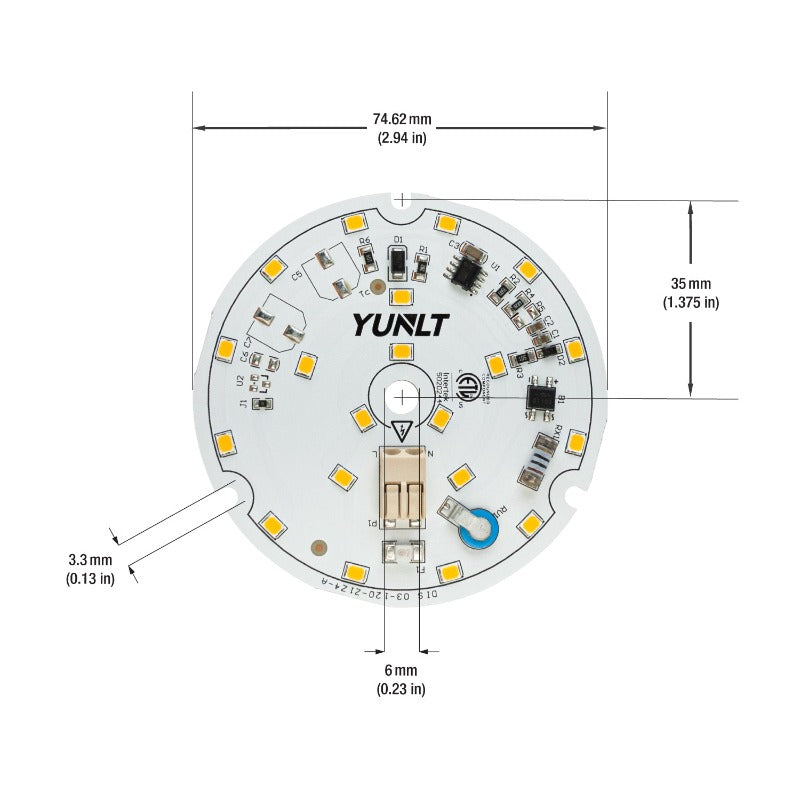

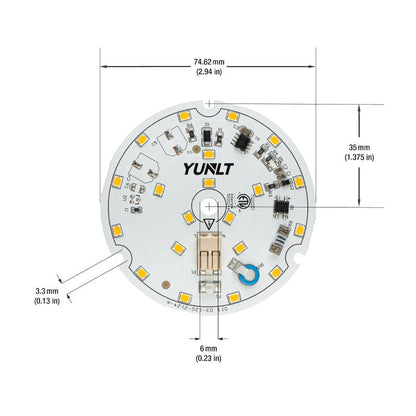

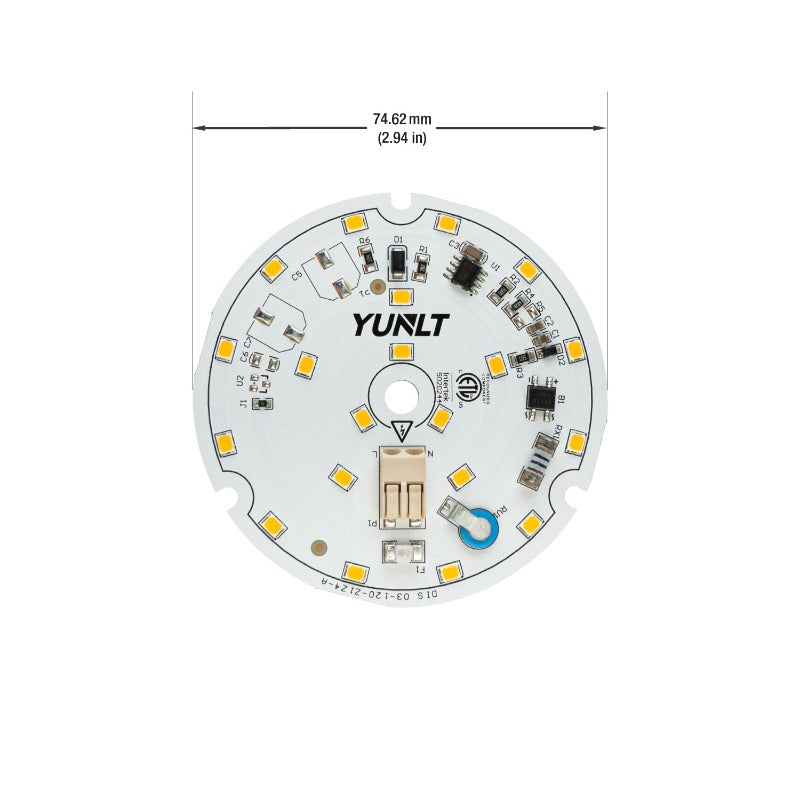

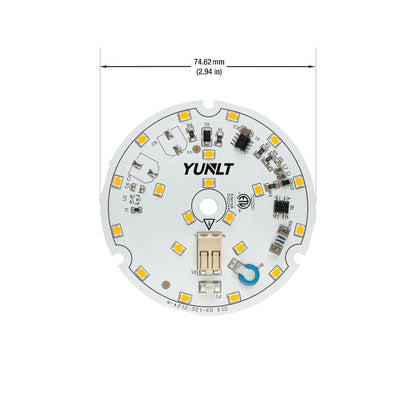

Outer Diameter
∅74.62mm (3 in)
Inner Diameter (Hole) ∅6 mm (0.23 in)
Height 6 mm (0.23 in)
Certification

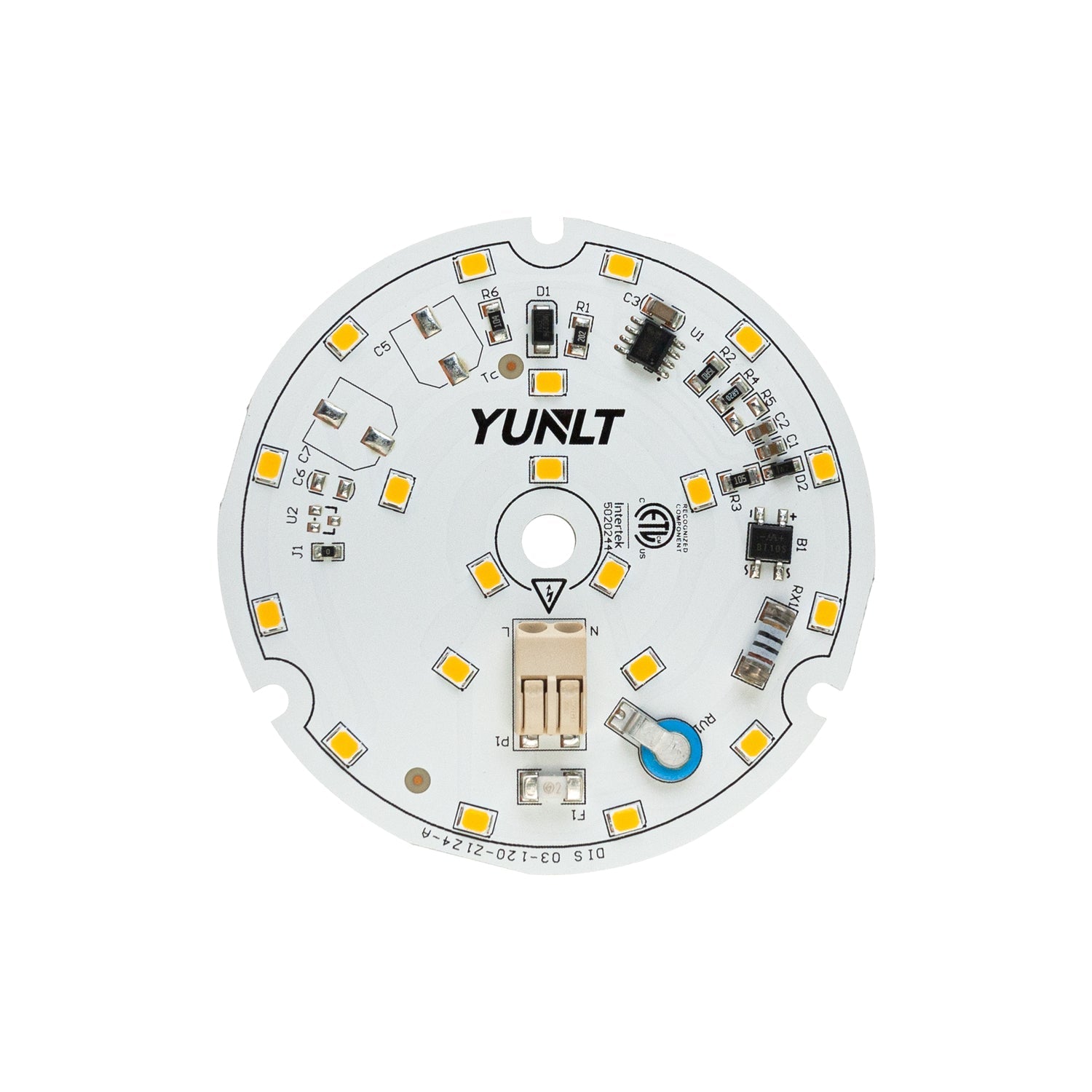

The DIS 03-010W-930-120-S3-Z1A LED Module by YUNLT is a high-quality lighting solution that delivers superior performance and energy efficiency. This module features 20 high-quality LEDs, producing 800 lumens of warm white light with a color temperature of 3000K and a high rendering index of CRI>90, making it an ideal choice for a wide range of lighting applications.

With a low power consumption of 10W and high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.

Constructed with an aluminum (metallic base) material, this LED module features an outer diameter of ∅74.62mm (3 in) and an inner diameter of ∅6 mm (0.23 in), making it easy to install. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.

Features:

  • Features 20 high-quality LEDs with a color temperature of 3000K and a high rendering index of CRI>90, providing excellent illumination
  • Low power consumption of 10W and high energy efficiency, saving on energy costs
  • Dimmable, providing greater flexibility in lighting control
  • Operates on a voltage of 120V AC, suitable for most electrical systems
  • Constructed with an aluminum (metallic base) material, making it durable and long-lasting
  • Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
  • ETL certified, ensuring high safety and quality standards are met
  • Compact design with an outer diameter of ∅74.62mm (3 in) and inner diameter of ∅6 mm (0.23 in), making it easy to install in a wide range of lighting applications.
  • A premier quality light engine. It produces up to 800 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.

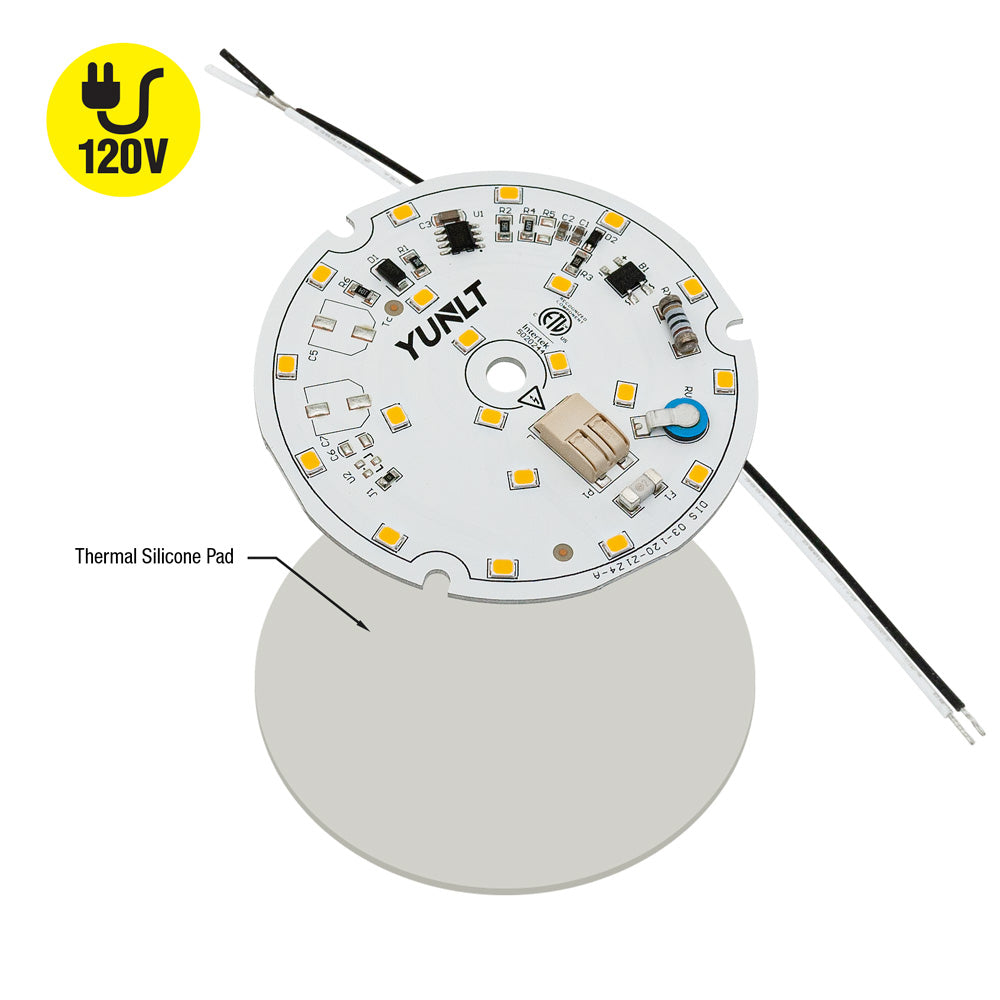

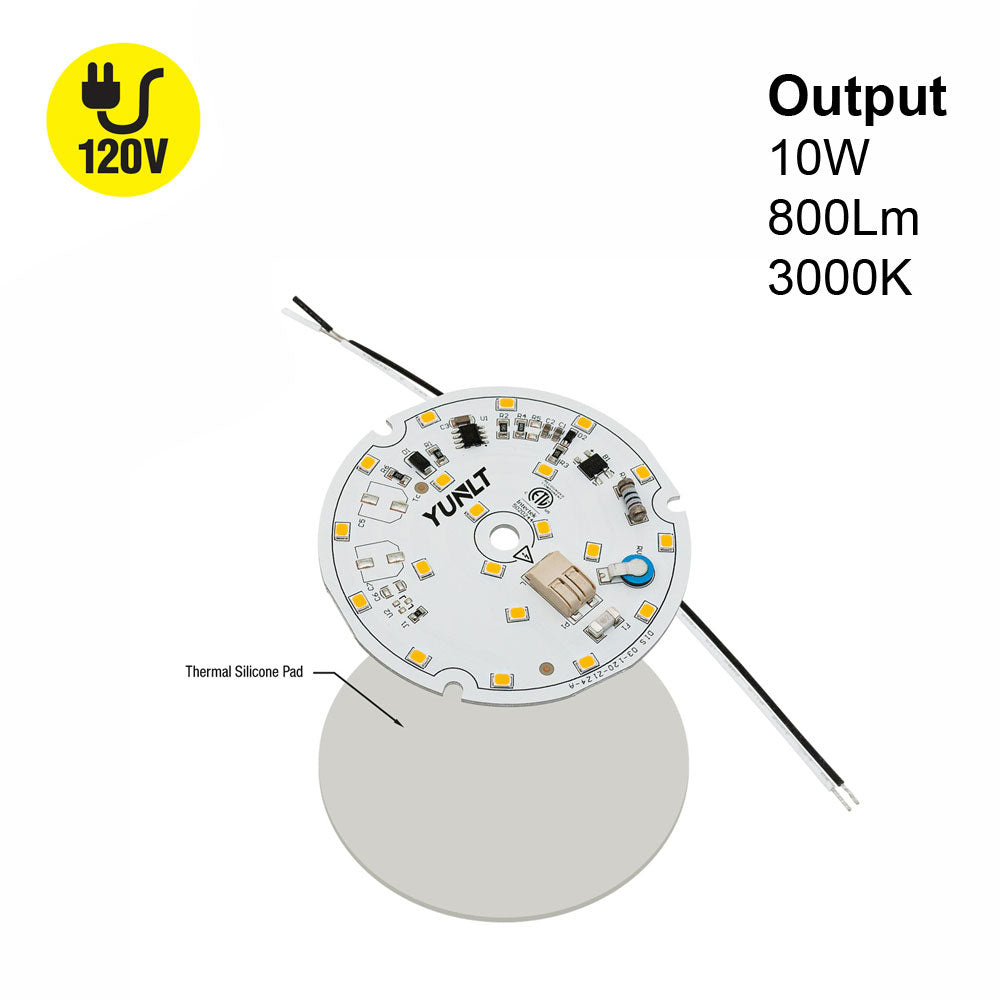

  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
