3 inch Round Disc ZEGA LED Module DIS 03-015W-930-120-S3-Z1A , 120V 15W 3000K(Warm White)
Product Description
| Product | LED Module |
| Model | DIS 03-015W-930-120-S3-Z1A |
| Brand | YUNLT |
| No of LEDs | 20 |
| Wattage | 15W |
| Voltage | 120V AC |
| Luminous Flux | 1200 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
|

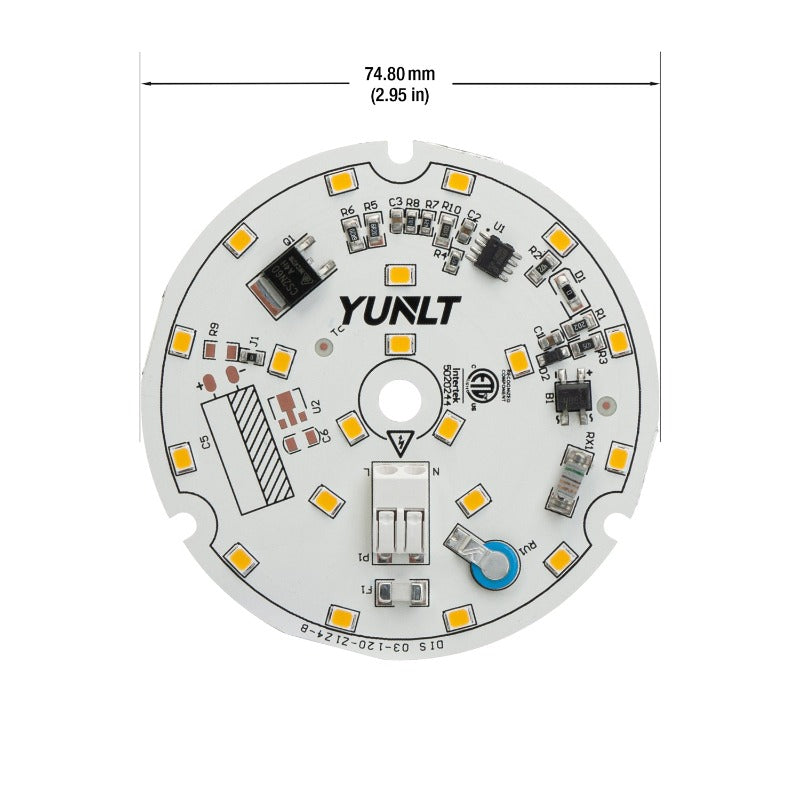

Outer Diameter |
∅74.62mm (3 in) |
| Inner Diameter (Hole) | ∅6 mm (0.23 in) |
| Height | 6mm (0.23in) |
| Certification |  |
The DIS 03-015W-930-120-S3-Z1A LED Module by YUNLT is a high-quality lighting solution that provides excellent performance and energy efficiency. This LED module features 20 high-quality LEDs that produce 1200 lumens of warm white light with a color temperature of 3000K and a high rendering index of CRI>90, making it ideal for a wide range of lighting applications.
This LED module has a wattage of 15W and operates on a voltage of 120V AC, providing powerful lighting while remaining energy-efficient. It is also dimmable, allowing for greater control over the lighting environment.
Constructed with an aluminum (metallic base) material, this LED module has an outer diameter of ∅74.62mm (3 in) and an inner diameter of ∅6 mm (0.23 in), making it easy to install. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
The DIS 03-015W-930-120-S3-Z1A LED Module is ETL certified, ensuring that it meets high safety and quality standards.
Overall, the DIS 03-015W-930-120-S3-Z1A LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and flexibility. Its compact design and high luminous flux make it suitable for a wide range of lighting applications, while its dimmable feature allows for greater control over the lighting environment.
Features:
- Features 20 high-quality LEDs that produce 1200 lumens of warm white light
- Color temperature of 3000K and a high rendering index of CRI>90
- Wattage of 15W and operates on a voltage of 120V AC
- Dimmable, allowing for greater control over the lighting environment
- Constructed with an aluminum (metallic base) material
- Outer diameter of ∅74.62mm (3 in) and an inner diameter of ∅6 mm (0.23 in), making it easy to install
- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified, ensuring that it meets high safety and quality standards
- Suitable for a wide range of lighting applications
- Exceptional quality, energy efficiency, and flexibility
- A premier quality light engine. It produces up to 1200 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
