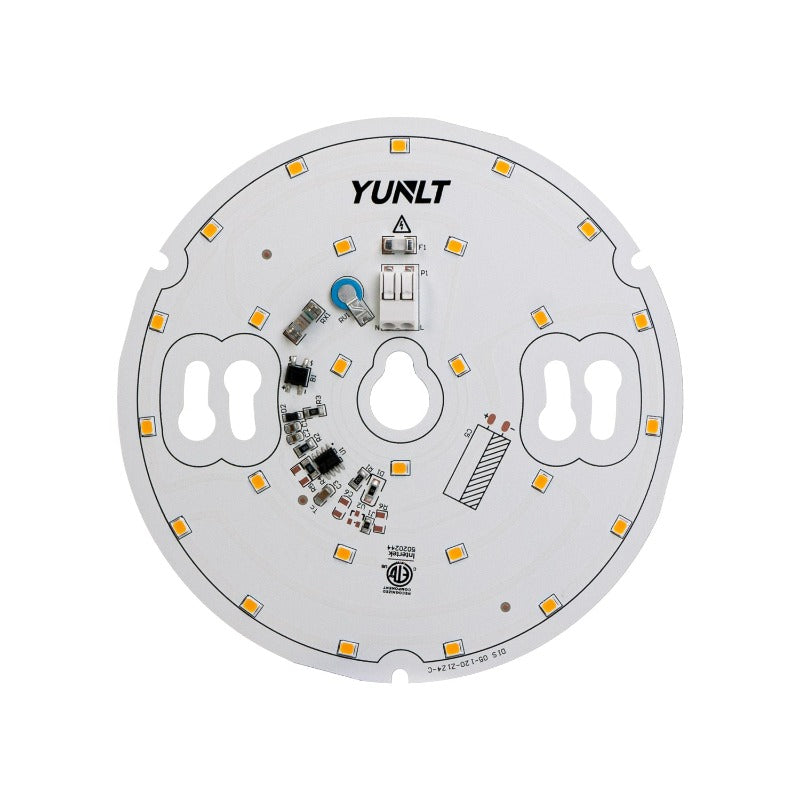

5 inch Round Disc ZEGA LED Module DIS 05-008W-930-120-S3-Z1A (DIS 03-600-930-120-S3), 120V 8W 3000K(Warm White)

YUNLT

  • $28.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427641
We only have 45 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)


Product Description

Product LED Module
Model DIS 05-008W-930-120-S3-Z1A
Brand YUNLT
No of LEDs 26

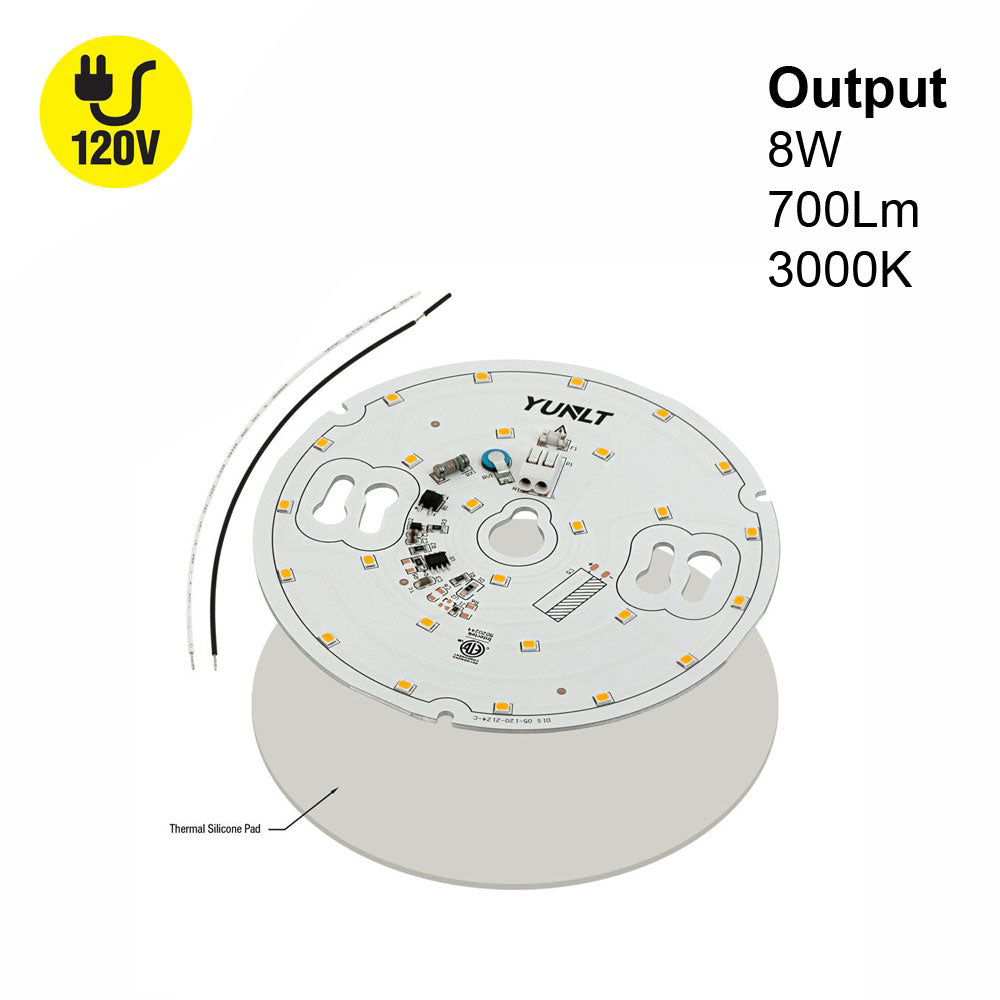

Wattage 8W
Voltage 120V AC
Luminous Flux 700 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum (Metallic Base)

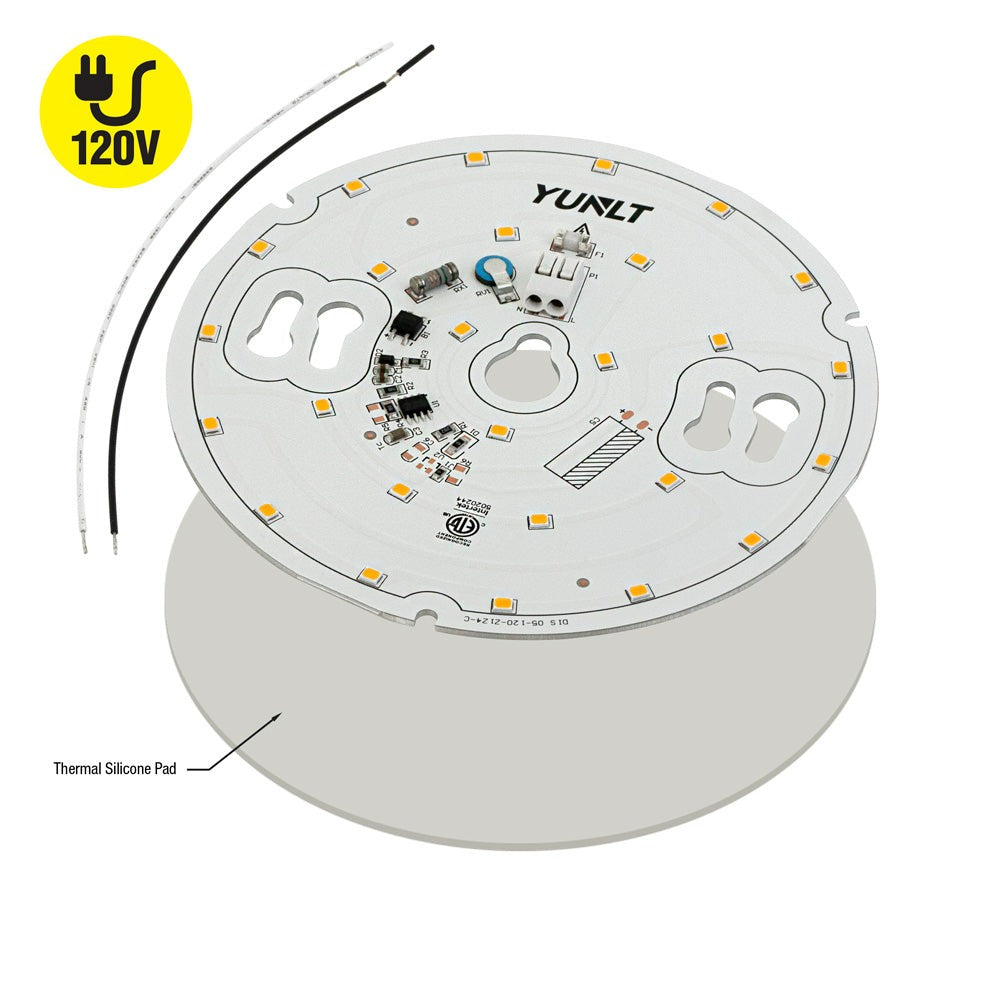

Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

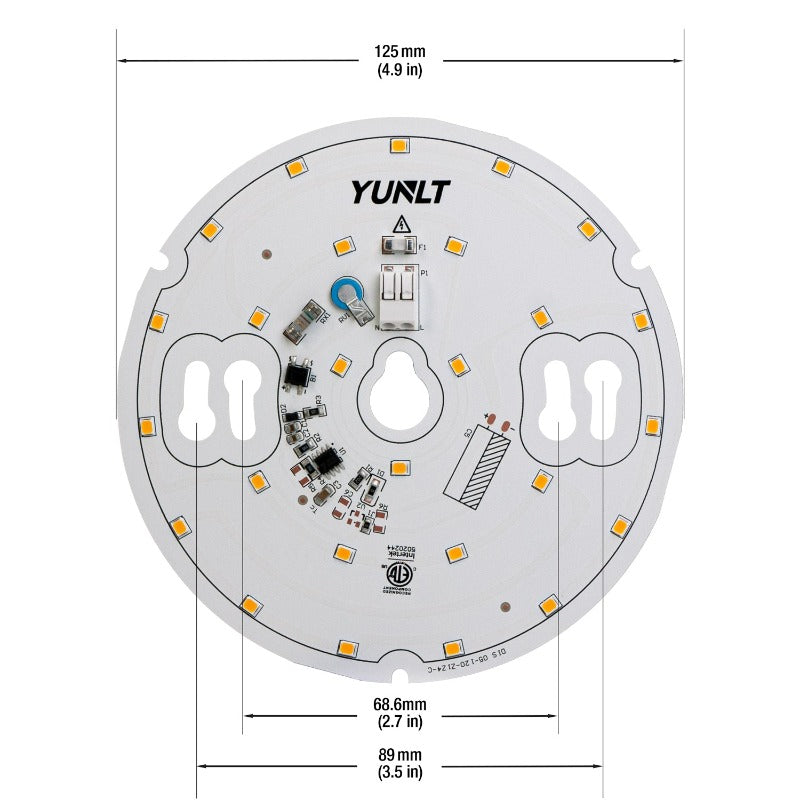

Outer Diameter
∅125mm (5 in)
Height 6mm (0.23in)
Certification

The 5-inch Round Disc LED Module DIS 05-008W-930-120-S3-Z1A (also known as DIS 03-600-930-120-S3) by YUNLT is an energy-efficient and high-quality lighting solution. This LED module features 26 high-quality LEDs that produce 700 lumens of warm white light with a color temperature of 3000K and a high rendering index of CRI>90, making it ideal for a wide range of lighting applications.

With a wattage of 8W and operating on a voltage of 120V AC, this LED module provides powerful lighting while remaining energy-efficient. It is also dimmable, allowing for greater control over the lighting environment.

Constructed with an aluminum (metallic base) material, this LED module has an outer diameter of ∅125mm (5 in), making it easy to install. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.

The DIS 05-008W-930-120-S3-Z1A LED Module is ETL certified, ensuring that it meets high safety and quality standards.

Overall, the DIS 05-008W-930-120-S3-Z1A LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its dimmable feature allows for greater control over the lighting environment. Its aluminum board and thermal silicon pad make installation easy and efficient, making it an ideal DIY product for replacing ceiling lights or bulb sources.

Features:

  • Energy-efficient and high-quality lighting solution
  • 26 high-quality LEDs producing 700 lumens of warm white light
  • Color temperature of 3000K and a high rendering index of CRI>90
  • Wattage of 8W and operating on a voltage of 120V AC
  • Dimmable feature for greater control over the lighting environment
  • Constructed with aluminum (metallic base) material
  • Outer diameter of ∅125mm (5 in) for easy installation
  • Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
  • ETL certified, ensuring high safety and quality standards
  • A premier quality light engine. It produces up to 700 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
