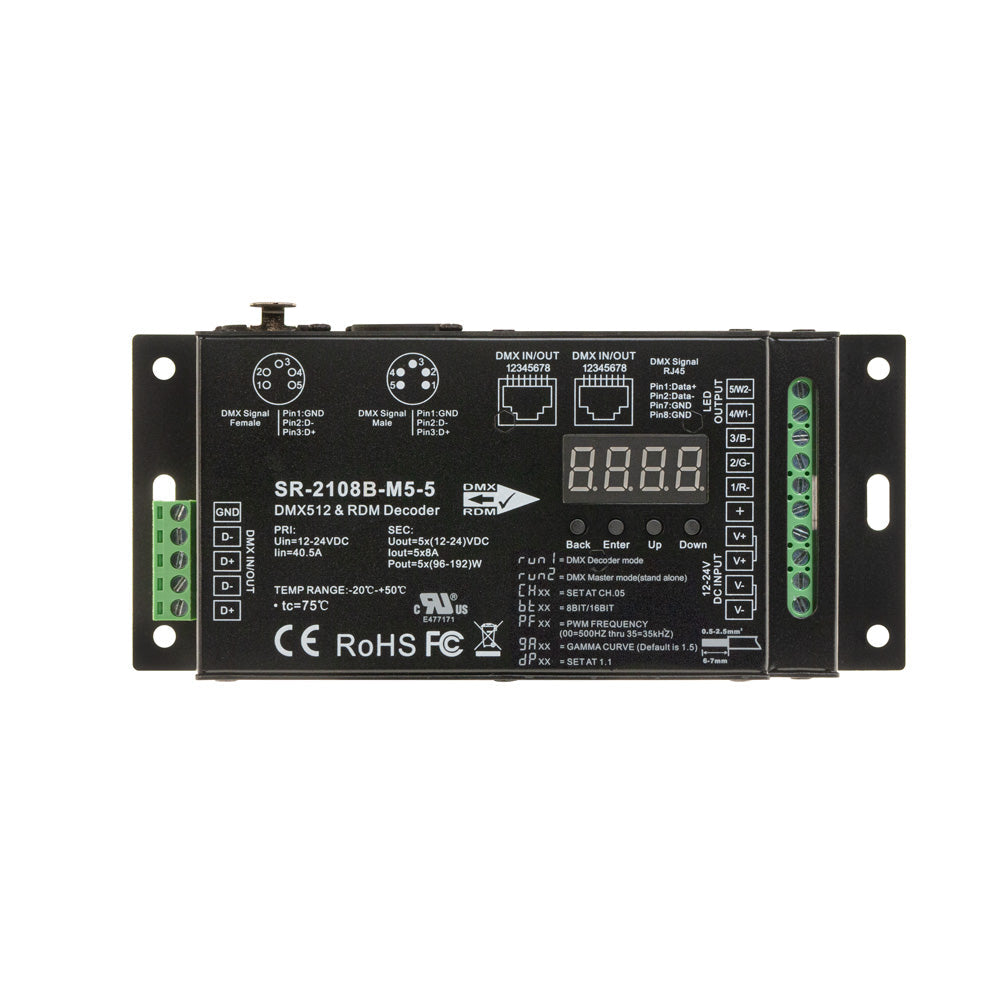

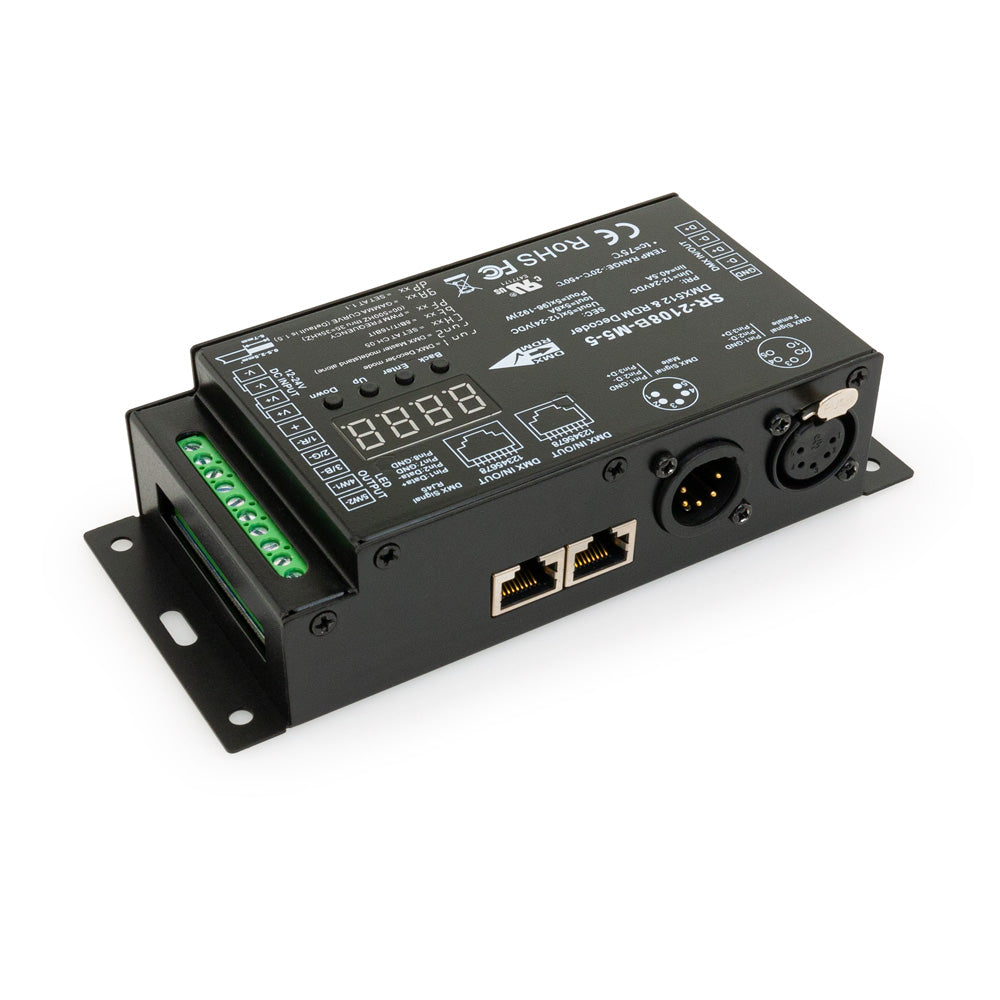

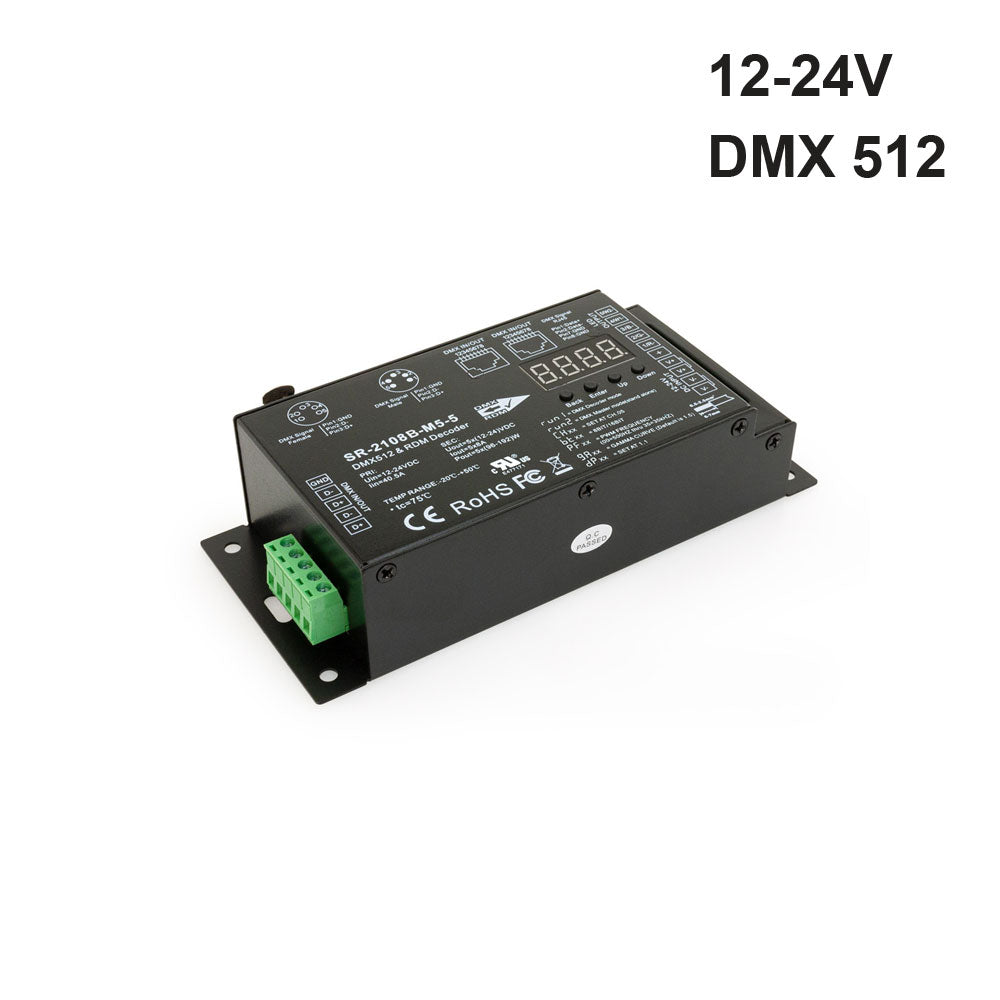

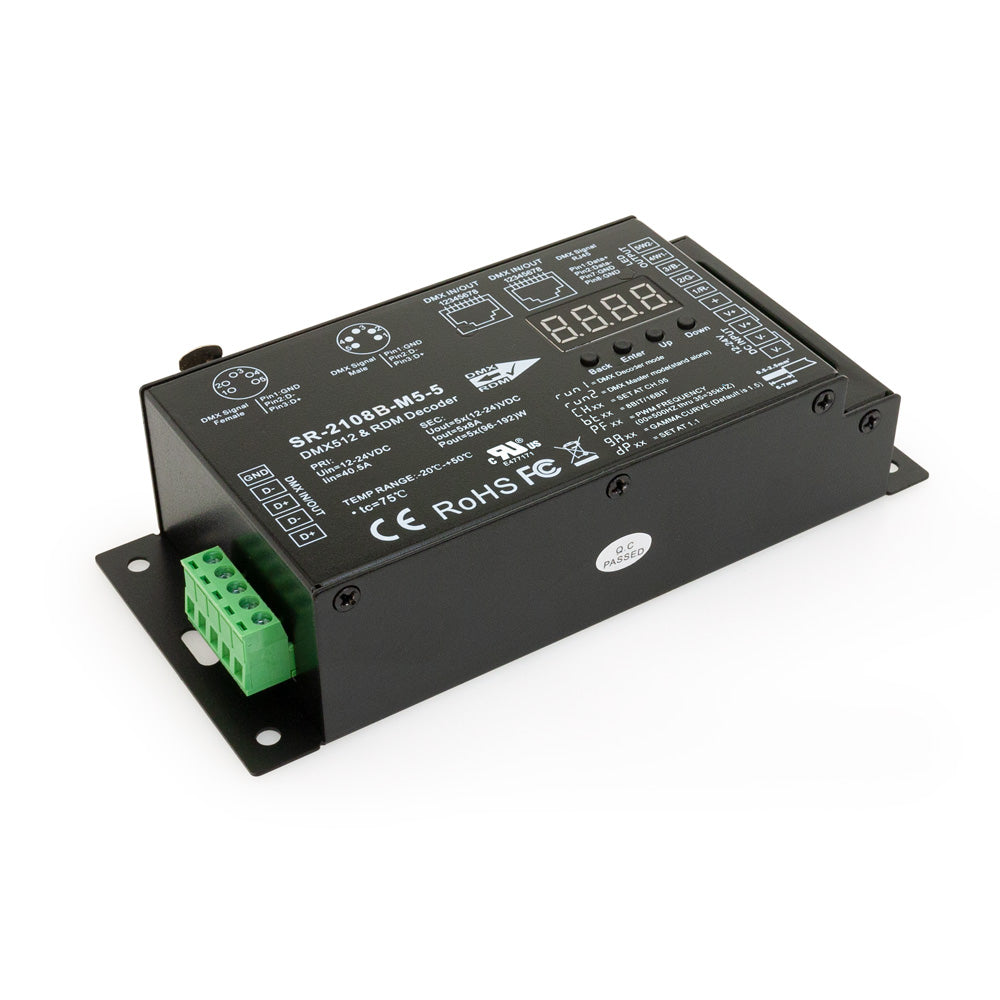

DMX512 and RDM Decoder 5 Channel 12-24V 8A SR-2108B-M5-5

DMX512 and RDM Decoder 5 Channel 12-24V 8A SR-2108B-M5-5

Ask Question!

SKU: SKU:666561412623

Regular price $179.00 USD
Regular price Sale price $179.00 USD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order.

Cart-wide bulk pricing · estimated savings

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 USD or more. Some products are excluded; oversized-item surcharges may apply. Availability is confirmed at checkout.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Please allow an additional 3–4 days beyond the estimated delivery date shown at checkout.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in original packaging. A 30% restocking fee applies; shipping charges and product exclusions also apply.

Complete shipping, return and exclusion policies

View full details

Product Description


Model

SR-2108B-M5-5
Output Type Constant Voltage
Operating Voltage 12-24V DC
Input Current 40.5A
Output Current 40A max (8A/CH)
PWM Frequency 500Hz to 30K Hz
Power 5 x 192W for 24V and 5 x 96W for 12V
Control Channels 5 channels (5 CH)
Signal Input & Output DMX512

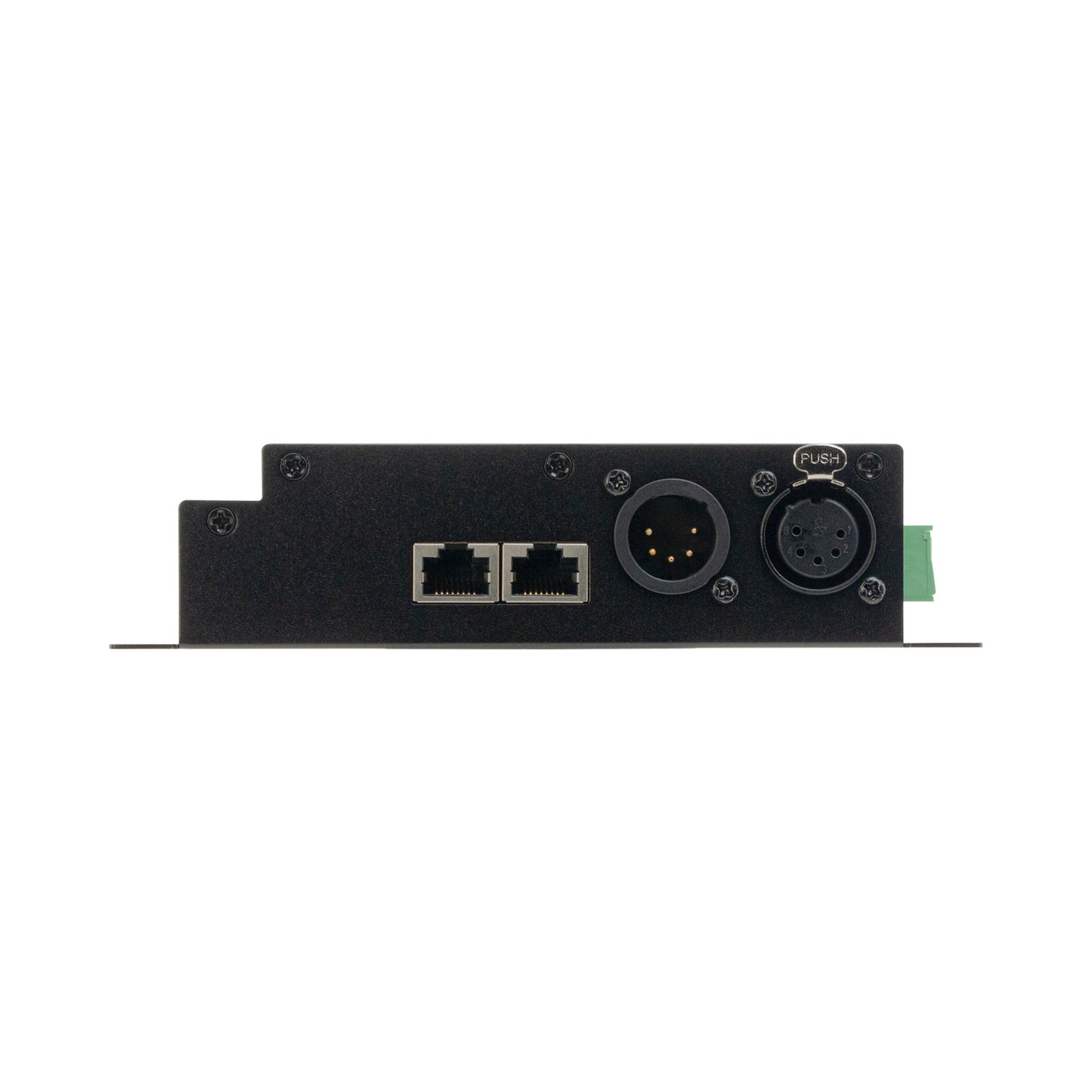

Terminals 3/5 pin XLR, RJ45, screw terminal
Bit Rate 8 bit/ 16 bit
Body Color Black
Material Die-cast Aluminum
Working Temperature -20°C~+50°C
IP Rating IP20
Protection Short circuit protection

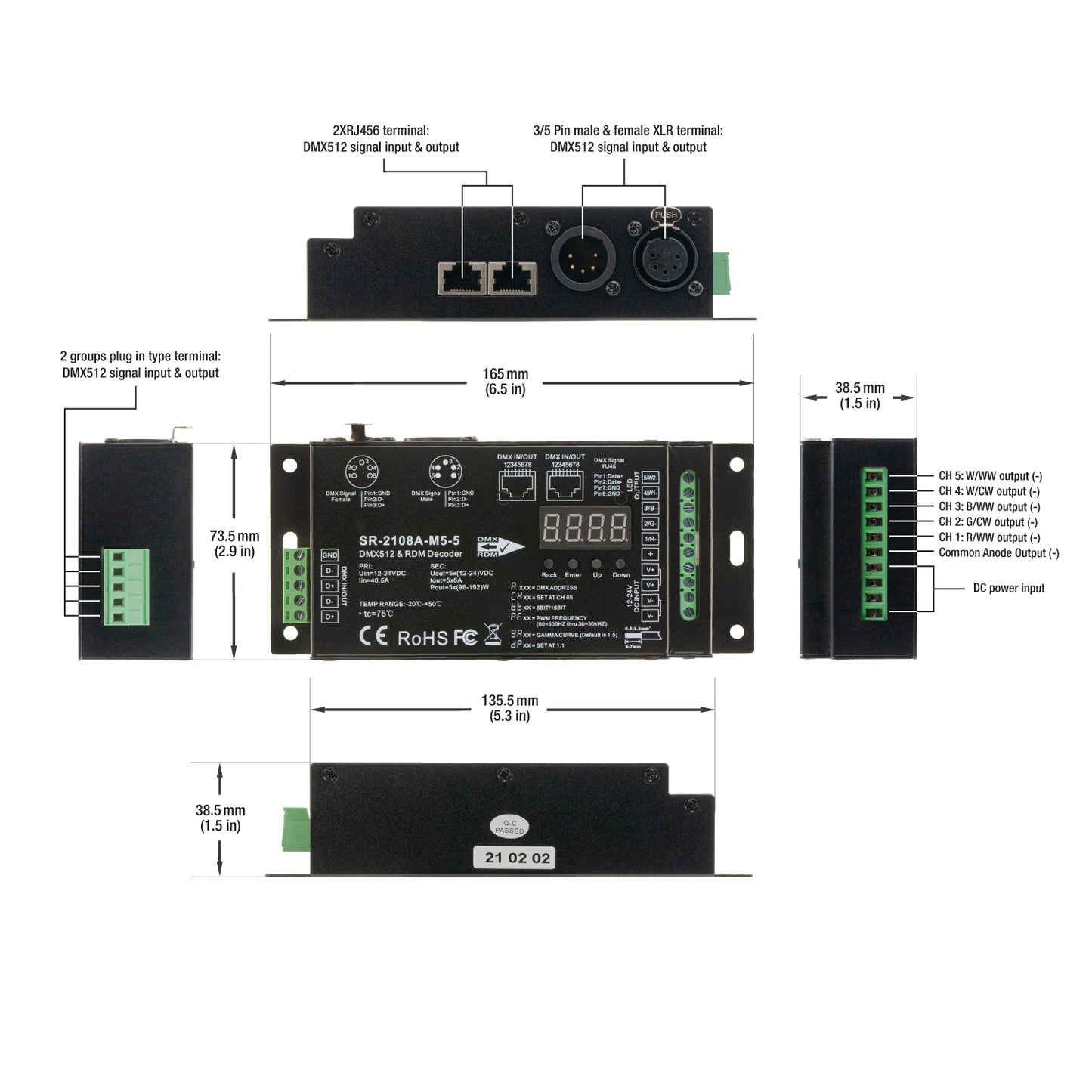

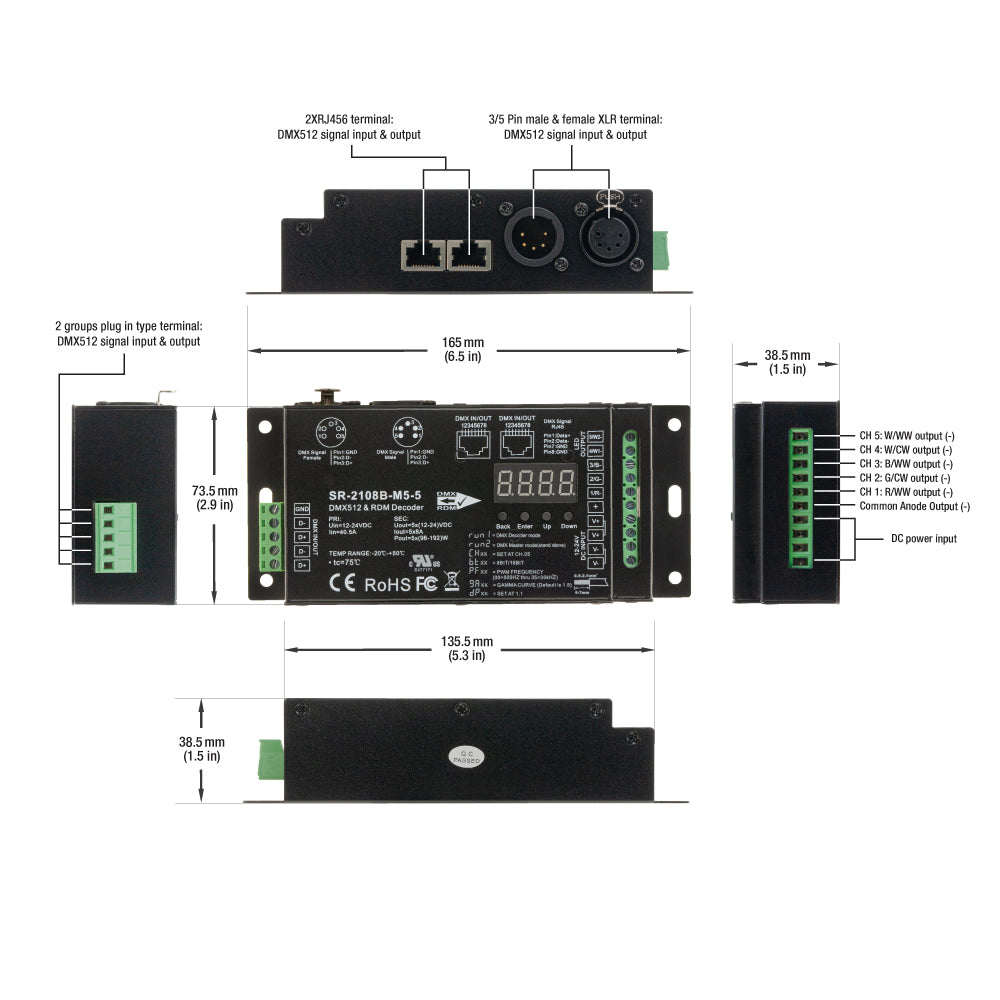

Dimensions 165 x 73 x 38 mm (6.5 x 2.9 x 1.5 in)
Certification



 Features:

  •  DMX512 RDM decoder, RDM function can realize intercommunication between DMX master and decoder.
  • Total 5 PWM output channels, common anode 5*8A. DMX channel quantity from 1CH~5CH settable
  •  PWM output resolution ratio 8bit, 16bit settable
  •  Output PWM frequency from 500HZ ~ 30K HZ settable
  • Output dimming curve gamma value from 0.1 ~ 9.9 settable.
  • Decoding mode settable
  • Master & decoder mode, RDM function
  • Metal housing, digital display to show data directly, easy to set and show DMX address.
