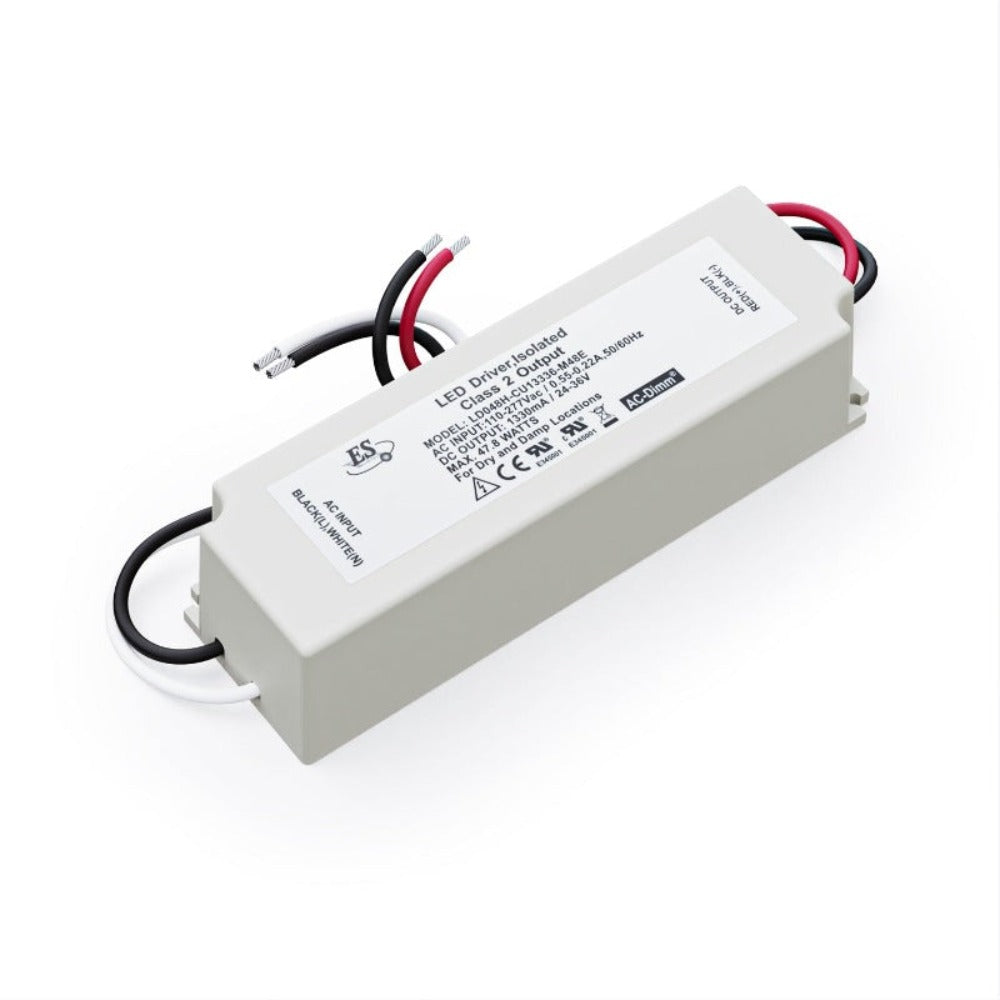

ES LD048H-CU13336-M48E Constant Current LED Driver, 1330mA 24-36V 48W max

  • $59.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561416942
Title:
We only have 56 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Constant Current LED Driver
Model LD048H-CU13336-M48E
Input Voltage 110-277V AC
Input Current 0.55-0.22A
Frequency 50/60Hz
Output Voltage 24-36V DC
Output Regulated Current 1330mA
Output Power 47.8W max
Dimmable Yes
Class Certification Class 2

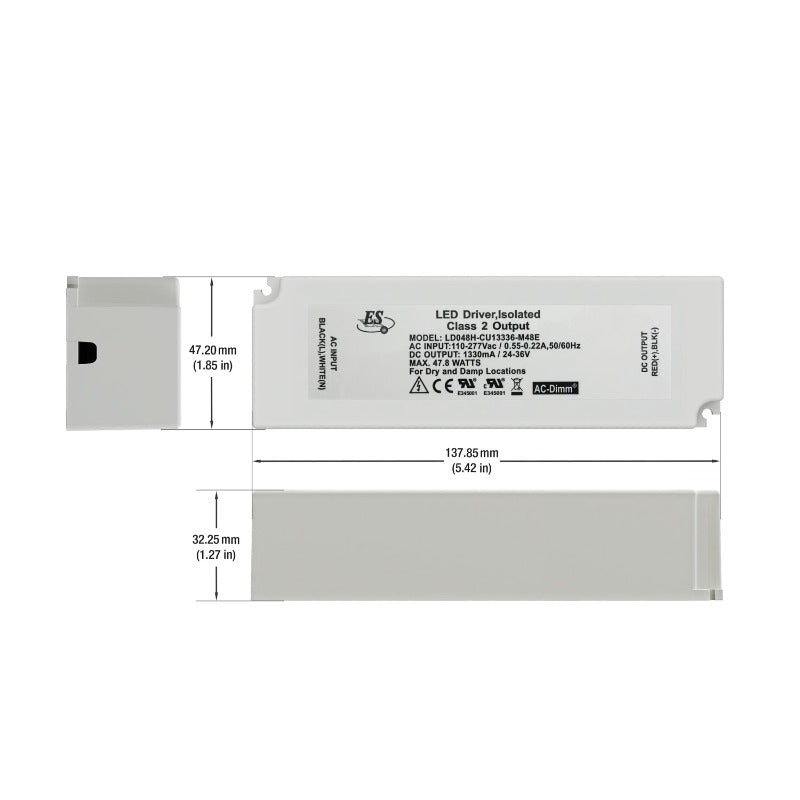

Dimensions 137.8 x 47.2 x 32.2 mm (5.4 x 1.8 x 1.2 in)
Certifications



The ES LD048H-CU13336-M48E is a constant current LED driver designed to power LED lights with a regulated output current of 1330mA and an output voltage of 24-36V DC. The input voltage range is 110-277V AC, and the input current ranges from 0.55A to 0.22A, with a frequency of 50/60Hz. The driver is also dimmable, providing flexibility in controlling the brightness of the connected LED lights.

This LED driver has a maximum output power of 48W and is Class 2 certified, which means it meets specific safety requirements and can be used in indoor lighting applications. The dimensions of the driver are 137.8 x 47.2 x 32.2 mm (5.4 x 1.8 x 1.2 in), making it compact and easy to install.

Features:

  • The ES LD048H-CU13336-M48E is a constant current LED driver designed for powering LED lights with a regulated output current of 1330mA and an output voltage of 24-36V DC.
  • The input voltage range is 110-277V AC, and the input current ranges from 0.55A to 0.22A at a frequency of 50/60Hz.
  • The driver is dimmable, allowing for brightness control of the connected LED lights.
  • The maximum output power of the driver is 48W, and it is Class 2 certified, ensuring safety for indoor lighting applications.
  • The dimensions of the driver are 137.8 x 47.2 x 32.2 mm (5.4 x 1.8 x 1.2 in), making it compact and easy to install.
  • The ES LD048H-CU13336-M48E LED driver is a reliable and efficient option for indoor lighting applications, particularly suitable for LED lights that require an output voltage between 24-36V DC and a maximum current of 1330mA.

How to Install ES LD048H-CU13336-M48E Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

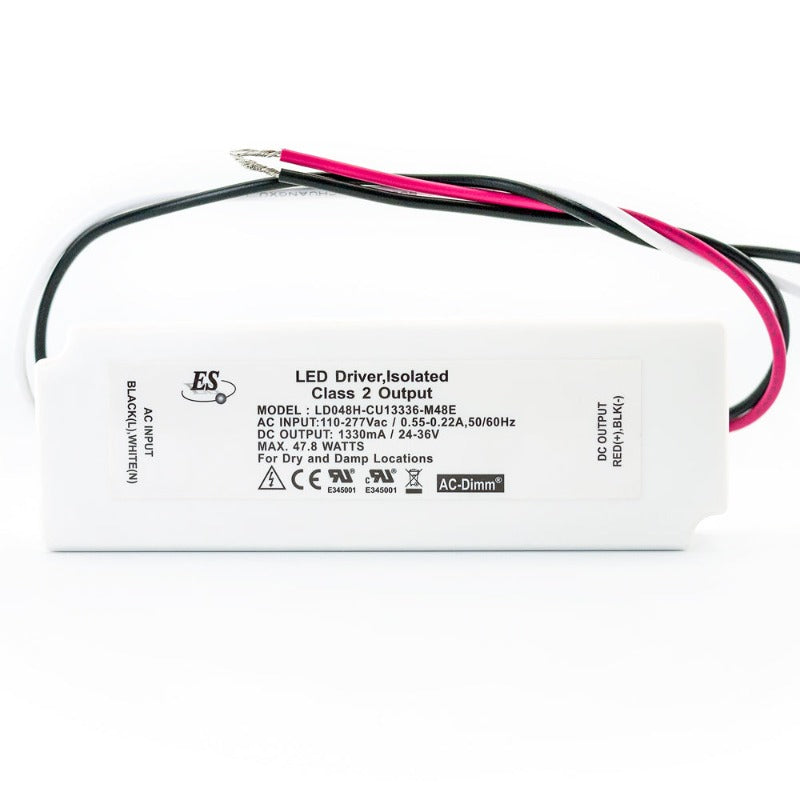

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
