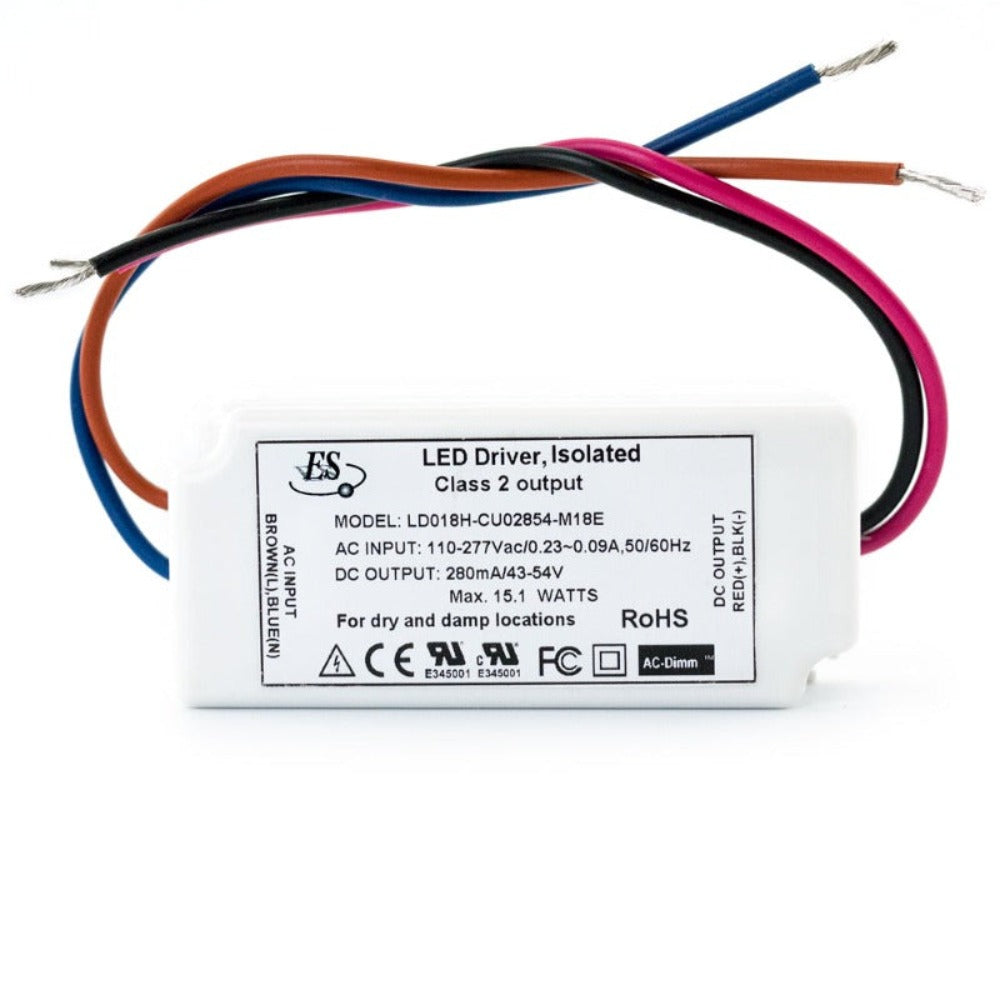

ES LD018H-CU02854-M18E Constant Current LED Driver, 280mA 43-54V 15W max

  • $49.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561416850
Title:
We only have 87 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Driver
Model LD018H-CU02854-M18E
Input Voltage 110V AC
Input Frequency 60Hz
Input Current 0.23A

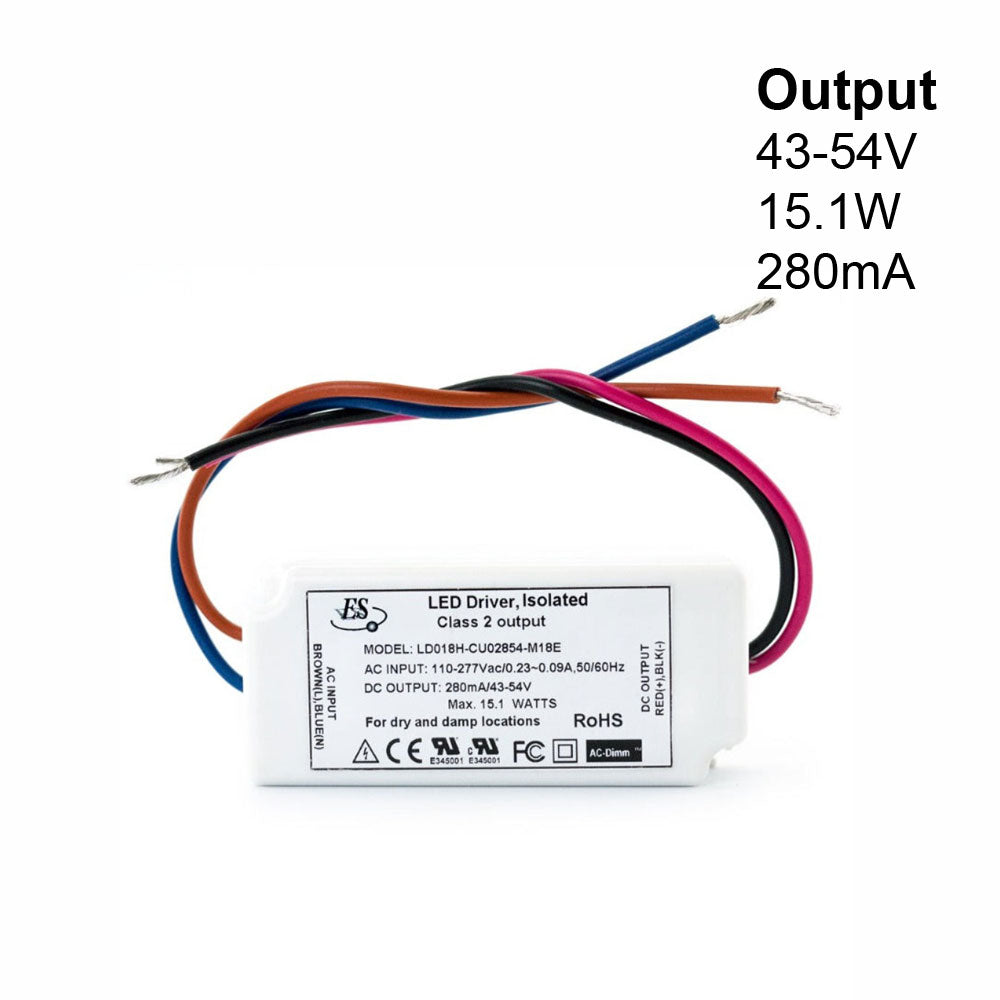

Output Voltage 43-54V DC
Output Regulated Current 280mA
Output Power 15.1W max
Dimmable Yes

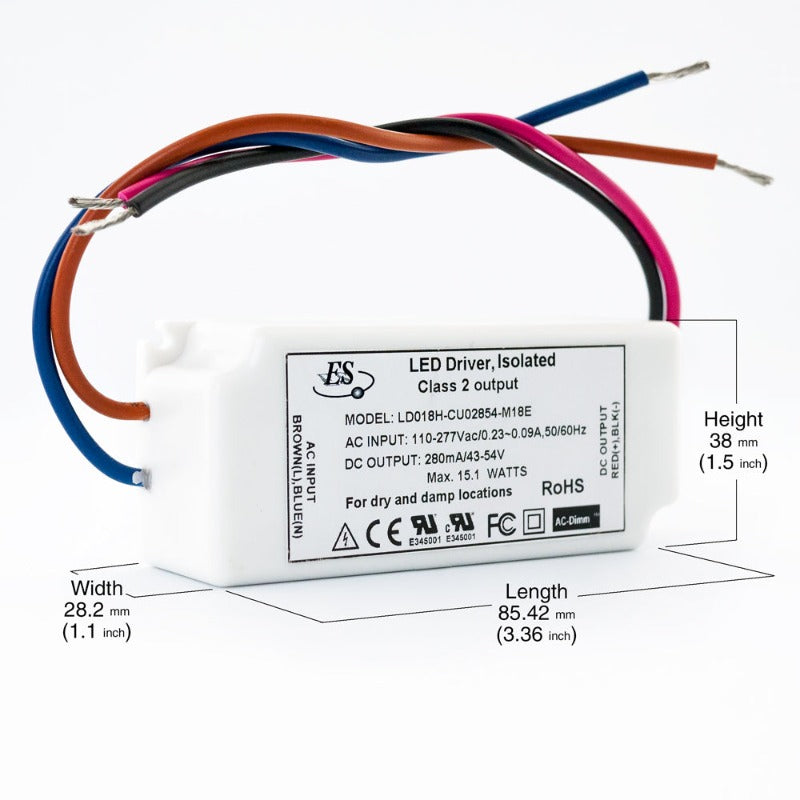

Dimensions 85.42 x 28.2 x 41,38mm (3.36 x 1.1 x 1.5 in)
Class Certification Class 2/ Class II
Certification





The ES LD018H-CU02854-M18E is a Constant Current LED Driver designed to provide a stable and reliable power source for LED lighting applications. The driver is designed to work with an input voltage of 110V AC and has an input current of 0.23A at 60Hz frequency.

The driver provides a regulated output current of 280mA and a maximum output power of 15.1W. The output voltage range is 43-54V DC, making it suitable for powering LED lights with different voltage requirements within this range.

The driver is also dimmable, allowing for precise control over the brightness of the LED lighting. The dimensions of the driver are 85.42 x 28.2 x 41,38mm (3.36 x 1.1 x 1.5 in), making it compact and easy to install.

Features:

  • The ES LD018H-CU02854-M18E is a Constant Current LED Driver
  • It is designed to provide a stable and reliable power source for LED lighting applications
  • The driver works with an input voltage of 110V AC and has an input current of 0.23A at 60Hz frequency
  • It provides a regulated output current of 280mA and a maximum output power of 15.1W
  • The output voltage range is 43-54V DC, making it suitable for powering LED lights with different voltage requirements within this range
  • The driver is dimmable, allowing for precise control over the brightness of the LED lighting
  • The dimensions of the driver are 85.42 x 28.2 x 41,38mm (3.36 x 1.1 x 1.5 in), making it compact and easy to install
  • It is also Class 2/Class II certified, ensuring safety and reliability for use in a variety of lighting applications
  • Overall, the ES LD018H-CU02854-M18E is a versatile and reliable LED driver suitable for a wide range of lighting applications, particularly those requiring lower output currents and higher output voltages.

How to Install ES LD018H-CU02854-M18E Dimming Constant Current LED Driver?

  1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

  2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

  3. Mount the driver: Use screws to mount the driver on a solid surface.

  4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (Blue color wire to Neutral (N) and the Brown color Wire to Line (L))

  5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

  6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

  7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
