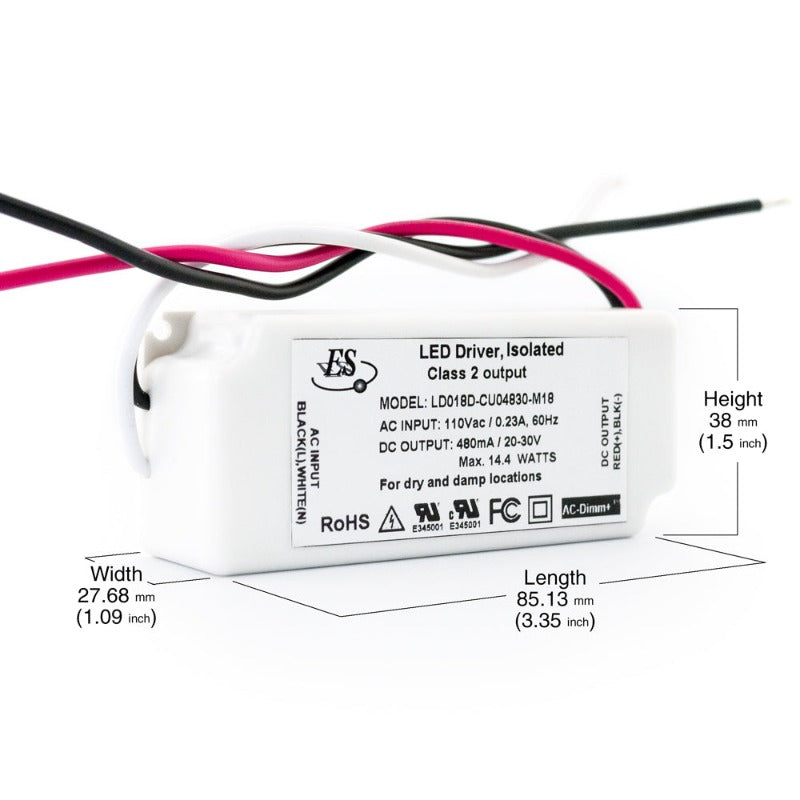

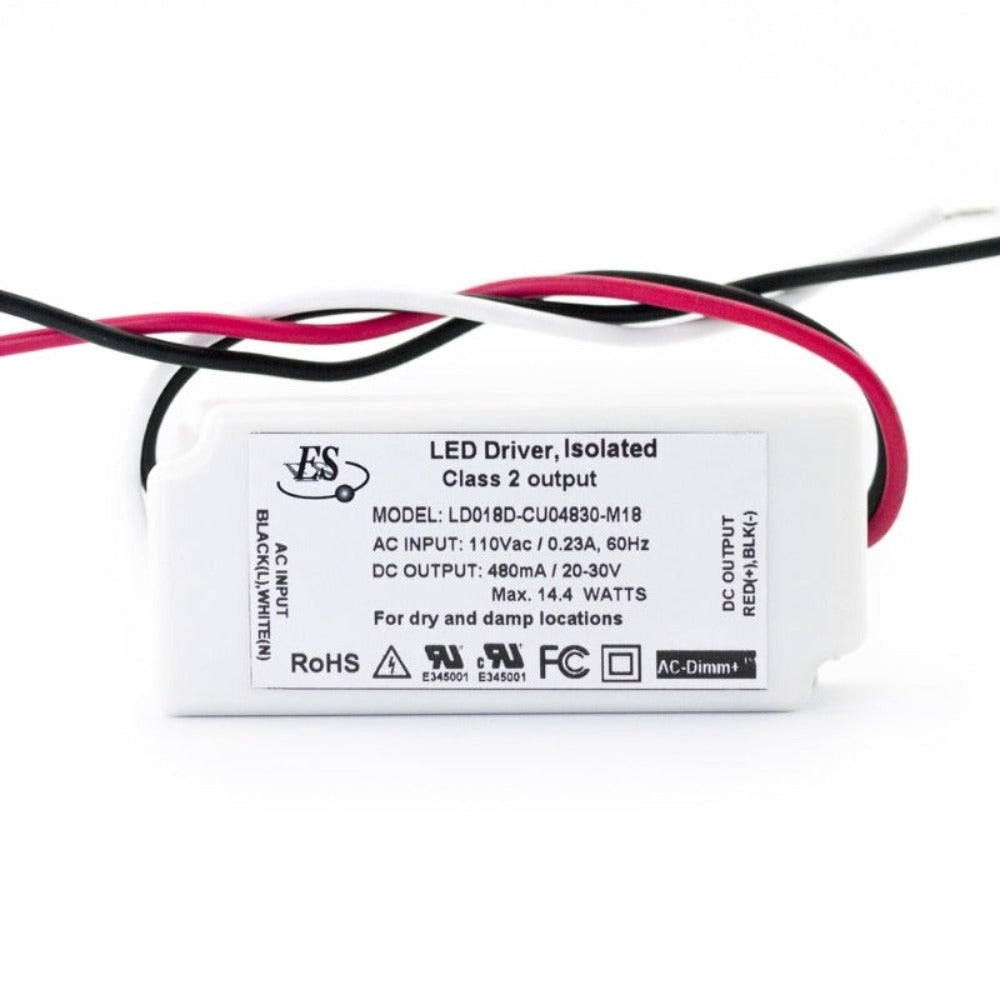

ES LD018D-CU04830-M18 Constant Current LED Driver, 480mA 24-30V 14.4W max

ES LED Driver

  • $49.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561416867
We only have 87 left! Get it now before it's completely gone.

FREE Shipping over $49 USD


Product Description

Product Constant Current LED Driver
Model LD018D-CU04830-M18
Input Voltage 110V AC
Input Current 0.23A
Frequency 60Hz

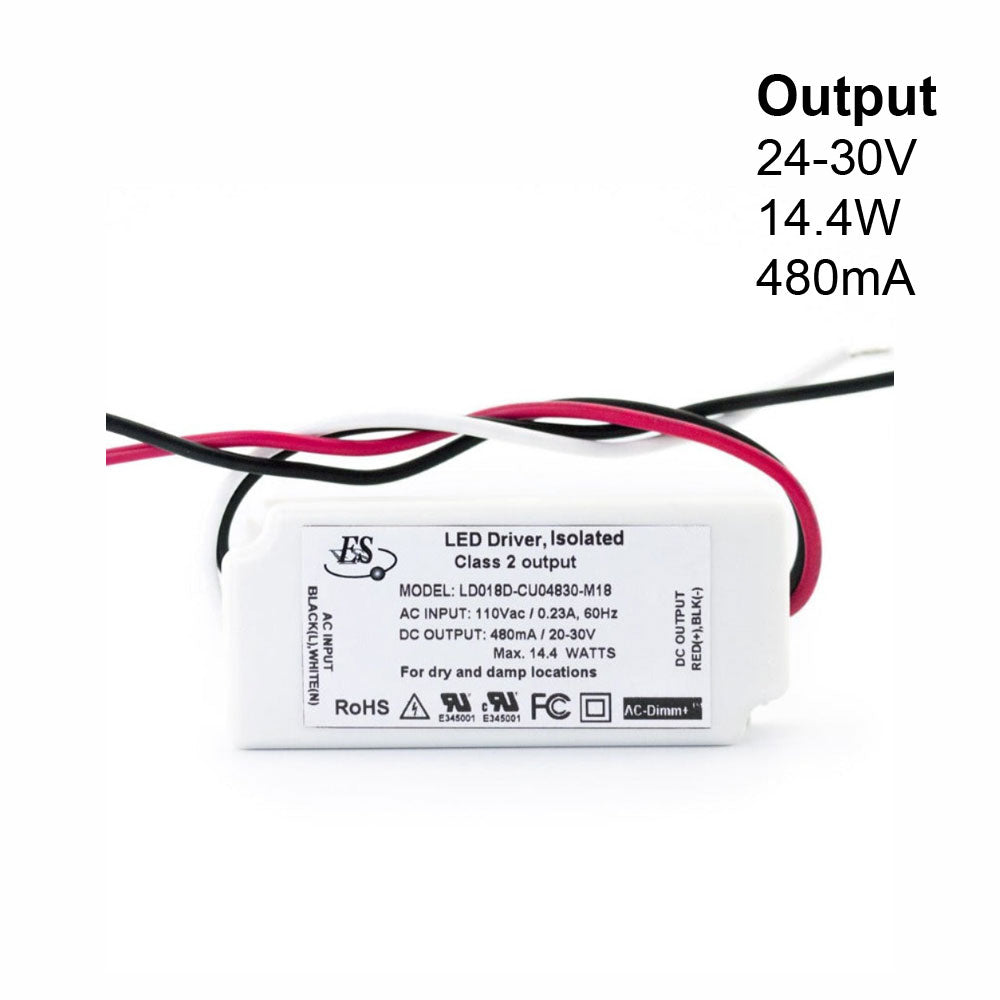

Output Voltage 24-30V DC
Output Regulated Current 480mA
Output Power 14.4W max
Dimmable Yes
Class Certification Class 2/ Class II
Certifications


Features:

Constant current dimmable LED drivers are used for LED lights that require a fixed output current as well as a variety of output voltages. ES LD018D-CU04830-M18 Dimming LED Constant Current Driver (Constant Current Power Supply) Suitable for lighting with 480mA output regulated current. This class 2 constant current driver has Input Voltage of 110V AC, can produce 24-30V DC output voltage and 14.4W of output power. It is suitable for operation with main supply dimmer and also suitable for dry and damp locations.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.

How to Install ES LD018D-CU04830-M18 Dimming Constant Current LED Driver?

It is easy to Install constant current power supply, by following these steps,

1. Make sure power is off.
2. Double check output current of the light and the driver.
3. Black and White color wires will be connected to 110V AC by splice the White color wire to Neutral (N) and the Black color Wire to Line (L).
4. Splice Red color wire to the positive (+) wire of the light and Black wire to the negative (-) wire of the light as well.
