Product Description
| Product | Constant Current LED Driver |
| Model | LD028H-CU08336-M28E |
| Input Voltage | 110-277V AC |
| Input Current | 0.34-0.13A |
| Frequency | 50/60Hz |
| Output Voltage | 24-36V DC |
| Output Regulated Current | 830mA |
| Output max Power | 29.8W max |
| Dimmable | Yes |
| Weight | 0.2 kg |

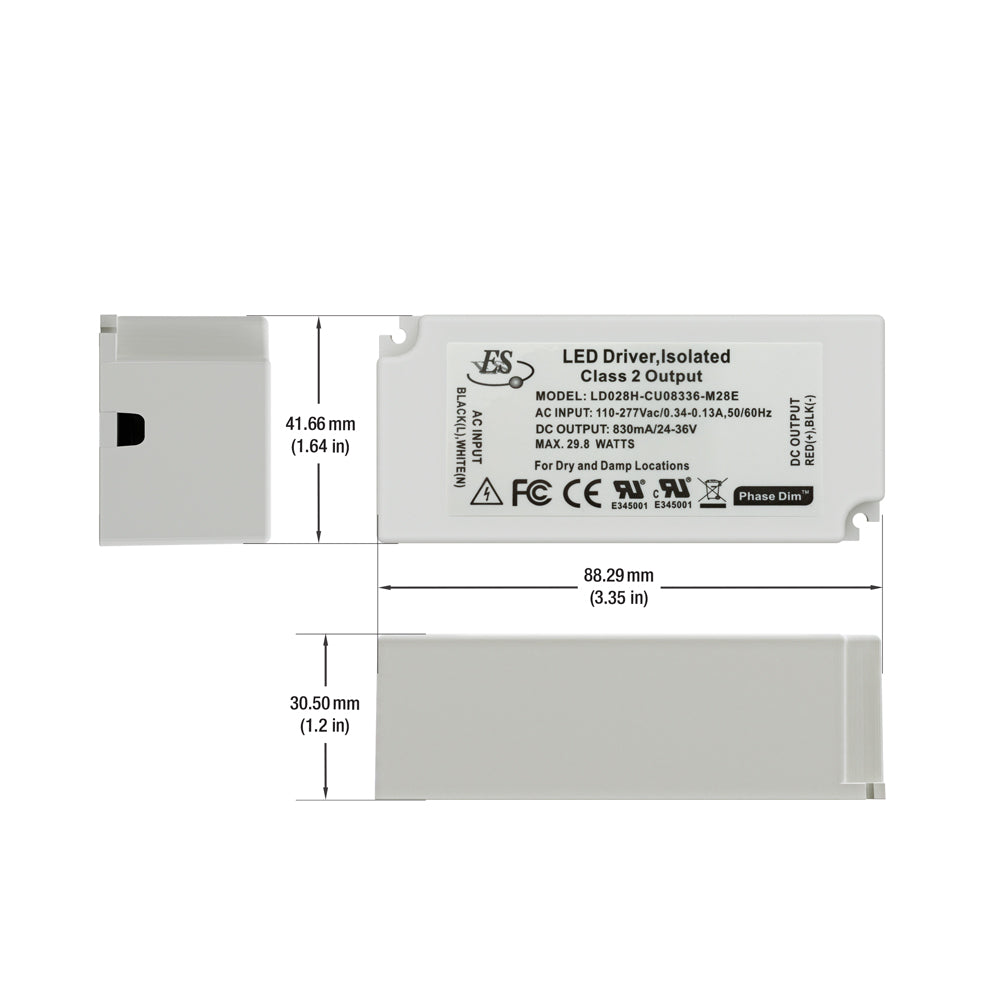

| Dimensions | 88.3 x 41.6 x 30.5mm (3.48 x 1.63 x 1.2in) |
| Class Certification | Class 2 |
| Certification |

|
Features:

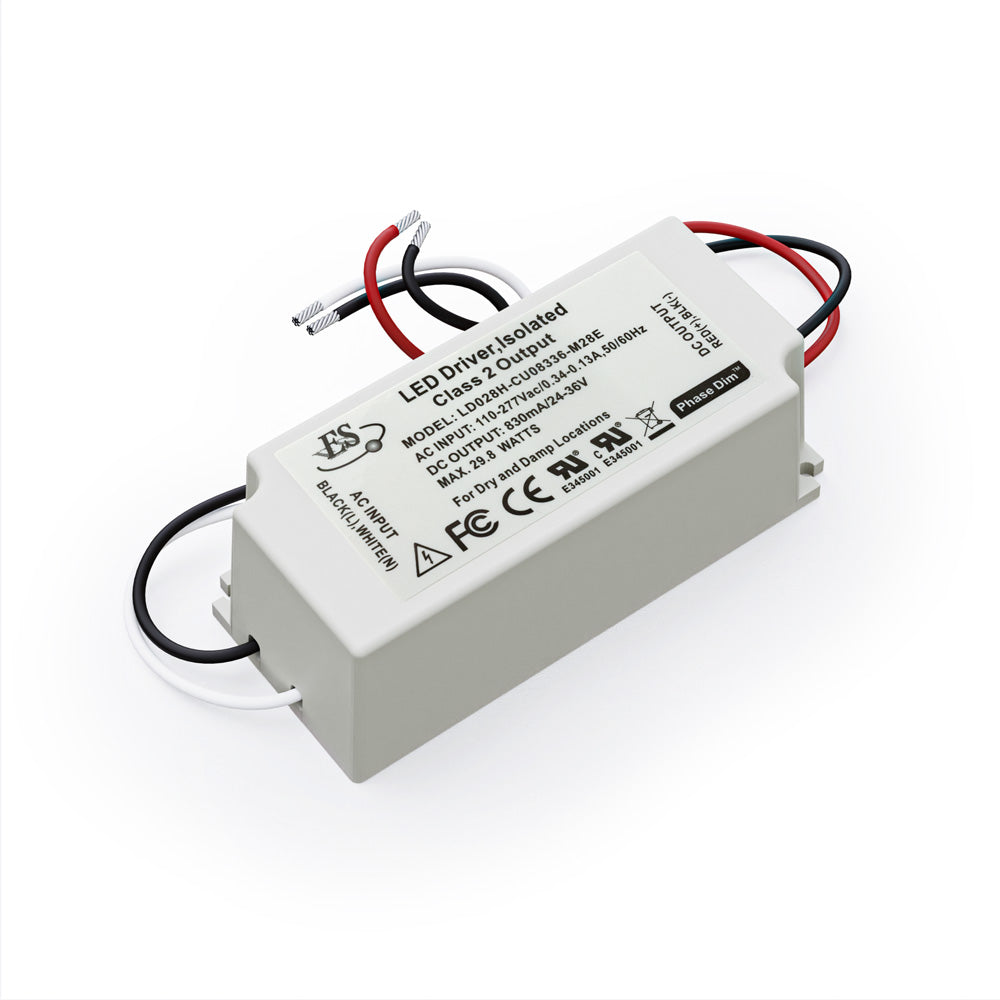

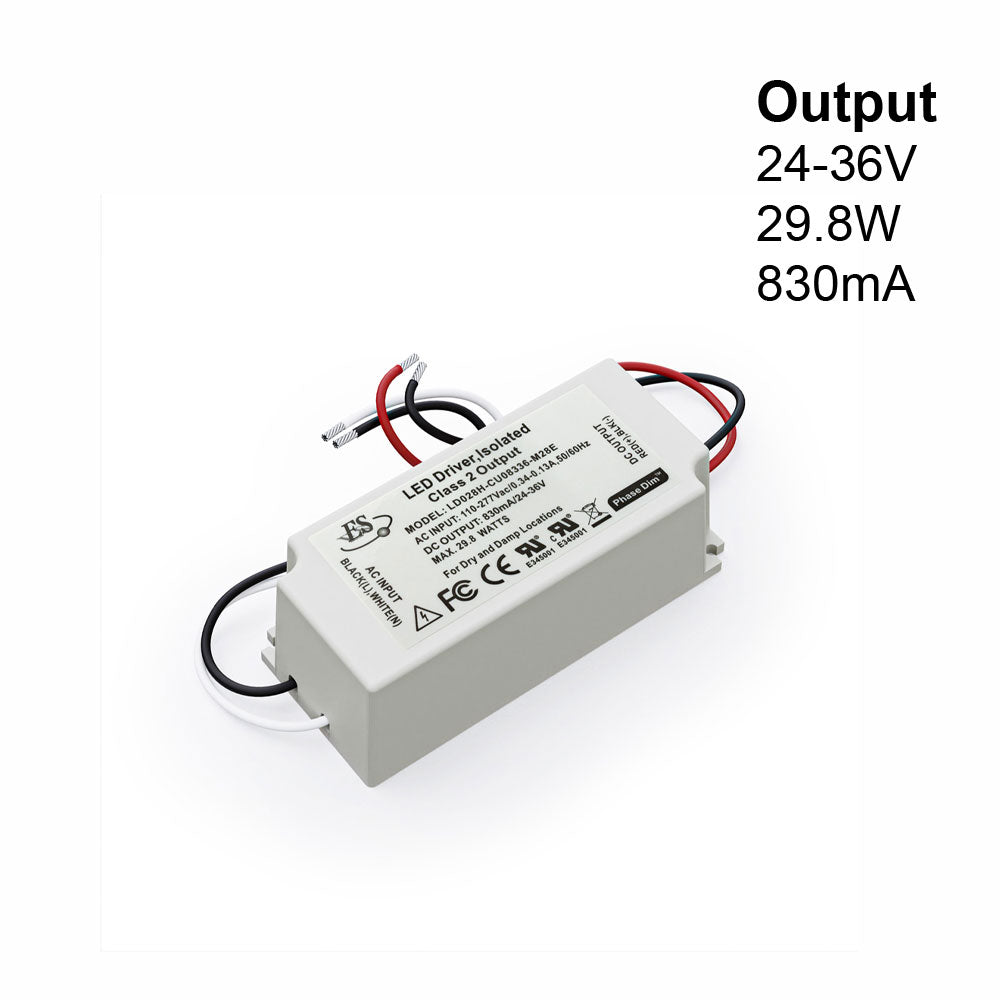

- Constant Current LED Driver 830mA 24-36V 29.8W max, ES LD028H-CU08336-M28E
- It has an input voltage range of 110-277V AC, with an input current ranging from 0.34A to 0.13A and a frequency of 50/60Hz.
- The driver is dimmable, providing flexibility in controlling the brightness of the connected LED lights.
- This LED driver has a maximum output power of 29.8W and is Class 2 certified for safe indoor lighting applications.
- It has a compact design with dimensions of 88.4 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63 in), making it easy to install.
