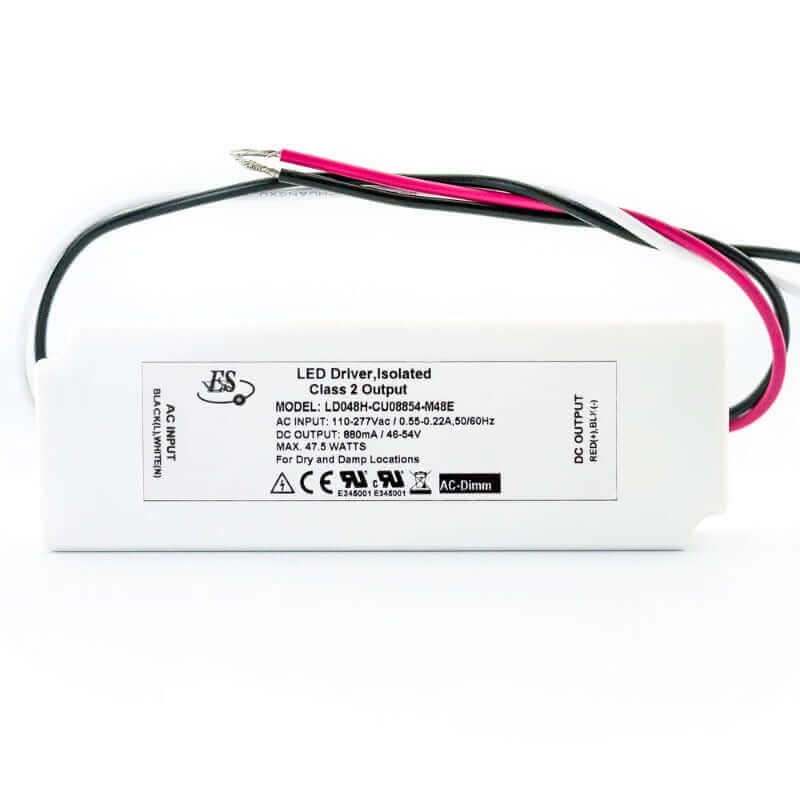

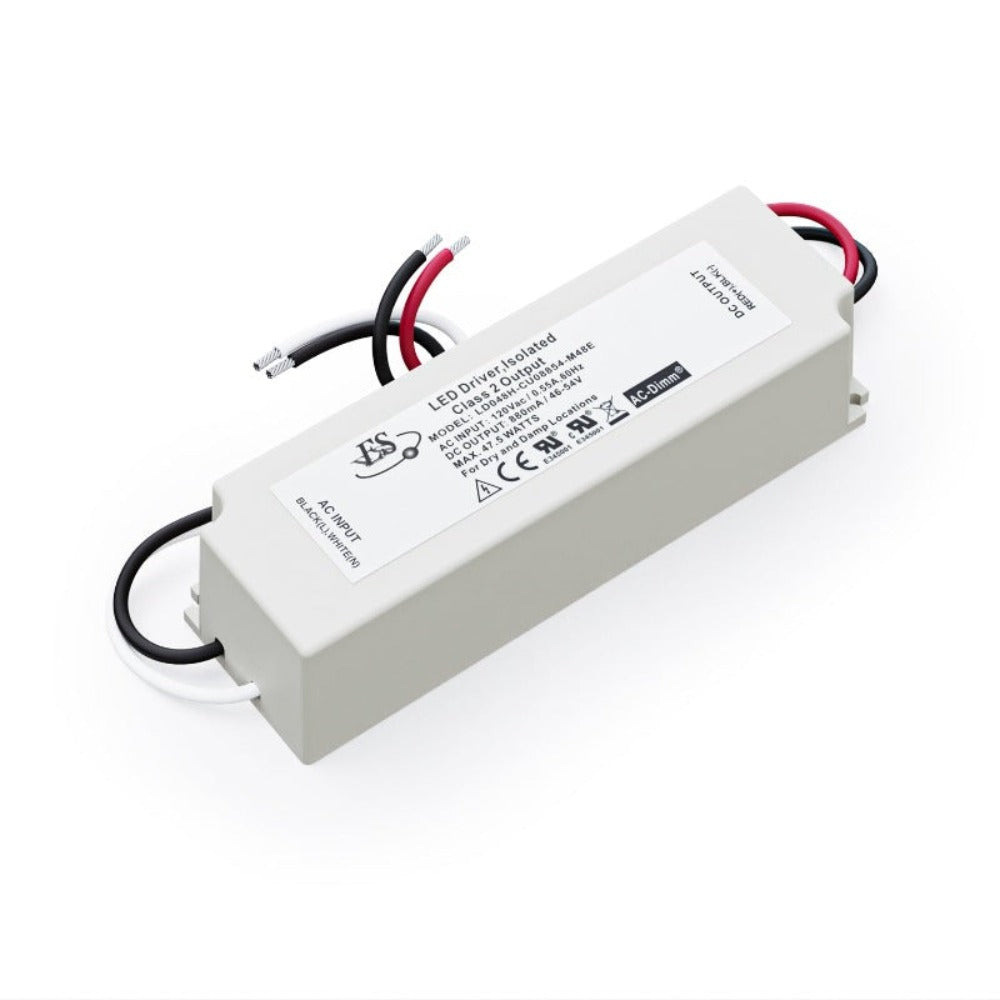

ES LD048H-CU08854-M48E Constant Current LED Driver, 880mA 46-54V 47.5W max
|Constant Current LED Driver
|Output Regulated Current
|137.8 x 32.3 x 47.2mm (5.42 x 1.27 x 1.85 in)
The ES LD048H-CU08854-M48E is a Constant Current LED Driver designed to provide a stable and reliable power source for high power LED lighting applications. The driver is designed to work with a wide input voltage range of 110 - 277V AC and has an input current range of 0.55-0.22A at 50/60Hz frequency.

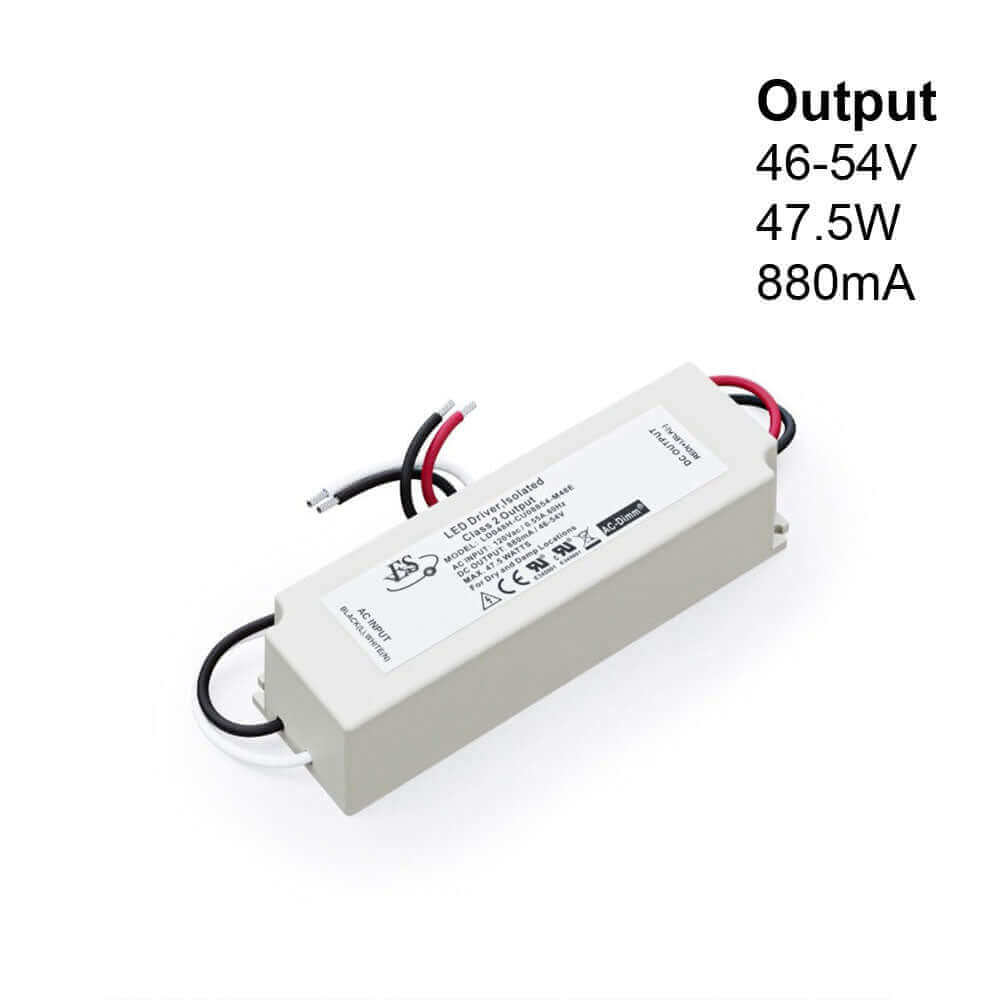

The driver provides a regulated output current of 880mA and a maximum output power of 47.5W, making it suitable for high power LED lighting applications. The output voltage range is 46-54V DC, making it suitable for powering LED lights with different voltage requirements within this range.
- The ES LD048H-CU08854-M48E is a Constant Current LED Driver designed for high power LED lighting applications.
- It has a wide input voltage range of 110-277V AC and input current range of 0.55-0.22A at 50/60Hz frequency.
- The driver provides a regulated output current of 880mA and a maximum output power of 47.5W.
- It has an output voltage range of 46-54V DC, making it suitable for powering LED lights with different voltage requirements within this range.
- The driver is dimmable, allowing for precise control over the brightness of the LED lighting.

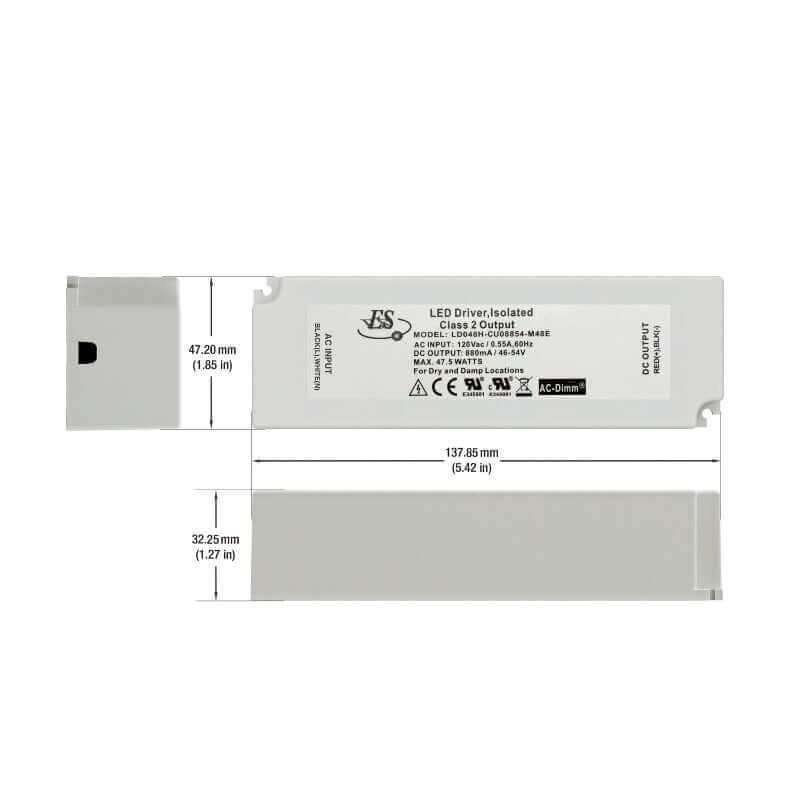

- The dimensions of the driver are 137.8 x 32.3 x 47.2mm (5.42 x 1.27 x 1.85 in), making it larger than some other LED drivers but still compact enough for easy installation.
- It is Class 2 certified, ensuring safety and reliability for use in a variety of lighting applications.
How to Install ES LD048H-CU08854-M48E Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
