Product Description
| Product | Constant Current LED Driver |
| Model | LD040D-CU09542-M28F |
| Input Voltage | 110-277V AC |
| Input Current | 0.46-0.16A |
| Frequency | 50/60Hz |
| Output Regulated Current | 950mA |
| Output Voltage | 27-42V DC |
| Output Power | 39.9W max |
| Dimmable | Yes |
| Weight | 0.25 kg |
| Class Certification | Class 2 Power Supply |

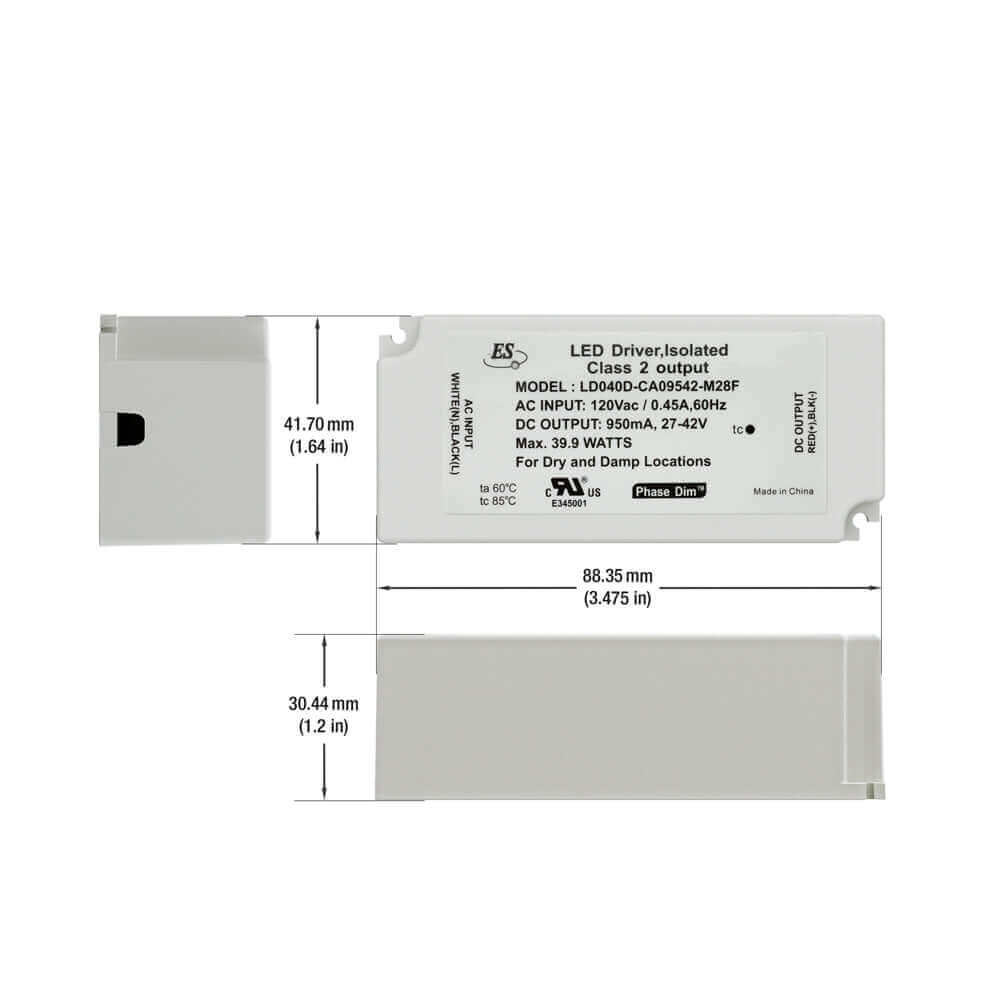

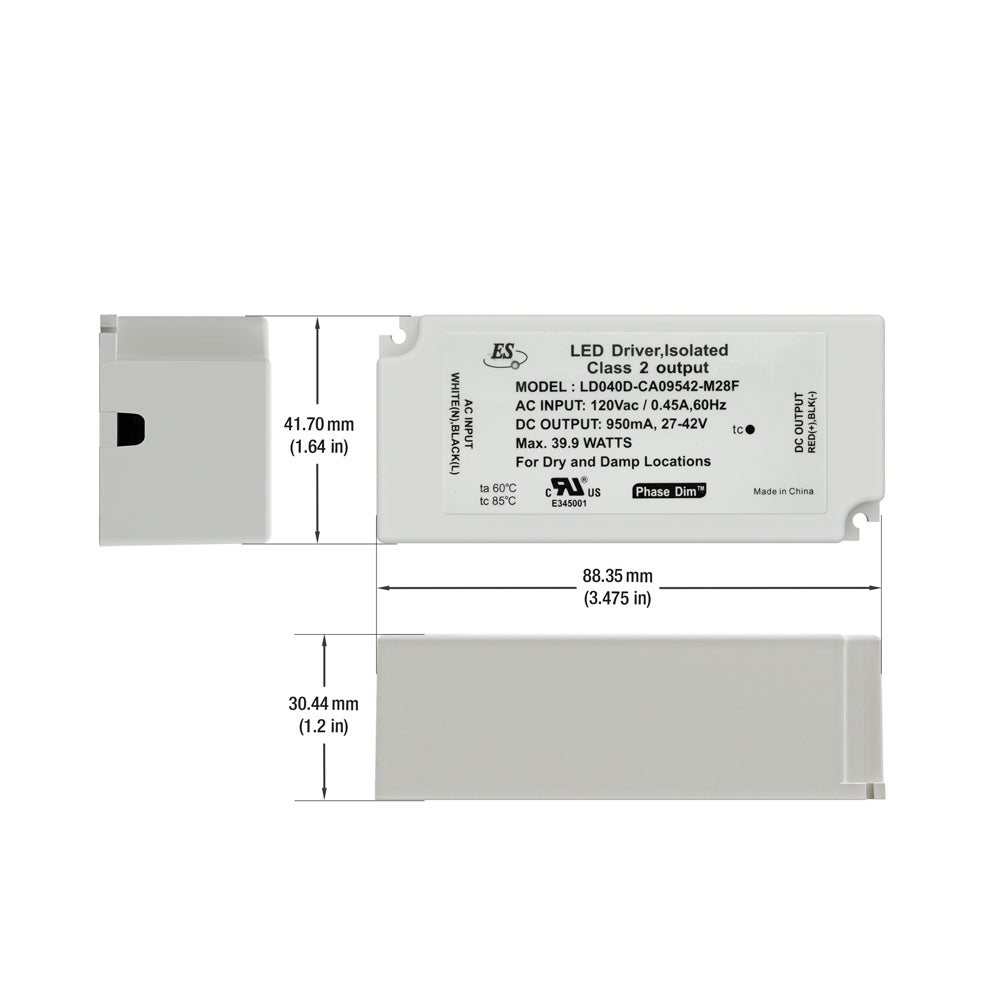

| Dimensions | 88.5 x 41.3 x 30.5mm (3.48 x 1.63 x 1.2in) |
| Certifications |

|
Features:

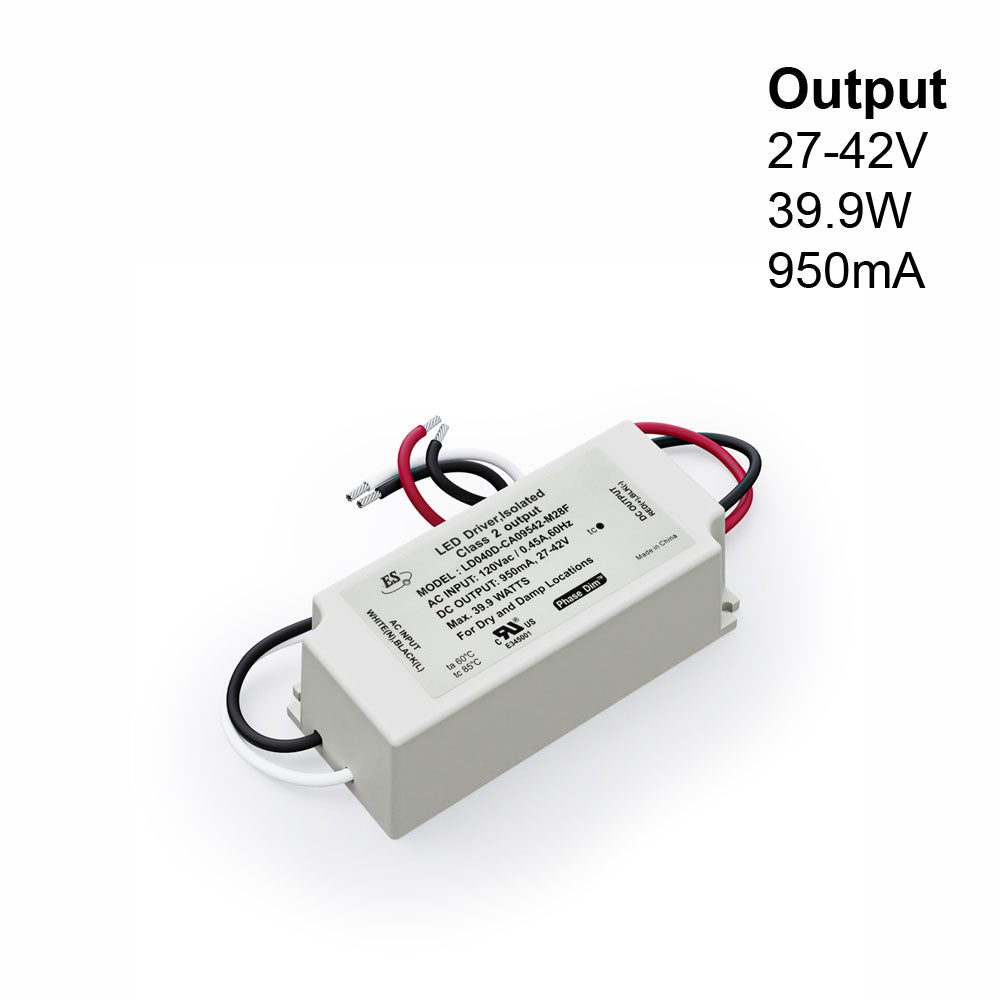

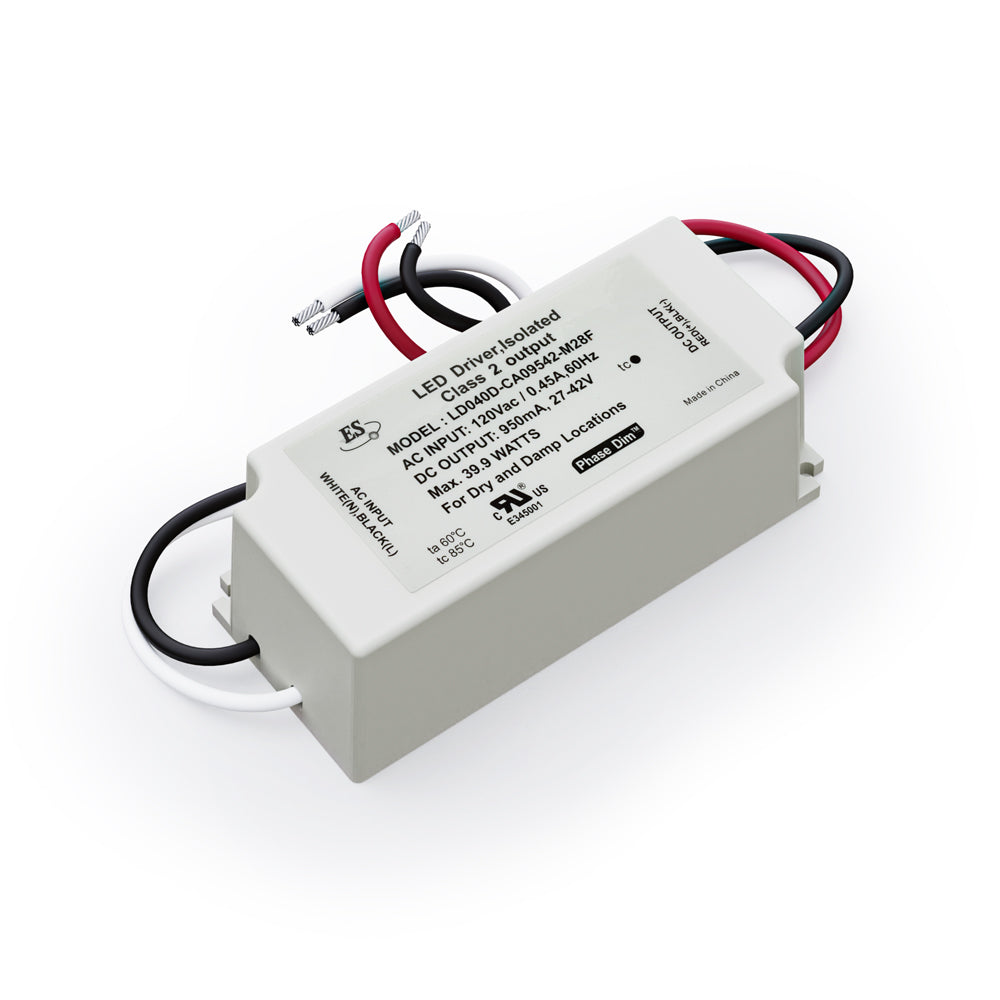

- The ES LD040D-CU09542-M28F is a constant current LED driver designed for LED lights with a regulated output current of 950mA and an output voltage range of 27-42V DC.
- It has an input voltage range of 110-277V AC, with an input current ranging from 0.46A to 0.16A and a frequency of 50/60Hz.
- The driver is also dimmable, providing flexibility in controlling the brightness of the connected LED lights.
- This LED driver has a maximum output power of 40W and is Class 2 certified, making it safe to use in indoor lighting applications.
- Constant Current LED Driver 950mA 27-42V 40W max, ES LD040D-CU09542-M28F
