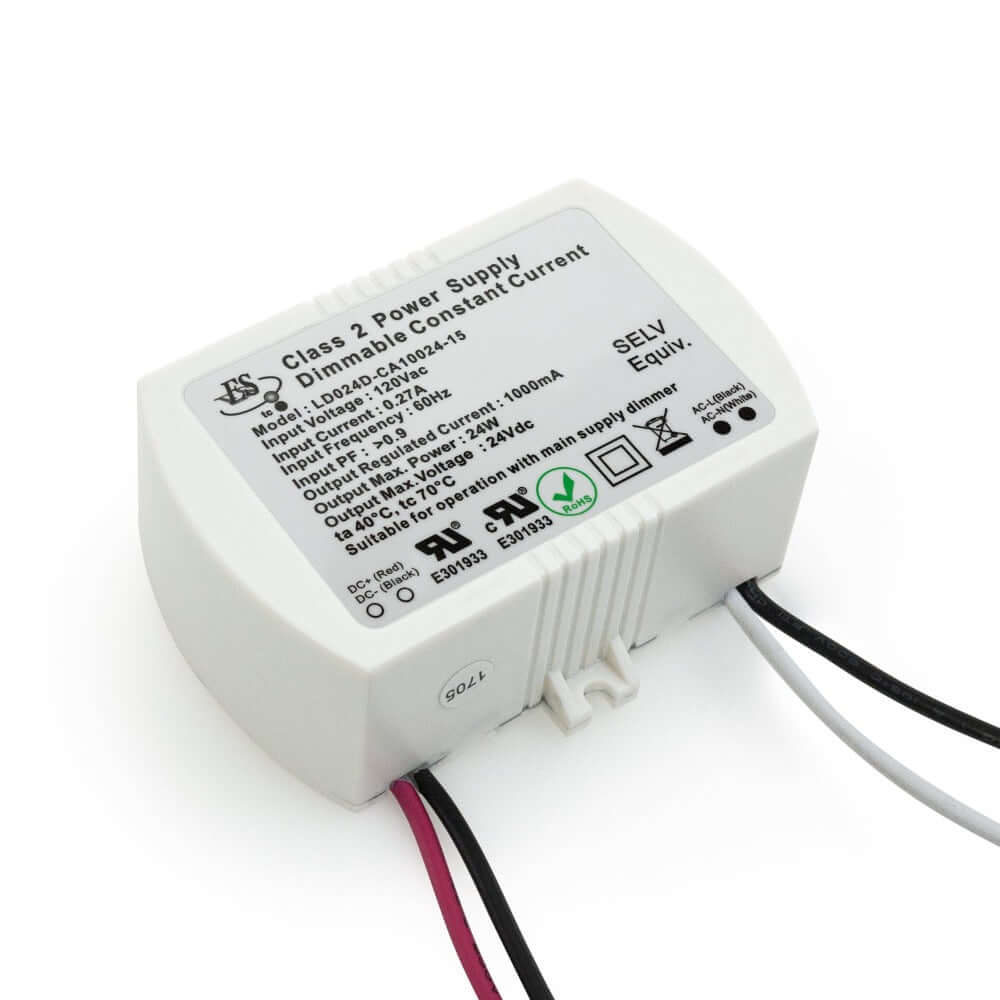

ES LD024D-CA10024-15 Constant Current LED Driver, 1000mA 24V 24W

Product Description

Product	Constant Current LED Driver
Model	LD024D-CA10024-15
Input Voltage	120V AC
Input Current	0.27A
Input Frequency	60Hz

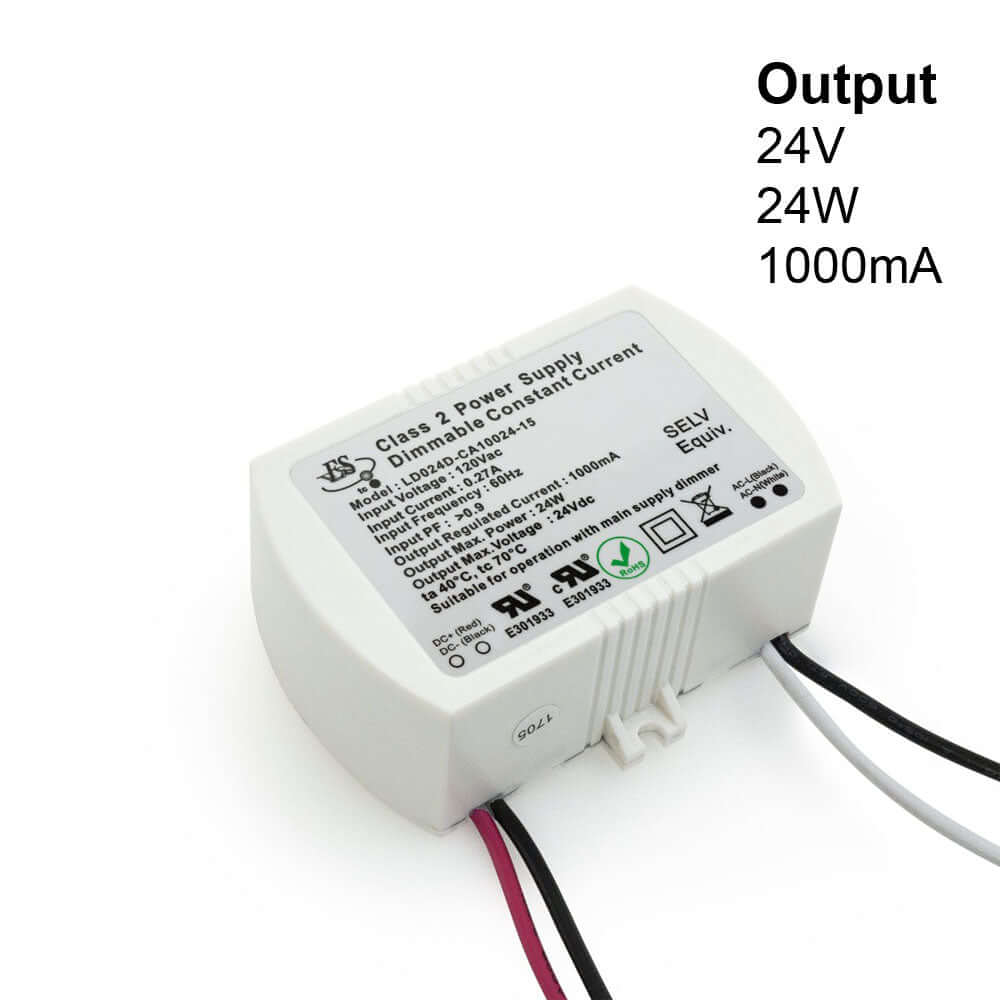

Output Regulated Current	1000mA
Output Power max	24W
Output Max Voltage	24V DC
Dimmable	Yes

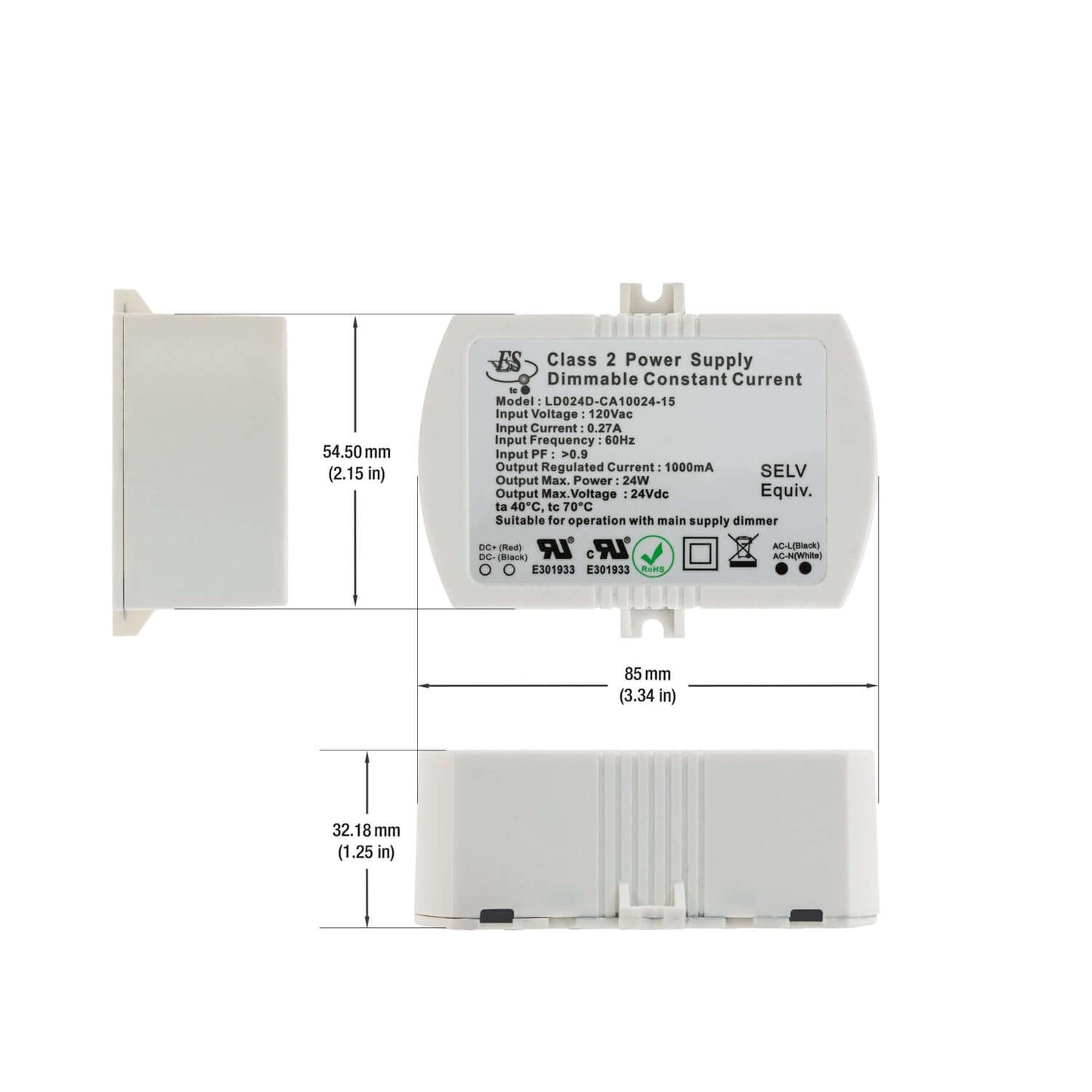

Dimensions	85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in)
Class Certification	Class 2/ Class II
Certification

The ES LD024D-CA10024-15 is a constant current LED driver designed to provide a regulated current of 1000mA to power LED lights. The driver is intended for use with an input voltage of 120V AC and an input frequency of 60Hz.

The output power of the driver is a maximum of 24W, making it capable of powering LED lights that require up to 24 watts of power. The output voltage ranges from 0 to 24V DC, which makes it compatible with a wide range of LED lights that operate within that voltage range.

The driver is also dimmable, which means you can adjust the brightness of the LED lights by connecting a compatible dimmer switch. This feature allows you to control the level of illumination in your space, providing greater flexibility and control.

The ES LD024D-CA10024-15 is Class 2/Class II certified, which means it has been tested and certified to meet safety standards for use in lighting applications. This certification indicates that the driver is designed with protective measures to prevent electrical shock and reduce the risk of fire hazards.

Features:

• The ES LD024D-CA10024-15 is a constant current LED driver designed to provide a regulated current of 1000mA to power LED lights.
• It is intended for use with an input voltage of 120V AC and an input frequency of 60Hz.
• The driver has a maximum output power of 24W, making it capable of powering LED lights that require up to 24 watts of power.
• The output voltage ranges from 0 to 24V DC, making it compatible with a wide range of LED lights that operate within that voltage range.
• The driver is dimmable, which allows you to adjust the brightness of the LED lights by connecting a compatible dimmer switch.
• The dimensions of the driver are 85 x 55 x 35 mm (3.5 x 2.25 x 1.4 in), making it compact and easy to install in a variety of locations.
• The ES LD024D-CA10024-15 is Class 2/Class II certified, indicating that it meets safety standards for use in lighting applications and is designed with protective measures to prevent electrical shock and reduce fire hazards.

How to Install ES LD024D-CA10024-15 Dimming Constant Current LED Driver?

1. Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.

2. Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.

3. Mount the driver: Use screws to mount the driver on a solid surface.

4. Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))

5. Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))

6. Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.

7. Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.

Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
