Product Description
| Product | Constant Current LED Driver |
| Model | LD012D-CA10012-26 |
| Input Voltage | 120V AC |
| Input Current | 0.2A |
| Power Factor | P.F > 0.9 |
| Frequency | 60Hz |
| Output Regulated Current | 1000mA |
| Output Power | 12W |
| Output Voltage | 8-12V DC |
| Dimmable | Yes |
| Weight | 0.2 kg |

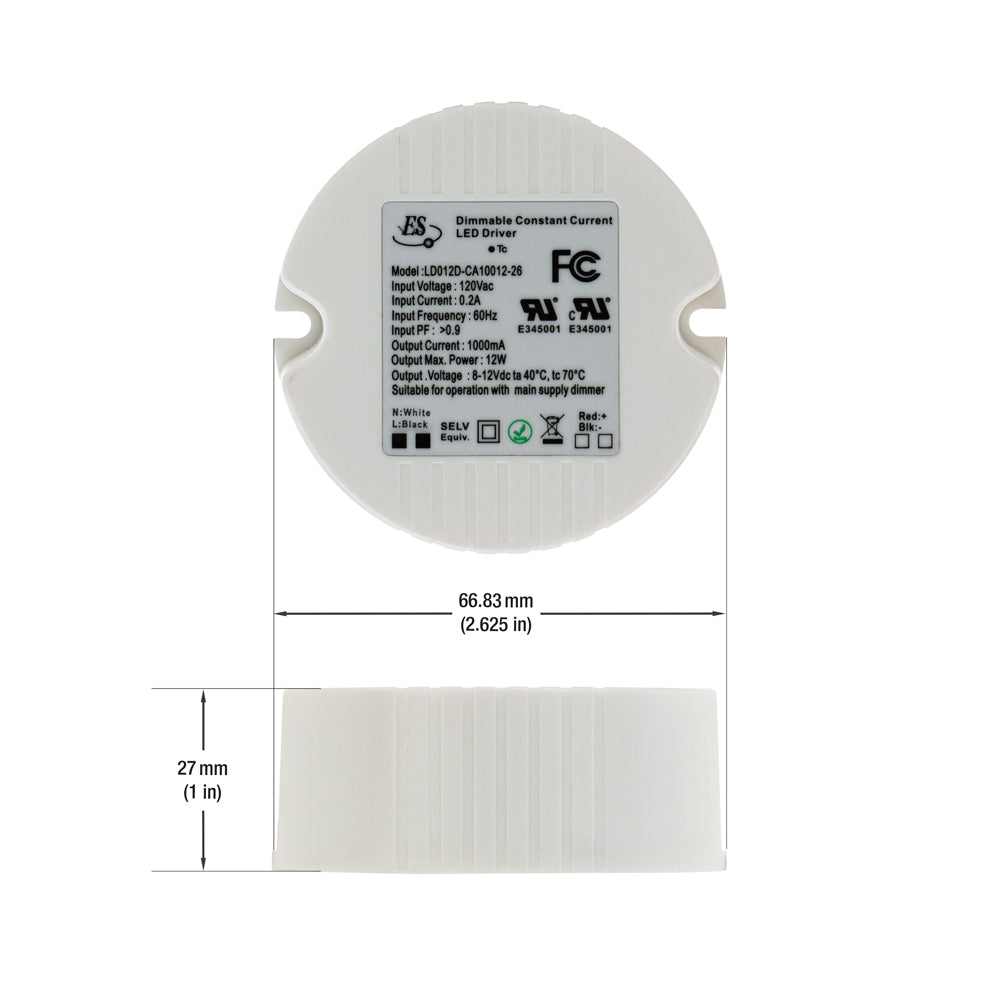

| Dimensions | Dia 67mm (2.65 in) x 27mm (1 in) Depth |
| Class Certification | Class II |
| Certification |

|
Features:
- The ES LD012D-CA10012-26 Constant Current LED Driver is designed for use with LEDs that require a constant current source.
- It has a model number of LD012D-CA10012-26 and operates on a 120V AC input voltage, drawing 0.2A input current at a frequency of 60Hz.
- The driver has a power factor of P.F > 0.9 and provides a regulated output current of 1000mA with a maximum output power of 12W.
- The output voltage of the driver ranges from 8-12V DC, making it suitable for a variety of LED lighting applications.
- The driver is also dimmable, offering additional flexibility in lighting design.
- Its dimensions are 67mm (2.65 in) in diameter and 27mm (1 in) in depth, making it a compact and space-saving option for LED lighting installations.
- The driver is classified as Class II, providing double insulation between the primary and secondary circuits for added safety.
