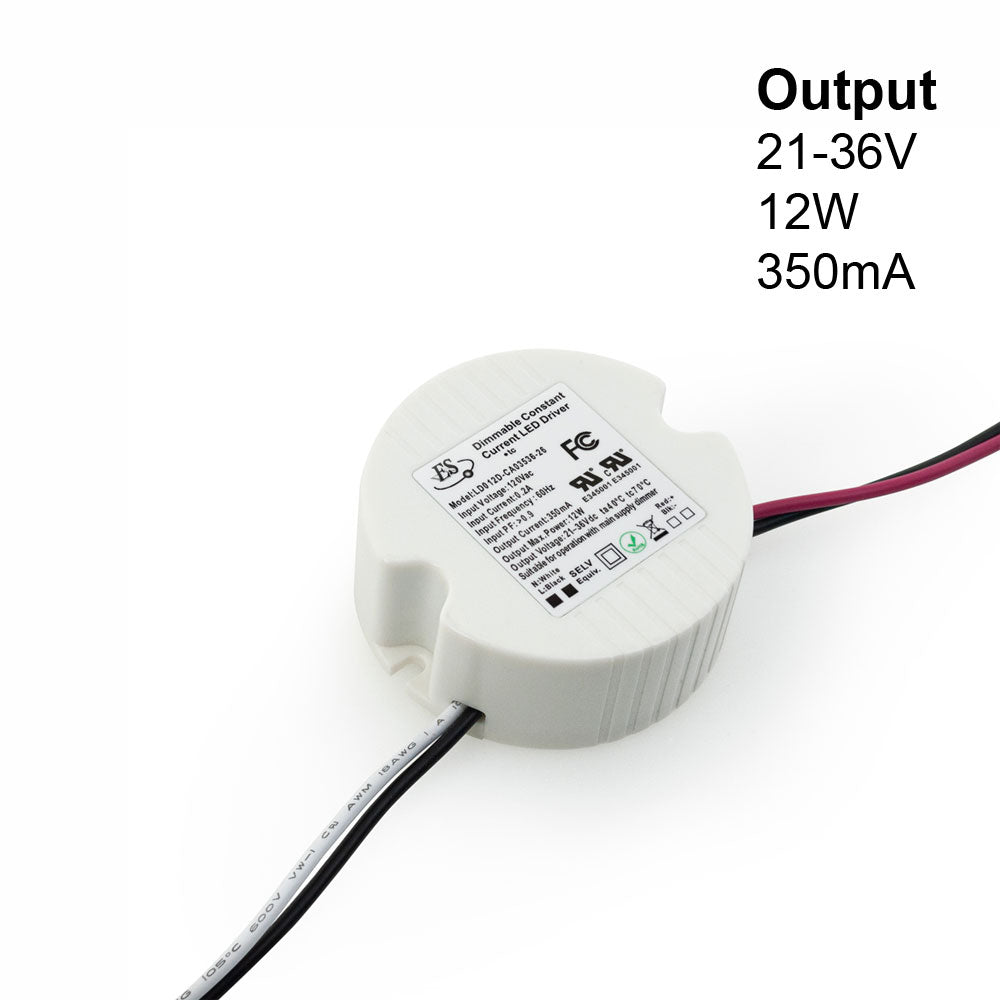

ES LD012D-CA03536-26 Constant Current LED Driver, 350mA 21-36V 12W max
|Product||Constant Current LED Driver|
|Input Voltage||120V AC|
|Output Regulated Current||350mA|
|Diameter||67mm (2.63 inches)|
|Depth||27mm (1.06 in)|
|Class Certification||Class II|
Constant current dimmable LED drivers are used for LED lights that require a fixed output current as well as a variety of output voltages. ES LD012D-CA03536-26 Dimming LED Constant Current Driver (Constant Current Power Supply) Suitable for lighting with 350mA output regulated current. This class 2 constant current driver has Input Voltage of 120V AC, can produce 21-36V DC output voltage and 12W of output power. It is suitable for operation with main supply dimmer and also suitable for dry and damp locations.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
How to Install ES LD012D-CA03536-26 Dimming Constant Current LED Driver?
It is easy to Install constant current power supply, by following these steps,
1. Make sure power is off.
2. Double check output current of the light and the driver.
3. Black and White color wires will be connected to 120V AC by splice the White color wire to Neutral (N) and the Black color Wire to Line (L).
4. Splice Red color wire to the positive (+) wire of the light and Black wire to the negative (-) wire of the light as well.
