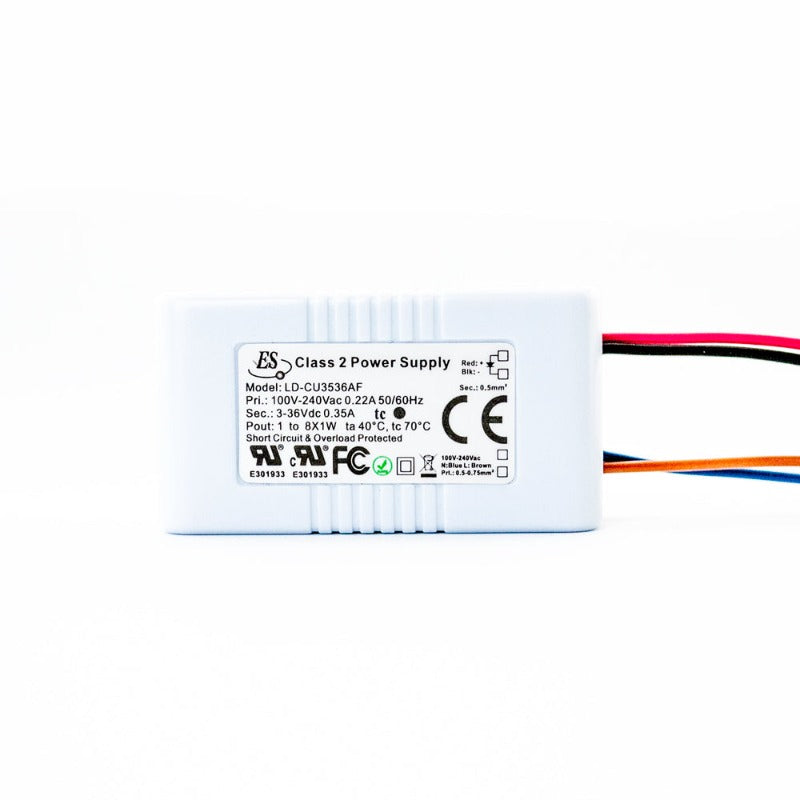

ES LD-CU3536AF Non-Dimmable Constant Current LED Driver, 350mA 3-36V 1-8W max
ES LD-CU3536AF Non-Dimmable Constant Current LED Driver, 350mA 3-36V 1-8W max
SKU: SKU:666561414009
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Non-dimmable Constant Current LED Driver |
| Model | LD-CU3536AF |
| Input Voltage | 100-240V AC |
| Input Current | 0.22A |
| Frequency | 50/60 Hz |

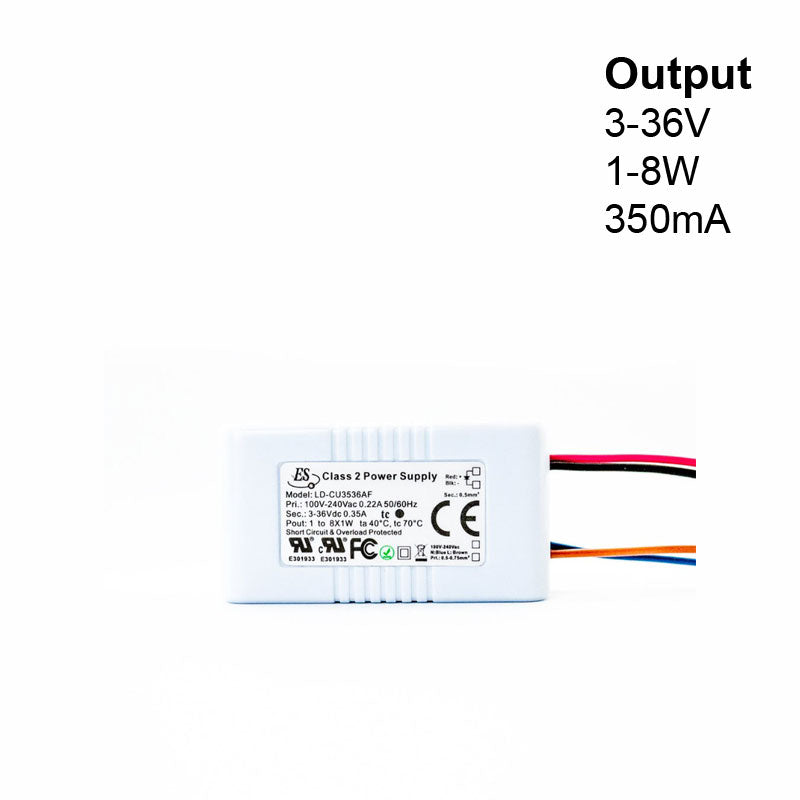

| Output Voltage | 3-36V DC |
| Output Regulated Current | 350mA |
| Output Power | 1-8W max |
| Dimmable: | No |

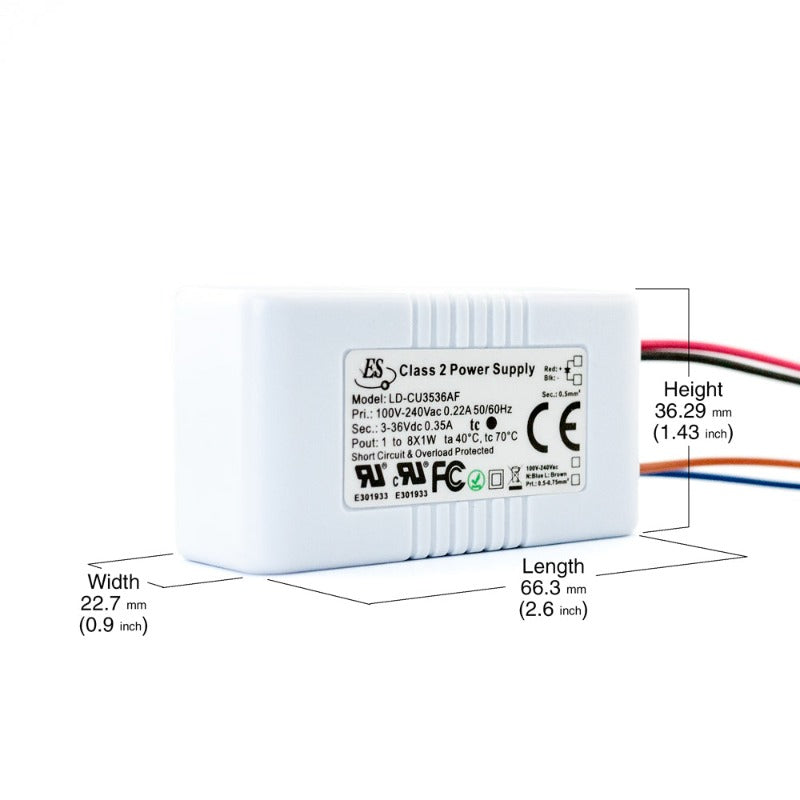

| Dimensions | 66.3 x 22.7 x 36.29 mm (2.6 x 0.9 x 1.43 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Short Circuit and Overload Protected |
| Applicable for dry and damp locations |
The ES LD-CU3536AF is a non-dimmable constant current LED driver designed to regulate and power LED lighting systems. It has an input voltage range of 100-240V AC and an input current of 0.22A. The frequency of this LED driver is 50/60 Hz.
This LED driver has an output voltage range of 3-36V DC and an output regulated current of 350mA. The maximum output power of this driver is 1-8W. The LD-CU3536AF is not dimmable and has a Class 2/Class II certification, indicating that it meets the safety requirements of the National Electrical Code (NEC) for low voltage lighting systems.
The dimensions of the LD-CU3536AF LED driver are 66.3 x 22.7 x 36.29 mm (2.6 x 0.9 x 1.43 in), making it compact and easy to install. This LED driver is suitable for use in dry and damp locations.
The LD-CU3536AF LED driver comes with short circuit and overload protection, making it a reliable and safe choice for powering LED lighting systems. It is applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.
Features:
- Non-dimmable constant current LED driver
- Input voltage range of 100-240V AC and input current of 0.22A
- Output voltage range of 3-36V DC and output regulated current of 350mA
- Maximum output power of 1-8W
- Class 2/Class II certification for meeting safety requirements of NEC for low voltage lighting systems
- Compact dimensions of 66.3 x 22.7 x 36.29 mm (2.6 x 0.9 x 1.43 in) for easy installation
- Suitable for use in dry and damp locations
- Short circuit and overload protection for reliable and safe use
- Applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.
