Product Description
| Product | Constant Current LED Driver |
| Model | LD018H-CU04342-M18E |
| Input Voltage | 120V AC |
| Input Current | 0.23A |
| Frequency | 60 Hz |
| Output Regulated Current | 430mA |
| Output Power | 18W |
| Output Voltage | 30-42V DC |
| Dimmable | Yes |
| Weight | 0.2 kg |
| Class Certification | Class 2/ Class II |

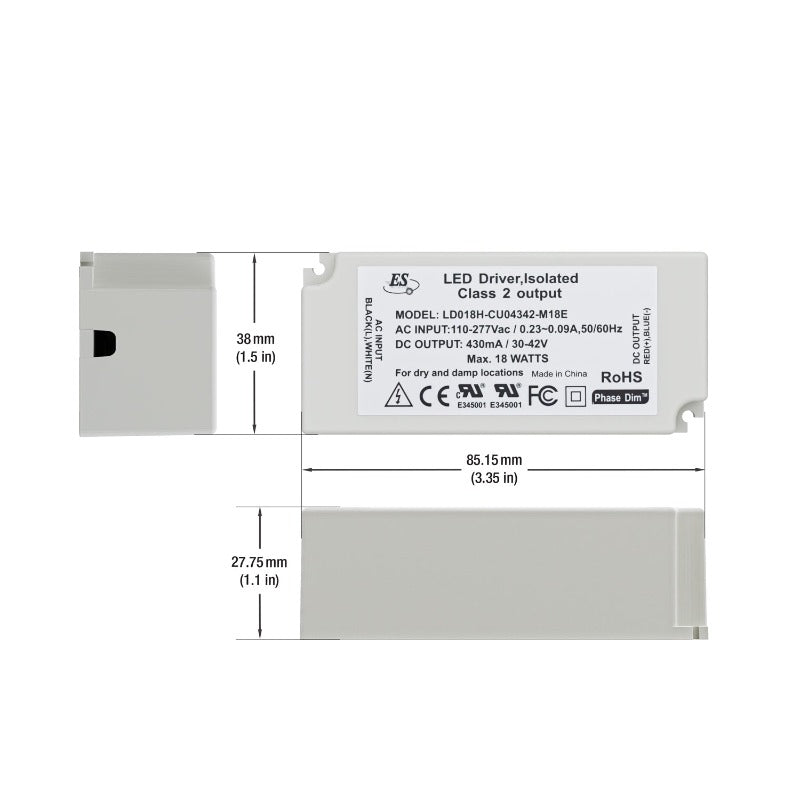

| Dimensions | 85.4 x 27.7 x 38mm (3.36 x 1.1 x 1.5in) |
| Certification |
    |
Features:

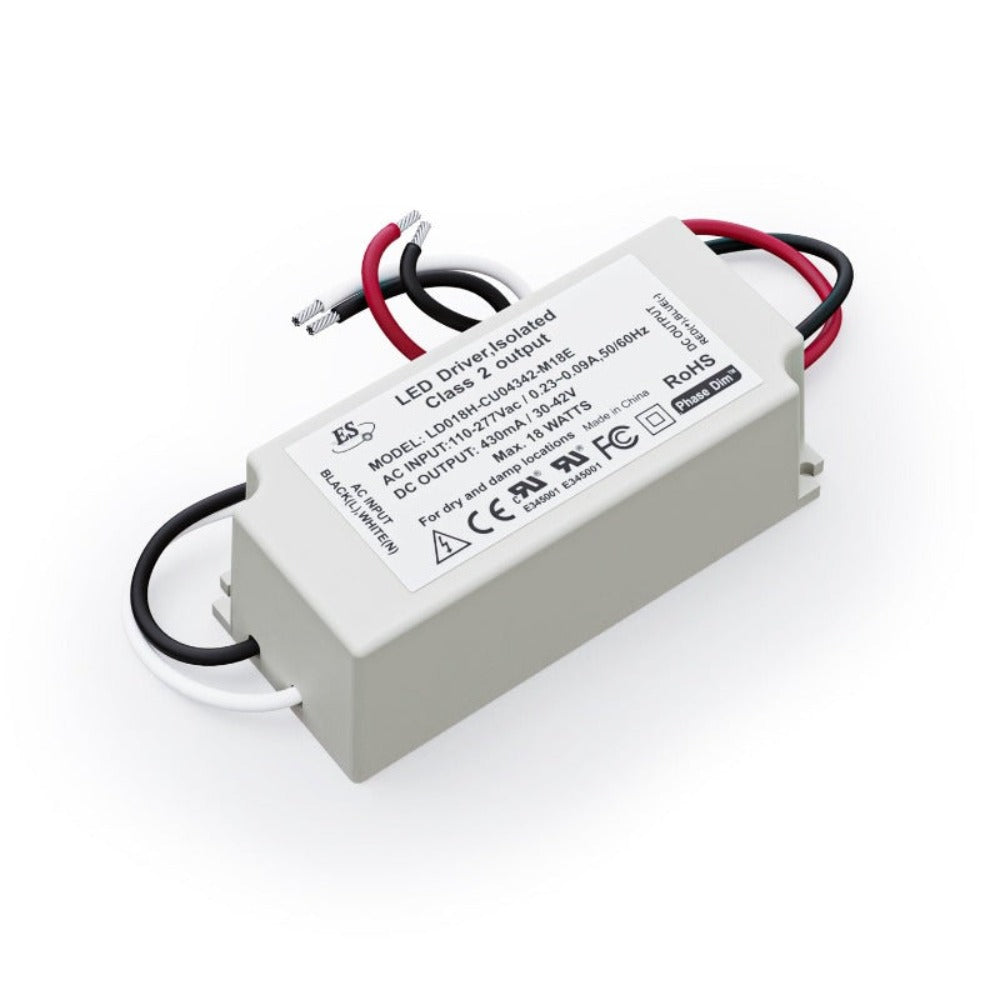

- The ES LD018H-CU04342-M18E is a Constant Current LED Driver
- It is designed to provide a stable and reliable power source for LED lighting applications
- The driver works with an input voltage of 120V AC and has an input current of 0.23A at 60 Hz frequency
- It provides a regulated output current of 430mA and a maximum output power of 18W
- The output voltage range is 30-42V DC, making it suitable for powering LED lights with different voltage requirements within this range
- The driver is dimmable, allowing for precise control over the brightness of the LED lighting

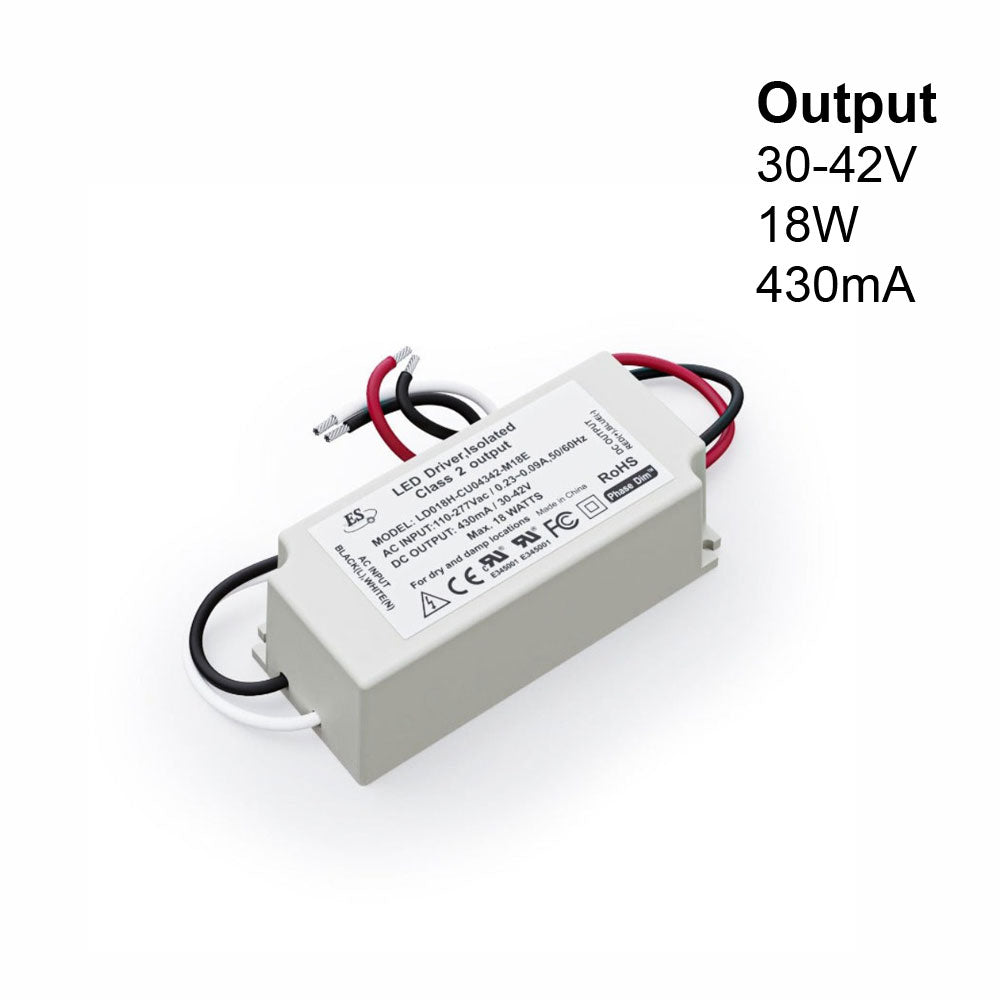

- Constant Current LED Driver 430mA 30-42V 18W max, ES LD018H-CU04342-M18E
