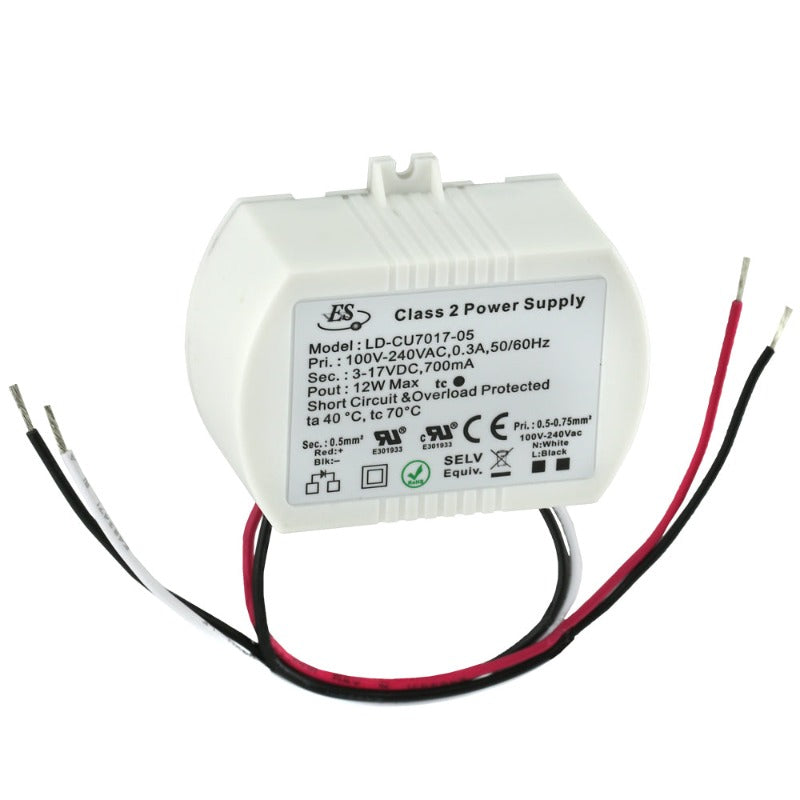

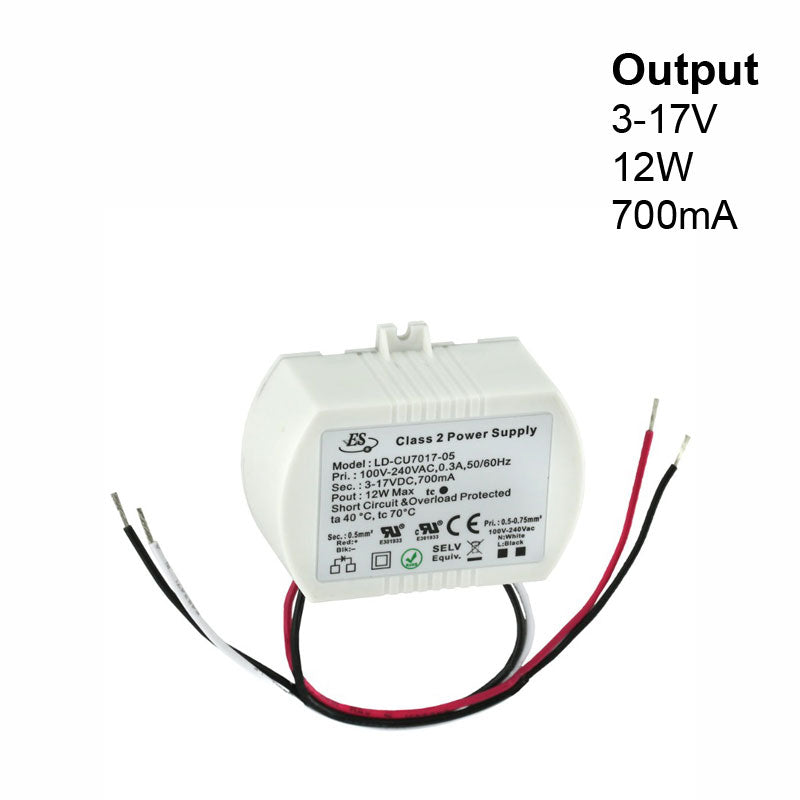

ES LD-CU07017-05 Non-Dimmable Constant Current LED Driver, 700mA 3-17V 12W

  • $42.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561412272
Title:
We only have 143 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).






Product Description

Product Non-dimmable Constant Current LED Driver
Model LD-CU07017-05
Input Voltage 100-240V AC
Input Current 0.3A
Frequency 50/60Hz
Output Regulated Current 700mA
Output Power Max 12W
Output Voltage Max 3-17V DC
Dimmable No

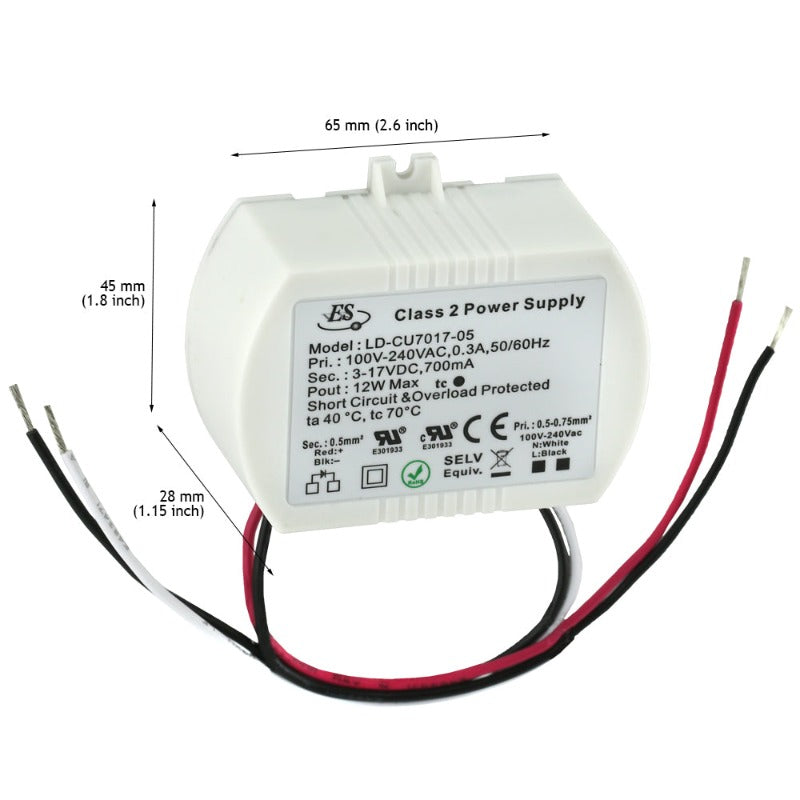

Dimensions 65 x 45 x 28 mm
(2.6 x 1.8 x 1.15 in)
Class Certification  Class 2/ Class II
Certification

Suitable for DRY and DAMP locations



The ES LD-CU07017-05 is a non-dimmable constant current LED driver designed to regulate and power LED lighting systems. It has an input voltage range of 100-240V AC and an input current of 0.3A with a frequency of 50/60Hz.

This LED driver has an output regulated current of 700mA and a maximum output power of 12W. It also has an output voltage range of 3-17V DC, making it suitable for use with a range of LED lighting fixtures. The LD-CU07017-05 LED driver is not dimmable and has a Class 2/Class II certification, which indicates that it meets the safety requirements of the National Electrical Code (NEC) for low voltage lighting systems.

The LD-CU07017-05 LED driver also comes with short circuit and overload protection, which makes it a reliable and safe choice for powering LED lighting systems. Overall, it is a versatile and efficient LED driver suitable for a wide range of indoor and outdoor LED lighting applications.

Features:

  • Non-dimmable constant current LED driver for regulating and powering LED lighting systems
  • Input voltage range of 100-240V AC and input current of 0.3A with a frequency of 50/60Hz
  • Output regulated current of 700mA and maximum output power of 12W
  • Output voltage range of 3-17V DC, suitable for use with a range of LED lighting fixtures
  • Class 2/Class II certification, meeting safety requirements of the National Electrical Code (NEC) for low voltage lighting systems
  • Compact dimensions of 65 x 45 x 28 mm (2.6 x 1.8 x 1.15 in)
  • Suitable for use in both dry and damp locations
  • Short circuit and overload protection for reliable and safe operation
  • Applicable for use in various types of LED lighting fixtures, including indoor and outdoor lighting applications.
