ES LD018D-CU07024-M18F Constant Current LED Driver, 700mA 15-24V 16.8W
|Constant Current LED Driver
|Output Regulated Current
|Output Voltage max
|85.26 x 28 x 38 mm (3.35 x 1.1 x 1.5 in)
|Class 2/ Class II

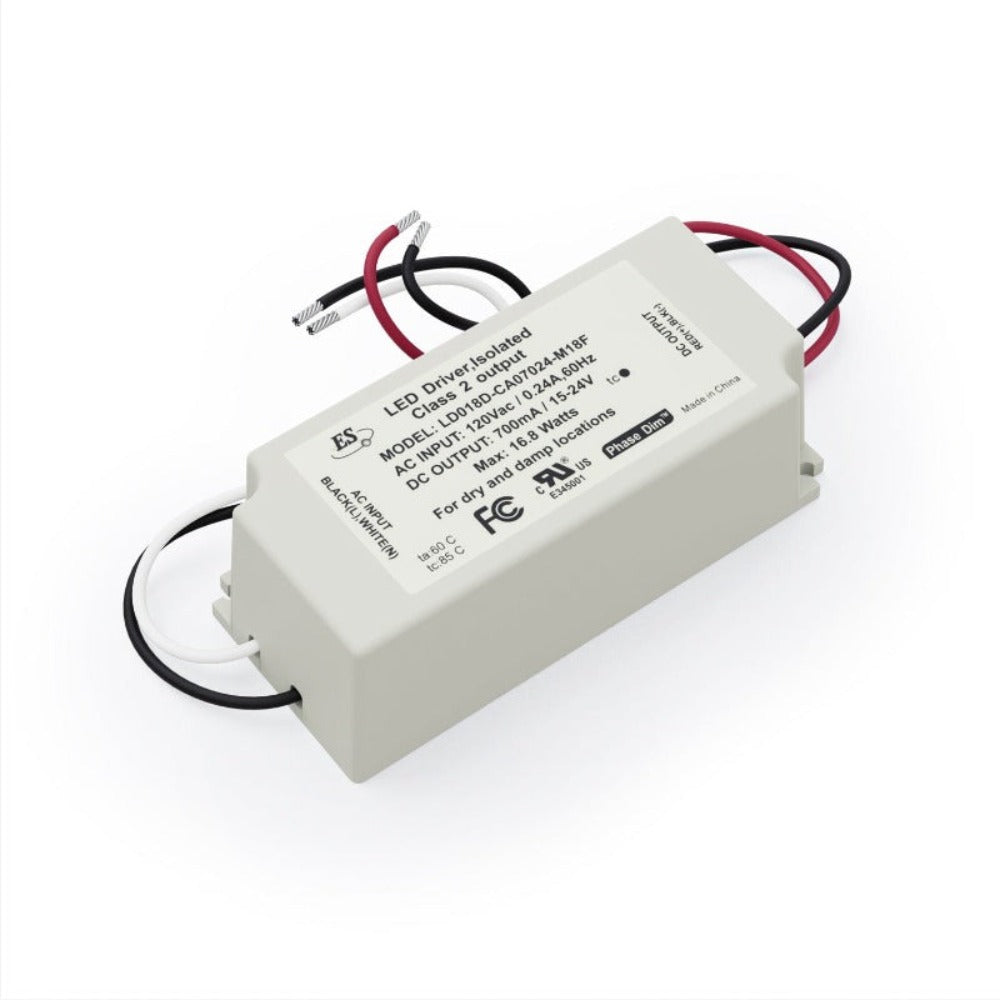

The ES LD018D-CU07024-M18F is a Constant Current LED Driver designed to provide a stable and reliable power source for LED lighting applications. The driver is designed to work with an input voltage of 110V AC and has an input current of 0.23A at 60Hz frequency.
The driver provides a regulated output current of 700mA and a maximum output power of 16.8W. The output voltage range is 15-24V DC, making it suitable for powering LED lights with different voltage requirements within this range.

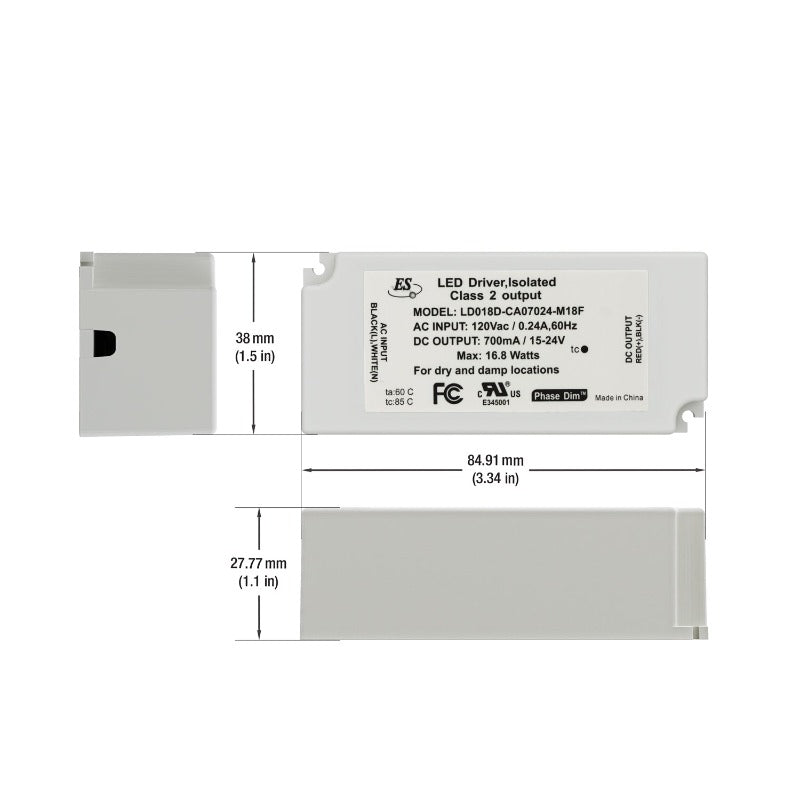

The driver is also dimmable, allowing for precise control over the brightness of the LED lighting. The dimensions of the driver are 85.26 x 28 x 38 mm (3.35 x 1.1 x 1.5 in), making it compact and easy to install.
- The ES LD018D-CU07024-M18F is a Constant Current LED Driver designed for LED lighting applications.
- It works with an input voltage of 110V AC and has an input current of 0.23A at 60Hz frequency.
- The driver provides a regulated output current of 700mA and a maximum output power of 16.8W.
- The output voltage range is 15-24V DC, suitable for powering LED lights with different voltage requirements within this range.
- It is also dimmable, allowing for precise control over the brightness of the LED lighting.
- The driver is compact with dimensions of 85.26 x 28 x 38 mm (3.35 x 1.1 x 1.5 in), making it easy to install.
- The driver is Class 2/Class II certified, ensuring safety and reliability for use in a variety of lighting applications.
- Overall, the ES LD018D-CU07024-M18F is a reliable and versatile LED driver suitable for a wide range of lighting applications, especially those requiring higher output currents and lower output voltages.
How to Install ES LD018D-CU07024-M18F Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
