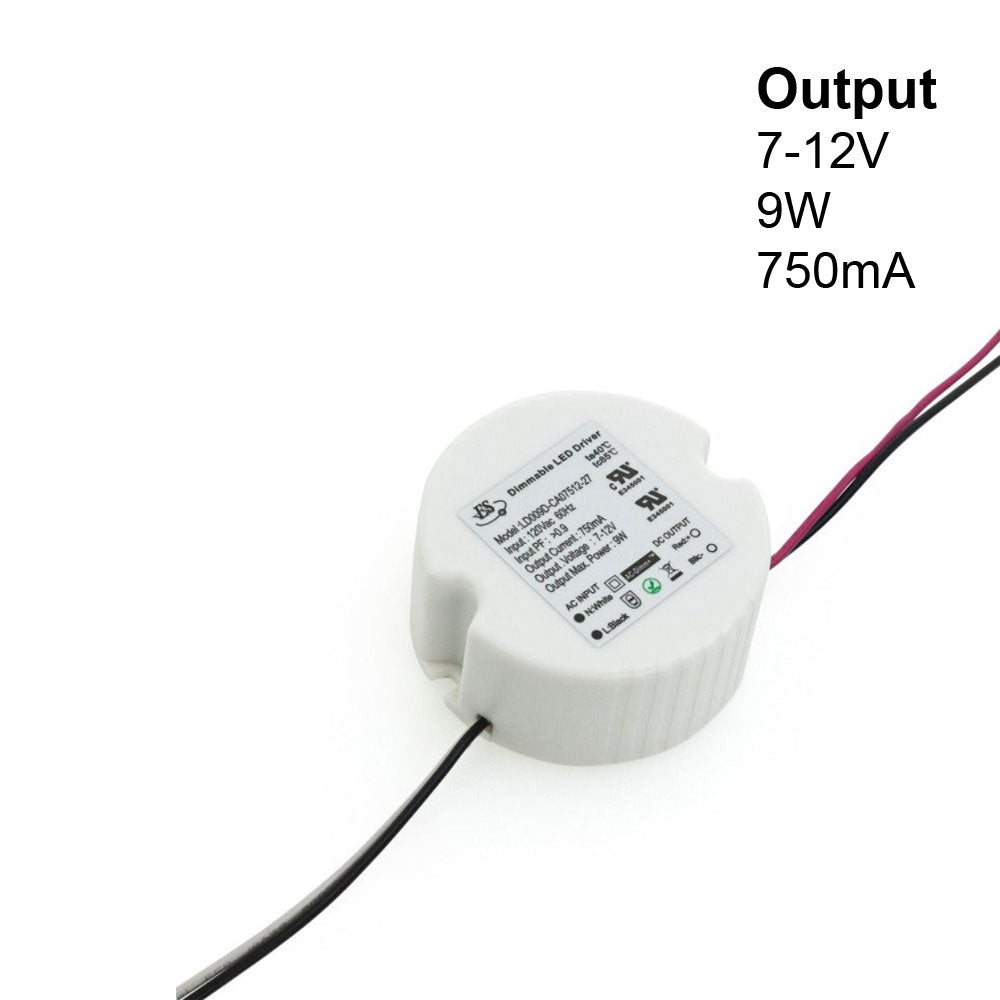

ES LD009D-CA07512-27 Constant Current LED Driver, 750mA 7-12V 9W max
|Product||Constant Current LED Driver|
|Input Voltage||120V AC|
|Output voltage||7-12V DC|
|Output regulated current||750 mA|
|Output max Power||9W max|
|Class Certification||Class II|

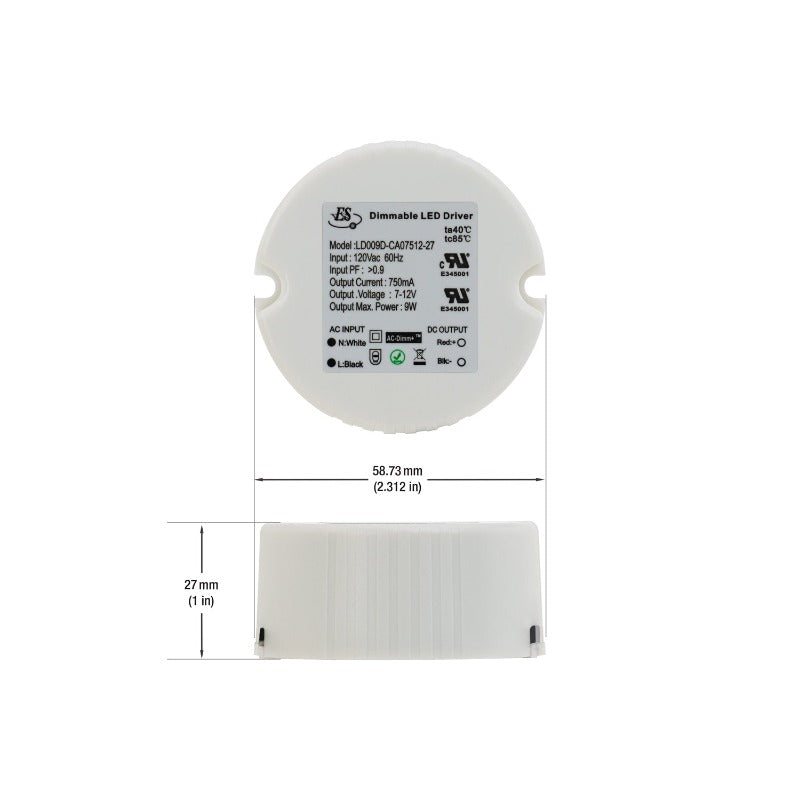

|Dimensions||60mm (2.4 in) Dia x 25mm(1 in) Depth|

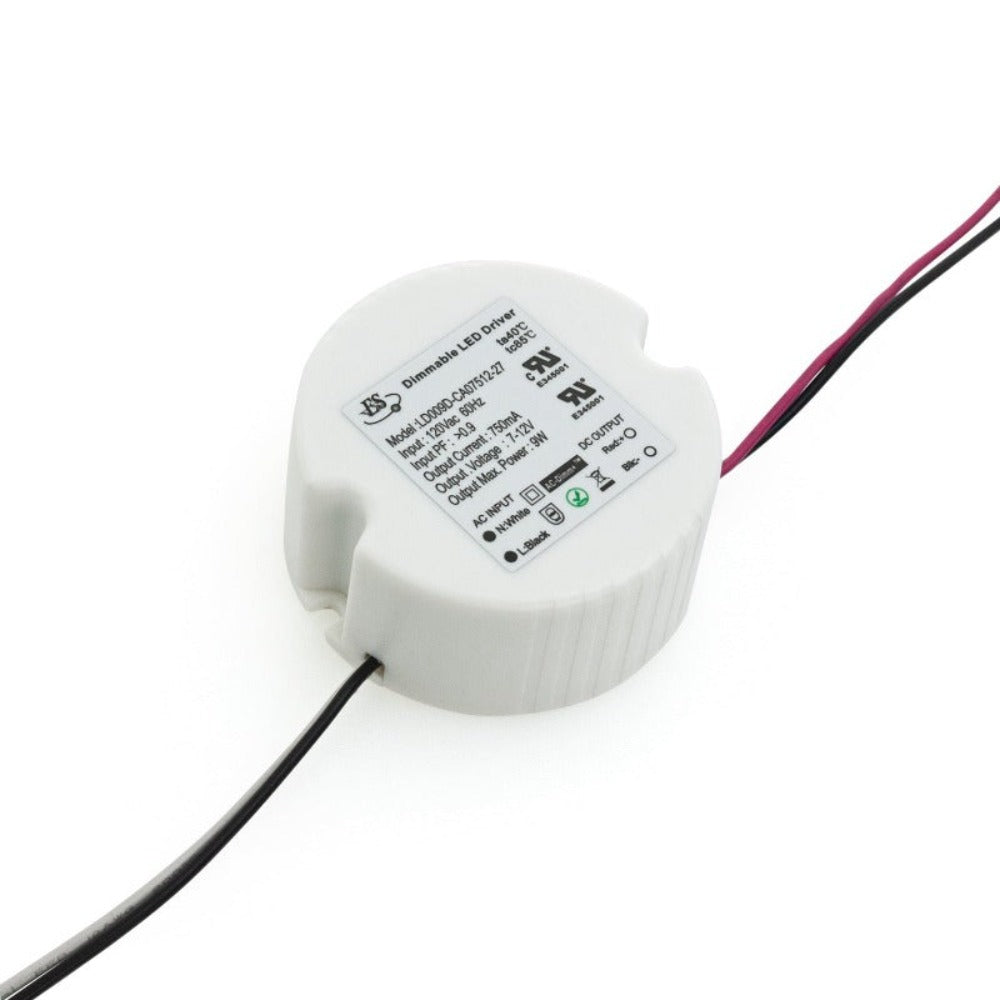

The ES LD009D-CA07512-27 is a constant current LED driver designed to power LED lighting fixtures. It has a model number of LD009D-CA07512-27 and is designed to operate on an input voltage of 120V AC with a frequency of 60Hz.
The driver has a power factor of P.F>0.9, indicating that it is highly efficient and can deliver maximum power to the LED lighting fixtures with minimum energy loss.
The output voltage of the driver can vary between 7-12V DC, allowing it to be used with a wide range of LED lighting fixtures that require different voltages. The driver is also capable of delivering a regulated output current of 750mA with a maximum output power of 9W, making it suitable for use with LED lighting fixtures with power requirements up to 9 watts.
The driver is also dimmable, making it easy to adjust the brightness of the LED lighting fixtures as needed. It has Class II certification, indicating that it is designed for use in locations where a grounded electrical system is not available.
The driver has dimensions of 60mm (2.4 in) in diameter and 25mm(1 in) in depth, making it compact and easy to install in tight spaces. Overall, the ES LD009D-CA07512-27 constant current LED driver is an efficient and reliable solution for powering LED lighting fixtures in a variety of applications.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- The ES LD009D-CA07512-27 is a constant current LED driver designed for LED lighting fixtures
- Model number: LD009D-CA07512-27
- Input voltage: 120V AC, 60Hz
- Power factor: P.F>0.9 for efficient power delivery with minimum energy loss
- Output voltage range: 7-12V DC, suitable for a wide range of LED lighting fixtures
- Regulated output current: 750mA
- Maximum output power: 9W, making it suitable for use with LED lighting fixtures with power requirements up to 9 watts
- Dimmable, allowing adjustment of the brightness of the connected LED lights
- Class II certified for use in locations where a grounded electrical system is not available
- Dimensions: 60mm (2.4 in) in diameter and 25mm(1 in) in depth, making it compact and easy to install in tight spaces
How to Install ES LD009D-CA07512-27 Dimming Constant Current LED Driver?
Turn off the power: Before installing the LED driver, make sure to turn off the power to the circuit from the circuit breaker or the main electrical panel.
Choose the installation location: Select a suitable location to mount the driver. The location should be dry and free from any heat sources.
Mount the driver: Use screws to mount the driver on a solid surface.
Connect the input wires: Connect the input wires from the driver to the AC power source. Make sure to match the correct wires (hot and neutral) from the driver to the corresponding wires from the power source. (White color wire to Neutral (N) and the Black color Wire to Line (L))
Connect the output wires: Connect the output wires from the driver to the LED lighting fixture. Make sure to match the correct wires (positive and negative) from the driver to the corresponding wires from the fixture. ( Red color wire to the positive (+) and Black wire to the negative (-))
Test the installation: Once the connections are made, turn on the power to the circuit and test the LED fixture to ensure it is working properly.
Adjust dimming settings: If the driver is dimmable, follow the manufacturer's instructions to connect the dimming wires and adjust the dimming settings as required.
Note: It's important to follow the specific instructions provided by the manufacturer for your LED driver, as installation procedures may vary based on the model and manufacturer. If you are not comfortable with electrical installations, it is recommended to consult a licensed electrician for assistance.
